◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#69819) — 42 parça

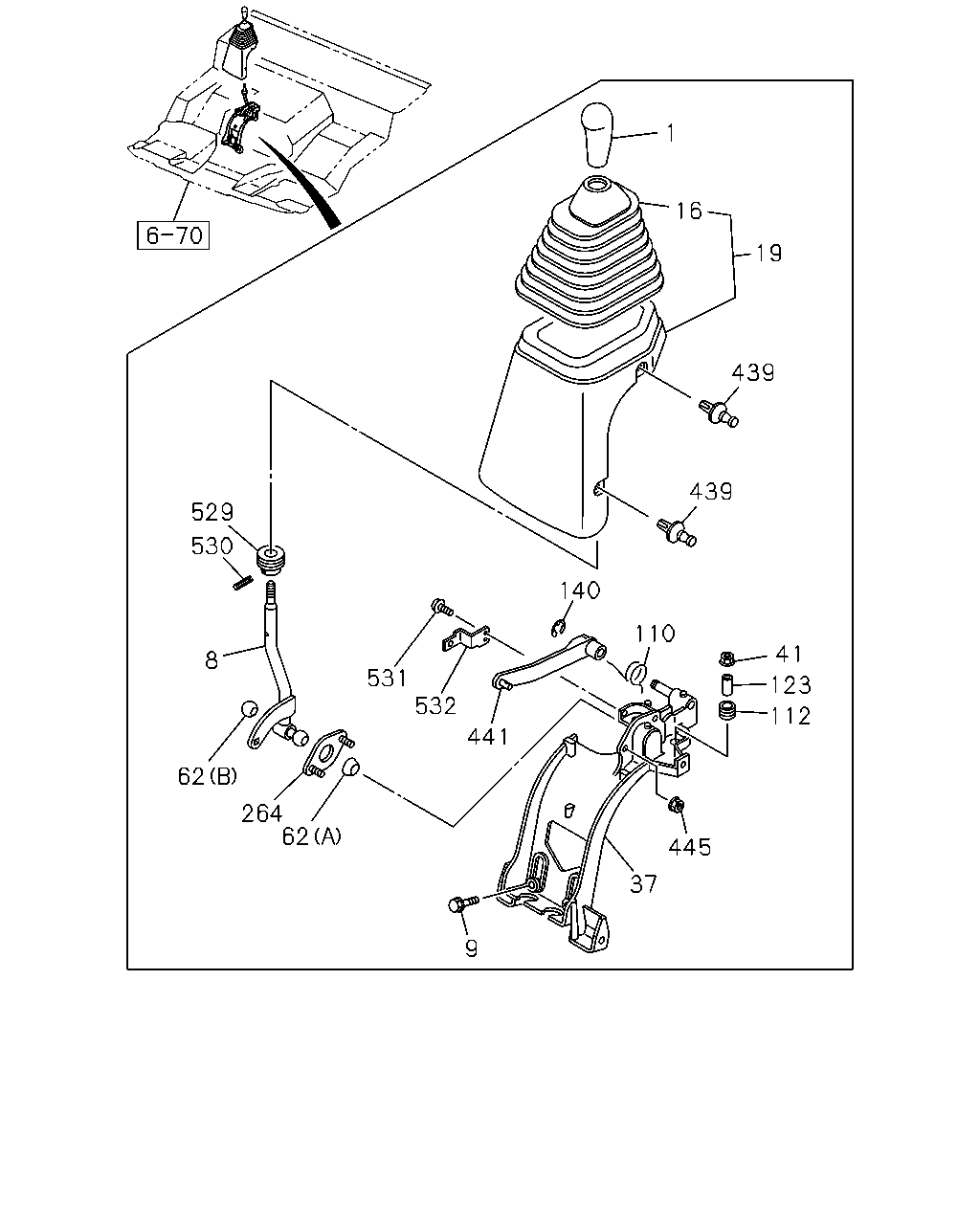

çizim 113882
9 37 445 112 123 41 439 439 19 1 16 140 110 441 532 531 62 264 62 8 530 529
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1011-1102 ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1103- ● ●
8 LEVER; CHANGE 8-98071-282-0 01 1 1011-1102 ●
8 LEVER; CHANGE 8-98071-282-0 01 1 1103- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1011-1102 ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1103- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1011-1102 ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1103- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1011-1102 ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-953-0 01 1 1103- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-281-0 01 1 1011-1102 ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-281-0 01 1 1103- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1011-1102 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1103- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1011-1102 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1103- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1011-1102 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1103- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1011-1102 ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1103- ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 1011-1102 ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 1103- ● ●
123 COLLAR; DIST,CHANGE LEVER 8-97091-427-0 04 1 1011-1102 ●
123 COLLAR; DIST,CHANGE LEVER 8-97091-427-0 04 1 1103- ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1011-1102 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1103- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 1011-1102 ●
264 PLATE; COVER 1-33619-430-0 01 1 1103- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1011-1102 ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1103- ● ●
441 LEVER; SELECT 8-98071-283-0 01 1 1011-1102 ●
441 LEVER; SELECT 8-98071-283-0 01 1 1103- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1011-1102 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1103- ● ●
529 RING; BOOT 1-33619-504-0 01 1 1011-1102 ●
529 RING; BOOT 1-33619-504-0 01 1 1103- ● ●
530 PIN; SPRING 1-33619-505-0 01 1 1011-1102 ●
530 PIN; SPRING 1-33619-505-0 01 1 1103- ● ●
531 SCREW; STAY
M5X10 W/PL WASHER 		9-03900-510-0 01 1 1011-1102 ●
531 SCREW; STAY
M5X10 W/PL WASHER 		9-03900-510-0 01 1 1103- ● ●
532 STAY 8-98071-284-0 01 1 1011-1102 ●
532 STAY 8-98071-284-0 01 1 1103- ● ●
