Sayfa 2-25 - Isuzu EPC

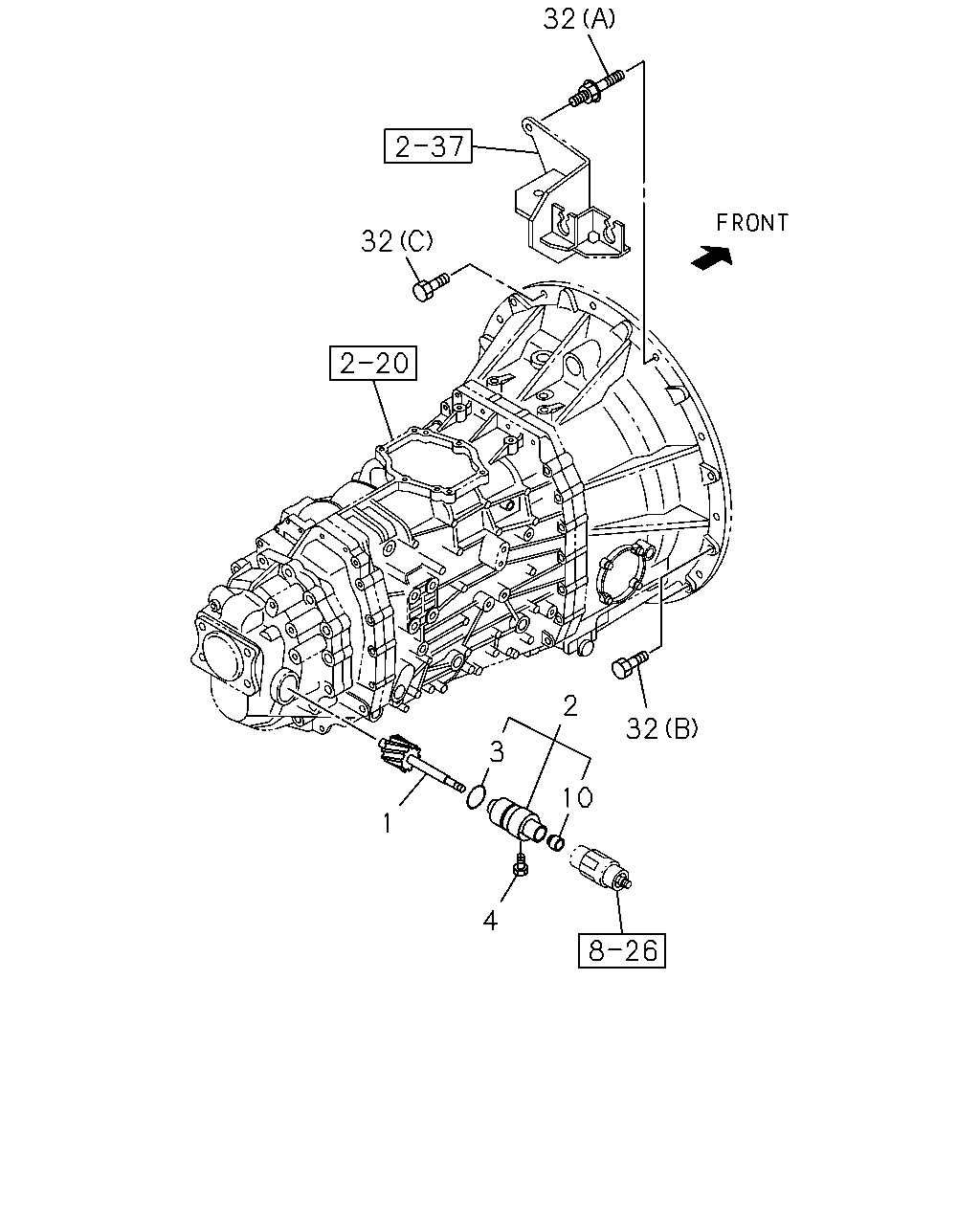

2-25 — SPEEDOMETER DRIVEN GEAR (#69816) — 8 parça

32 32 10 2 1 4 32 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	1011-
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	1011-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	1011-
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	1011-
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	1011-
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X45 FLANGE	0-28151-045-0	06	1	1011-
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X60 FLANGE	0-28151-060-0	02	1	1011-
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X45 L=75	8-98010-335-0	02	1	1011-
