2-05 — CLUTCH PIPING (#69811) — 58 parça

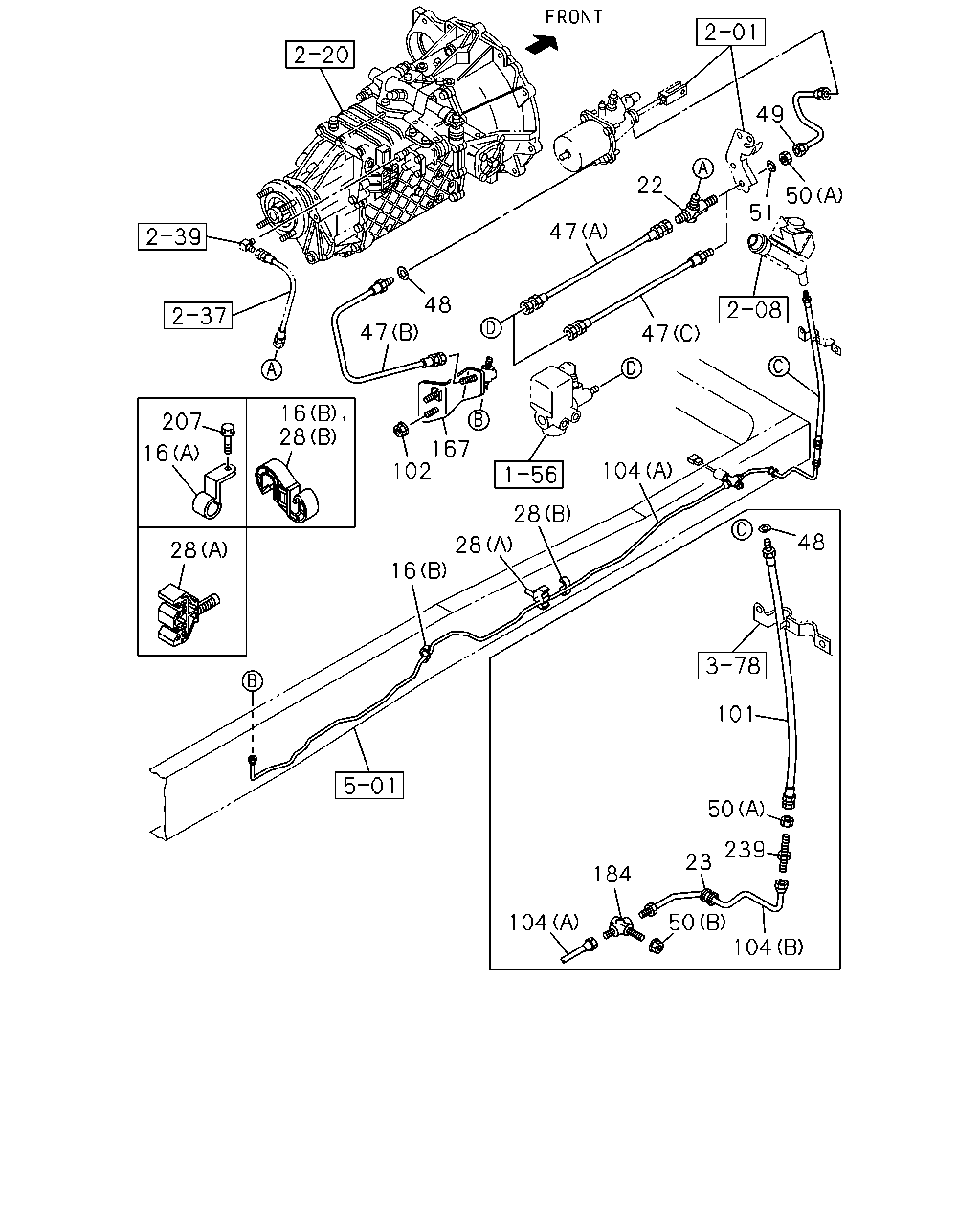

çizim 102438
104 50 104 184 23 50 239 101 48 28 207 16 28 16 16 28 28 104 50 51 49 22 47 48 47 167 102 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
(A) ID=15 L=22 H=30 		1-09701-215-1 01 1 1011-1102 ●
16 CLIP; FLEX HOSE
(A) ID=15 L=22 H=30 		1-09701-215-1 01 1 1103- ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1011-1102 ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1103- ● ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 1011-1102 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 1103- ● ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1011-1102 ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1103- ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1011-1102 ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1103- ● ●
28 CLIP; OIL PIPE
(A) 		8-98012-254-1 01 1 1011-1102 ●
28 CLIP; OIL PIPE
(A) 		8-98012-254-1 01 1 1103- ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=580 		1-09363-613-1 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=640 		1-09363-626-1 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1011-1102 ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1103- ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 1011-1102 ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 1103-1306 ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 1307- ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1011-1102 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1103-1306 ● ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1307- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1011-1102 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1103-1306 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1307- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1011-1102 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1103- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1011-1102 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1103-1306 ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1307- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1011-1102 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1011-1102 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1011-1102 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1103-1306 ● ●
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1307- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 1103- ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1011- ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1011-1102 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1103- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2048 		8-98147-536-0 01 1 1011-1102 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2048 		8-98147-536-0 01 1 1103-1306 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2050 		8-98236-929-0 01 1 1307- ● ●
167 BRACKET; UNION 8-98234-134-0 01 1 1307- ●
167 BRACKET; UNION 8-98115-978-1 01 1 1011-1102 ●
167 BRACKET; UNION 8-98115-978-1 01 1 1103-1306 ● ●
167 BRACKET; UNION 8-98115-978-1 01 1 1307- ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1011-1102 ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1103-1306 ● ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1307- ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1011-1102 ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1103- ● ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1011-1102 ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1103- ● ●
