2-03 — CLUTCH PEDAL AND CONTROL (#69810) — 32 parça

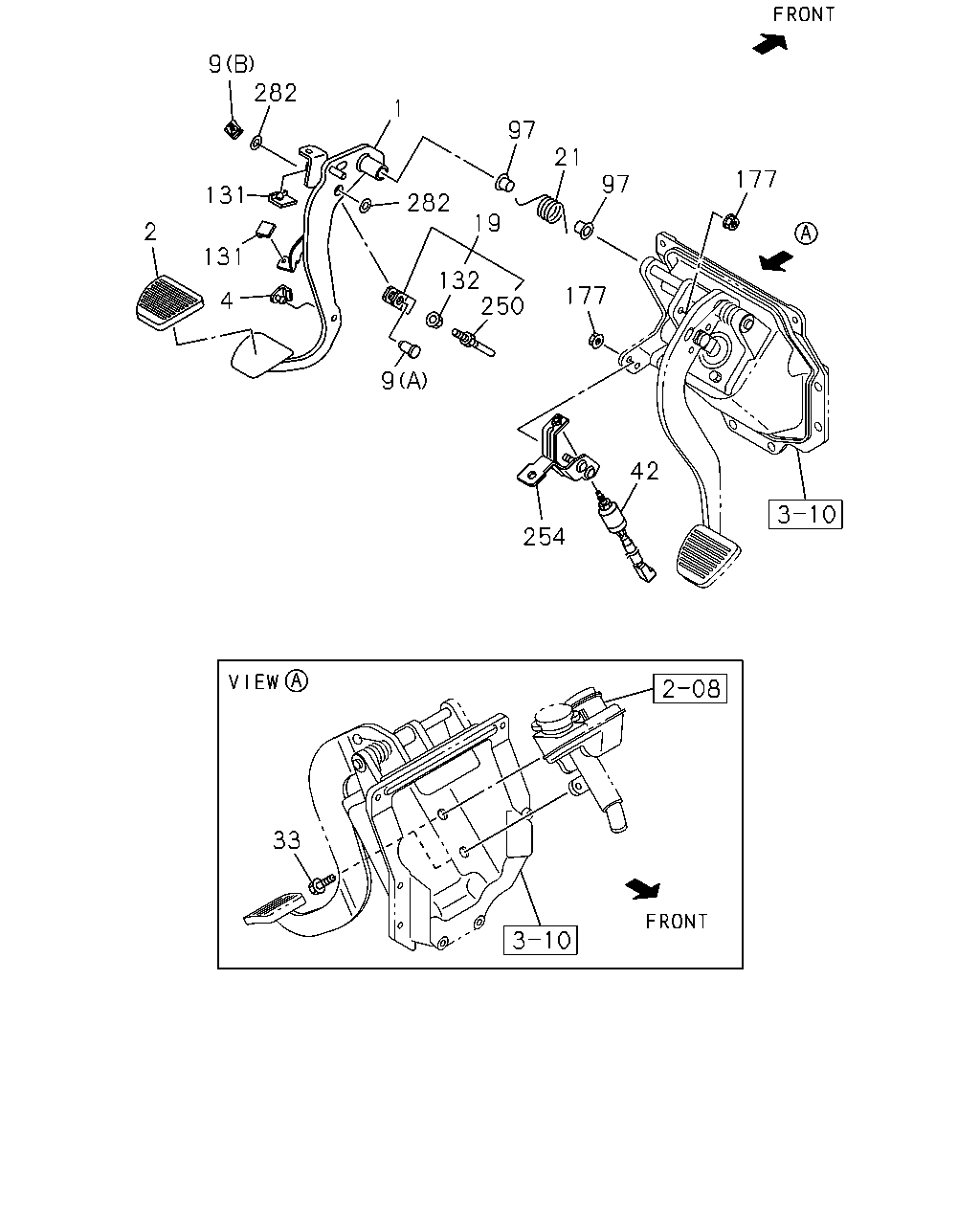

çizim 98345
9 282 1 131 131 2 131 4 9 132 19 282 97 97 21 177 177 42 254 33 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98057-123-0 01 1 1011-1102 ●
1 PEDAL; CLU 8-98057-123-0 01 1 1103- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1011-1102 ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1103- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1011-1102 ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1103- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1011-1102 ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1103- ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1011-1102 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1103- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1011-1102 ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1103- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1011-1102 ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1103- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1011-1102 ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1103- ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 1011-1102 ●
42 SWITCH; CLU 8-97620-841-0 01 1 1103- ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1011-1102 ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1103- ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1011-1102 ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1103- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1011-1102 ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1103- ● ●
254 BRACKET; CLU SENSOR 8-98057-131-1 01 1 1011-1102 ●
254 BRACKET; CLU SENSOR 8-98057-131-1 01 1 1103- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1011-1102 ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1103- ● ●
