1-50 — EXHAUST PIPE AND SILENCER (#69806) — 281 parça

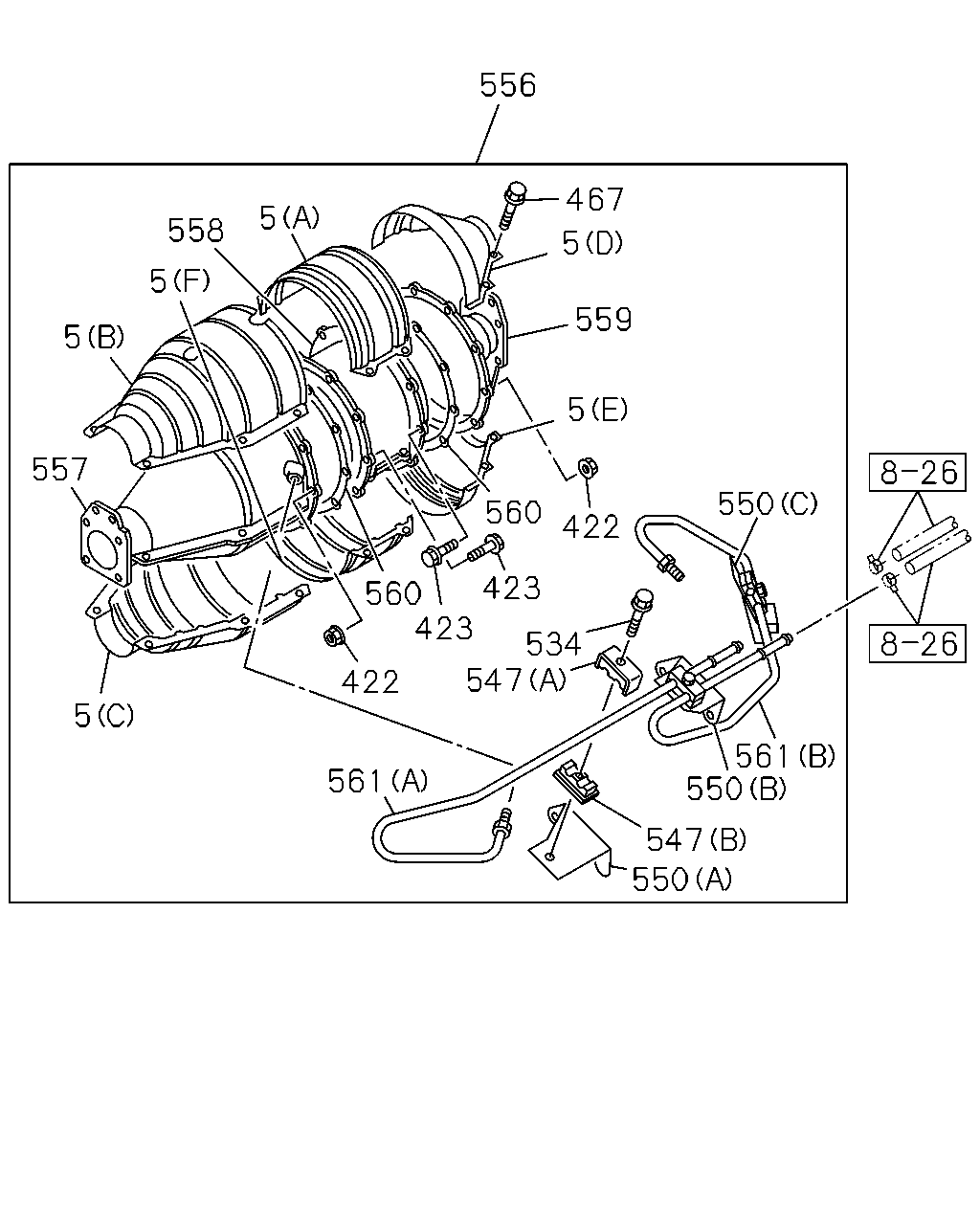

çizim 97263
556 5 558 5 5 557 5 422 560 423 423 560 422 5 559 5 467 550 561 550 547 550 561 534 547
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 1103- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1011-1102 ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1103- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1011-1102 ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1103- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1011-1102 ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1103- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1011-1102 ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1103- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1011-1102 ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1103- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1011-1102 ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1103- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1011-1102 ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1103- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1011-1102 ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1103- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1011-1102 ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1103- ● ●
556 DPD ASM 8-97613-331-6 01 1 1011-1011 ●
556 DPD ASM 8-97622-883-3 01 1 1011-1102 ●
556 DPD ASM 8-97622-883-4 01 1 1103- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 1011-1102 ●
557 CATALYST ASM 8-97608-055-8 01 1 1103- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1011-1102 ●
558 FILTER ASM 8-97608-057-3 01 1 1103- ● ●
559 COVER; RR 8-97611-078-0 01 1 1011-1011 ●
559 COVER; RR 8-97622-887-0 01 1 1011-1102 ●
559 COVER; RR 8-97622-887-0 01 1 1103- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1011-1102 ●
560 GASKET; DPD 8-97611-080-0 02 1 1103- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 1011-1011 ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011-1102 ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1103- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 1011-1011 ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011-1102 ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1103- ● ●

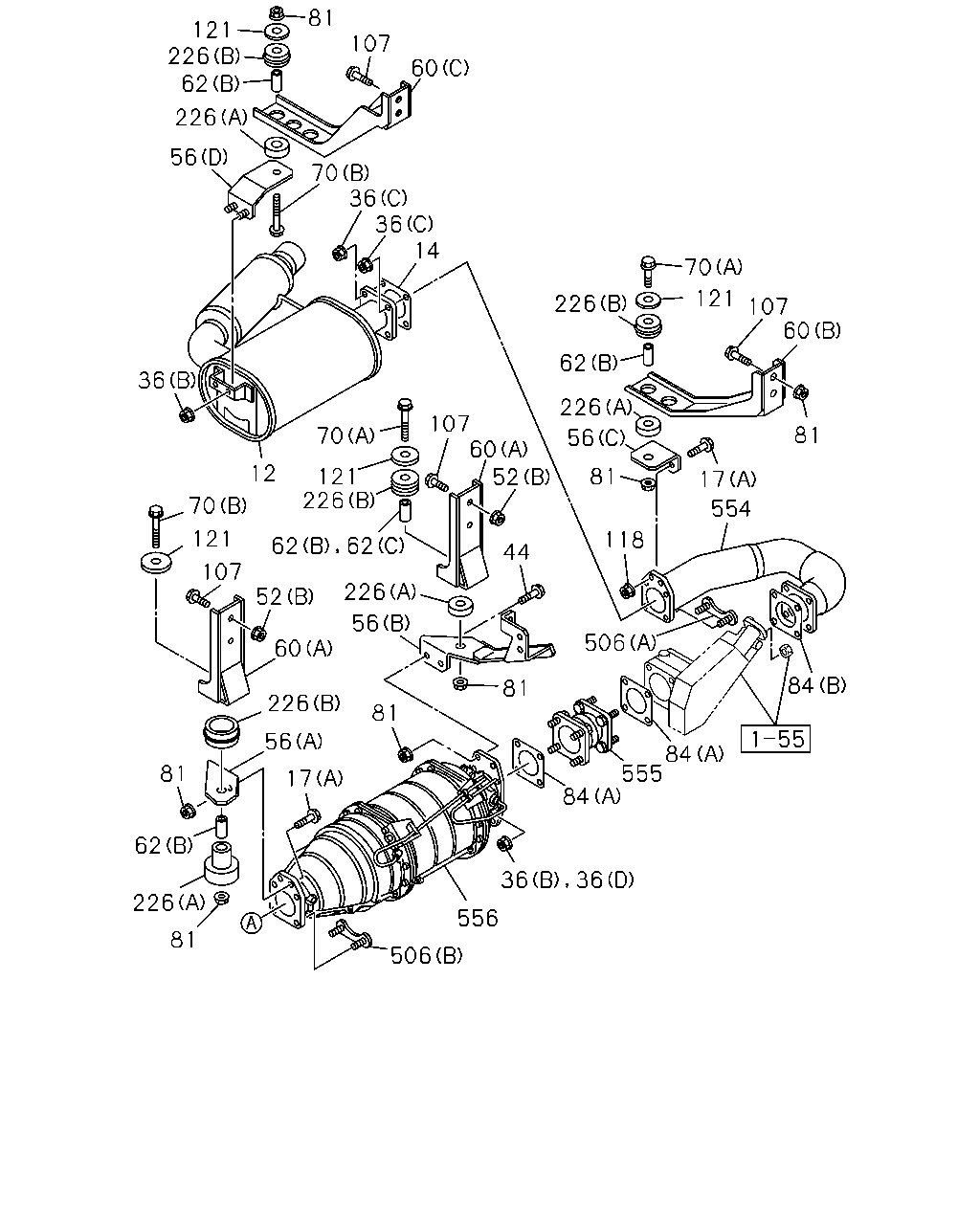

çizim 189110
81 121 226 107 62 60 226 56 70 36 36 14 226 70 107 121 81 60 62 226 81 56 118 554 17 84 506 84 555 84 81 44 52 60 107 70 12 121 107 70 62 226 121 62 226 56 52 60 226 56 17 81 36 36 36 556 506 81 62 226 81
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1011-1102 ●
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1103- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1011-1102 ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1103- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 1011-1102 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 1103- ● ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 1011-1102 ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 1103-1306 ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 1011-1102 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 1103-1306 ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 07 1 1307- ● ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1011-1102 ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1103- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1011-1102 ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1103- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1011-1102 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1103- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1103- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1011-1102 ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98095-172-0 01 1 1103- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98098-414-0 01 1 1103- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 1011-1102 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-97622-013-0 01 1 1011-1102 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-97622-013-0 01 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97623-042-0 01 1 1011-1107 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98174-489-0 01 1 1108- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98050-970-0 01 1 1011- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1103-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1103- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1103- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 1103- ● ●
62 TUBE; DIST,BRKT
(C) L=37.5 		9-22151-217-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1108- ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1108- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1011-1102 ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1011-1102 ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1103-1107 ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1103-1107 ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1011-1102 ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1103- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 1011-1102 ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 1103- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1011-1102 ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1011-1102 ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1103- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1011-1102 ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 1103- ● ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1011-1102 ●
84 GASKET; EXH PIPE
(A) ID=64 		8-97373-108-0 02 1 1103- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1306 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-1306 ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 04 1 1307- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1011-1102 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1011-1102 ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1103- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1103- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1011-1102 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1011-1102 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1103- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1103- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1011-1102 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1011-1102 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1103- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1103- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1011-1102 ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1103- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1011-1102 ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1103- ● ●
554 PIPE; EXH,SILENCER 8-98098-540-0 01 1 1103- ●
554 PIPE; EXH,SILENCER 8-97623-039-1 01 1 1011- ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 1011-1102 ●
555 PIPE; EXH,DPD 8-98060-847-0 01 1 1103- ● ●
556 DPD ASM 8-97613-331-6 01 1 1011-1011 ●
556 DPD ASM 8-97622-883-3 01 1 1011-1102 ●
556 DPD ASM 8-97622-883-4 01 1 1103- ● ●

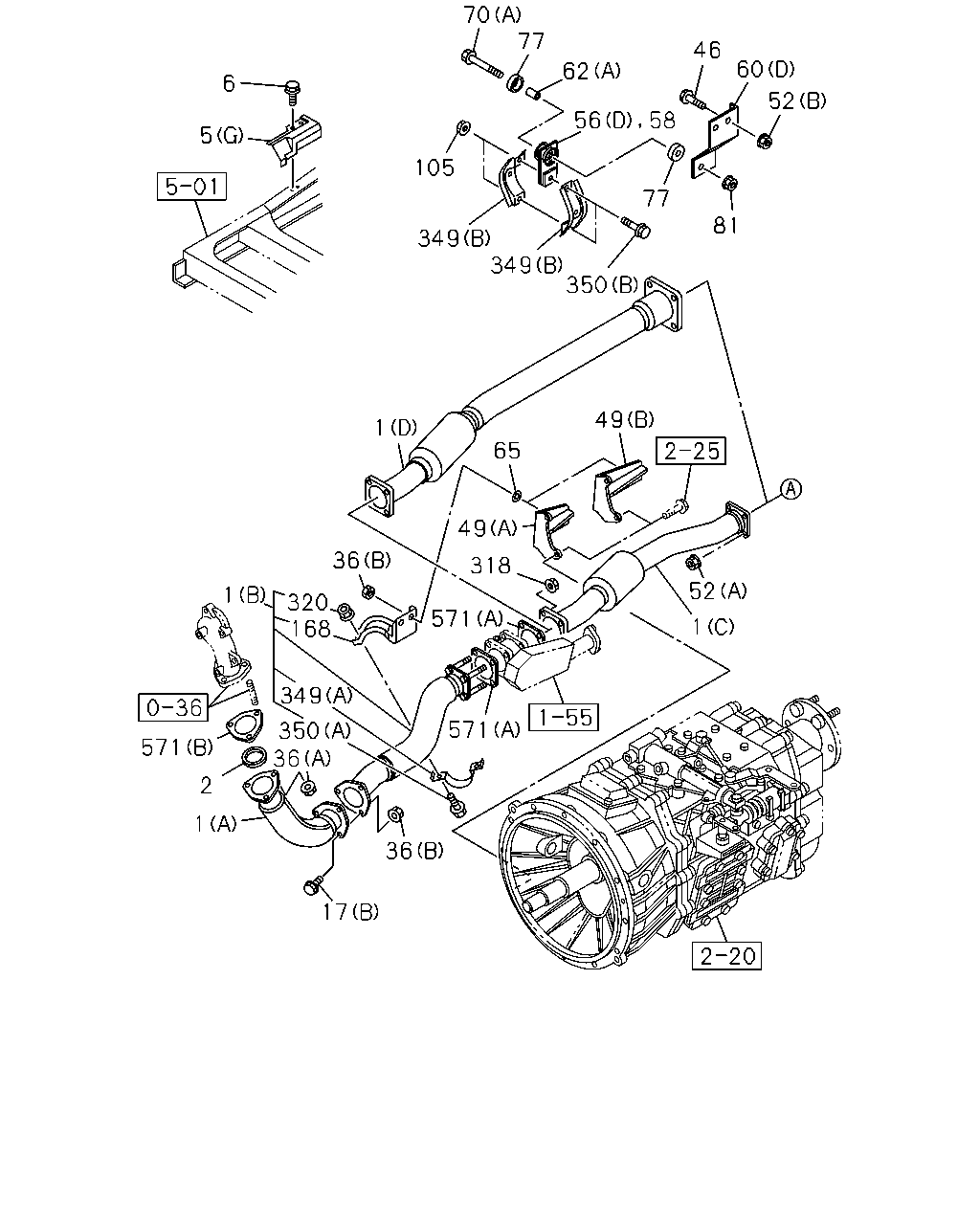

çizim 189112
17 1 2 571 36 350 349 168 1 320 36 1 65 49 318 571 571 36 5 6 70 77 105 349 349 62 56 46 60 52 58 81 77 350 49 52 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(D) 		8-98075-107-2 01 1 1103- ●
1 PIPE; EXH
(C) 		8-97620-515-1 01 1 1011- ●
1 PIPE; EXH
(A) 		8-97624-422-0 01 1 1011-1102 ●
1 PIPE; EXH
(A) 		8-97624-422-0 01 1 1103-1301 ● ●
1 PIPE; EXH
(A) 		8-97636-047-0 01 1 1302- ● ●
1 PIPE; EXH
(B) 		8-97624-443-0 01 1 1011-1102 ●
1 PIPE; EXH
(B) 		8-97624-443-0 01 1 1103-1301 ● ●
1 PIPE; EXH
(B) 		8-98234-579-0 01 1 1302- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1011-1102 ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1103- ● ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 1011-1102 ●
5 PROTECTOR; HEAT
(G) 		8-98044-122-0 01 1 1103- ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 1011-1102 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28051-035-0 03 1 1103- ● ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
17 BOLT; EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 1011-1102 ●
36 NUT; EXH PIPE
(D) M10 		0-91110-510-0 04 1 1103-1306 ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 1011-1102 ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 1103-1306 ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 07 1 1307- ● ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1011-1102 ●
36 NUT; EXH PIPE
(C) M12 FLANGE 		0-91180-212-0 04 1 1103- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1011-1102 ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1103- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1011-1102 ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1103- ● ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97618-397-0 01 1 1011-1102 ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-97618-397-0 01 1 1103- ● ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97624-003-0 01 1 1011-1102 ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97624-003-0 01 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1011-1102 ●
52 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 08 1 1103- ● ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1011-1102 ●
52 NUT; BRKT
(A) M12 FLANGE 		0-91180-212-0 04 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98095-172-0 01 1 1103- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98098-414-0 01 1 1103- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 1011-1102 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-97622-012-0 01 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-97622-013-0 01 1 1011-1102 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-97622-013-0 01 1 1103- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97623-042-0 01 1 1011-1107 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98174-489-0 01 1 1108- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98050-970-0 01 1 1011- ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 1011-1102 ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 1103- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1103-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1103- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1103- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 1011-1102 ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98095-188-0 01 1 1103- ● ●
62 TUBE; DIST,BRKT
(C) L=37.5 		9-22151-217-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1108- ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1108- ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1011-1102 ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1011-1102 ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1103-1107 ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 02 1 1103-1107 ● ●
62 TUBE; DIST,BRKT
(B) L=39 		8-98060-852-0 01 1 1108- ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1011-1102 ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1103- ● ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1011-1102 ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 1103- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 1011-1102 ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 01 1 1103- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1011-1102 ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1011-1102 ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1103- ● ●
70 BOLT; BRKT
(B) M10X70 FLANGE 		0-28051-070-0 02 1 1103- ● ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 1011-1102 ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
168 BRACKET; EXH PIPE,FRT 8-97623-998-0 01 1 1011-1102 ●
168 BRACKET; EXH PIPE,FRT 8-97623-998-0 01 1 1103- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1011-1102 ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1103- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
349 CLAMP; EXH PIPE
(B) ID=75-78 		1-22133-232-0 02 1 1011-1102 ●
349 CLAMP; EXH PIPE
(B) ID=75-78 		1-22133-232-0 02 1 1103- ● ●
349 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 1011-1102 ●
349 CLAMP; EXH PIPE
(A) 		1-22133-295-0 01 1 1103-1301 ● ●
349 CLAMP; EXH PIPE
(A) 		8-98147-597-1 01 1 1302- ● ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1011-1102 ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1103- ● ●
571 GASKET
(A) ID=64 		8-97373-108-0 02 1 1011-1102 ●
571 GASKET
(A) ID=64 		8-97373-108-0 02 1 1103- ● ●
571 GASKET
(B) 		8-97614-617-0 01 1 1011-1102 ●
571 GASKET
(B) 		8-97614-617-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
