Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#69804) — 267 parça

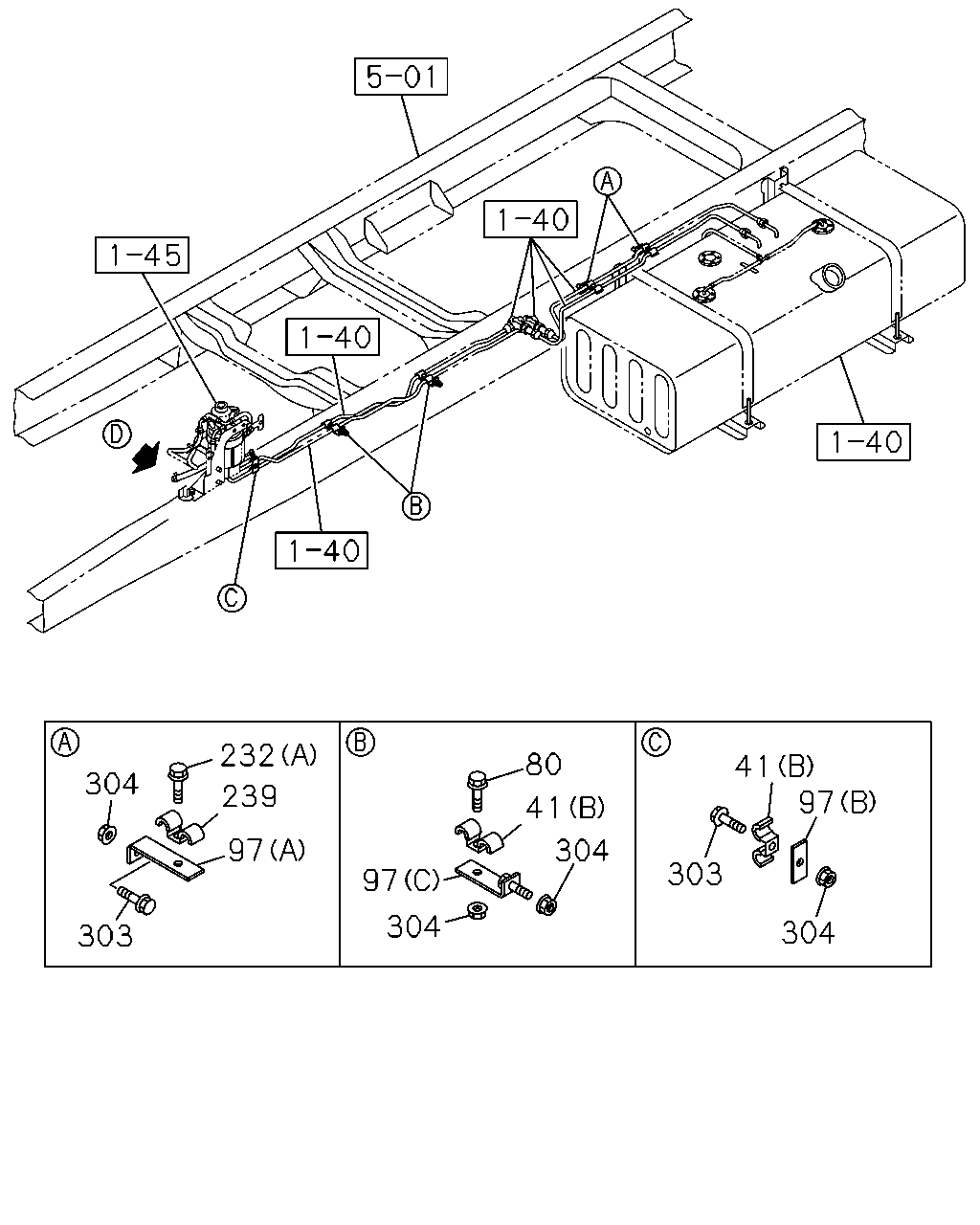

304 232 239 97 303 97 304 304 41 41 80 303 304 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1103-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1011-1102	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1103-1306	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	03	1	1307-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	01	1	1103-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1103-1306		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1011-1102	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1103-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1011-1102	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1011-1102	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1103-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	1011-1306	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (A)	8-98111-711-0	01	1	1011-1306	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1307-	●	●
232	BOLT; CLIP,PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306		●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1011-1102	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1103-1306	●	●
232	BOLT; CLIP,PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1103-		●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1011-1102	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1103-1306	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-1306		●
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1011-1306	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●

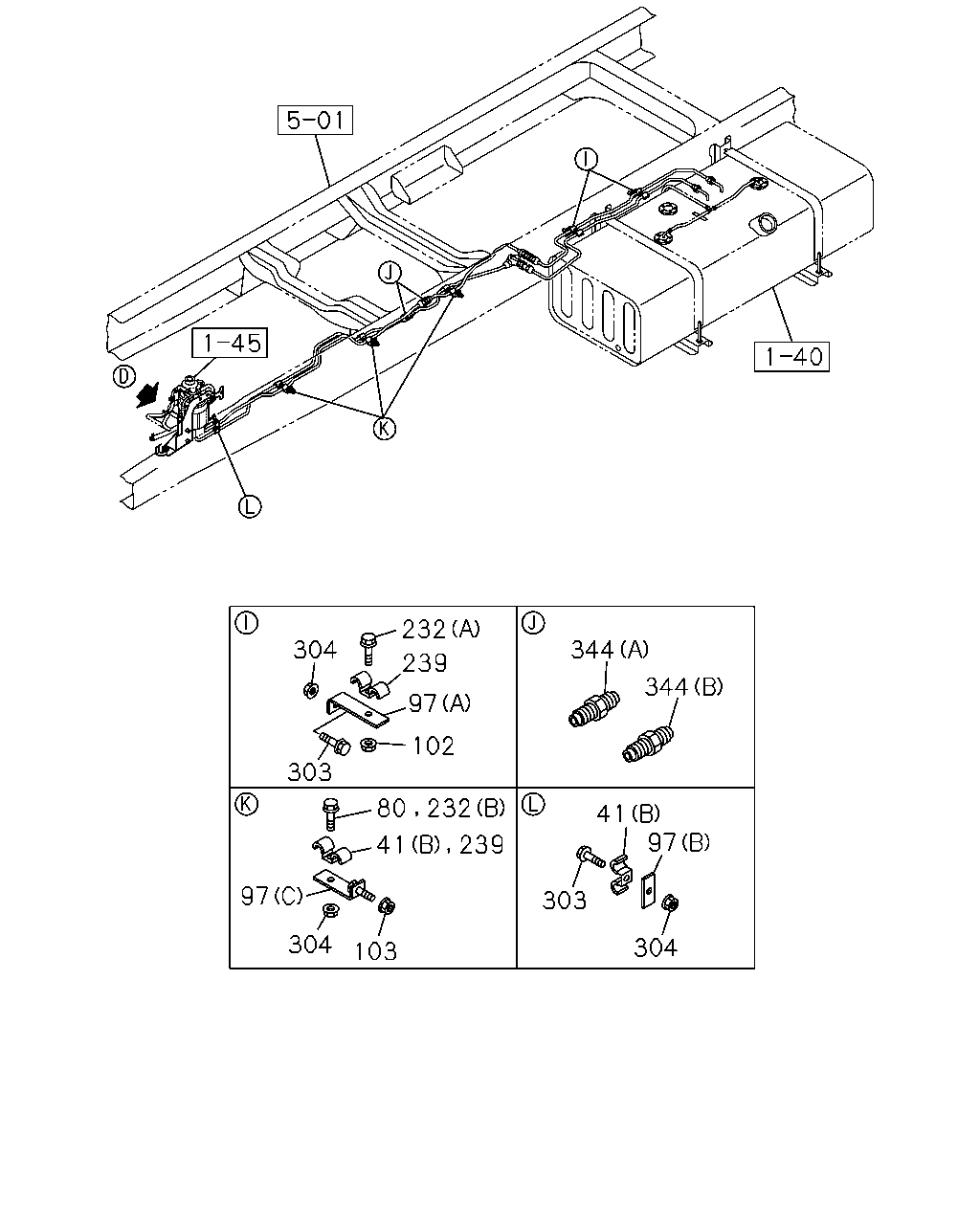

304 232 239 344 344 41 303 304 97 103 304 97 80 41 239 97 303 232 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1103-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1011-1102	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1103-1306	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	03	1	1307-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	01	1	1103-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1103-1306		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1011-1102	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1103-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1011-1102	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1011-1102	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1103-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	1011-1306	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (A)	8-98111-711-0	01	1	1011-1306	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1307-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1103-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1103-		●
232	BOLT; CLIP,PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306		●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1011-1102	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1103-1306	●	●
232	BOLT; CLIP,PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1103-		●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1011-1102	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1103-1306	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-1306		●
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1011-1306	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
344	UNION; STRAIGHT (B) M14 STRAIGHT	0-92113-008-0	01	1	1103-		●
344	UNION; STRAIGHT (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-		●

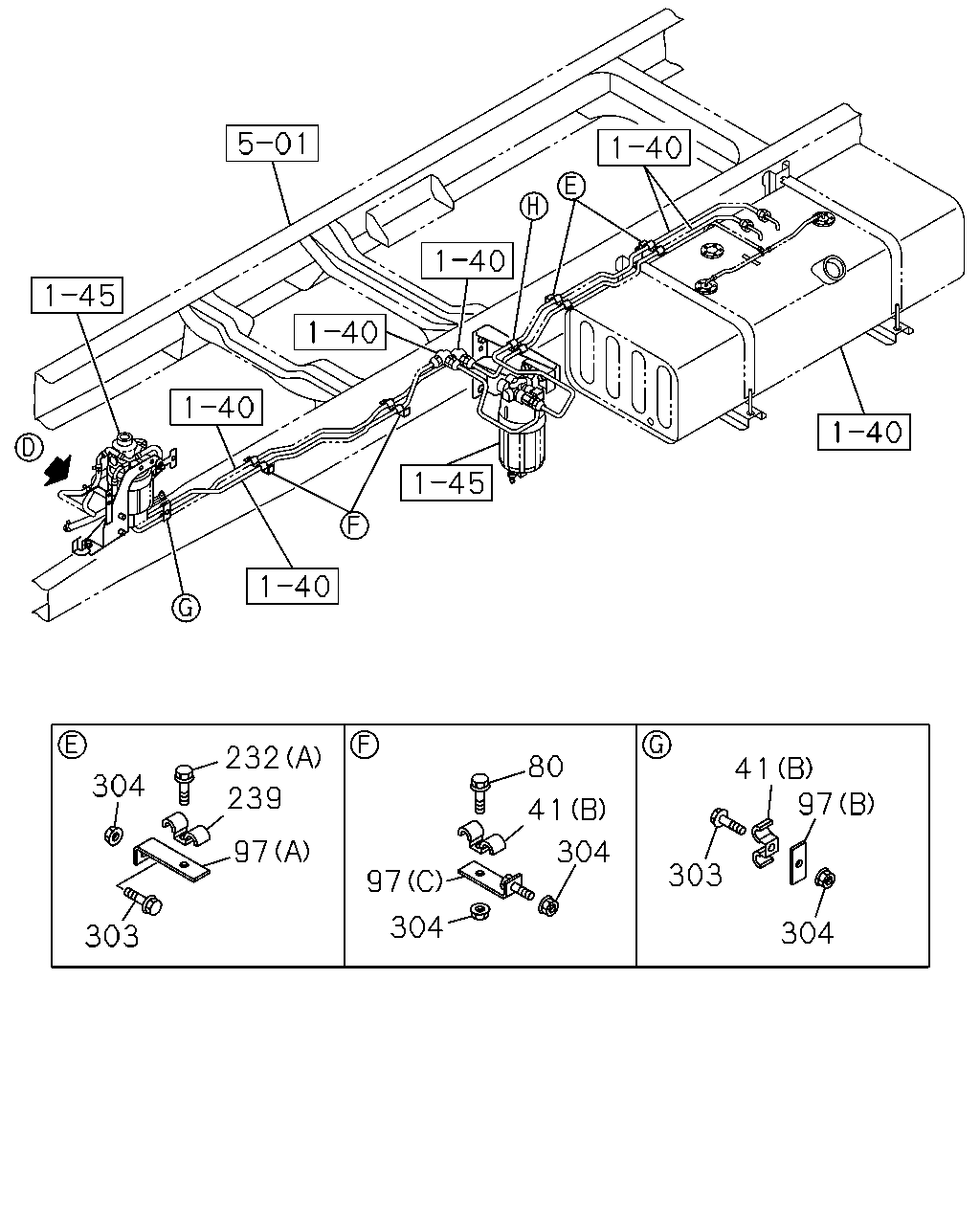

304 232 239 97 303 80 41 304 304 97 41 97 304 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1103-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1011-1102	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1103-1306	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	03	1	1307-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	01	1	1103-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1103-1306		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1011-1102	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1103-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1011-1102	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1011-1102	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1103-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	1011-1306	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (A)	8-98111-711-0	01	1	1011-1306	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1307-	●	●
232	BOLT; CLIP,PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306		●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1011-1102	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1103-1306	●	●
232	BOLT; CLIP,PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1103-		●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1011-1102	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1103-1306	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-1306		●
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1011-1306	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●

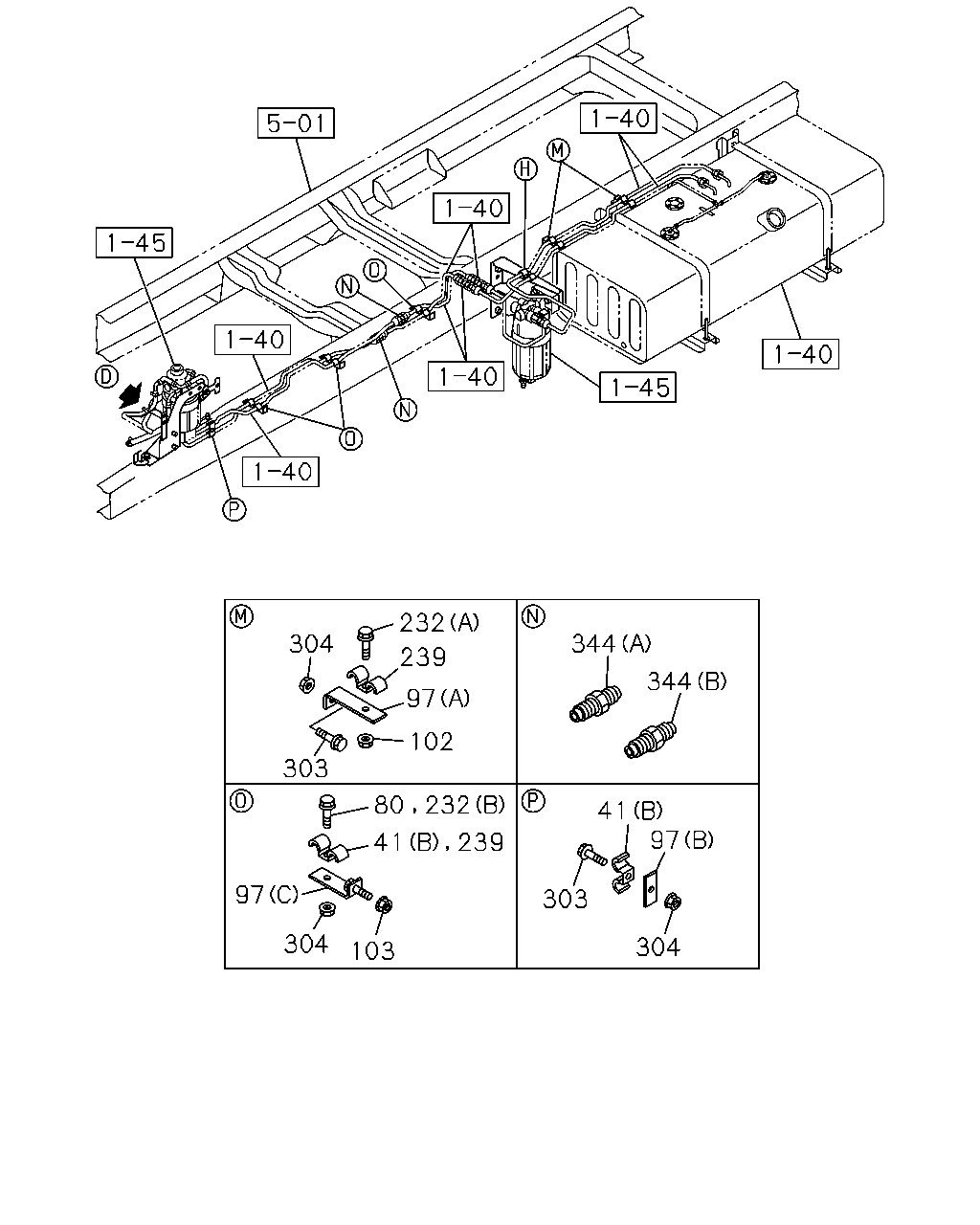

304 303 232 239 344 344 41 303 304 97 304 103 97 80 41 239 232 97 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1103-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1307-	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1011-1102	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1103-1306	●	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	03	1	1307-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	01	1	1103-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1103-1306		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1011-1102	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1103-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1011-1102	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1011-1102	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1103-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	1011-1306	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (A)	8-98111-711-0	01	1	1011-1306	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1307-	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1103-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1103-		●
232	BOLT; CLIP,PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	1103-1306		●
232	BOLT; CLIP,PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	1307-		●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1011-1102	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> (A) M8X20 FLANGE	0-28050-820-0	02	1	1103-1306	●	●
232	BOLT; CLIP,PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	1307-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1103-		●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1011-1102	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1103-1306	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1307-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-1306		●
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1011-1306	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
344	UNION; STRAIGHT (B) M14 STRAIGHT	0-92113-008-0	01	1	1103-		●
344	UNION; STRAIGHT (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-		●

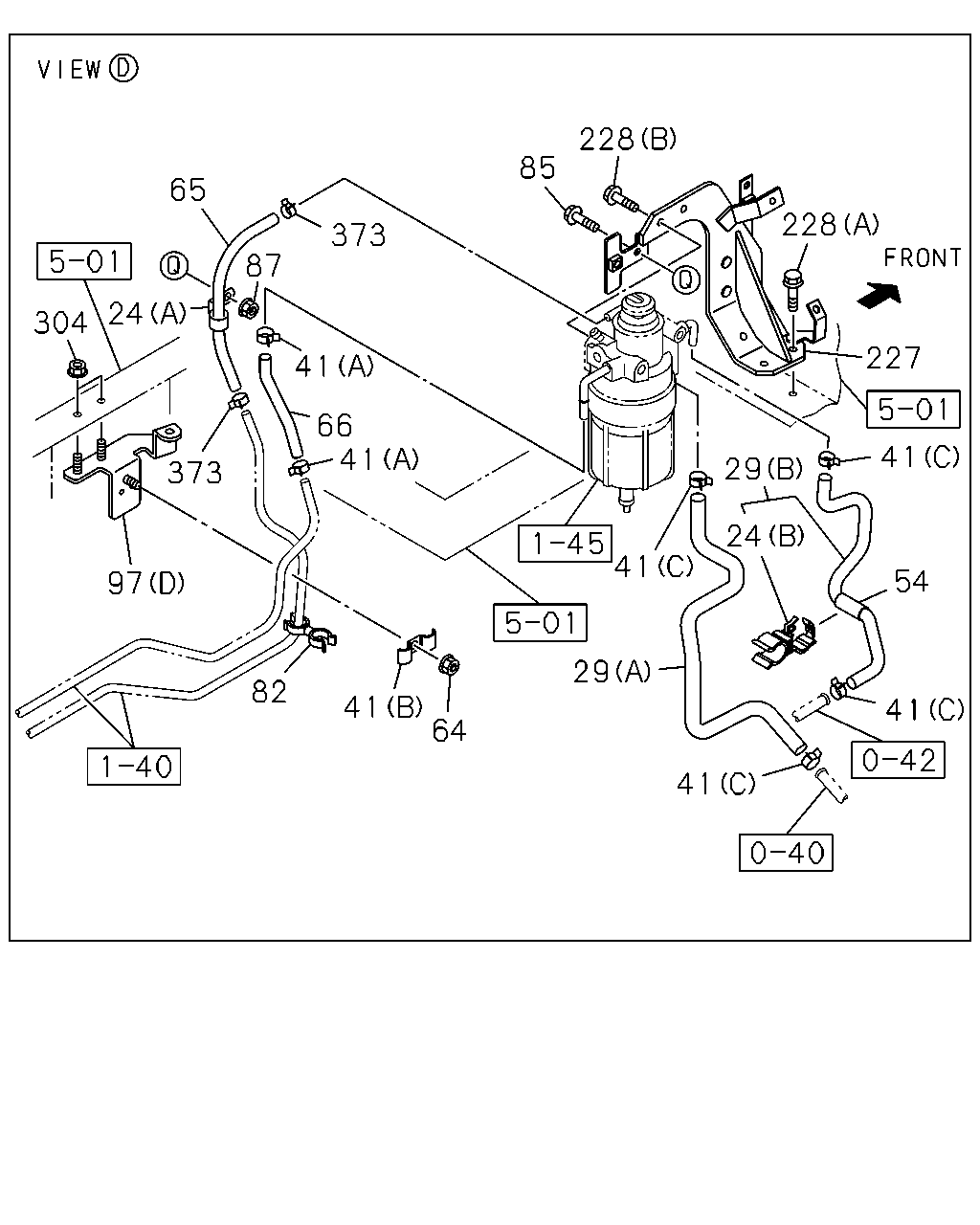

65 304 24 373 97 82 66 41 87 373 41 41 64 29 41 29 24 54 41 41 228 228 85 227 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1011-1102	●
24	CLIP; FUEL HOSE (B) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1103-	●	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1011-1102	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1103-	●	●
29	HOSE; FUEL (B)	8-98178-769-0	01	1	1011-1102	●
29	HOSE; FUEL (B)	8-98178-769-0	01	1	1103-1202	●	●
29	HOSE; FUEL (A)	8-98192-966-0	01	1	1203-	●	●
29	HOSE; FUEL (A)	8-98180-730-0	01	1	1011-1102	●
29	HOSE; FUEL (A)	8-98180-730-0	01	1	1103-1202	●	●
29	HOSE; FUEL (B)	8-98192-968-0	01	1	1203-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	04	1	1307-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	1103-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1011-1102	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1103-1306	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1307-	●	●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1011-1102	●
54	SPACER; CLIP,FUEL PIPE	8-98148-172-0	01	1	1103-1202	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1011-1102	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1103-	●	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1011-1102	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1103-	●	●
82	CLIP; FUEL HOSE ID=16.5 & 16.5	8-94468-380-0	01	1	1011-1102	●
82	CLIP; FUEL HOSE ID=16.5 & 16.5	8-94468-380-0	01	1	1103-1210	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1011-1102	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1103-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	01	1	1103-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1103-1306		●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1011-1102	●
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1103-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1011-1102	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1103-	●	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1011-1102	●
97	BRACKET; CLIP (C)	8-98111-710-1	02	1	1103-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (B) M8 W/NUT	1-47475-729-0	01	1	1011-1306	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (A)	8-98111-711-0	01	1	1011-1306	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1307-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1011-1102	●
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1103-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1307-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1011-1102	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1103-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1011-1102	●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1103-	●	●

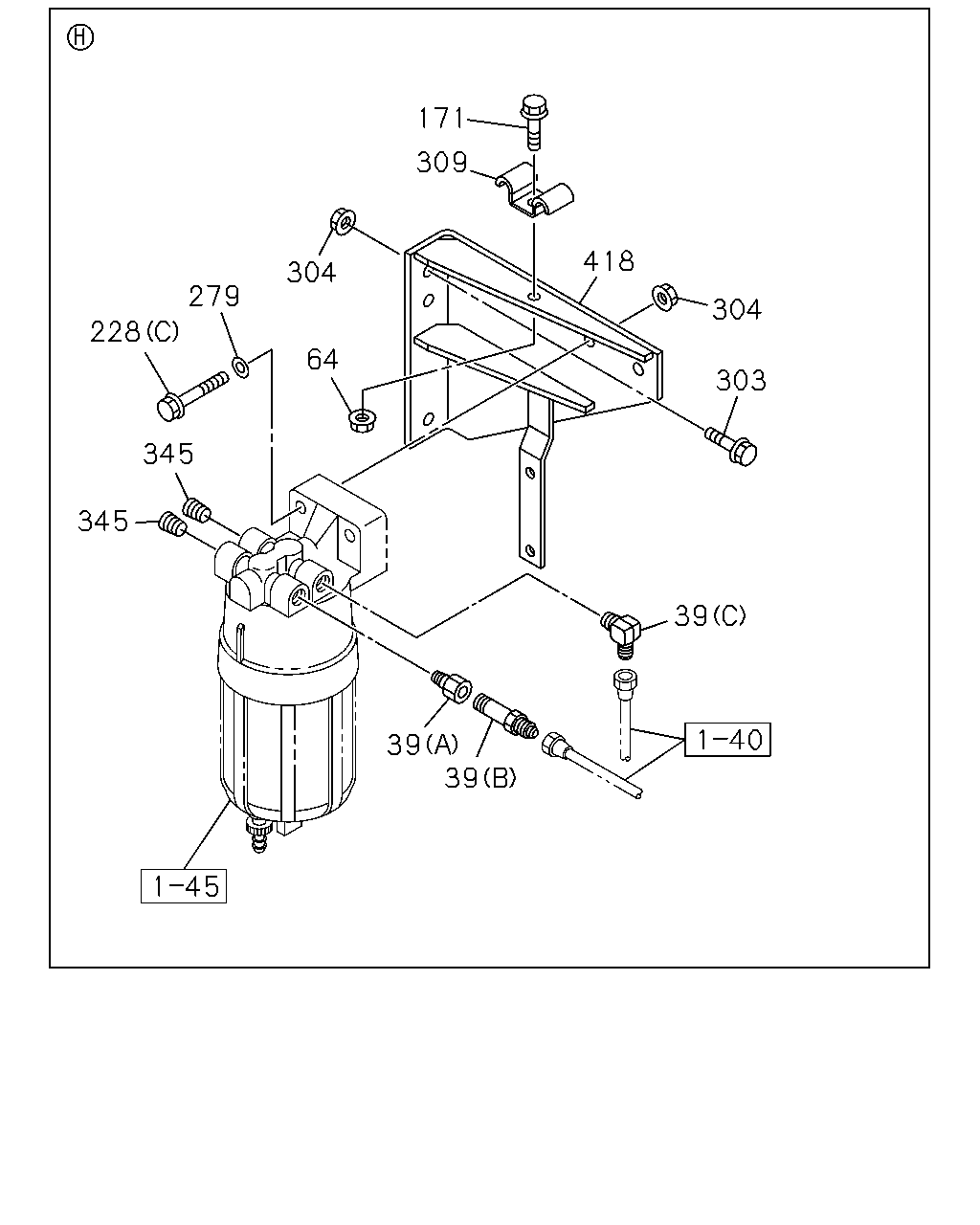

228 279 304 345 345 39 39 39 303 304 418 309 171 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1307-	●	●
39	PIPE; FUEL (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1307-	●	●
39	PIPE; FUEL (A) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1307-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
171	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1307-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1011-1102	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1103-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1307-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-1306		●
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1307-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	01	1	1011-1306	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1307-	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-		●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1103-1210	●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
309	CLIP; PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1307-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1307-	●	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
