1-40 — FUEL TANK (#69803) — 129 parça

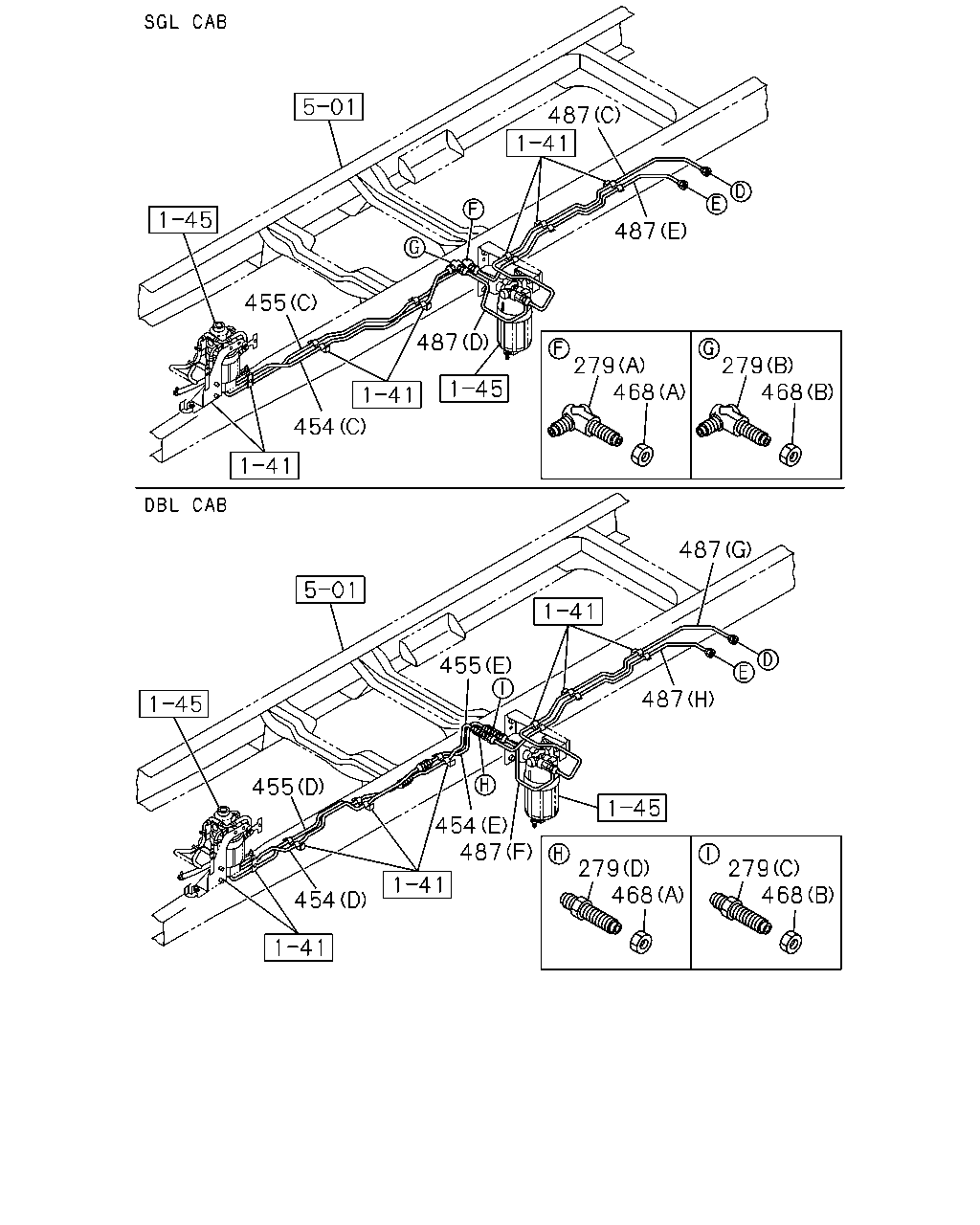

487 487 455 454 279 468 279 468 487 487 454 455 455 454 279 468 279 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
279	UNION; FUEL PIPE (D) M14	0-92113-308-0	01	1	1307-	●
279	UNION; FUEL PIPE (C) M16 L=74	0-92123-310-0	01	1	1103-	●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 ELBOW	0-92125-208-0	01	1	1011-1102		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 ELBOW	0-92125-208-0	01	1	1103-1306	●	●
279	UNION; FUEL PIPE (A) M14 ELBOW	0-92125-208-0	01	1	1307-		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 ELBOW	0-92135-210-0	01	1	1011-1306		●
279	UNION; FUEL PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1307-		●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	1103-1306	●
454	PIPE; FUEL,DELIVERY (D) L=1438	8-98233-805-0	01	1	1307-	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	1103-1306	●
454	PIPE; FUEL,DELIVERY (E) L=483	8-98233-808-0	01	1	1307-	●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	1011-1306		●
454	PIPE; FUEL,DELIVERY (C) L=1260	8-98244-262-0	01	1	1307-		●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	1103-1306	●
455	PIPE; FUEL,RETURN (D) L=1520	8-98240-987-0	01	1	1307-	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	1103-1306	●
455	PIPE; FUEL,RETURN (E) L=509 SERVICED BY L=550	1-47428-838-0	01	1	1307-	●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	1011-1306		●
455	PIPE; FUEL,RETURN (C) L=1464	8-98244-263-0	01	1	1307-		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1011-1102		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1103-1306	●	●
468	NUT (A) M14	0-91111-514-0	01	1	1307-	●	●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1011-1102		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1103-1306	●	●
468	NUT (B) M16	0-91111-516-0	01	1	1307-	●	●
487	PIPE; FUEL HOSE (H) L=1185 SERVICED BY L=1250	1-47428-849-0	01	1	1307-	●
487	PIPE; FUEL HOSE (E) L=1214 SERVICED BY L=1250	1-47428-849-0	01	1	1307-		●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1103-1306	●
487	PIPE; FUEL HOSE (F)	8-98233-811-0	01	1	1307-	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	1103-1306	●
487	PIPE; FUEL HOSE (G)	8-98233-814-0	01	1	1307-	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	1011-1306		●
487	PIPE; FUEL HOSE (D) L=450	8-98244-755-0	01	1	1307-		●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (A)	8-98108-523-0	01	1	1011-1306		●
487	PIPE; FUEL HOSE (C)	8-98244-753-0	01	1	1307-		●

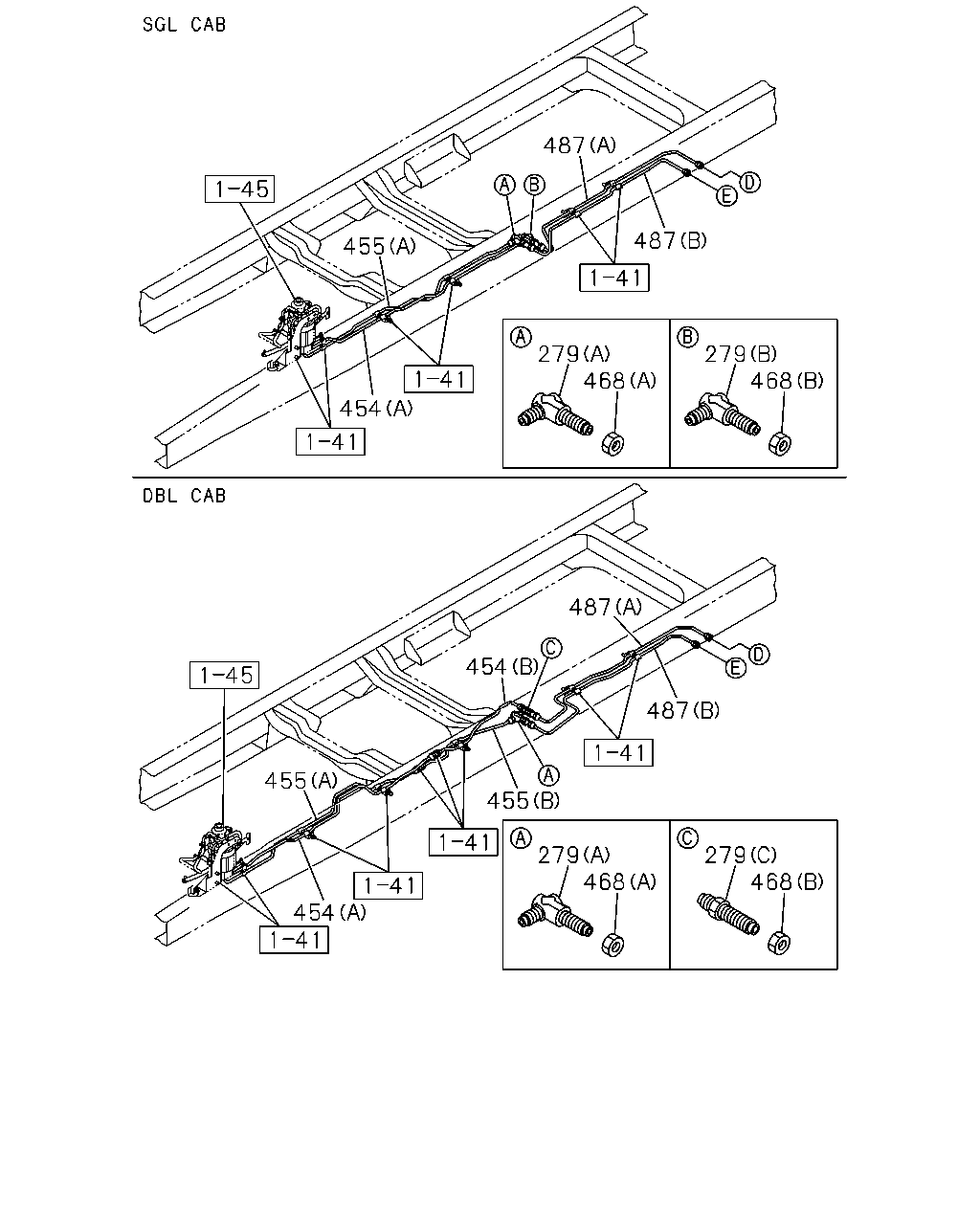

487 487 487 455 454 279 279 468 468 487 455 455 454 454 279 279 468 468 487 487

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
279	UNION; FUEL PIPE (D) M14	0-92113-308-0	01	1	1307-	●
279	UNION; FUEL PIPE (C) M16 L=74	0-92123-310-0	01	1	1103-	●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 ELBOW	0-92125-208-0	01	1	1011-1102		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 ELBOW	0-92125-208-0	01	1	1103-1306	●	●
279	UNION; FUEL PIPE (A) M14 ELBOW	0-92125-208-0	01	1	1307-		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 ELBOW	0-92135-210-0	01	1	1011-1306		●
279	UNION; FUEL PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1307-		●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	1103-1306	●
454	PIPE; FUEL,DELIVERY (D) L=1438	8-98233-805-0	01	1	1307-	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	1103-1306	●
454	PIPE; FUEL,DELIVERY (E) L=483	8-98233-808-0	01	1	1307-	●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	1011-1306		●
454	PIPE; FUEL,DELIVERY (C) L=1260	8-98244-262-0	01	1	1307-		●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	1103-1306	●
455	PIPE; FUEL,RETURN (D) L=1520	8-98240-987-0	01	1	1307-	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	1103-1306	●
455	PIPE; FUEL,RETURN (E) L=509 SERVICED BY L=550	1-47428-838-0	01	1	1307-	●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	1011-1306		●
455	PIPE; FUEL,RETURN (C) L=1464	8-98244-263-0	01	1	1307-		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1011-1102		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1103-1306	●	●
468	NUT (A) M14	0-91111-514-0	01	1	1307-	●	●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1011-1102		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1103-1306	●	●
468	NUT (B) M16	0-91111-516-0	01	1	1307-	●	●
487	PIPE; FUEL HOSE (H) L=1185 SERVICED BY L=1250	1-47428-849-0	01	1	1307-	●
487	PIPE; FUEL HOSE (E) L=1214 SERVICED BY L=1250	1-47428-849-0	01	1	1307-		●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1103-1306	●
487	PIPE; FUEL HOSE (F)	8-98233-811-0	01	1	1307-	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	1103-1306	●
487	PIPE; FUEL HOSE (G)	8-98233-814-0	01	1	1307-	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	1011-1306		●
487	PIPE; FUEL HOSE (D) L=450	8-98244-755-0	01	1	1307-		●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (A)	8-98108-523-0	01	1	1011-1306		●
487	PIPE; FUEL HOSE (C)	8-98244-753-0	01	1	1307-		●

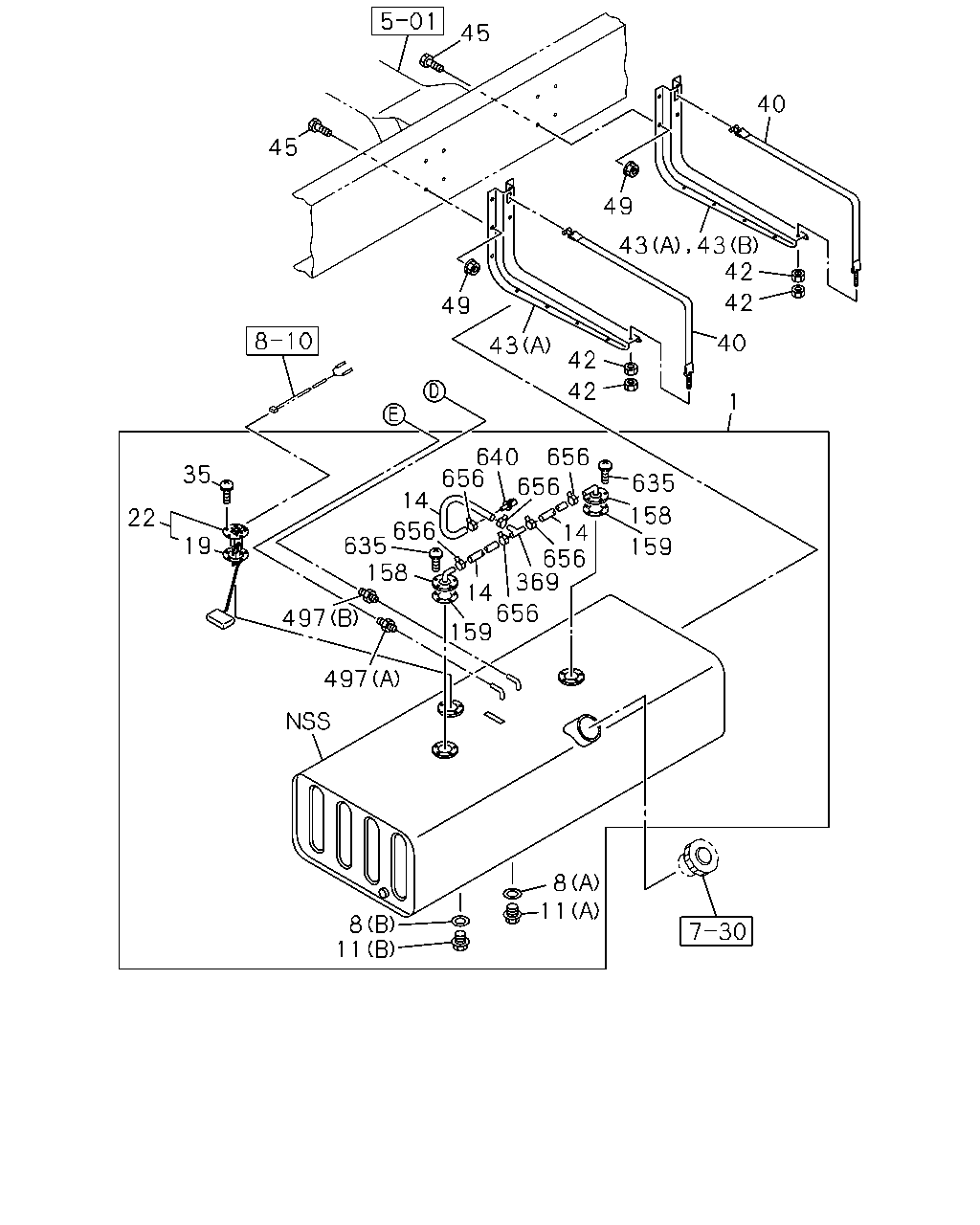

40 49 45 45 49 43 42 42 43 43 42 42 40 1 635 158 159 656 640 656 656 14 656 369 656 14 14 656 635 158 159 497 35 22 19 497 8 11 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-993-3	01	1	1011-1102		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-993-3	01	1	1103-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=30	8-98067-041-0	01	1	1011-1102		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=30	8-98067-041-0	01	1	1103-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1011-1102		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1103-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (A) M18X12	0-92002-418-0	01	1	1011-1102		●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (A) M18X12	0-92002-418-0	01	1	1103-1504	●	●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (A) M18	8-98068-006-0	01	1	1505-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (B) M30	8-98067-038-0	01	1	1011-1102		●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (B) M30	8-98067-038-0	01	1	1103-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1102		●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1103-1504	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=430	8-98131-037-0	01	1	1505-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1102		●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1103-1504	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=460	8-98304-414-0	01	1	1505-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1011-1102		●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1103-1504	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> L=90	8-98304-415-0	01	1	1505-	●	●
19	GASKET; FUEL TANK UNIT FUEL PIPE STEEL<E2N> ID=42 OD=71	5-83148-001-0	01	1	1011-1102		●
19	GASKET; FUEL TANK UNIT FUEL PIPE STEEL<E2N> ID=42 OD=71	5-83148-001-0	01	1	1103-	●	●
22	UNIT; FUEL TANK FUEL PIPE STEEL<E2N>	8-98099-320-0	01	1	1011-1102		●
22	UNIT; FUEL TANK FUEL PIPE STEEL<E2N>	8-98099-320-0	01	1	1103-	●	●
35	SCREW; FUEL TANK UNIT FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	05	1	1011-1102		●
35	SCREW; FUEL TANK UNIT FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	05	1	1103-	●	●
40	BELT; SUPPORT,FUEL TANK L=880	8-98042-715-1	02	1	1011-1102		●
40	BELT; SUPPORT,FUEL TANK L=880	8-98042-715-1	02	1	1103-1306	●	●
40	BELT; SUPPORT,FUEL TANK FUEL PIPE STEEL<E2N> L=880	8-98042-715-1	02	1	1307-	●	●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	1011-1102		●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	1103-1306	●	●
42	NUT; SUPPORT BELT FUEL PIPE STEEL<E2N> M12	0-91110-512-0	04	1	1307-	●	●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	01	1	1011-1102		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	01	1	1103-1306	●	●
43	BRACKET; FUEL TANK FUEL PIPE STEEL<E2N> (A)	8-98088-123-0	01	1	1307-	●	●
43	BRACKET; FUEL TANK (B)	8-98122-883-0	01	1	1011-1102		●
43	BRACKET; FUEL TANK (B)	8-98122-883-0	01	1	1103-1306	●	●
43	BRACKET; FUEL TANK FUEL PIPE STEEL<E2N> (B)	8-98122-883-0	01	1	1307-	●	●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	12	1	1011-1102		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	12	1	1103-1306	●	●
45	BOLT; BRKT,FUEL TANK FUEL PIPE STEEL<E2N> M10X35 FLANGE	0-28651-035-0	12	1	1307-	●	●
49	NUT; BRKT M10 FLANGE	0-91180-210-0	12	1	1011-1102		●
49	NUT; BRKT M10 FLANGE	0-91180-210-0	12	1	1103-1306	●	●
49	NUT; BRKT FUEL PIPE STEEL<E2N> M10 FLANGE	0-91180-210-0	12	1	1307-	●	●
158	VALVE; ROLL OVER & FLOAT FUEL PIPE STEEL<E2N>	8-98067-039-0	02	1	1011-1102		●
158	VALVE; ROLL OVER & FLOAT FUEL PIPE STEEL<E2N>	8-98067-039-0	02	1	1103-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> ID=45 OD=67	1-83149-003-0	02	1	1011-1102		●
159	SEAL; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> ID=45 OD=67	1-83149-003-0	02	1	1103-	●	●
369	JOINT; HOSE FUEL PIPE STEEL<E2N>	8-98067-080-0	01	1	1011-1102		●
369	JOINT; HOSE FUEL PIPE STEEL<E2N>	8-98067-080-0	01	1	1103-	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1011-1102		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1103-	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1011-1102		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1103-	●	●
635	SCREW; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	10	1	1011-1102		●
635	SCREW; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	10	1	1103-	●	●
640	VENTILATOR; HOSE,BREATHER FUEL PIPE STEEL<E2N>	8-98092-398-0	01	1	1011-1102		●
640	VENTILATOR; HOSE,BREATHER FUEL PIPE STEEL<E2N>	8-98092-398-0	01	1	1103-	●	●
656	CLAMP; FUEL TANK FUEL PIPE STEEL<E2N>	8-98304-416-0	06	1	1505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
