Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#69801) — 201 parça

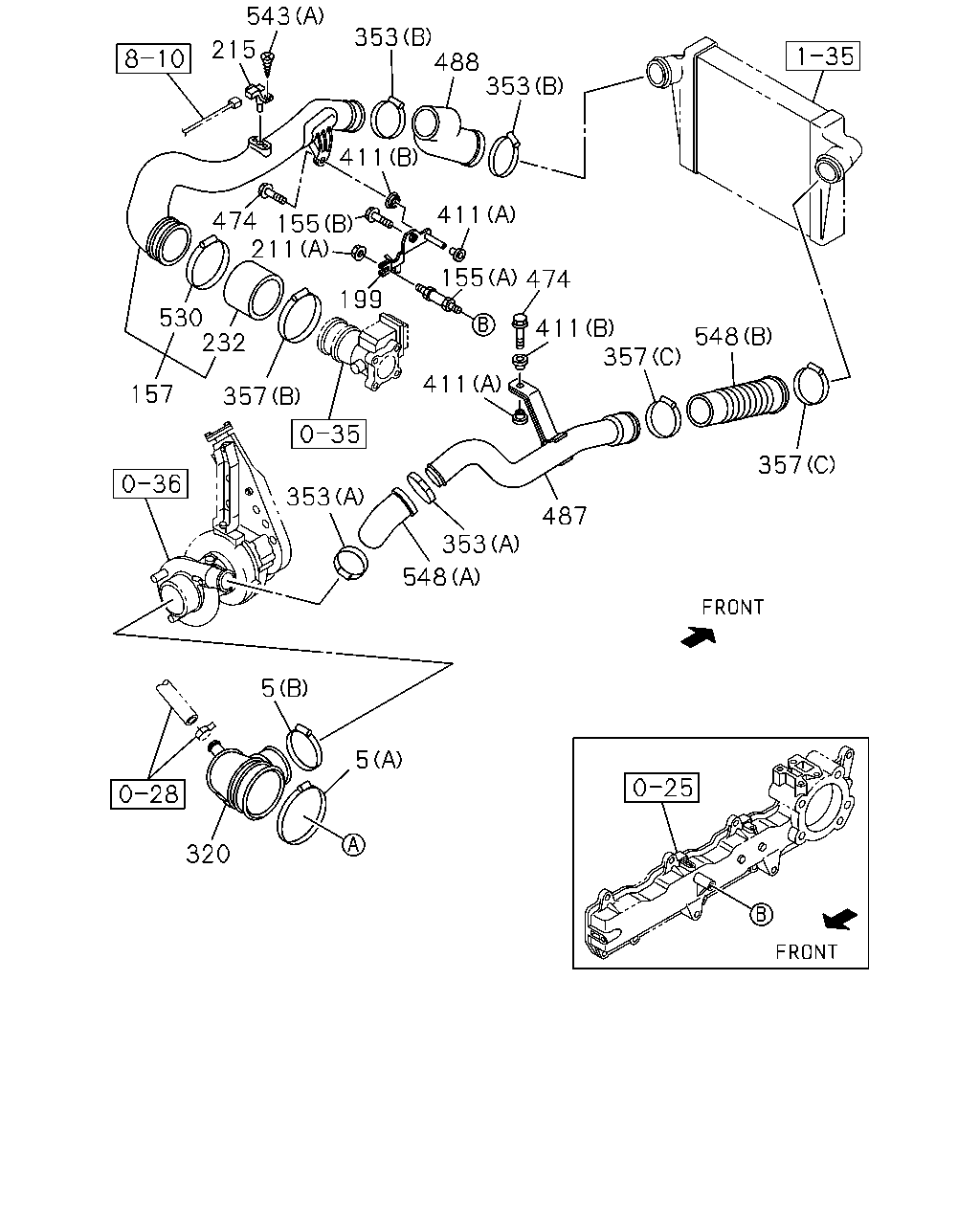

320 5 5 548 353 487 357 353 157 357 411 357 548 411 232 530 199 155 474 211 411 155 474 411 353 488 353 215 543

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1103-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=104-142	1-09707-139-0	01	1	1011-
5	CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	1011-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (C) M10X30 FLANGE	0-28651-030-0	02	1	1103-
155	BOLT; BRKT (B) M10X110 FLANGE	0-28156-011-0	01	1	1011-
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1011-
157	PIPE; AIR FSS STD DBL CAB(FC*W)	8-98166-967-0	01	1	1103-
157	PIPE; AIR FSS STD SGL CAB(FC*M)	8-98096-274-1	01	1	1011-
199	BRACKET; PIPE	8-98109-137-1	01	1	1011-1403
199	BRACKET; PIPE	8-98252-223-0	01	1	1404-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1011-
215	SENSOR; MAP	8-98009-418-0	01	1	1011-
232	HOSE; CONN	8-98128-293-0	01	1	1011-
320	HOSE; CONN,ACL FSS STD DBL CAB(FC*W)	8-98084-232-0	01	1	1103-
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M)	8-98010-644-1	01	1	1011-
353	CLIP; RUBBER HOSE (B) ID=58-79	1-09707-136-0	02	1	1011-
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1011-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1011-
357	CLIP; RUBBER HOSE (B) ID=68-85	8-98096-592-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1011-1102
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1307-
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1011-
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1011-
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1011-
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	1011-
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1011-
530	CLAMP; AIR DUCT ID=65-85	8-98133-350-0	01	1	1011-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1011-1308
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1309-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1011-1308
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	1309-
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	1011-
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1011-

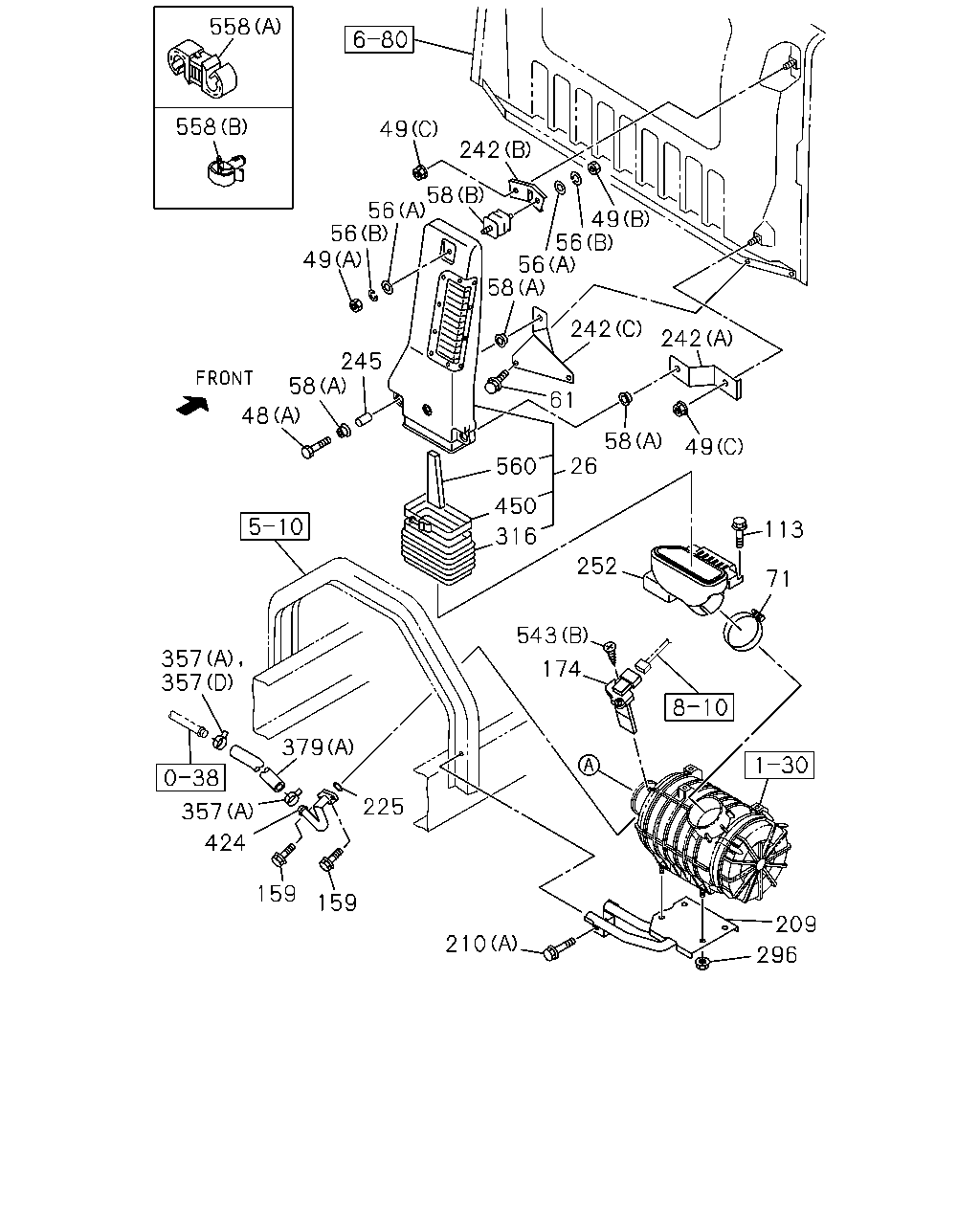

558 558 49 242 49 56 56 58 242 242 61 58 49 26 252 113 71 209 296 210 174 543 225 159 159 424 357 379 357 357 316 450 560 48 58 245 49 56 56 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1011-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
49	NUT; AIR DUCT FSS STD DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	1103-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1011-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1011-
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1011-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1011-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1011-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1011-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1011-
113	BOLT; RESONATOR FSS STD SGL CAB(FC*M) M6X16 W/PL WASHER	8-98094-071-0	03	1	1011-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X20 FLANGE	0-28050-620-0	01	1	1011-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28050-640-0	01	1	1011-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X16 FLANGE	0-28050-616-0	02	1	1011-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1011-
209	BRACKET; ACL FSS STD DBL CAB(FC*W)	8-98058-687-0	01	1	1103-
209	BRACKET; ACL FSS STD SGL CAB(FC*M)	8-98099-677-0	01	1	1011-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	1011-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1011-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (E)	8-98084-231-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1103-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1011-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1011-
252	DUCT; AIR INT FSS STD DBL CAB(FC*W)	8-98166-966-0	01	1	1103-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M)	8-98095-779-0	01	1	1011-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1011-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1011-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1011-
357	CLIP; RUBBER HOSE (B) ID=68-85	8-98096-592-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1011-1102
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1307-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-977-0	01	1	1103-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98082-252-0	01	1	1103-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98096-960-0	01	1	1011-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=502	8-98057-034-0	01	1	1011-
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ)	8-98079-757-0	01	1	1011-
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98081-837-0	01	1	1011-
450	CLAMP; HOSE	9-09915-504-1	01	1	1011-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1011-1308
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1309-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1011-1308
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	1309-
558	CLIP; AIR FLOW SENSOR FSS STD DBL CAB(FC*W) (C) L=600	1-09707-107-1	02	1	1103-1306
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (A) ID=10 & 15	1-09709-279-1	01	1	1011-1306
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1011-1306
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1011-1306
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1307-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	1011-1306

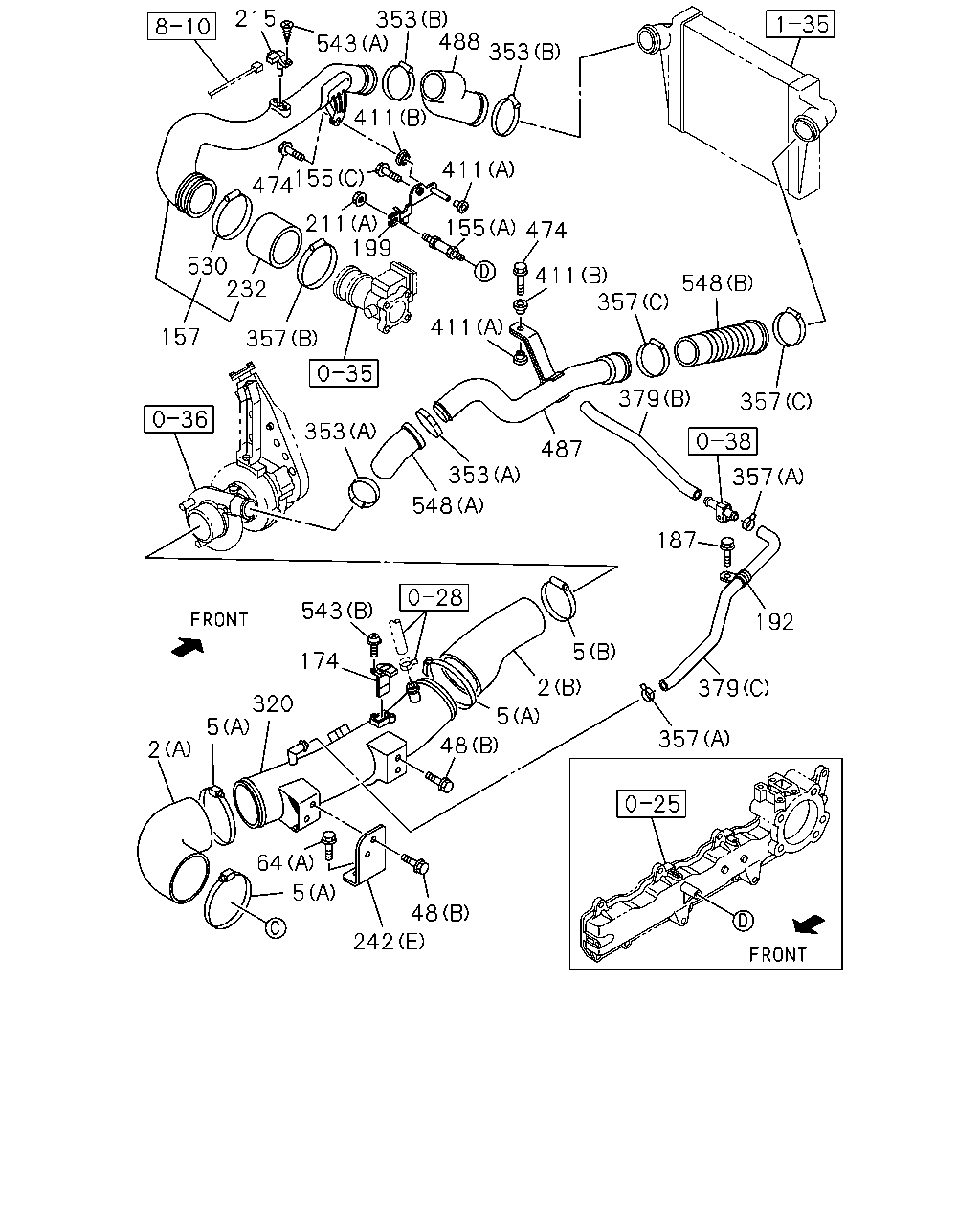

353 543 215 488 548 353 411 411 155 474 530 157 232 411 411 357 357 357 474 155 211 353 353 548 487 379 187 192 379 357 5 2 5 48 2 320 5 64 242 5 357 174 48 543 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FSS STD DBL CAB(FC*W) (A)	8-98058-691-1	01	1	1103-
2	HOSE; ACL FSS STD DBL CAB(FC*W) (B)	8-98081-763-0	01	1	1103-
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1103-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=104-142	1-09707-139-0	01	1	1011-
5	CLIP; AIR DUCT (B) ID=77-99	1-09707-141-0	01	1	1011-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1103-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (C) M10X30 FLANGE	0-28651-030-0	02	1	1103-
155	BOLT; BRKT (B) M10X110 FLANGE	0-28156-011-0	01	1	1011-
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1011-
157	PIPE; AIR FSS STD DBL CAB(FC*W)	8-98166-967-0	01	1	1103-
157	PIPE; AIR FSS STD SGL CAB(FC*M)	8-98096-274-1	01	1	1011-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1011-
187	BOLT; INL HOSE FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	01	1	1103-
192	CLIP; HOSE FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=26 L=26	1-09701-236-0	01	1	1103-
199	BRACKET; PIPE	8-98109-137-1	01	1	1011-1403
199	BRACKET; PIPE	8-98252-223-0	01	1	1404-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1011-
215	SENSOR; MAP	8-98009-418-0	01	1	1011-
232	HOSE; CONN	8-98128-293-0	01	1	1011-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (E)	8-98084-231-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1103-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1011-
320	HOSE; CONN,ACL FSS STD DBL CAB(FC*W)	8-98084-232-0	01	1	1103-
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M)	8-98010-644-1	01	1	1011-
353	CLIP; RUBBER HOSE (B) ID=58-79	1-09707-136-0	02	1	1011-
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1011-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	02	1	1011-
357	CLIP; RUBBER HOSE (B) ID=68-85	8-98096-592-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	1011-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1011-1102
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	1103-1306
357	CLIP; RUBBER HOSE (A) ID=24	8-98025-921-0	02	1	1307-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-977-0	01	1	1103-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98082-252-0	01	1	1103-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98096-960-0	01	1	1011-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=502	8-98057-034-0	01	1	1011-
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1011-
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1011-
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1011-
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	1011-
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1011-
530	CLAMP; AIR DUCT ID=65-85	8-98133-350-0	01	1	1011-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1011-1308
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1309-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1011-1308
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	01	1	1309-
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	1011-
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1011-

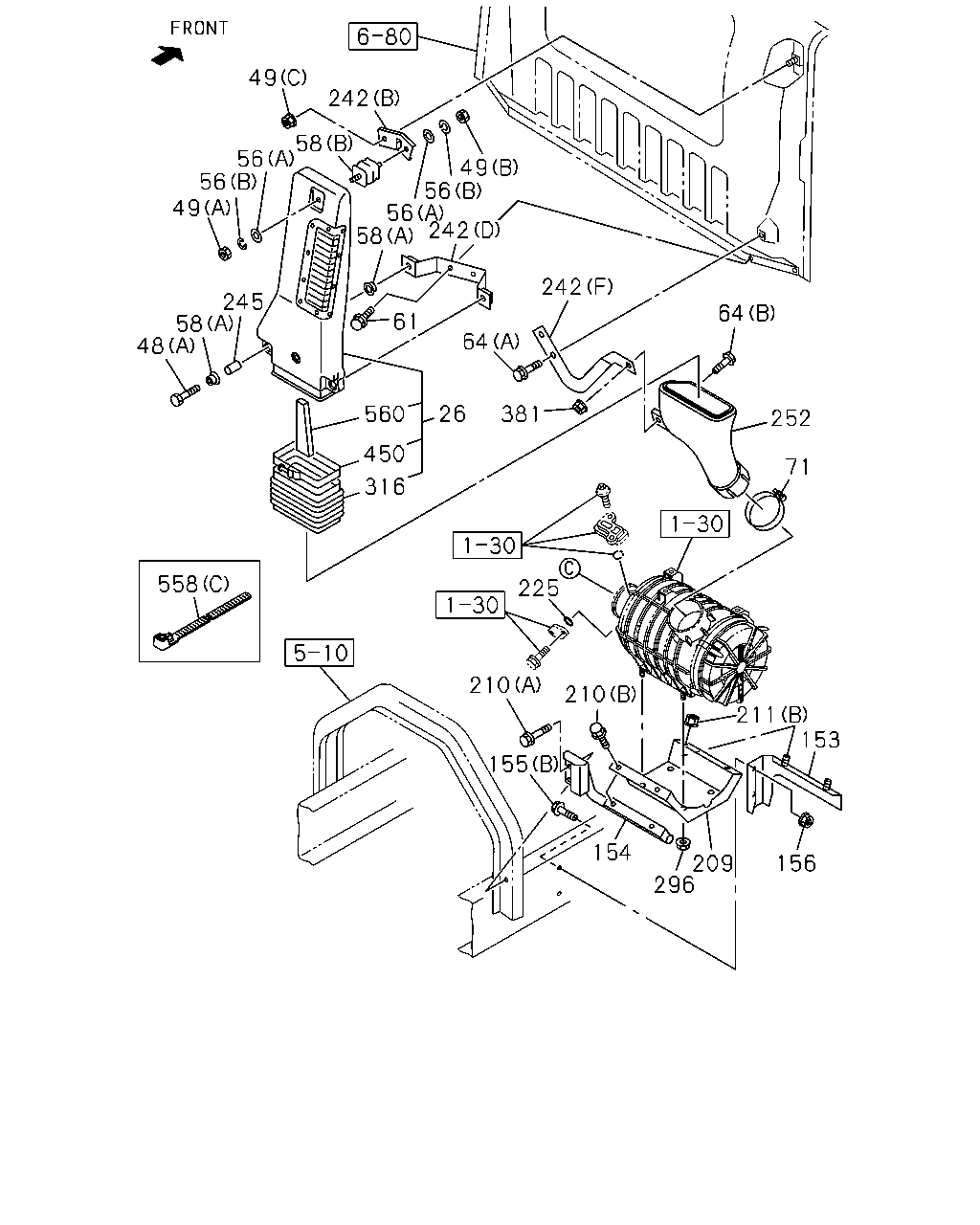

296 156 209 154 153 211 155 210 210 225 71 252 316 450 560 26 381 64 64 242 61 48 58 245 58 56 56 49 49 56 56 58 242 49 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1011-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1011-
49	NUT; AIR DUCT FSS STD DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	1103-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1011-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1011-
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1011-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1011-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1011-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1011-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1011-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1103-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1011-
153	BRACKET; ACL,FRT FSS STD DBL CAB(FC*W)	8-98058-686-0	01	1	1103-
154	BRACKET; ACL,RR FSS STD DBL CAB(FC*W)	8-98058-688-1	01	1	1103-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (C) M10X30 FLANGE	0-28651-030-0	02	1	1103-
155	BOLT; BRKT (B) M10X110 FLANGE	0-28156-011-0	01	1	1011-
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	01	1	1011-
156	NUT; BRKT FSS STD DBL CAB(FC*W) M10 FLANGE	0-91180-210-0	02	1	1103-
209	BRACKET; ACL FSS STD DBL CAB(FC*W)	8-98058-687-0	01	1	1103-
209	BRACKET; ACL FSS STD SGL CAB(FC*M)	8-98099-677-0	01	1	1011-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (B) M8X25 FLANGE	0-28650-825-0	02	1	1103-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1103-
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	1011-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	1103-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1011-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1011-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98050-679-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (E)	8-98084-231-1	01	1	1103-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (F)	8-98092-771-0	01	1	1103-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	1011-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	1011-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1011-
252	DUCT; AIR INT FSS STD DBL CAB(FC*W)	8-98166-966-0	01	1	1103-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M)	8-98095-779-0	01	1	1011-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1011-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1011-
381	NUT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	1103-
450	CLAMP; HOSE	9-09915-504-1	01	1	1011-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1307-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	1011-1306

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
