◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#69791) — 87 parça
çizim 73279
1 10 11 2 107 13 112 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1011-1102 ●
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1103- ● ●
2 CABLE; BATTERY
L=240 		1-82650-403-1 01 1 1103- ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1011- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1011- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3480 		8-98097-401-3 01 1 1103-1306 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98241-381-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-410-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440 		8-98097-399-3 01 1 1103-1306 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98241-380-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-409-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280 		8-98128-432-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-416-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030 		8-98122-341-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-414-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000 		8-98122-340-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-413-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> L=3310 		8-98171-048-0 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98295-415-0 01 1 1503- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1011-1102 ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1103- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1011-1102 ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011-1102 ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103- ● ●
107 CLIP; BAND
L=250 		5-09707-030-1 01 1 1307- ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1011- ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1011-1102 ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1103-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●

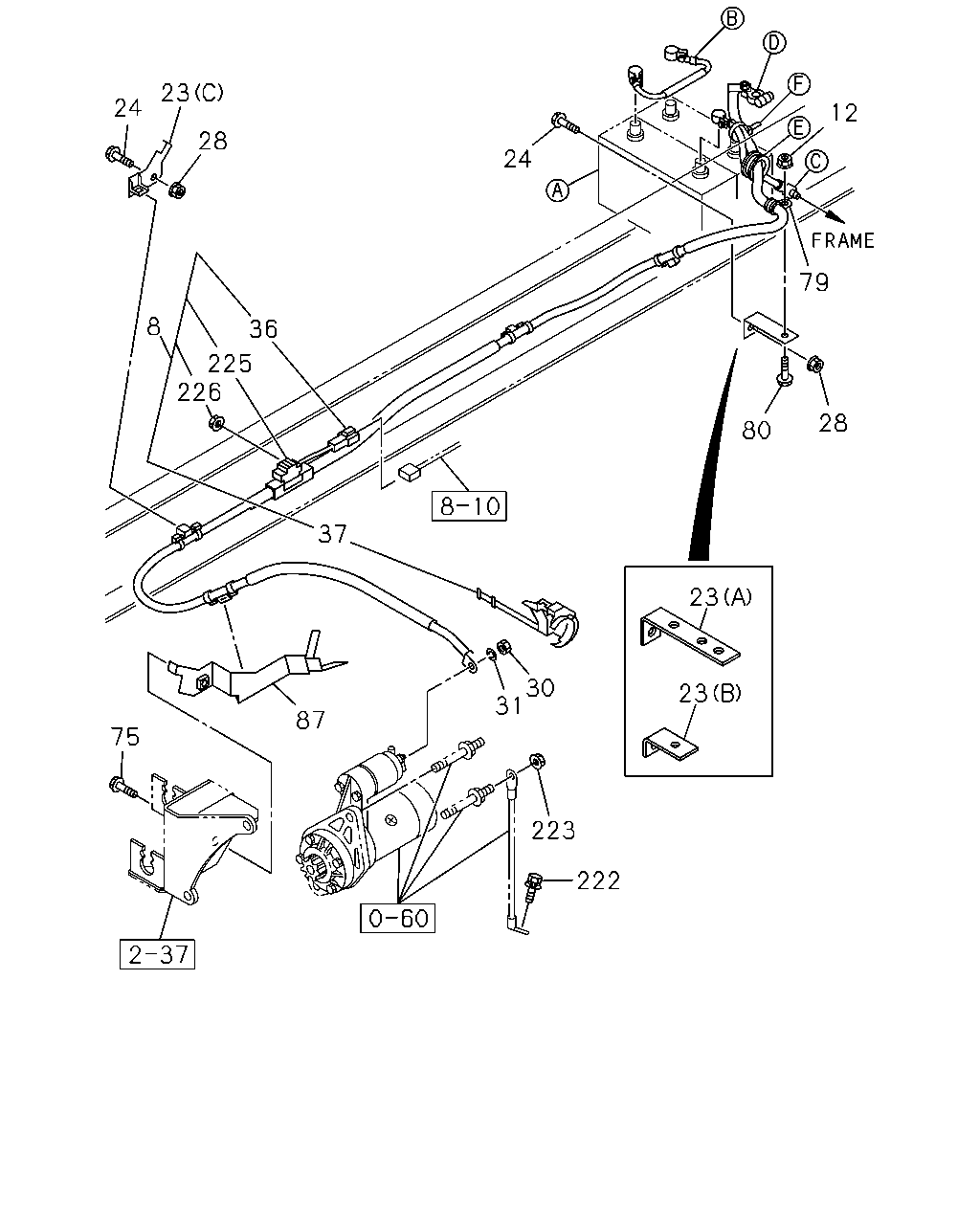

çizim 73434
12 24 24 23 36 8 226 225 79 28 80 37 87 75 30 31 223 222 23 23 28
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) L=3480 		8-98097-401-3 01 1 1103-1306 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98241-381-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-410-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3440 		8-98097-399-3 01 1 1103-1306 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98241-380-0 01 1 1307-1502 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-409-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280 		8-98128-432-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-416-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) L=3030 		8-98122-341-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-414-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3000 		8-98122-340-1 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98295-413-0 01 1 1503- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> L=3310 		8-98171-048-0 01 1 1011-1502 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98295-415-0 01 1 1503- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1011- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) L=115 		1-82698-360-0 01 1 1011- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1011-1107 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 01 1 1108- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 03 1 1103- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98047-277-1 01 1 1011-1102 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98047-277-1 01 1 1103- ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 03 1 1103- ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1011-1107 ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1011- ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1011-1102 ●
24 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 01 1 1103- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1103-1107 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1011-1107 ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1108- ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1011-1102 ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 1103- ● ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1011-1102 ●
30 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1103- ● ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1011-1102 ●
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 		0-91510-508-0 01 1 1103- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1011-1102 ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1103-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1011-1102 ●
37 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1103- ● ●
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
75 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
79 CLIP; BATTERY CABLE
ID=21 L=24 		8-98019-191-0 03 1 1011- ●
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1011- ●
87 BRACKET; HARNESS 8-98053-927-1 01 1 1011-1102 ●
87 BRACKET; HARNESS 8-98053-927-1 01 1 1103- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1011-1102 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1103- ● ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1011-1102 ●
223 NUT; EARTH CABLE
M10 FLANGE 		0-91180-210-0 01 1 1103- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1011-1102 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1103-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1011-1102 ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1103-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
