Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#69790) — 76 parça

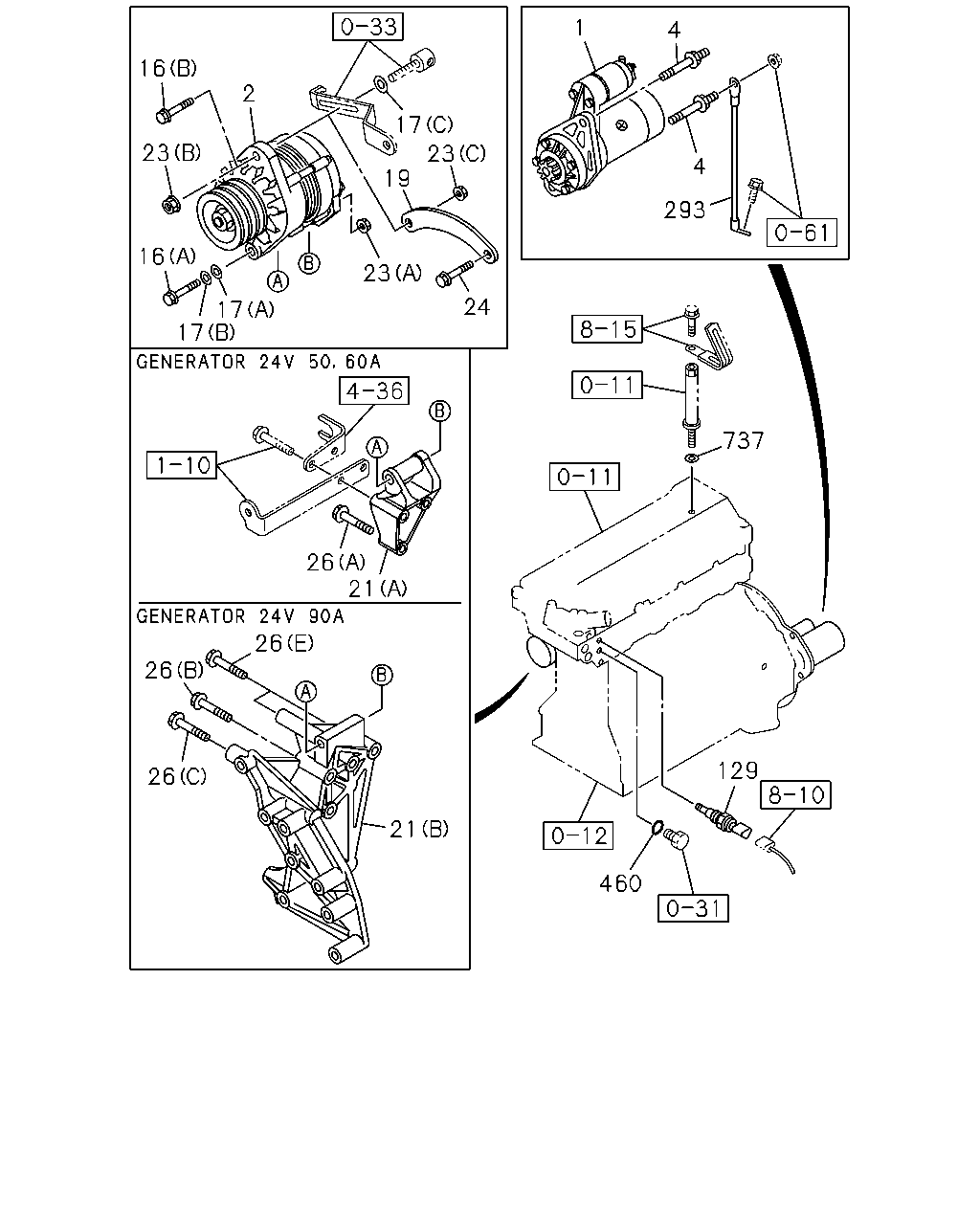

16 2 17 23 19 23 24 23 16 17 17 26 21 1 4 4 293 737 129 460 21 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	1011-1102	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	1103-1207	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-2	01	1	1011-1102	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-2	01	1	1011-1102	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1103-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-2	01	1	1011-1102	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-459-3	01	1	1103-1508	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-085-0	01	1	1509-	●	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1011-1102	●
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	1103-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1011-1102	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1103-	●	●
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1011-1102	●
16	BOLT; GEN GENERATOR 24V90A(K44) (B) M10X45 FLANGE	0-28051-045-0	01	1	1103-	●	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1011-1102	●
17	WASHER; PL,GEN (A) ID=14.2	0-91510-514-0	01	1	1103-	●	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1011-1102	●
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	1103-	●	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1011-1102	●
17	WASHER; PL,GEN EXC. GENERATOR 24V90A(K44) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1103-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	1011-1102	●
19	BRACKET; GEN GENERATOR 24V90A(K44)	8-98032-273-0	01	1	1103-	●	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1011-1102	●
21	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-97381-404-0	01	1	1103-	●	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1011-1102	●
21	BRACKET; GEN GENERATOR 24V90A(K44) (B)	8-98075-340-0	01	1	1103-	●	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1011-1102	●
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1103-	●	●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1011-1102	●
23	NUT; GEN GENERATOR 24V90A(K44) (C) M10 FLANGE	8-97065-439-0	01	1	1103-	●	●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1011-1102	●
23	NUT; GEN EXC. GENERATOR 24V90A(K44) (B) M12 FLANGE	0-91180-112-0	01	1	1103-	●	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1011-1102	●
24	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X20 FLANGE	0-28151-020-0	01	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1011-1102	●
26	BOLT; GEN BRKT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M10X50 FLANGE	0-28151-050-0	01	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1011-1102	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (C) M8X70 FLANGE	0-28050-870-0	01	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X60 FLANGE	0-28151-060-0	02	1	1011-1102	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (E) M10X60 FLANGE	0-28151-060-0	02	1	1103-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1011-1102	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) (B) M10X70 FLANGE	0-28151-070-0	01	1	1103-	●	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1011-1102	●
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	1103-1503	●	●
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-	●	●
293	CABLE; STARTER EARTH	8-98097-419-0	01	1	1103-		●
293	CABLE; STARTER EARTH	8-97618-304-0	01	1	1011-	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1011-1102	●
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	1103-	●	●
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	1011-1102	●
737	WASHER; PL ID=6.4 OD=18	0-91610-706-0	02	1	1103-	●	●

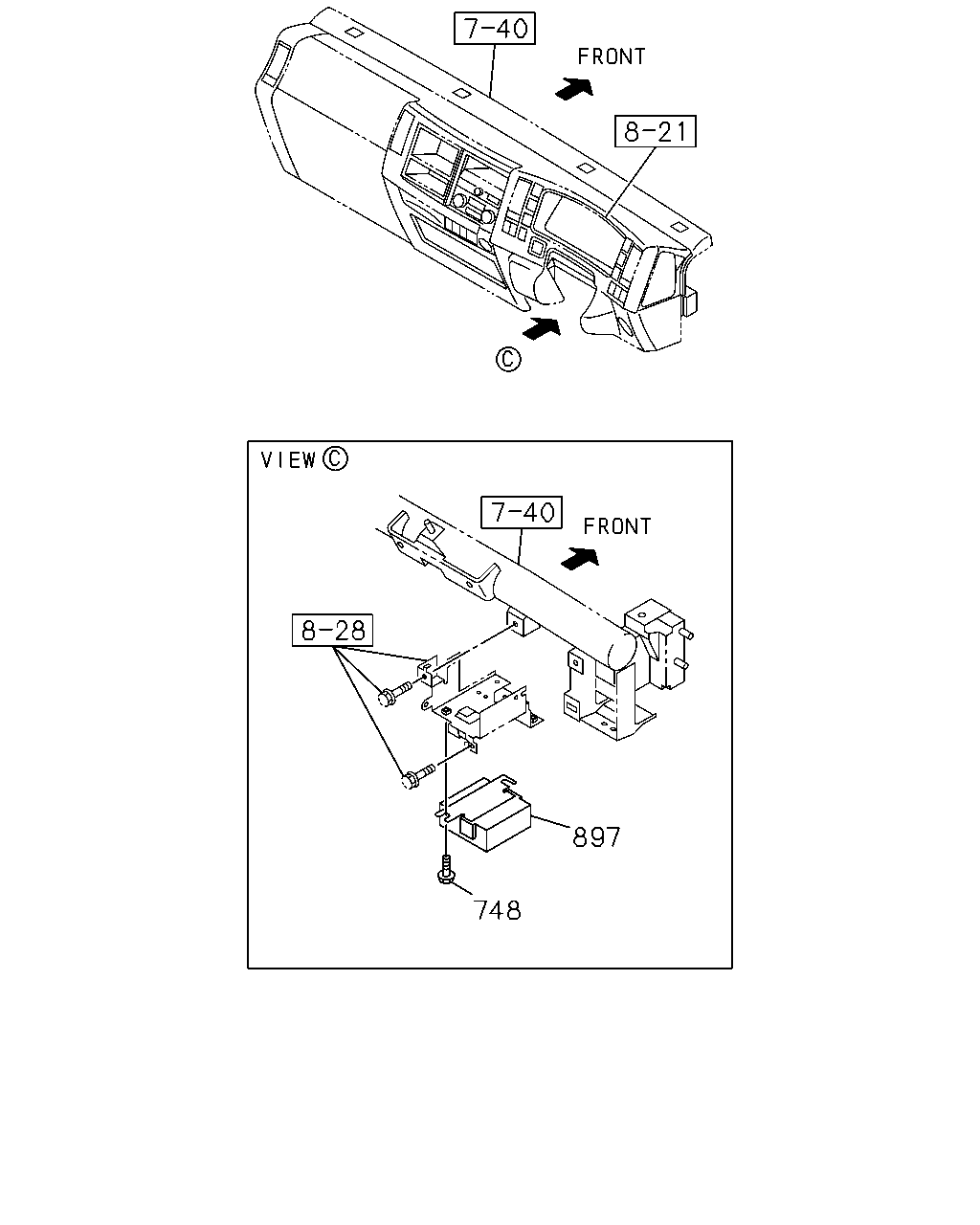

897 748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	1011-	●	●

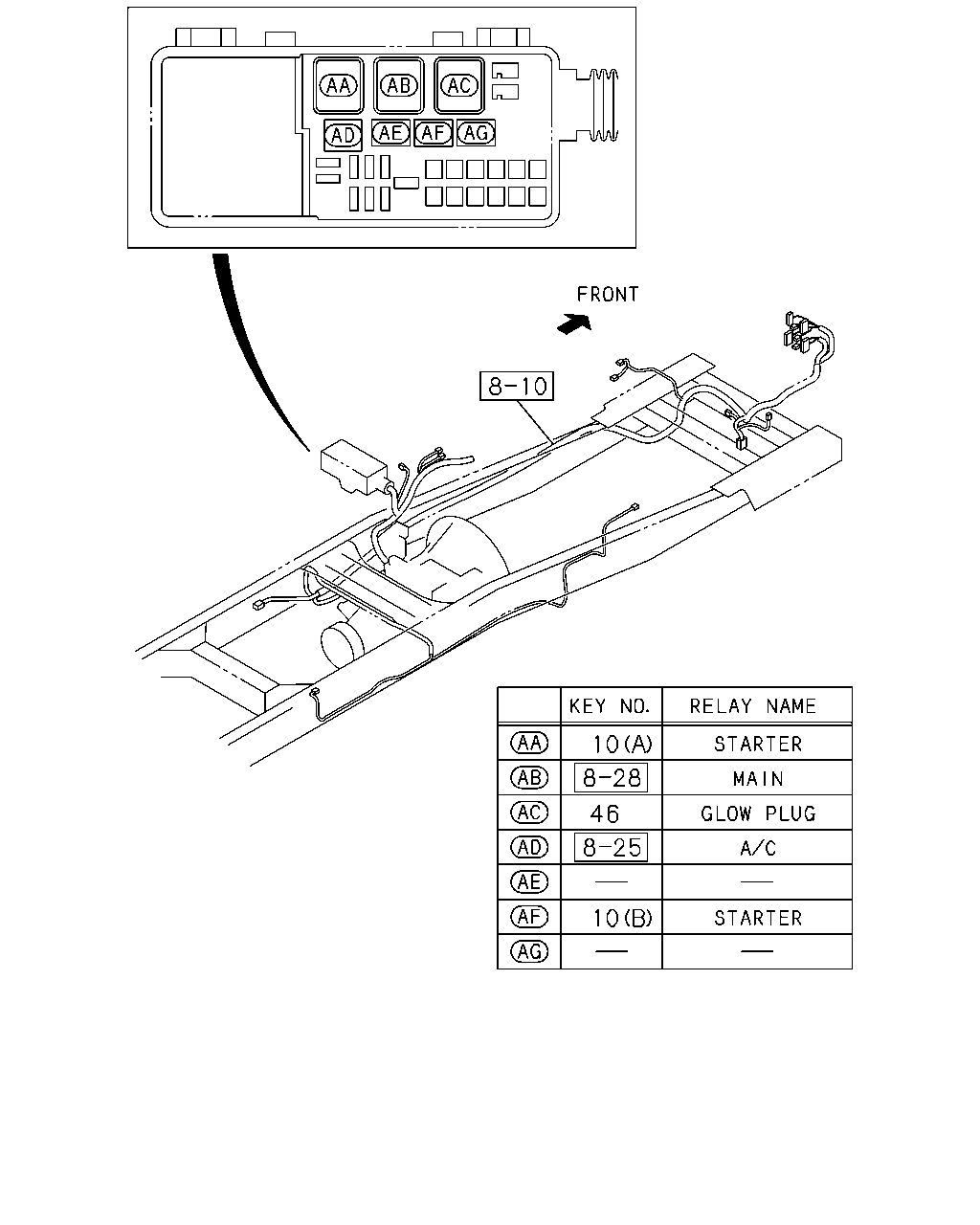

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V 50A	8-97264-947-0	01	1	1011-1102	●
10	RELAY; STARTER (B) 24V 50A	8-97264-947-0	01	1	1103-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1011-1102	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1103-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1011-1102	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1103-	●	●

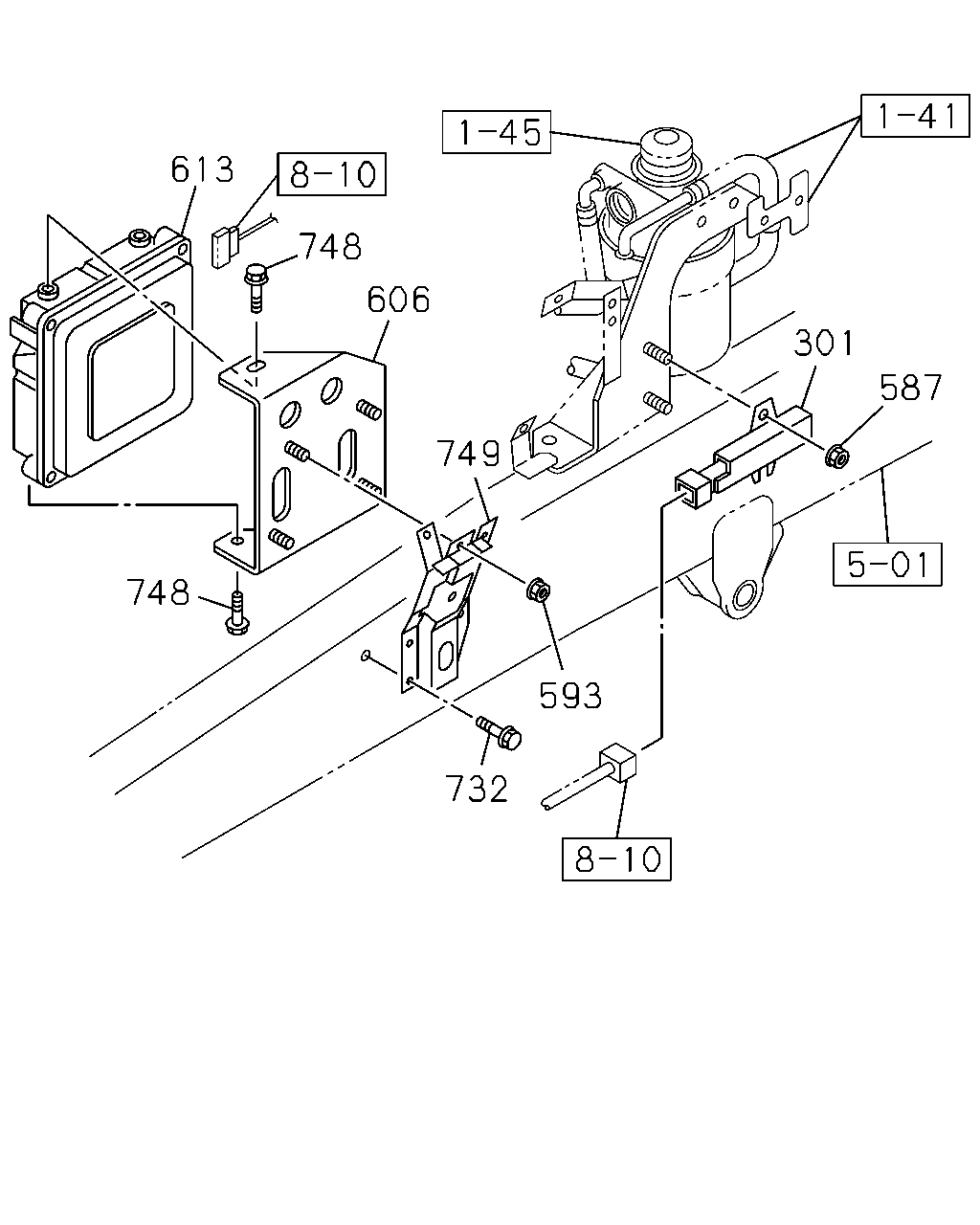

732 593 587 301 749 606 748 613 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1011-1102	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1103-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1103-1308	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	01	1	1309-	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1011-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1011-	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98171-850-1	01	1	1103-		●
613	CONTROL UNIT; ENG EXC. AUTO CRUISE<K30>	8-98171-851-1	01	1	1103-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30>	8-98171-852-1	01	1	1011-	●
613	CONTROL UNIT; ENG EXC. AUTO CRUISE<K30>	8-98171-853-1	01	1	1011-	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1011-	●	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	1011-	●	●
749	STAY; CONT UNIT	1-53194-596-3	01	1	1011-1102	●
749	STAY; CONT UNIT	1-53194-596-3	01	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
