0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#69782) — 90 parça

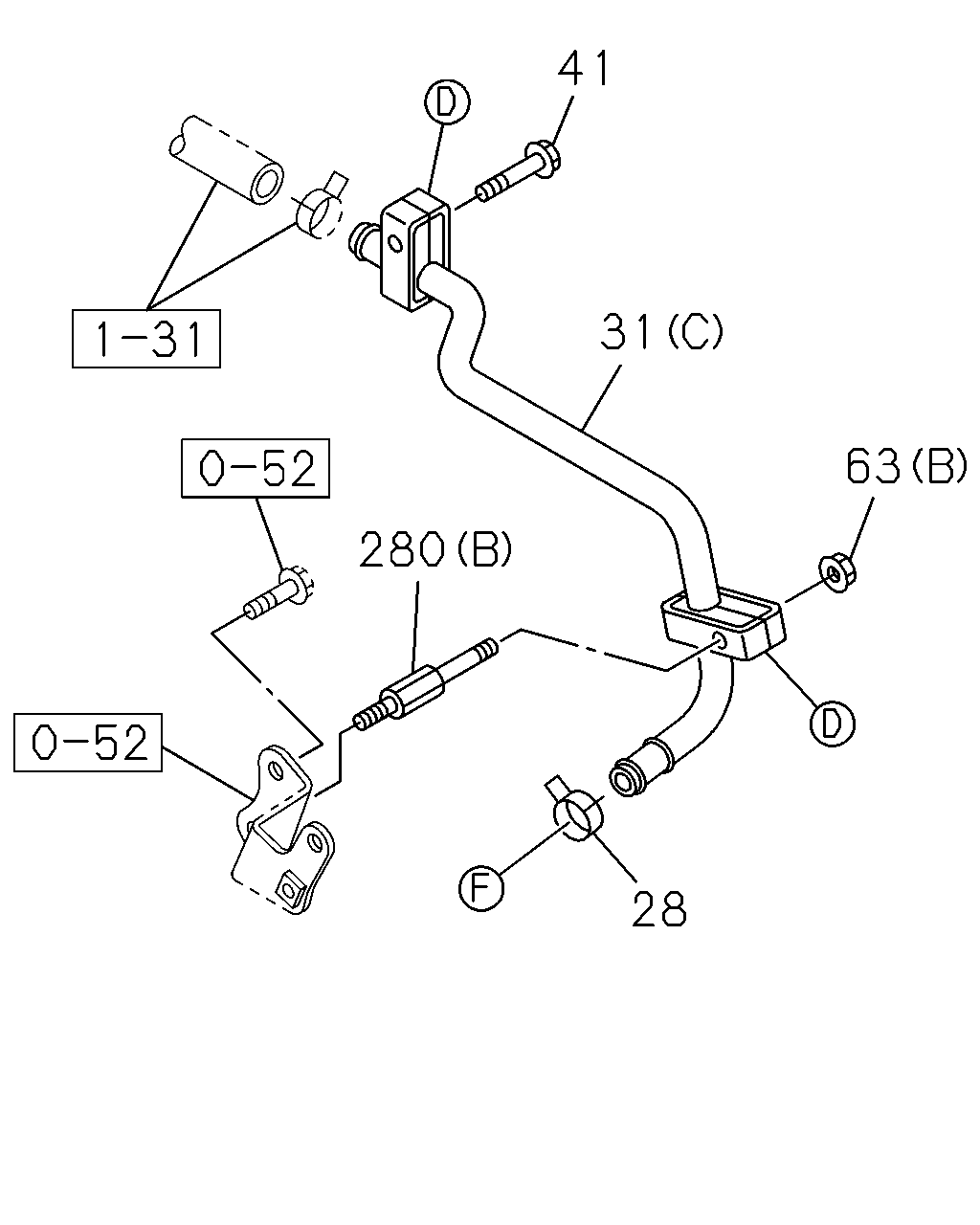

28 63 280 31 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	1011-
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1011-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	1011-
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1011-
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	1011-
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1011-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	1011-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	1011-

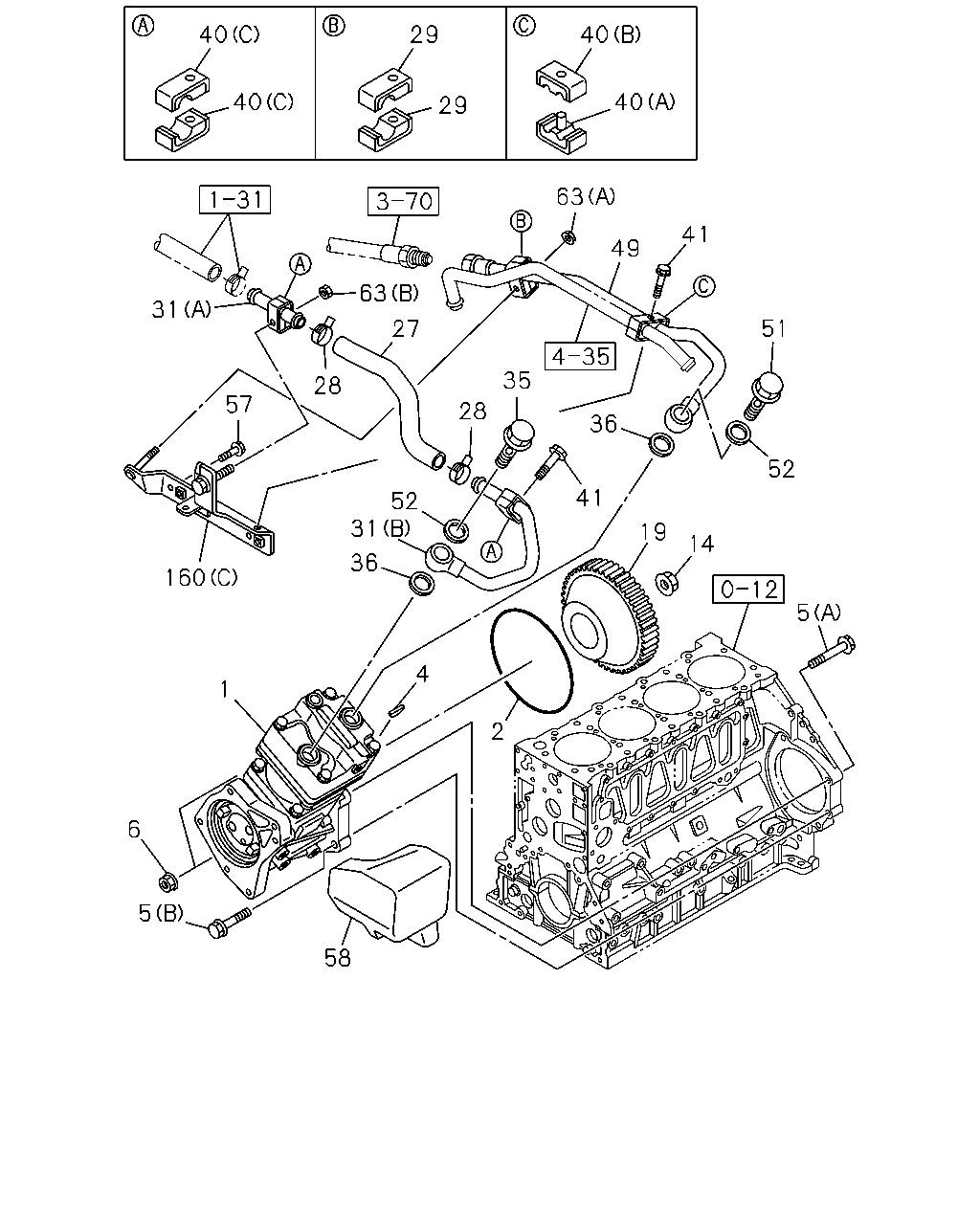

40 40 29 29 40 40 63 31 57 28 63 160 6 5 58 4 1 2 36 52 31 19 41 28 35 14 36 27 5 51 52 41 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1011-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1011-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1011-
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1011-
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1011-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1011-
14	NUT; GEAR M18	8-97141-154-0	01	1	1011-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1011-
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	1011-
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	1011-
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	1011-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	1011-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	1011-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1011-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1011-
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1011-
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=17 L=17	1-09701-284-0	06	1	1011-
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=17 L=17	1-09701-284-0	04	1	1011-
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1011-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	1011-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	1011-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	1011-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1011-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1011-
58	SPACER; AIR CMPR	8-98059-817-1	01	1	1011-
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1011-
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	1011-
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	1011-

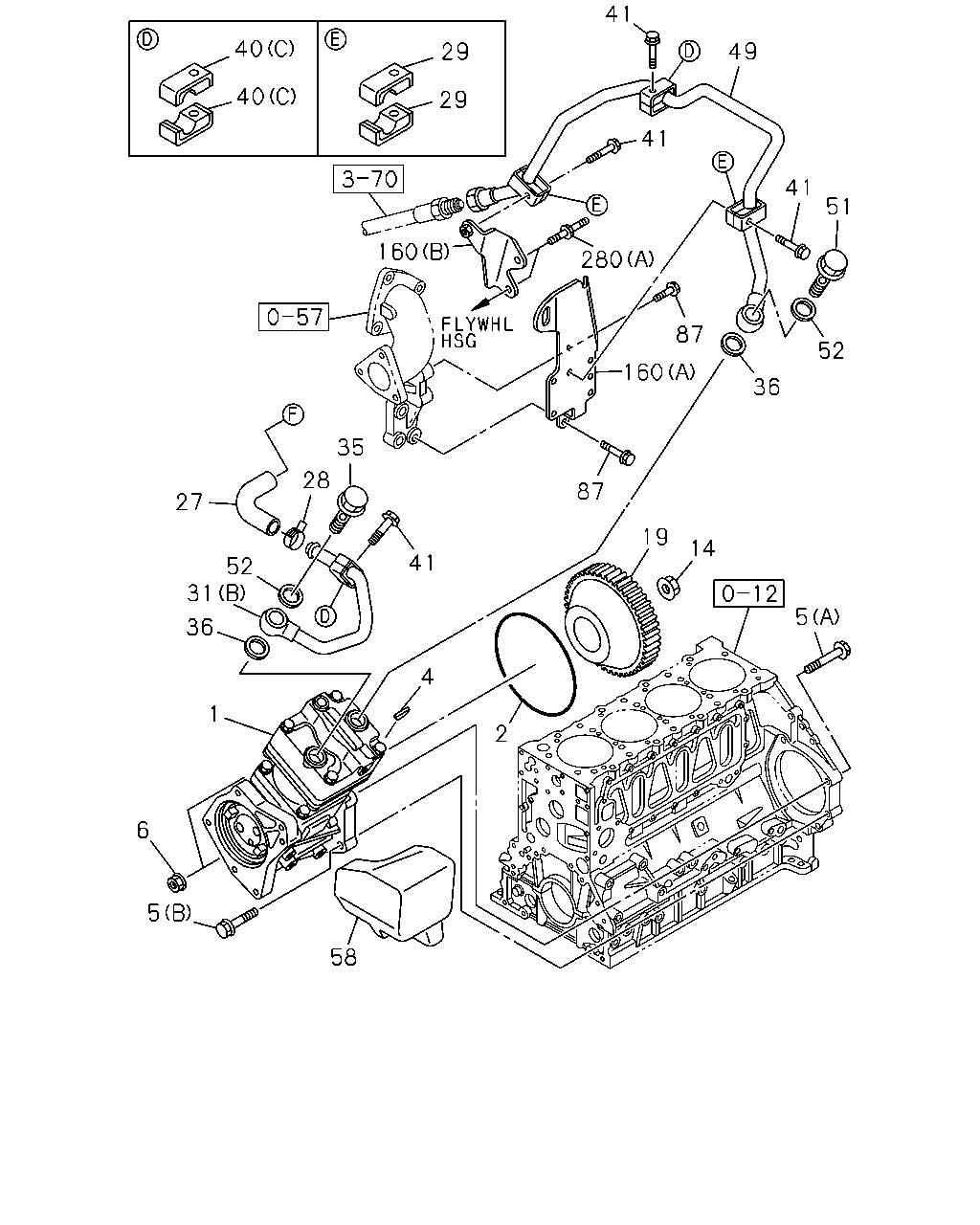

40 40 29 29 160 35 28 52 31 36 1 6 4 41 2 5 58 87 19 14 5 36 160 87 280 41 41 49 41 52 27 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1011-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1011-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1011-
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1011-
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1011-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1011-
14	NUT; GEAR M18	8-97141-154-0	01	1	1011-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1011-
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	1011-
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	1011-
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	1011-
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	1011-
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	1011-
31	PIPE; AIR,AIR CMPR SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	1011-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1011-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1011-
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1011-
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=17 L=17	1-09701-284-0	06	1	1011-
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) ID=17 L=17	1-09701-284-0	04	1	1011-
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1011-
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	1011-
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	1011-
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	1011-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1011-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1011-
58	SPACER; AIR CMPR	8-98059-817-1	01	1	1011-
87	BOLT; BRKT FIX POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	02	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	1011-
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	1011-
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	1011-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	1011-
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	1011-
