0-28 — VENTILATION SYSTEM (#69775) — 51 parça

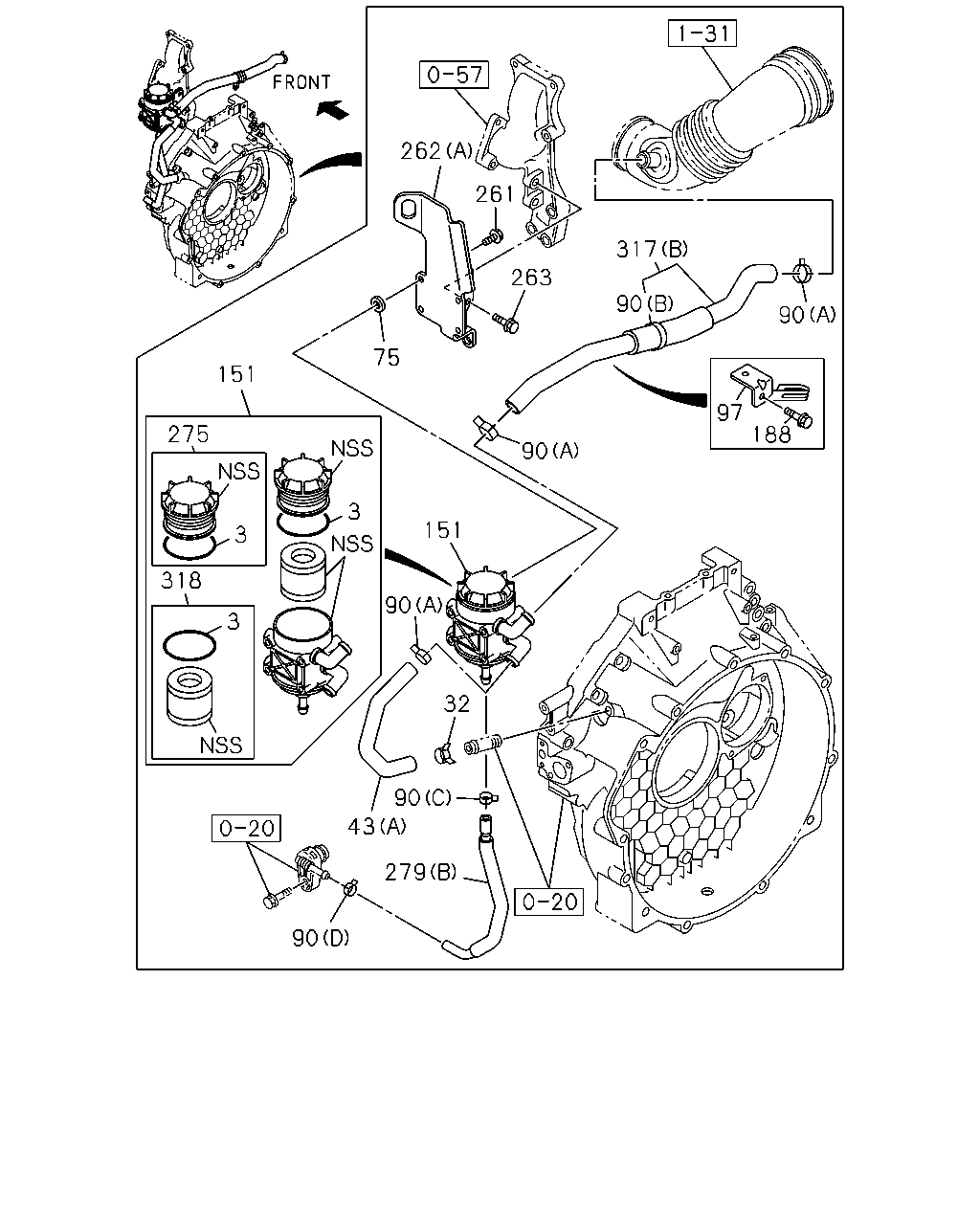

90 317 90 263 261 262 75 90 188 97 151 275 3 318 3 151 32 90 43 279 90 3 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1011-
32	CLIP; VENT HOSE ID=21	8-94242-034-0	01	1	1011-
43	HOSE; PCV POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98055-907-1	01	1	1011-
43	HOSE; PCV EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-033-0	01	1	1011-
75	WASHER EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=9 OD=18 T=5	9-14149-173-0	04	1	1011-
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	1011-
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	1011-
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1011-
90	CLIP; RUBBER HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=212	8-94107-652-0	01	1	1011-
97	BRACKET; HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98093-946-3	01	1	1011-
151	SEPARATOR; OIL,PCV POWER TAKE OFF-FLYWHEEL(6SZ)	8-97375-094-0	01	1	1011-
151	SEPARATOR; OIL,PCV EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97324-682-1	01	1	1011-
188	BOLT; BRKT EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X12 FLANGE	0-28050-812-0	01	1	1011-
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	1011-
262	BRACKET; OIL SEPARETOR POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98055-854-0	01	1	1011-
262	BRACKET; OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98036-498-0	01	1	1011-1501
262	BRACKET; OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98296-130-0	01	1	1502-
263	BOLT; BRKT,OIL SEPARETOR POWER TAKE OFF-FLYWHEEL(6SZ) M10X30 FLANGE	0-28751-030-0	02	1	1011-
263	BOLT; BRKT,OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	03	1	1011-
275	CAP; PCV	8-97389-360-0	01	1	1011-
279	HOSE; RUBBER,OIL DRAIN POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98078-986-0	01	1	1011-
279	HOSE; RUBBER,OIL DRAIN EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97386-653-1	01	1	1011-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-979-0	01	1	1103-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-932-0	01	1	1103-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98055-908-1	01	1	1011-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-931-1	01	1	1011-
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	1011-

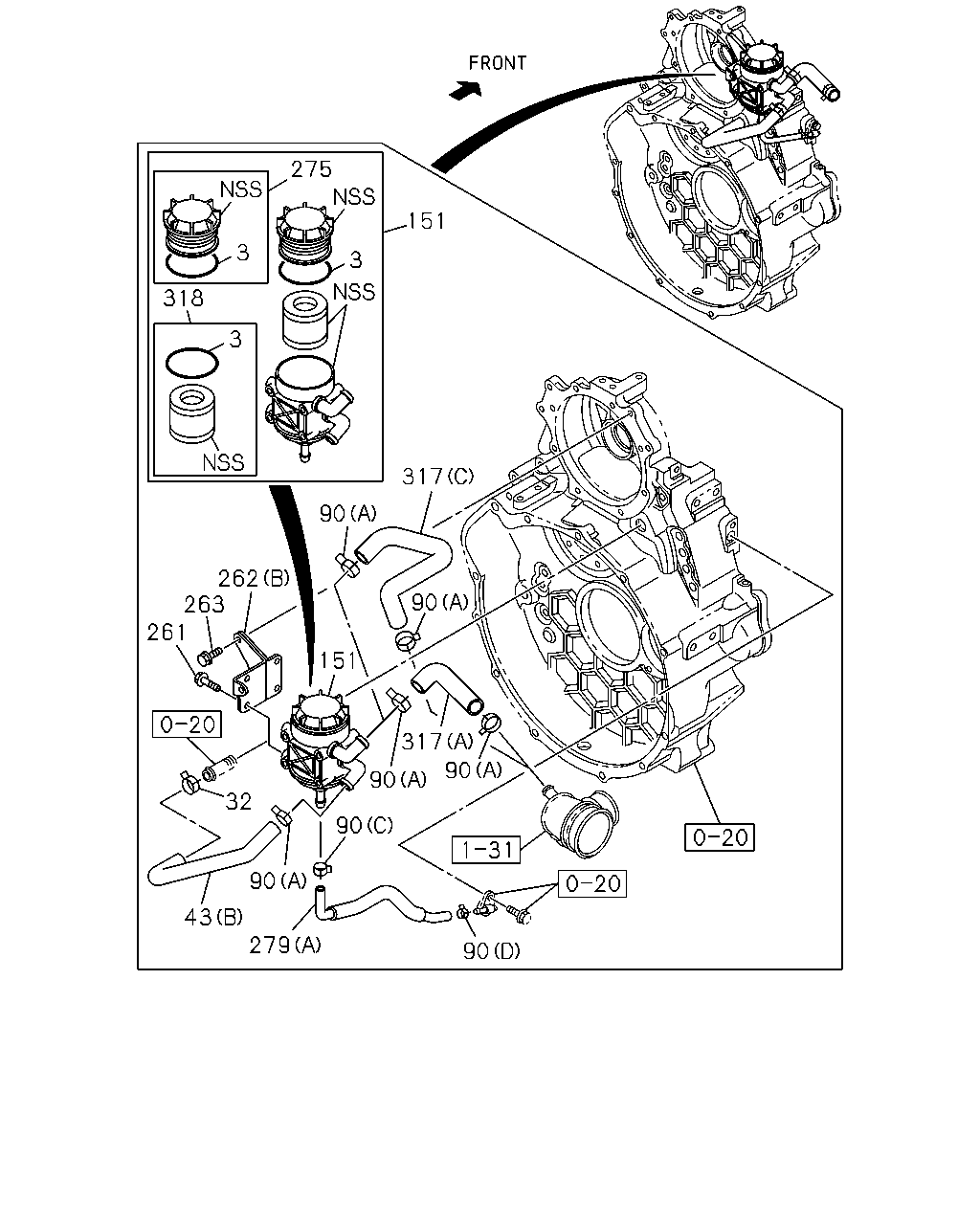

151 3 3 318 3 317 90 262 263 261 151 317 90 90 32 90 43 279 90 90 90 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	1011-
32	CLIP; VENT HOSE ID=21	8-94242-034-0	01	1	1011-
43	HOSE; PCV POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98055-907-1	01	1	1011-
43	HOSE; PCV EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98057-033-0	01	1	1011-
90	CLIP; RUBBER HOSE (A) ID=28	1-09707-124-0	03	1	1011-
90	CLIP; RUBBER HOSE (C) ID=13	8-94238-571-0	01	1	1011-
90	CLIP; RUBBER HOSE (D) ID=11.5	8-97138-011-0	01	1	1011-
90	CLIP; RUBBER HOSE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=212	8-94107-652-0	01	1	1011-
151	SEPARATOR; OIL,PCV POWER TAKE OFF-FLYWHEEL(6SZ)	8-97375-094-0	01	1	1011-
151	SEPARATOR; OIL,PCV EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97324-682-1	01	1	1011-
261	BOLT; SEPARETOR M8X30 FLANGE	0-28650-830-0	04	1	1011-
262	BRACKET; OIL SEPARETOR POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98055-854-0	01	1	1011-
262	BRACKET; OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98036-498-0	01	1	1011-1501
262	BRACKET; OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98296-130-0	01	1	1502-
263	BOLT; BRKT,OIL SEPARETOR POWER TAKE OFF-FLYWHEEL(6SZ) M10X30 FLANGE	0-28751-030-0	02	1	1011-
263	BOLT; BRKT,OIL SEPARETOR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	03	1	1011-
275	CAP; PCV	8-97389-360-0	01	1	1011-
279	HOSE; RUBBER,OIL DRAIN POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98078-986-0	01	1	1011-
279	HOSE; RUBBER,OIL DRAIN EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97386-653-1	01	1	1011-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-979-0	01	1	1103-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-932-0	01	1	1103-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98055-908-1	01	1	1011-
317	HOSE; RUBBER,OIL SEPARATOR FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98095-931-1	01	1	1011-
318	ELEMENT KIT; PCV	8-98002-346-0	01	1	1011-
