Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#69750) — 183 parça

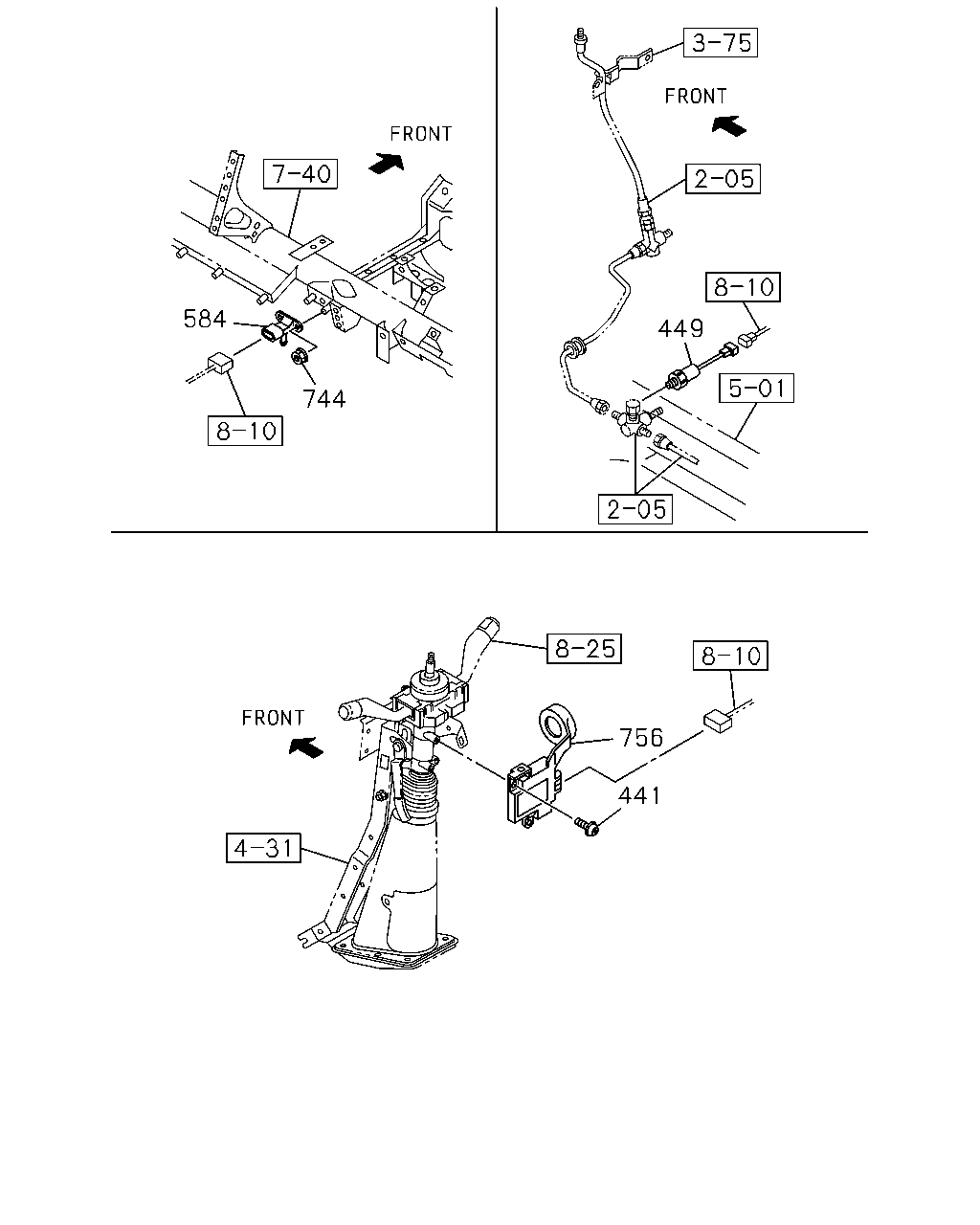

449 744 584 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1010-	●	●
449	SWITCH; OIL PRESS,CLUTCH ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1010-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1010-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1010-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1010-	●	●

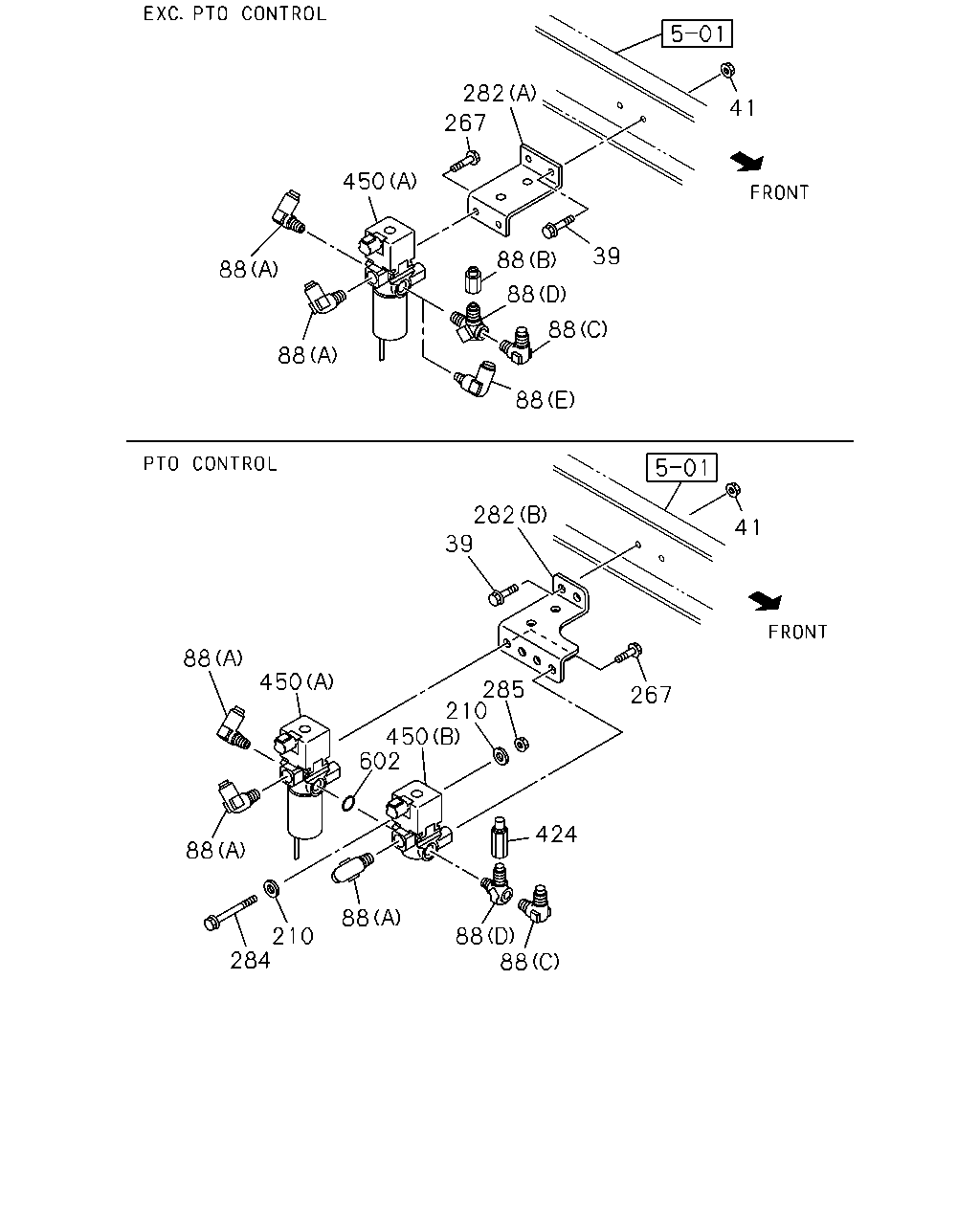

282 267 450 88 88 88 88 88 88 39 41 282 39 285 210 450 450 88 88 210 88 424 267 41 88 284 88 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1010-1306	●	●
39	BOLT; BRKT,MAG VLV EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	02	1	1307-	●	●
39	BOLT; BRKT,MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	02	1	1307-	●	●
39	BOLT; BRKT,MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8X35 FLANGE	0-28650-835-0	02	1	1307-	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
41	NUT; BRKT,MAG VLV EXC. PTO ZF TRANS RR(BDM),H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
41	NUT; BRKT,MAG VLV ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
41	NUT; BRKT,MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. H.S.A SYSTEM<6EP> M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1310-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1310-		●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1307-	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1306	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1307-1309	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1310-	●	●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	1310-	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	8-98154-633-0	01	1	1010-1306	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-98154-633-0	01	1	1010-1306	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	8-98154-633-0	01	1	1307-	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A)	8-98154-633-0	01	1	1307-	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	1010-1306	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B)	8-98101-296-0	01	1	1307-	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	1010-1306	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1307-	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1010-1306	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1307-	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1010-1306	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1307-	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1010-1306	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1306	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1307-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B)	1-82563-871-2	01	1	1307-	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1306	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1307-1309	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1310-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	1310-	●	●

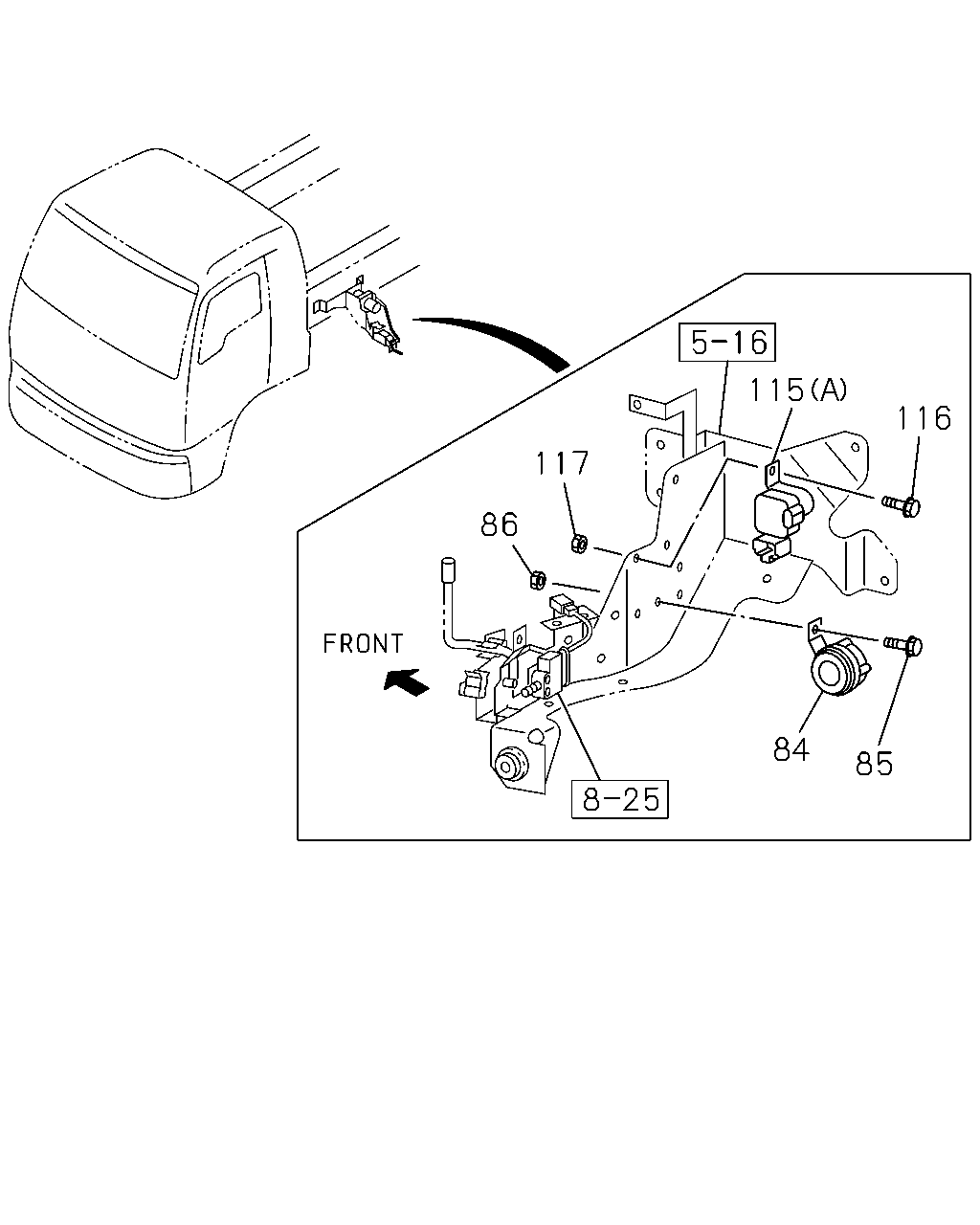

117 86 115 116 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1010-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1010-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1010-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1010-	●	●

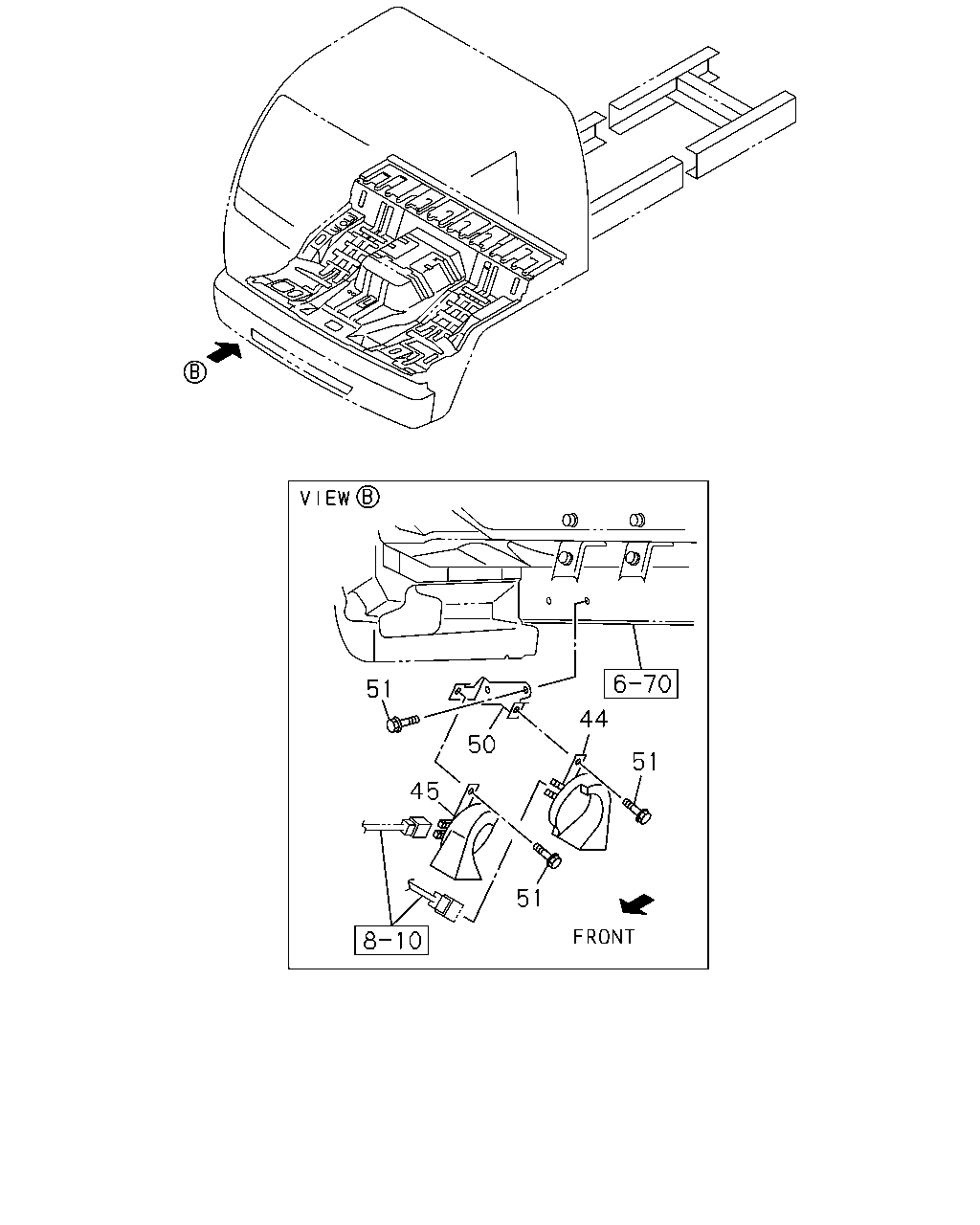

50 51 51 44 51 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1010-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1010-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1306	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1306	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1307-	●	●

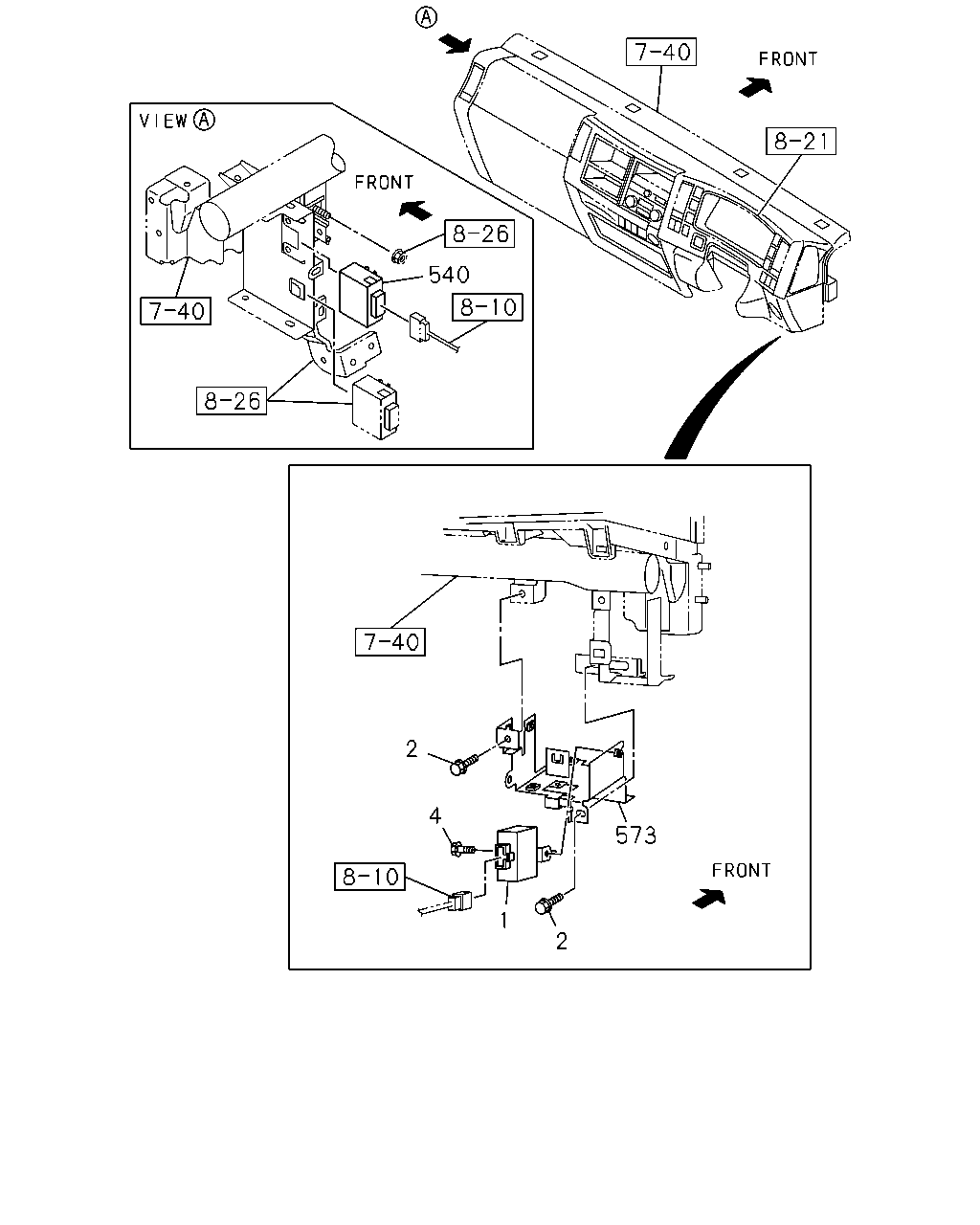

540 2 4 2 1 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1010-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1010-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1010-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1010-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1010-	●	●

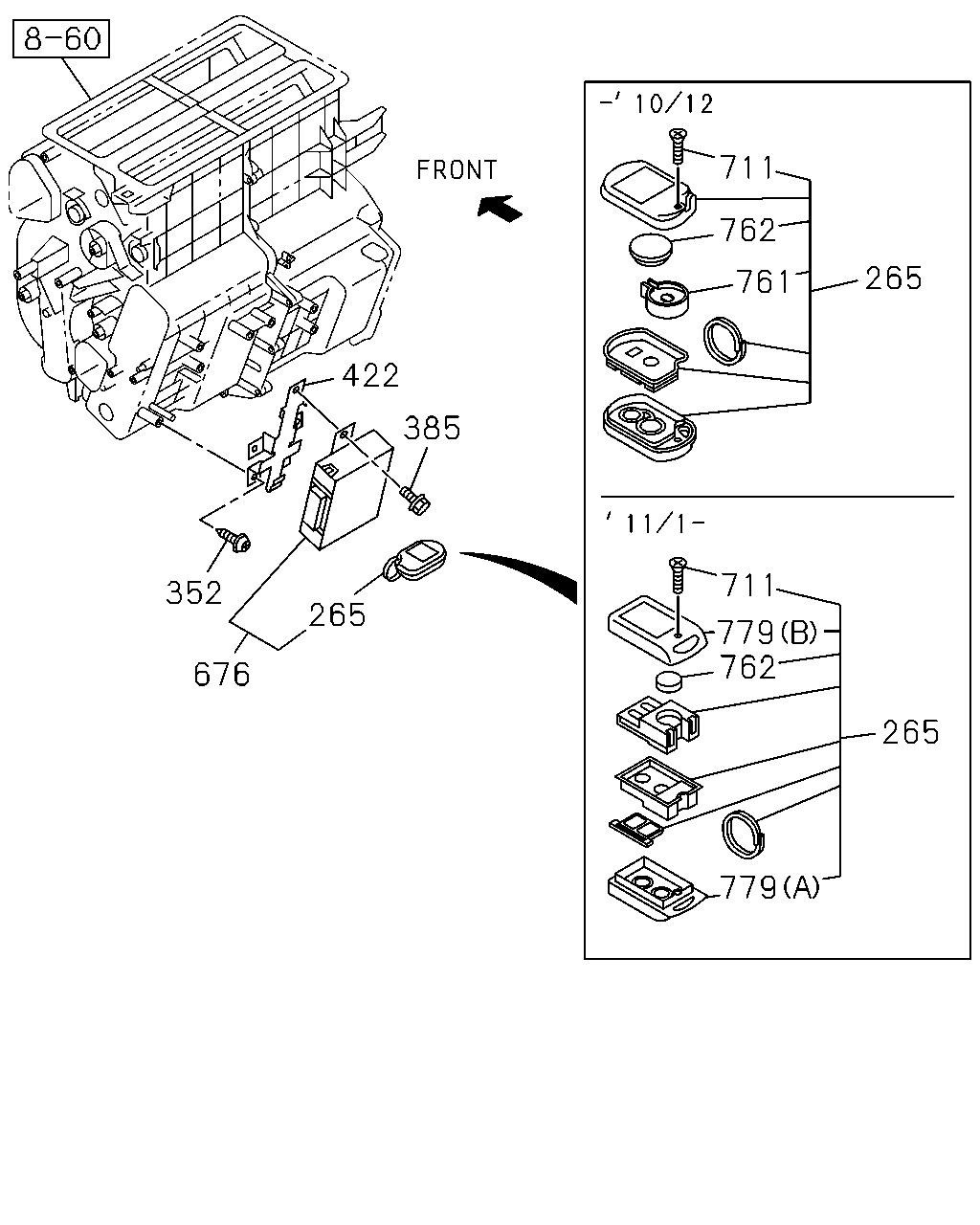

422 385 265 676 352 711 265 762 761 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	1010-1012	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1010-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1010-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1010-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	1010-1012	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1010-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1010-1012	●	●
762	BATTERY	8-98078-061-0	02	1	1010-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1307-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1307-	●	●

79 88 40 450 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98057-863-0	01	1	1010-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1310-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1310-		●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1307-	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	1010-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1010-1306	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	1010-1306	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	1307-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B)	1-82563-871-2	01	1	1307-	●	●

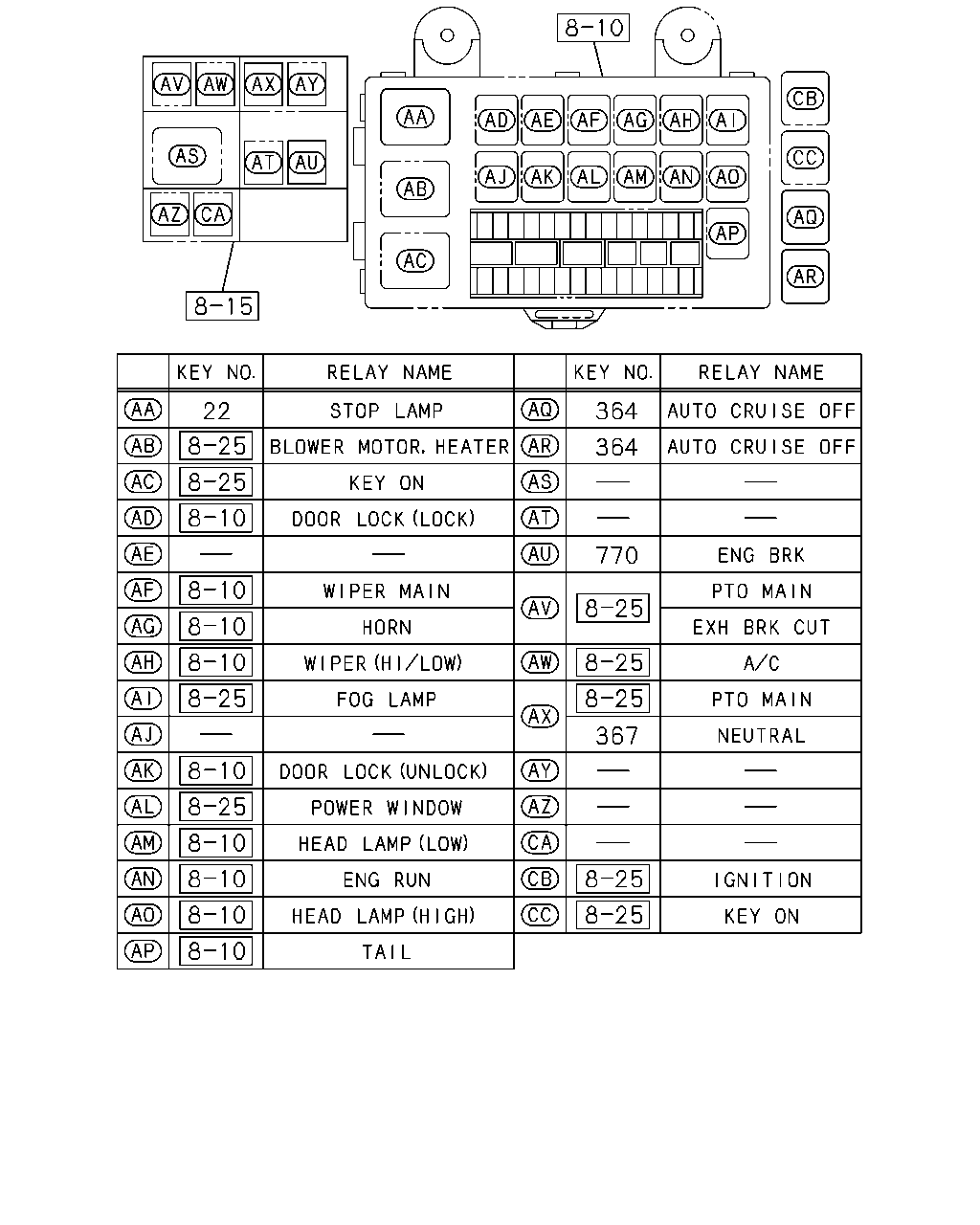

22 364 364 367 770

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1010-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
364	RELAY; AUTO CRUISE OFF A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	03	1	1010-	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	1010-	●	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1010-	●	●

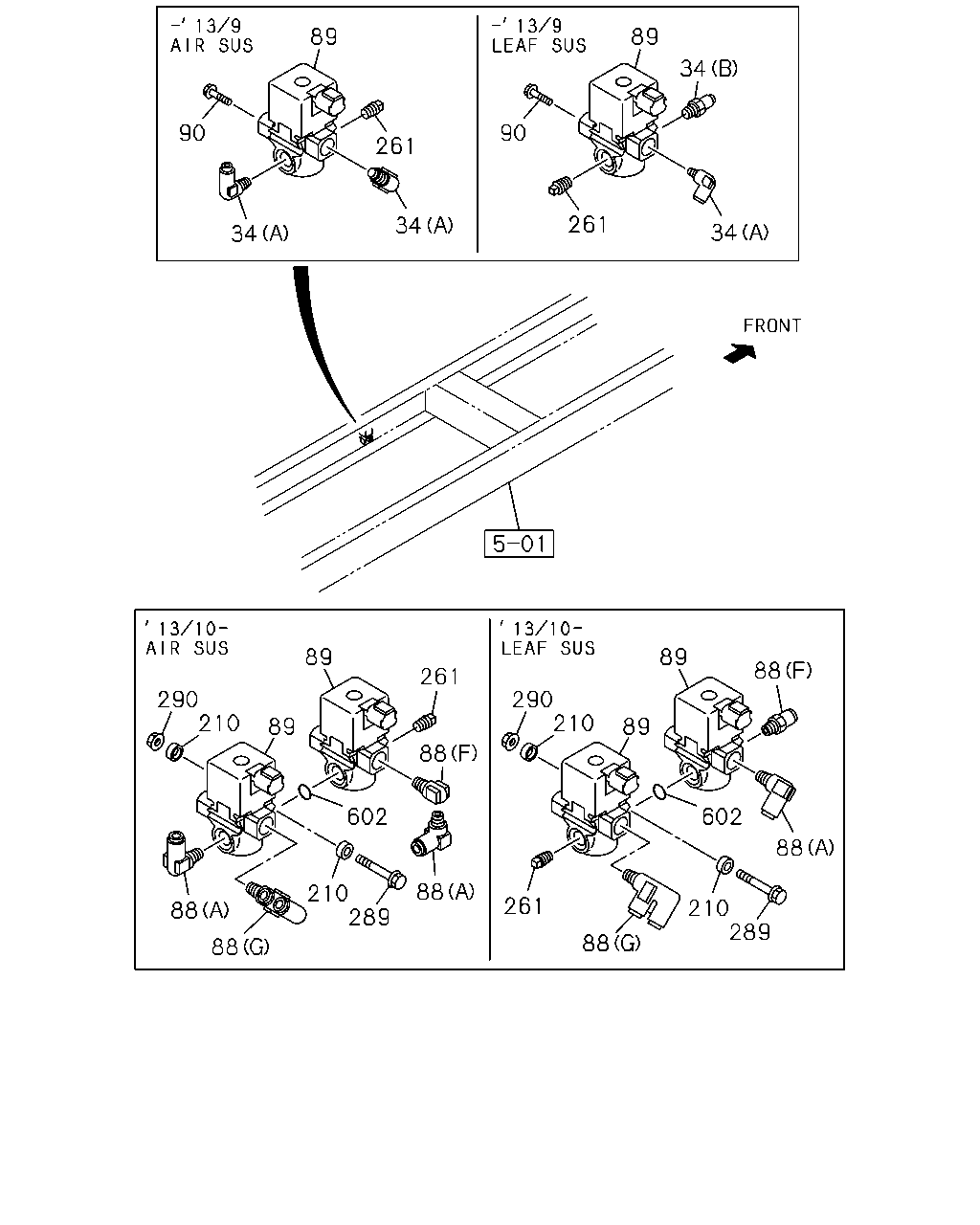

89 261 90 34 34 261 90 89 34 34 89 290 210 89 261 88 602 210 289 88 88 88 290 210 89 89 88 602 88 210 289 88 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1309	●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-1309		●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1010-1309		●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1310-		●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1310-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-		●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1310-		●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1307-1309	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1310-	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1307-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1010-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1010-1306	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1307-	●	●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	02	1	1310-	●	●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	1010-1205	●	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-1309	●	●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1310-	●	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	03	1	1310-	●	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	1010-1309	●	●
90	BOLT; MAG VLV EXC. DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	1310-	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	1010-1306	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1307-1309	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1310-	●	●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	1310-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1010-1205	●	●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
289	BOLT DIFF LOCK<C3N> M6X50 FLANGE	0-28050-650-0	01	1	1310-	●	●
290	NUT DIFF LOCK<C3N> M6 FLANGE	0-91180-106-0	01	1	1310-	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1010-1306	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1307-1309	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1310-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	1310-	●	●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE	8-97611-676-2	01	1	1010-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1010-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1010-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
