2-05 — CLUTCH PIPING (#6975) — 80 parça

22 167 103 102 27 10 175 56 50 133 153 30 25 184 180 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	9908-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9908-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9908-
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9908-
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9908-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9908-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9908-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9908-
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9908-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9908-
30	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	9908-
50	NUT; UNION M14	9-99111-414-0	01	1	9908-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	9908-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9908-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9908-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9908-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	9908-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9908-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9908-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9908-
180	PLUG; PIPE	9-09204-510-0	01	1	9908-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	9908-

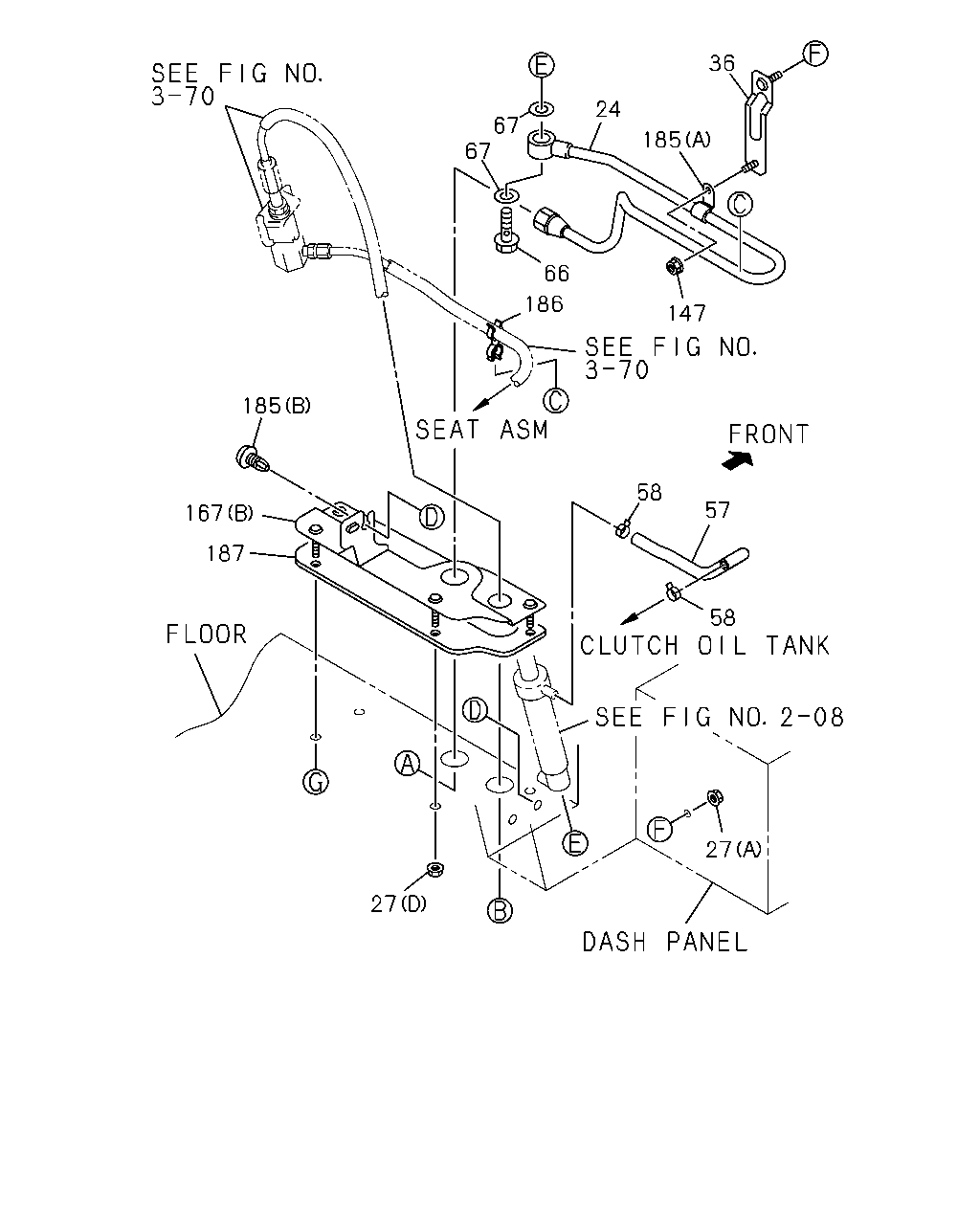

36 185 24 67 67 66 186 147 185 167 187 27 58 57 58 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	9908-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9908-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9908-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9908-
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9908-
36	BRACKET; CLIP	1-71117-191-1	01	1	9908-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	9908-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9908-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	9908-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9908-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9908-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	9908-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	9908-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	9908-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	9908-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	9908-
187	SEAL; BRKT	1-71117-209-2	01	1	9908-

52 53 53 49 9 54 48 47 47 42 46 45 115 116 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9908-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	9908-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9908-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9908-
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	9908-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	9908-
47	HOSE; FLEX,CLU CONT (A) L=600	0-07706-600-0	01	1	9908-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9908-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9908-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9908-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9908-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9908-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9908-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9908-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9908-

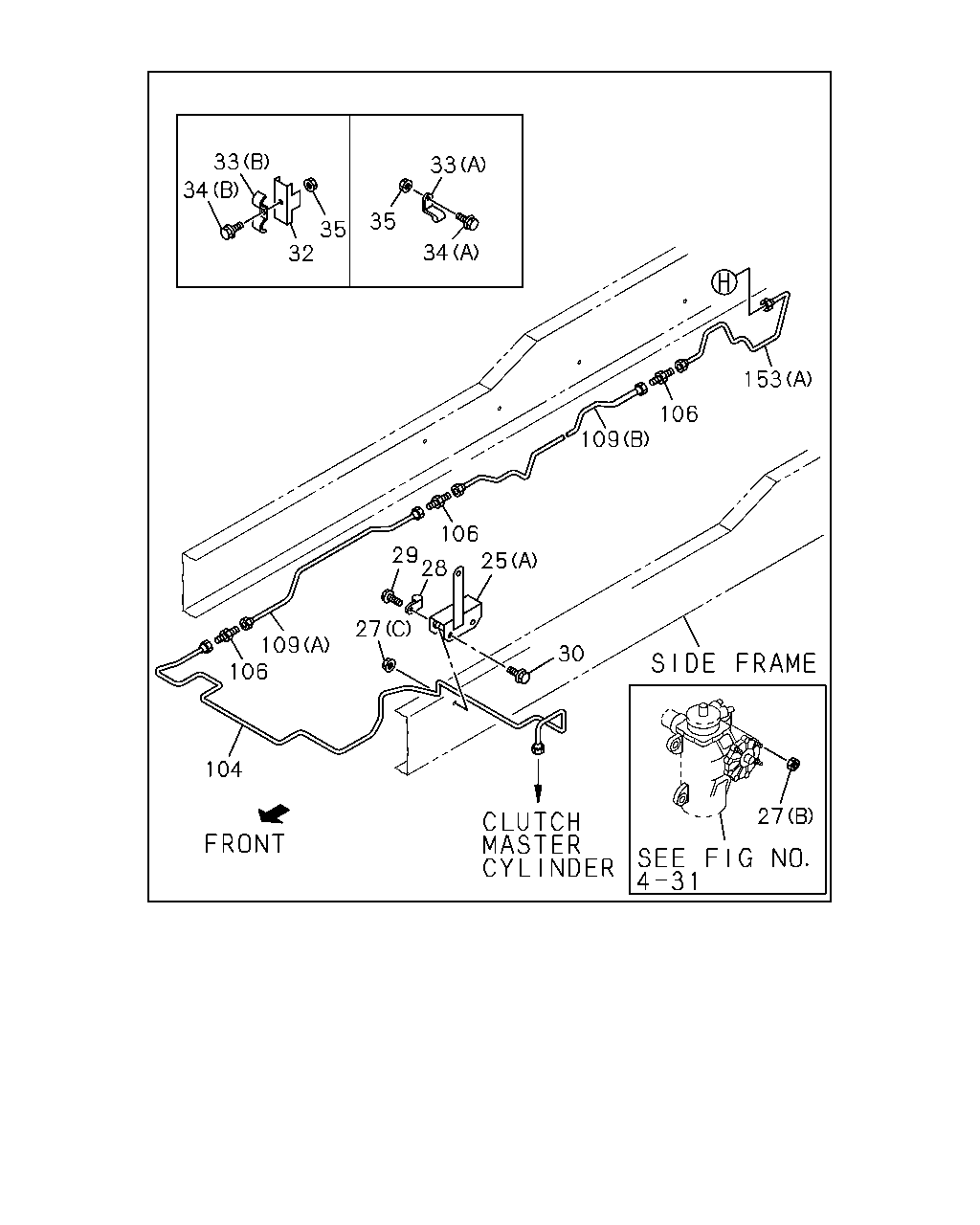

33 34 32 35 35 33 34 153 106 109 106 25 28 29 27 30 109 106 104 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-935-2	01	1	9908-
25	BRACKET; OIL PIPE (B)	1-71907-377-3	01	1	9908-
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	9908-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9908-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9908-
27	NUT; BRKT (D) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9908-
28	CLIP; OIL PIPE ID=9 L=20	9-09524-835-0	01	1	9908-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9908-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9908-
30	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	9908-
32	BRACKET; CLIP OIL PIPE	1-47475-427-1	02	1	9908-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9908-
33	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9908-
34	BOLT; PIPE CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	9908-
34	BOLT; PIPE CLIP (A) M8X30 FLANGE	0-28680-830-0	02	1	9908-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9908-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	9908-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	03	1	9908-
109	PIPE; AIR,UNION TO UNION (B) L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	9908-
109	PIPE; AIR,UNION TO UNION (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=490	1-47428-363-0	01	1	9908-0106
153	PIPE ASM; CLU,UNION TO FLEX (B) L=395	1-49166-204-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	9908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
