◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#69748) — 120 parça

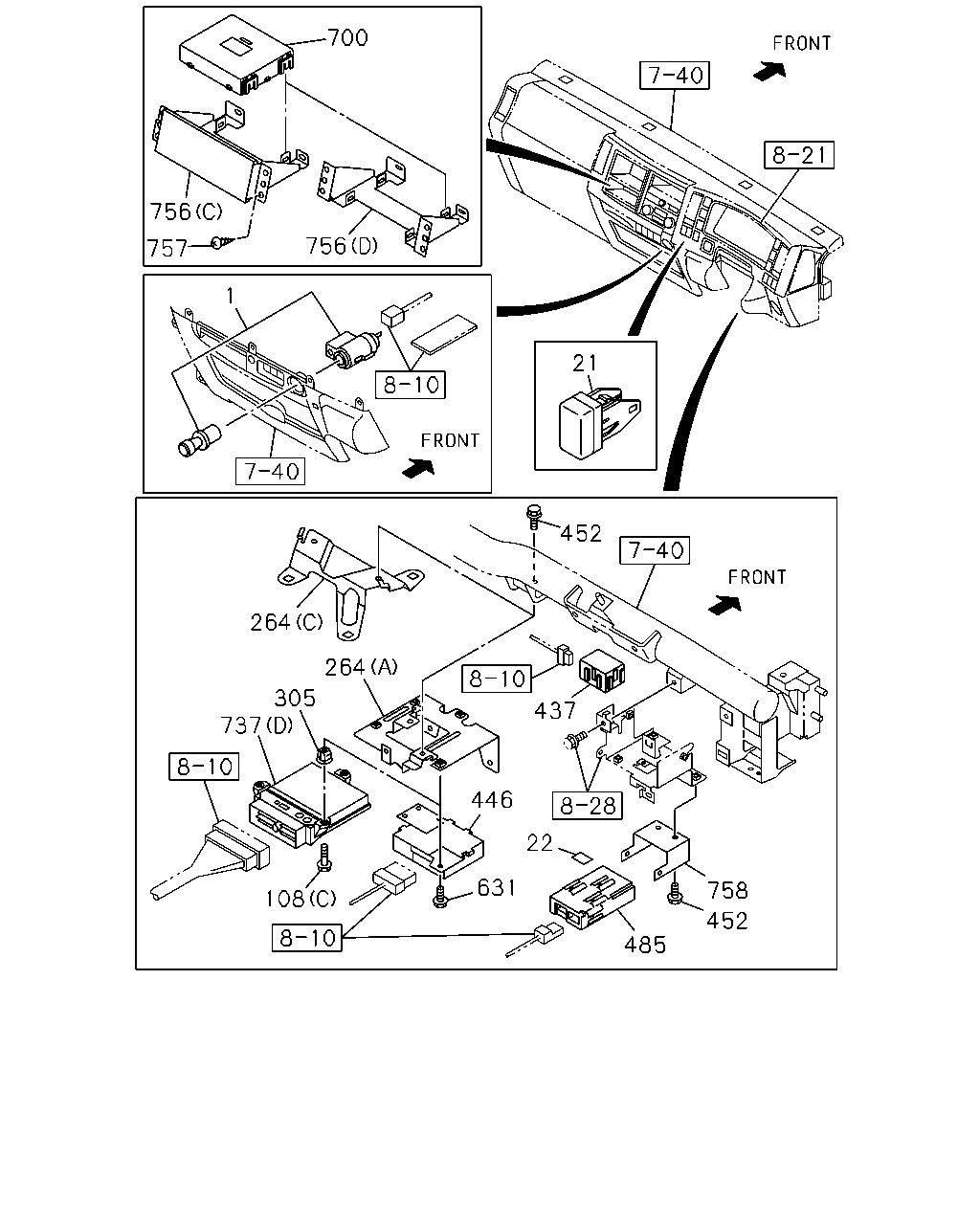

çizim 138106
700 756 756 757 21 452 264 264 305 737 108 631 446 22 485 758 452 437 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1010-1306 ● ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1010- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 1010-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301-1404 ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1405-1405 ● ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) 		8-98166-639-0 01 1 1406- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1307- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1010- ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (A) 		8-98246-552-0 01 1 1307-1405 ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (C) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
305 NUT; CONT UNIT
ALLISON MD3560P A/T(Y3B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1307- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1010- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 1010-1306 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1307- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
452 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) 		1-80190-061-0 01 1 1010- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1010- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1010-1306 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307- ● ●
700 CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG> 		8-98219-812-0 01 1 1210-1306 ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98143-057-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98221-524-0 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1010- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1010- ● ●

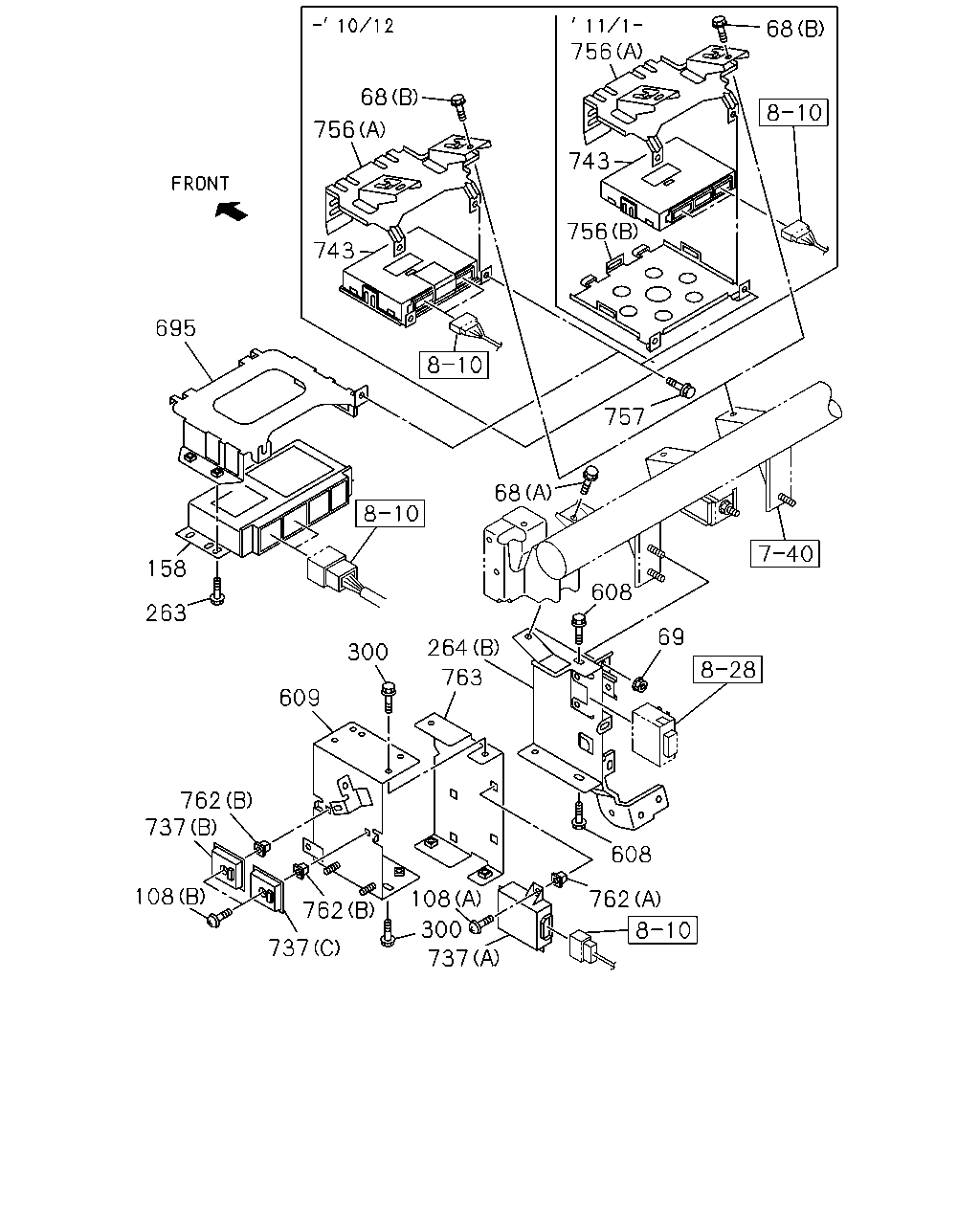

çizim 138420
68 756 743 68 756 756 743 695 158 263 609 300 264 763 608 68 757 69 608 108 762 108 737 762 300 762 737 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1010- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1010- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1010-1306 ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1307- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1010- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1010- ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1207-1209 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) EXC. VIN MODEL YEAR 2013<VZD> 		8-98170-648-0 01 1 1210-1306 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98222-314-0 01 1 1307- ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) VIN MODEL YEAR 2013<VZD> 		8-98220-159-0 01 1 1210-1306 ● ●
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL(45P) 		8-98222-313-0 01 1 1307- ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE FRT295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1010-1109 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5 RR11R22.5-16 EXP(5P2),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		8-98170-648-0 01 1 1110-1205 ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (A) 		8-98246-552-0 01 1 1307-1405 ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (C) 		8-98252-197-0 01 1 1406- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1010- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 1010-1306 ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M6X16 FLANGE 		0-28650-616-0 05 1 1010-1306 ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 1307- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98095-337-0 01 1 1010-1306 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98169-737-1 01 1 1307- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98143-057-0 01 1 1010-1306 ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98221-524-0 01 1 1307- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1010- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1010- ● ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1010-1012 ● ●
743 CONTROL UNIT; BCM 8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C) 		8-98222-208-0 01 1 1210-1306 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1507 ● ●
756 BRACKET; ECU,BCM
(D) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1010- ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1210-1210 ● ●
757 BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1211-1306 ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1010- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1010- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1010- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 1010- ● ●

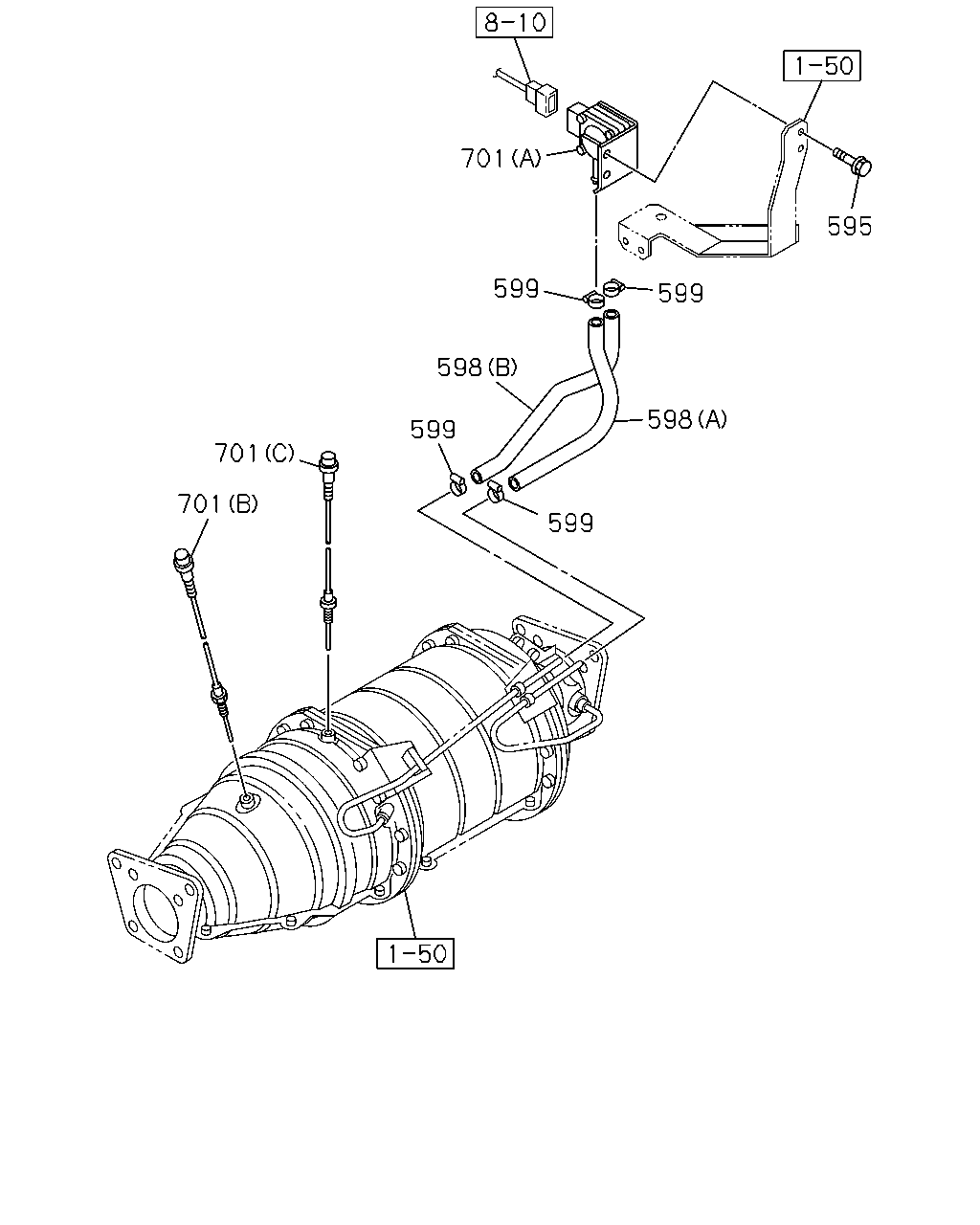

çizim 143799
701 599 599 598 598 599 599 701 701 595
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 1010- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 1010- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1010- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1010-1404 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (B) 		8-97359-987-5 01 1 1405-1406 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (B) 		8-97359-987-5 01 1 1407- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1010-1404 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (C) 		8-97359-989-5 01 1 1405-1406 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (C) 		8-97359-989-5 01 1 1407- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1010-1404 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU) (A) 		8-97360-368-2 01 1 1405-1406 ● ●
701 SENSOR; DPD
SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) 		8-97360-368-2 01 1 1407- ● ●

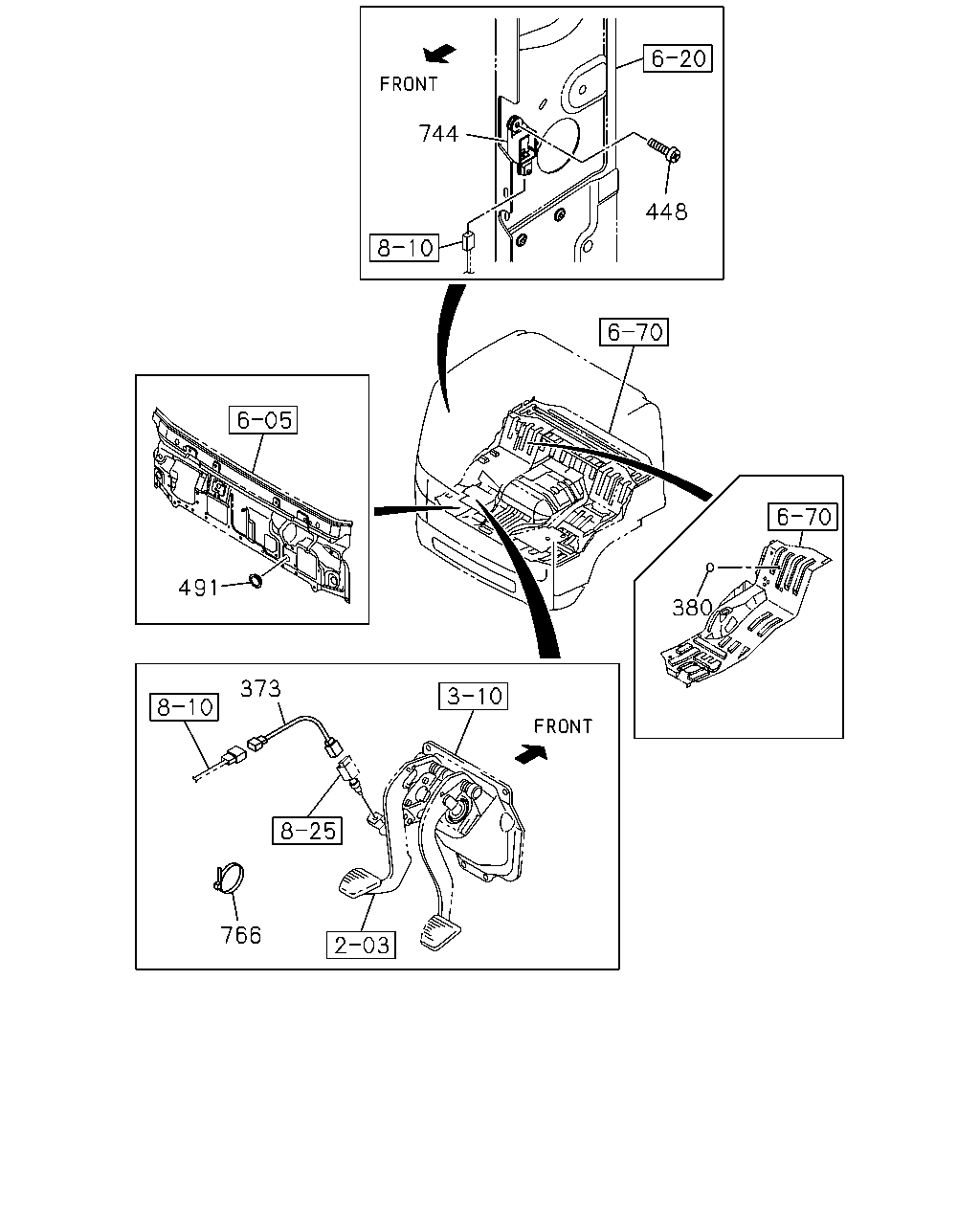

çizim 188963
744 448 491 766 380 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98059-419-1 01 1 1011-1306 ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-2 01 1 1010-1010 ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98053-829-2 01 1 1011-1306 ● ●
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-3 01 1 1307- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1010- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1010- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1010- ● ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1010-1306 ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307- ● ●
çizim 188975
726 497 497 726 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1010- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1010- ● ●
