Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#69744) — 384 parça

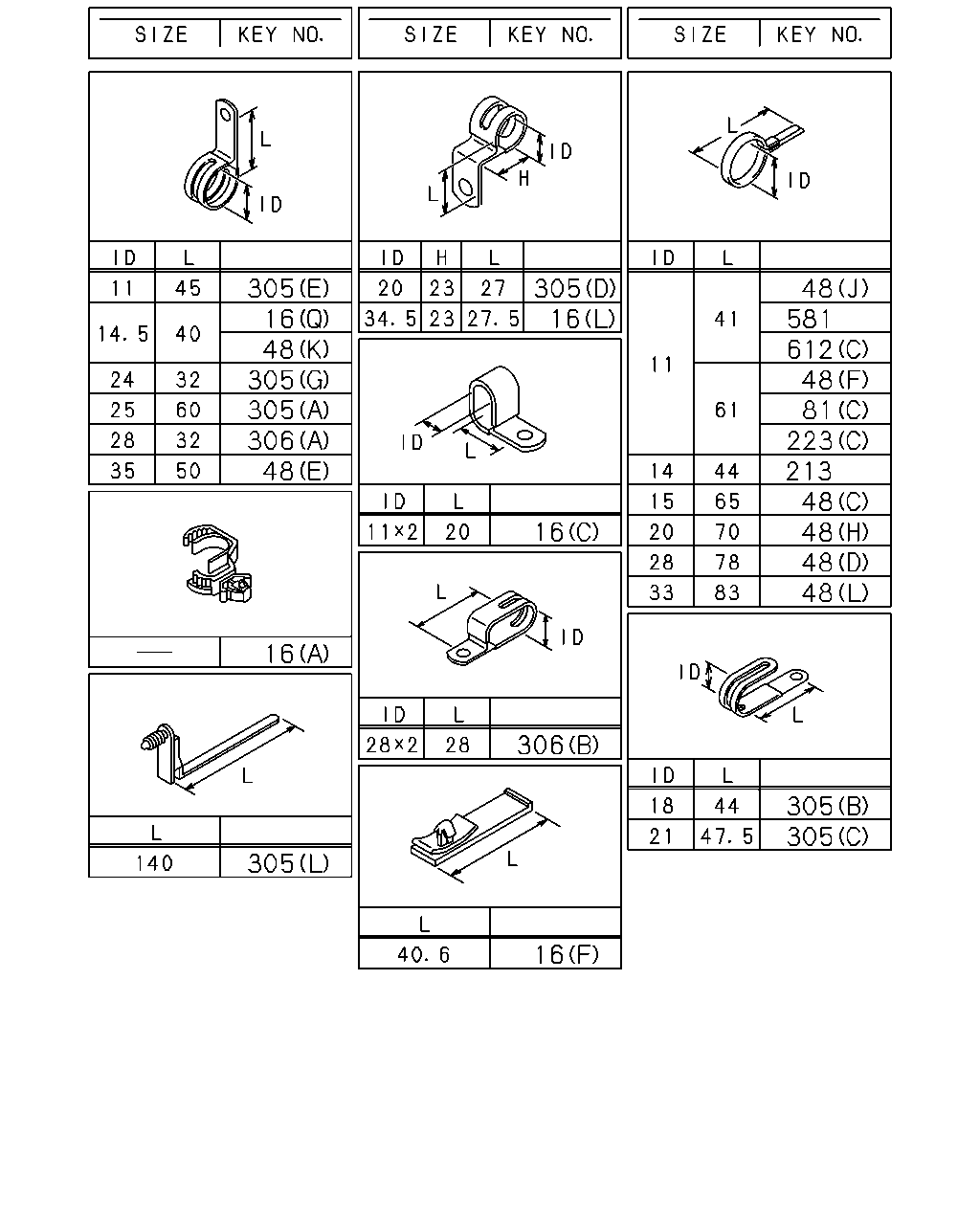

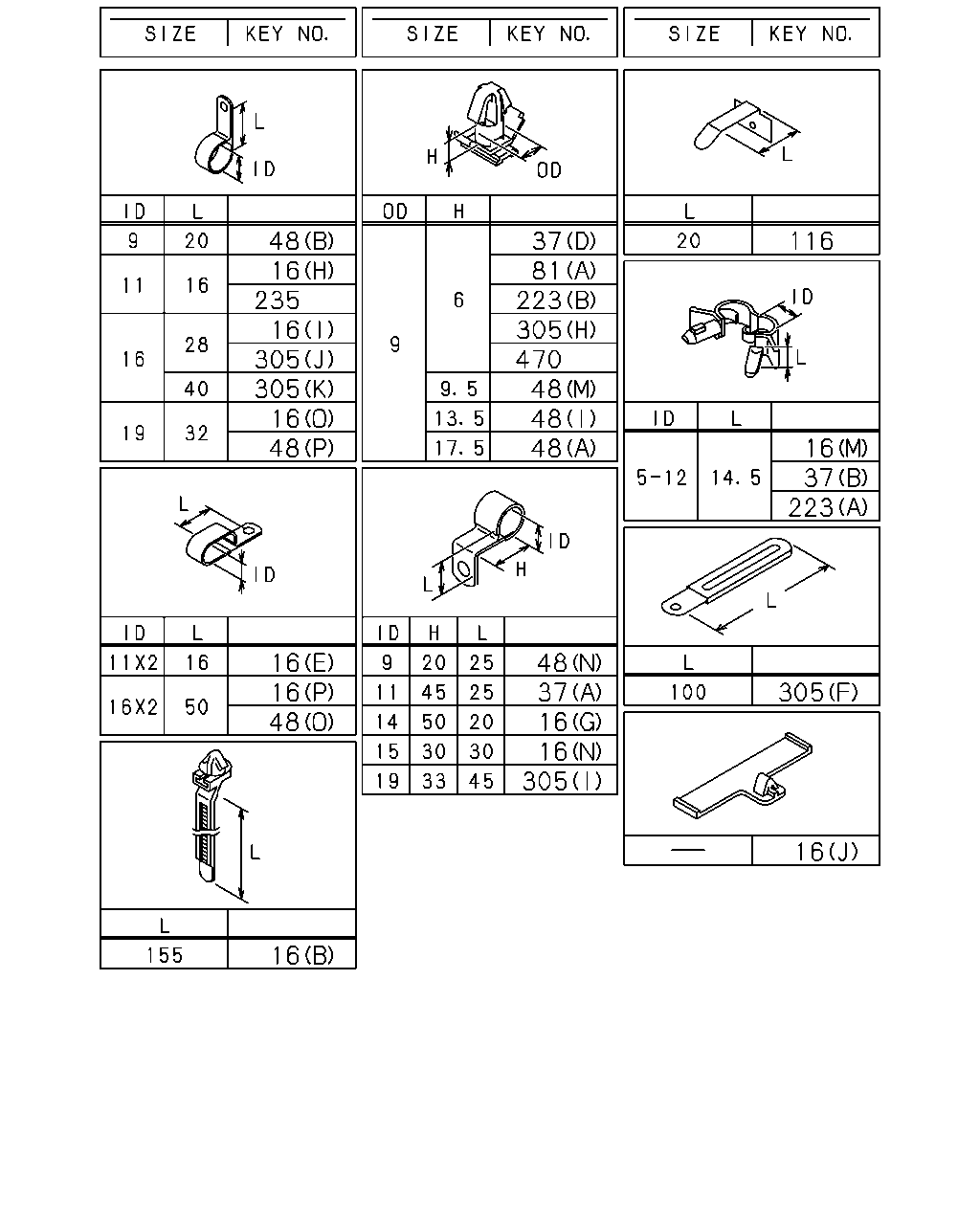

116 16 223 305 37 16 37 305 223 81 470 48 48 48 48 235 305 16 16 305 48 16 16 16 48 16 48 37 16 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ALLISON MD3560P A/T(Y3B) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (K) L=250	1-09707-126-0	01	1	1010-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (J)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (C) ID=11X2 L=20	1-09700-871-0	04	1	1010-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	04	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	17	1	1010-1306		●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	16	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5	1-09709-181-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	28	1	1010-1306	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5900MM(59W) (C) ID=15 L=65	1-09700-466-0	22	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	29	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1010-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1010-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●	●

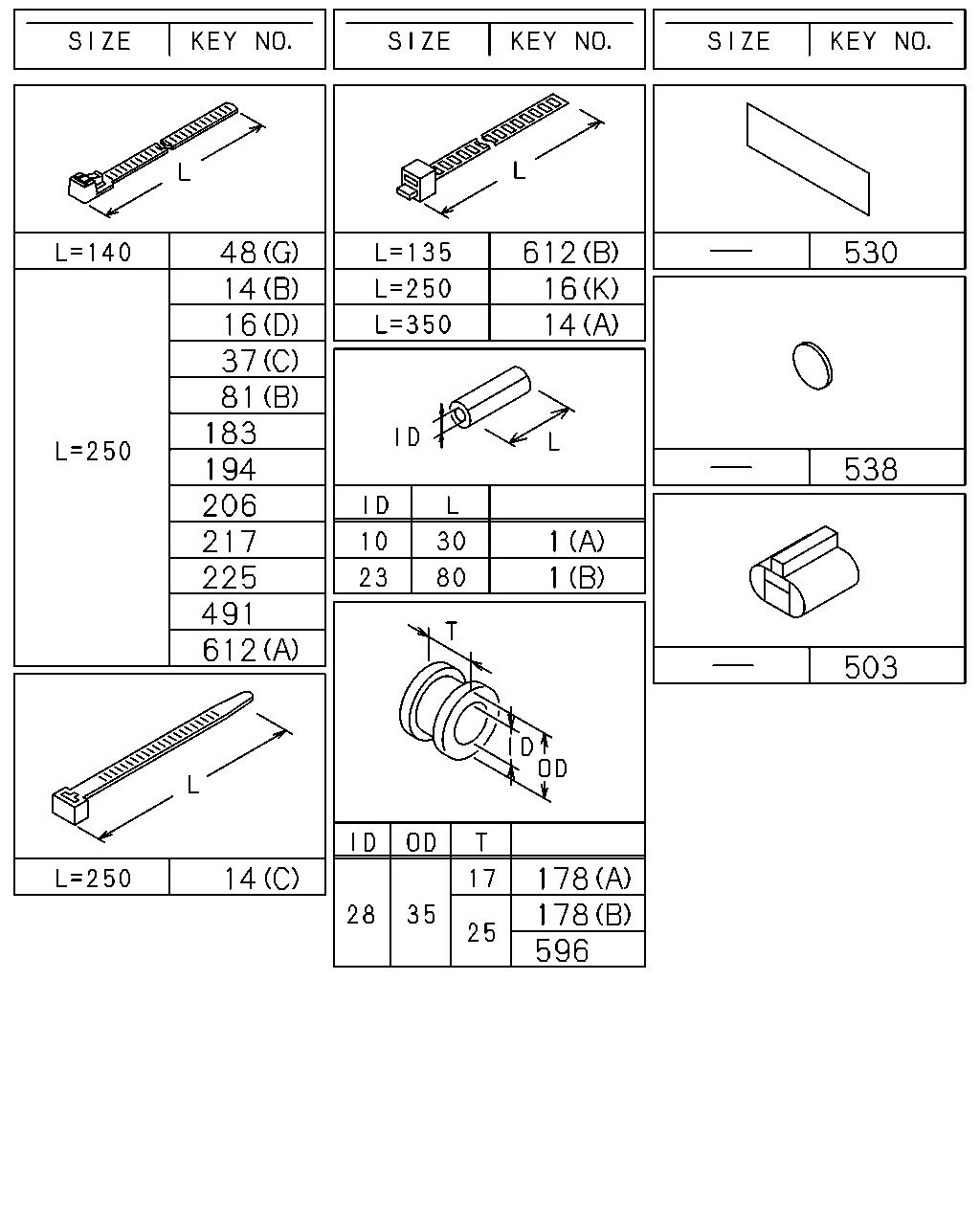

48 14 16 37 81 183 194 206 217 225 491 612 14 612 16 14 1 1 178 178 596 530 538 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1010-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1010-	●	●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1010-	●	●
14	CLIP; BAND,HARNESS ALLISON MD3560P A/T(Y3B) (B) L=250	5-09707-030-1	14	1	1010-1205	●	●
14	CLIP; BAND,HARNESS ALLISON MD3560P A/T(Y3B) (C) L=250	8-98216-430-0	14	1	1206-	●	●
14	CLIP; BAND,HARNESS ZF9S1110 M/T(Y5E) (B) L=250	5-09707-030-1	13	1	1010-1205	●	●
14	CLIP; BAND,HARNESS ZF9S1110 M/T(Y5E) (C) L=250	8-98216-430-0	13	1	1206-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ALLISON MD3560P A/T(Y3B) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (K) L=250	1-09707-126-0	01	1	1010-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (J)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (C) ID=11X2 L=20	1-09700-871-0	04	1	1010-		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=45 L=25	1-09700-866-0	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	1010-1306	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	04	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	17	1	1010-1306		●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	16	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5	1-09709-181-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	28	1	1010-1306	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5900MM(59W) (C) ID=15 L=65	1-09700-466-0	22	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	29	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1010-1306	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1307-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1010-1306	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1010-1306	●	●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1010-1306	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	1010-1306	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1010-1306	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	1010-1306	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1010-1306	●	●
491	CLIP; BAND,HTR HOSE & HARNESS A/T<X9D> L=250	5-09707-030-1	07	1	1010-	●	●
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1010-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1010-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1010-1305	●	●
530	SEAL; HARNESS A/T<X9D> 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1010-	●	●
596	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD (B) L=135	1-09987-143-1	02	1	1010-1309	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1310-1404	●	●

69 137 137 137 137 59 59 53 59 53 53 53 53 59 59 137 137 137 137 7

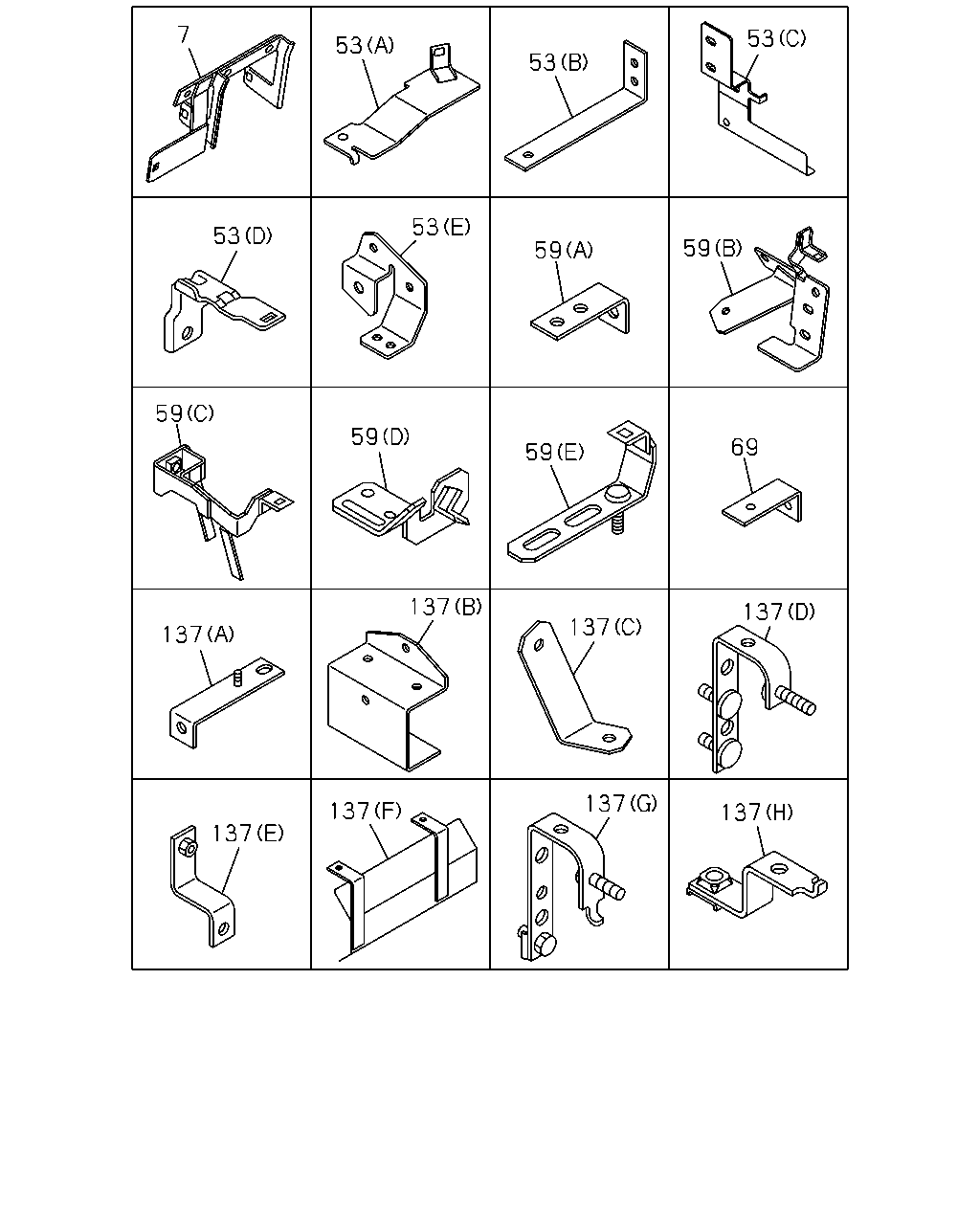

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1010-	●	●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	1010-1306	●	●
53	BRACKET; HARNESS (C)	8-97620-485-0	01	1	1010-	●	●
53	BRACKET; HARNESS (D)	8-98052-458-0	01	1	1010-	●	●
53	BRACKET; HARNESS (A)	8-98107-610-1	01	1	1010-1306	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98084-590-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (A) L=62	1-21464-170-2	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97609-264-2	01	1	1010-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1010-1306	●	●
59	BRACKET; FRAME HARNESS (B)	8-98107-611-0	01	1	1010-1306	●	●
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55	1-47475-304-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (F)	8-98073-436-0	01	1	1307-1406	●	●
137	BRACKET; HARNESS CLAMP (F)	8-98255-001-0	01	1	1407-	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1010-	●	●
137	BRACKET; HARNESS CLAMP (E)	1-47475-654-2	01	1	1010-1306		●
137	BRACKET; HARNESS CLAMP (G)	8-98210-870-0	01	1	1307-		●
137	BRACKET; HARNESS CLAMP (D)	1-47479-329-0	01	1	1010-1306		●
137	BRACKET; HARNESS CLAMP (H)	8-98210-871-0	01	1	1307-		●

305 48 16 305 306 305 48 16 305 305 16 16 306 16 48 612 581 48 223 81 213 48 48 305 48 305 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS VIN MODEL YEAR 2013<VZD> (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (N) ID=15 H=30 L=30	1-09700-832-0	02	1	1307-	●	●
16	CLIP; HARNESS (E) ID=11X2 L=16	0-95325-025-0	01	1	1010-	●
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	1010-	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1010-1306	●	●
16	CLIP; HARNESS (I) ID=16 L=28	0-95235-556-0	02	1	1307-	●	●
16	CLIP; HARNESS (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1010-1209	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2013<VZD> (G) ID=14 H=50 L=20	1-09700-843-0	02	1	1210-1306	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1010-1306	●	●
16	CLIP; HARNESS ALLISON MD3560P A/T(Y3B) (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (O) ID=19 L=32	0-95235-866-0	02	1	1307-	●	●
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (P) ID=16X2 L=50	0-95325-586-0	01	1	1307-	●	●
16	CLIP; HARNESS (K) L=250	1-09707-126-0	01	1	1010-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-	●	●
16	CLIP; HARNESS (D) L=250	5-09707-030-1	03	1	1010-1306	●	●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (Q) ID=14.5 L=40	1-09701-014-0	01	1	1307-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1010-	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1010-	●	●
16	CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	1010-	●	●
16	CLIP; HARNESS (J)	8-98052-679-0	02	1	1010-	●	●
16	CLIP; HARNESS (C) ID=11X2 L=20	1-09700-871-0	04	1	1010-		●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	04	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	17	1	1010-1306		●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	02	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=15 L=65	1-09700-466-0	16	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5	1-09709-181-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	28	1	1010-1306	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=11 L=41	1-09700-403-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (F) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	03	1	1010-1306	●	●
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	1010-	●	●
48	CLIP; FRAME HARNESS (H) ID=20 L=70	1-09700-485-0	02	1	1010-1201	●	●
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (B) ID=9 L=20	0-95234-835-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (P) ID=19 L=32	0-95235-866-0	02	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ALLISON MD3560P A/T(Y3B) (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS (N) ID=9 H=20 L=25	1-09701-073-0	01	1	1307-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50	0-95325-586-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (K) ID=14.5 L=40	1-09701-014-0	01	1	1010-1306	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5	1-09709-179-0	01	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 5900MM(59W) (C) ID=15 L=65	1-09700-466-0	22	1	1010-1306		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=15 L=65	1-09700-466-0	29	1	1010-1306		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (B) L=250	5-09707-030-1	01	1	1307-	●	●
81	CLIP; HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1307-	●	●
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1010-1306	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1010-1306	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1010-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (I) ID=19 H=33 L=45	1-09701-045-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	1010-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1010-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1010-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1010-	●	●
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	02	1	1010-1306	●
612	CLIP; HARNESS DPD (B) L=135	1-09987-143-1	02	1	1010-1309	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	1010-1306	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1307-1309	●	●
612	CLIP; HARNESS DPD (C) ID=11 L=41	1-09700-403-0	01	1	1310-1404	●	●

139 184 47 294 525 294 219 524 386 38 377 38 358 516 139 139 313 242 139 313 139 38 313 150 139 38 313 242 150 38 386 38 313 313 304 304 38 304 139 304 304

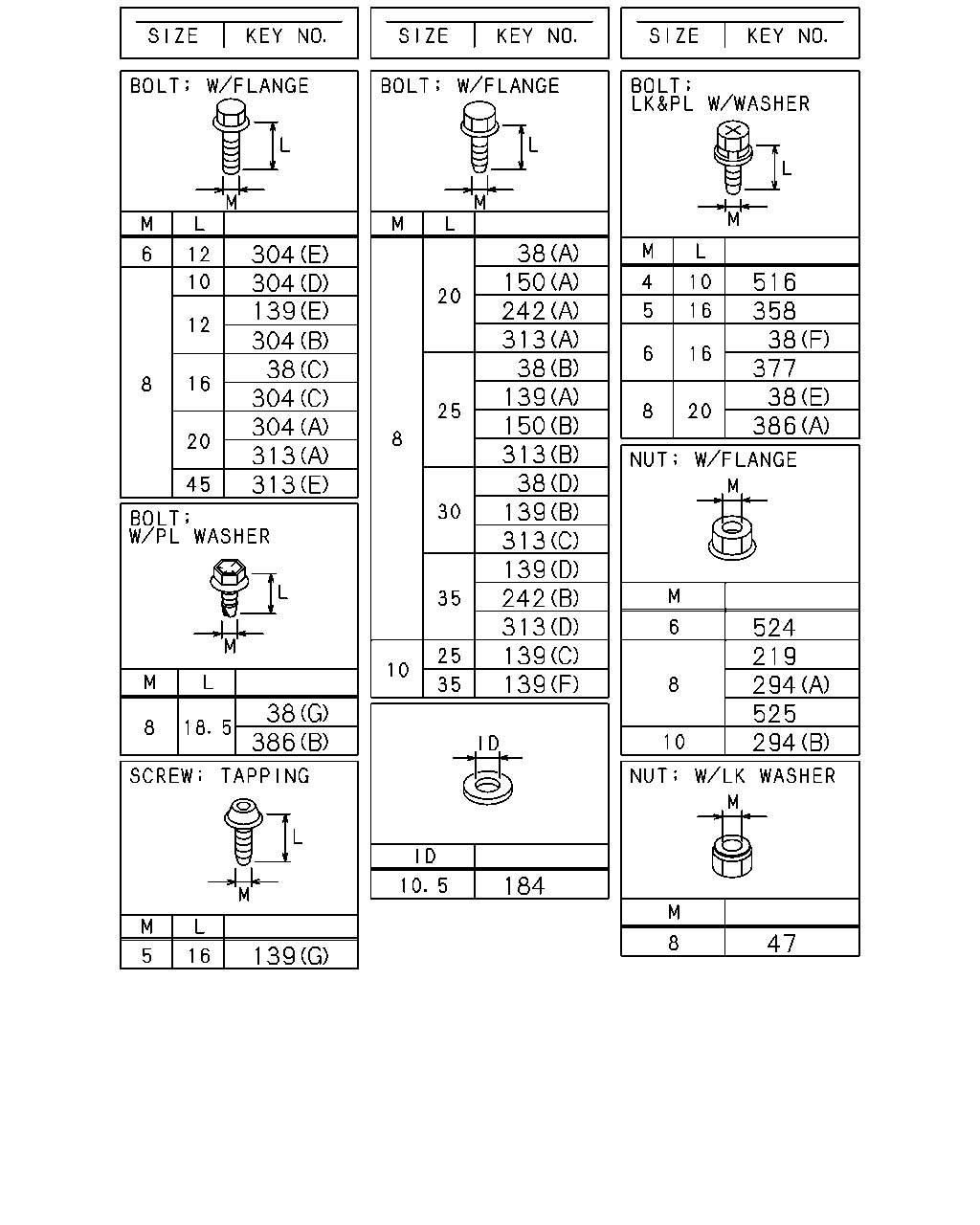

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS A/T<X9D> (F) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3560P A/T(Y3B) (F) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1307-	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	1010-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1307-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3560P A/T(Y3B) (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1010-1201	●	●
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS ALLISON MD3560P A/T(Y3B) (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1010-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1010-		●
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1307-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1010-1306	●	●
139	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1010-1306	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	1307-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1010-1306	●	●
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1010-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1010-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1010-	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	1010-1306	●	●
219	NUT M8 FLANGE	0-91180-108-0	03	1	1010-		●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306	●	●
242	BOLT; BRKT,HARNESS (B) M8X35 FLANGE	0-28650-835-0	01	1	1010-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1010-1306		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1307-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1307-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1010-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1010-1306	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1010-1306	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	1010-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1010-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1010-	●	●
313	BOLT; BRKT (E) M8X45 FLANGE	0-28050-845-0	01	1	1010-1306	●	●
313	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1010-1306	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1010-1306	●	●
313	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1010-1306	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1010-1306	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1010-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1010-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1010-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	1010-1306	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1010-	●	●

308 308 308 308 324 312 312 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1010-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1010-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1010-	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1010-1306	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	1010-1306	●	●
324	BRACKET; CLIP (B)	8-98210-921-1	01	1	1212-1306	●
324	BRACKET; CLIP (B)	8-98210-921-1	01	1	1307-	●	●
324	BRACKET; CLIP (B)	8-98210-922-1	01	1	1212-1306	●
324	BRACKET; CLIP (B)	8-98210-922-1	01	1	1307-	●	●
324	BRACKET; CLIP (A)	1-47479-430-0	02	1	1010-1211	●	●
324	BRACKET; CLIP (A)	1-47479-430-0	02	1	1212-1306		●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1010-1306	●	●
428	BRACKET	8-97620-514-0	01	1	1010-1306	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
