◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#69743) — 1234 parça

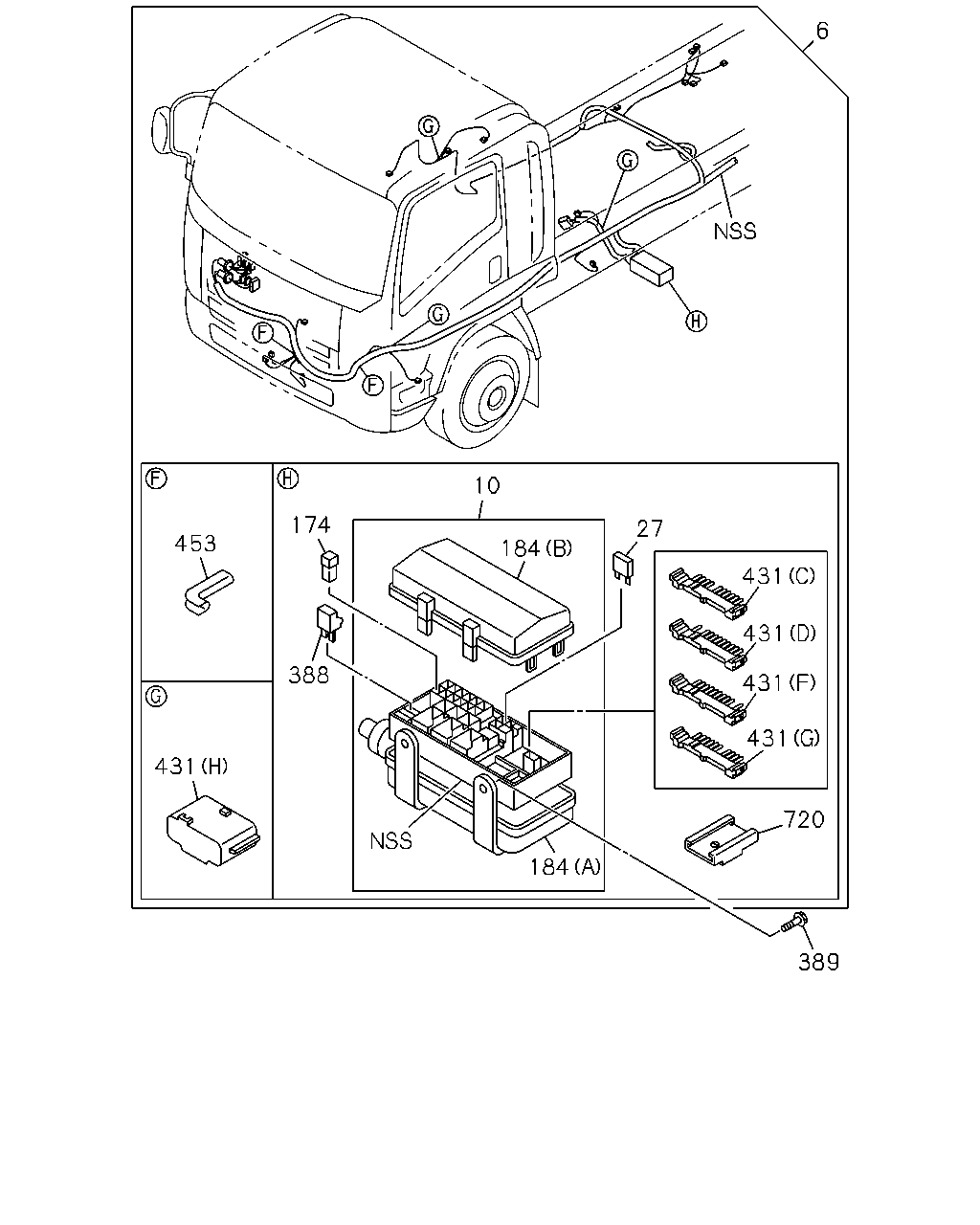

çizim 135982
6 453 431 388 174 10 184 184 431 431 431 431 720 389 27
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1010- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1010- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 03 1 1010-1306 ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1307- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1010- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1010- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1010- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1010- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 03 1 1010-1106 ● ●
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1107- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1010- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1010- ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 02 1 1010-1306 ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1307- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1010- ● ●
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1010- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1010- ● ●

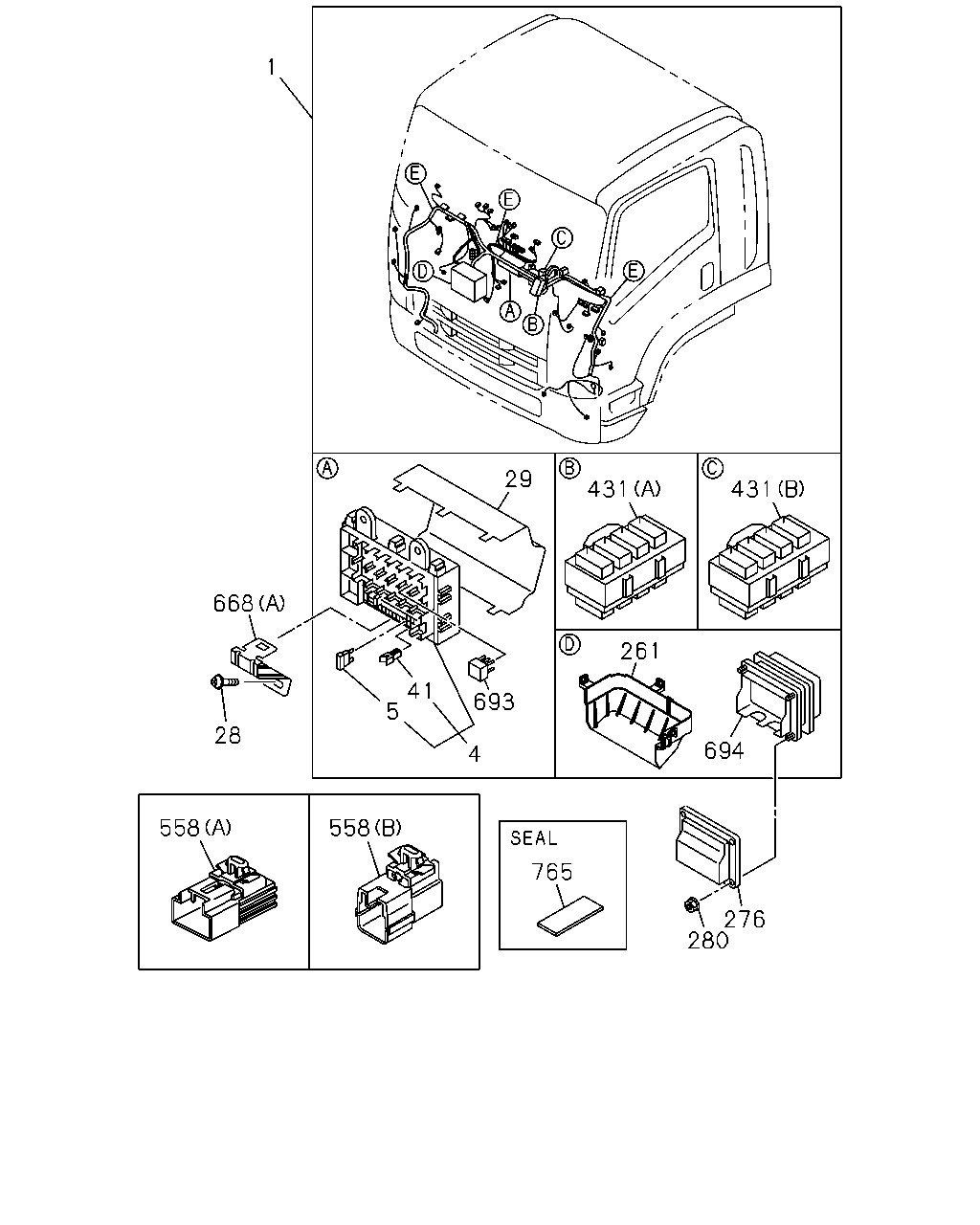

çizim 136340
1 29 431 694 261 693 4 41 5 668 28 558 558 765 276 280 431
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-766-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-765-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-768-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-767-0 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-062-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-062-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98207-991-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-991-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-990-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-990-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-028-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-028-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98214-496-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98214-496-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-978-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98214-495-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98214-495-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-976-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-999-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-999-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98207-986-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-986-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-979-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-984-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-984-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-977-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98188-002-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98188-002-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98207-987-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-987-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-985-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-985-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98224-989-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-988-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98225-001-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-842-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98225-000-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-840-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-982-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-843-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-980-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-841-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-983-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-981-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-067-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-067-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98085-073-1 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-073-1 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98156-939-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98156-939-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98156-940-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98156-940-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98085-030-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-030-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-008-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-008-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98085-026-3 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-026-3 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-004-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-004-2 01 1 1110-1203 ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1010- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1010- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1010- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1010- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1010- ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1010- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1010- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1207- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1010- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●

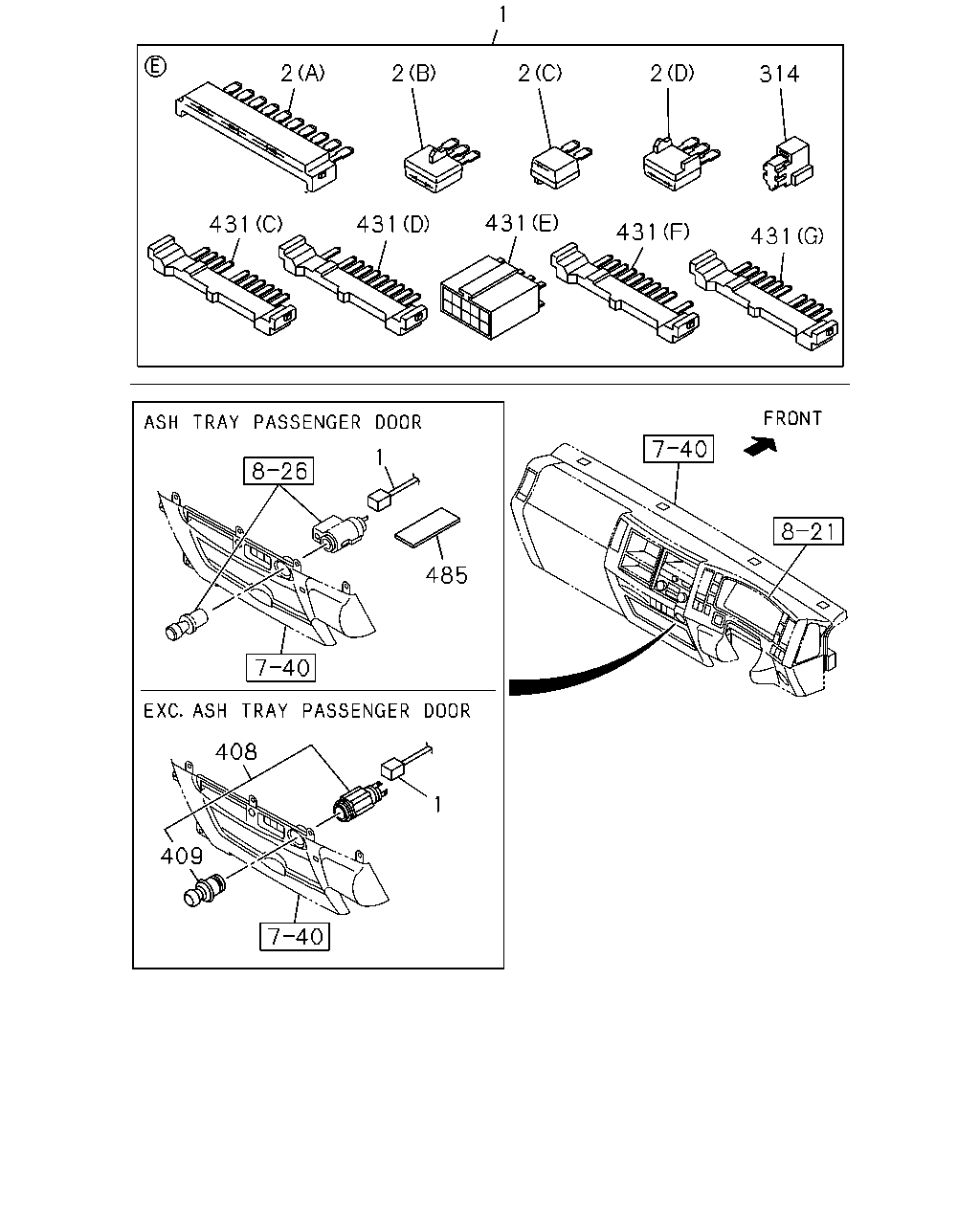

431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98108-678-0 01 1 1010- ● ●
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98108-679-0 01 1 1010- ● ●

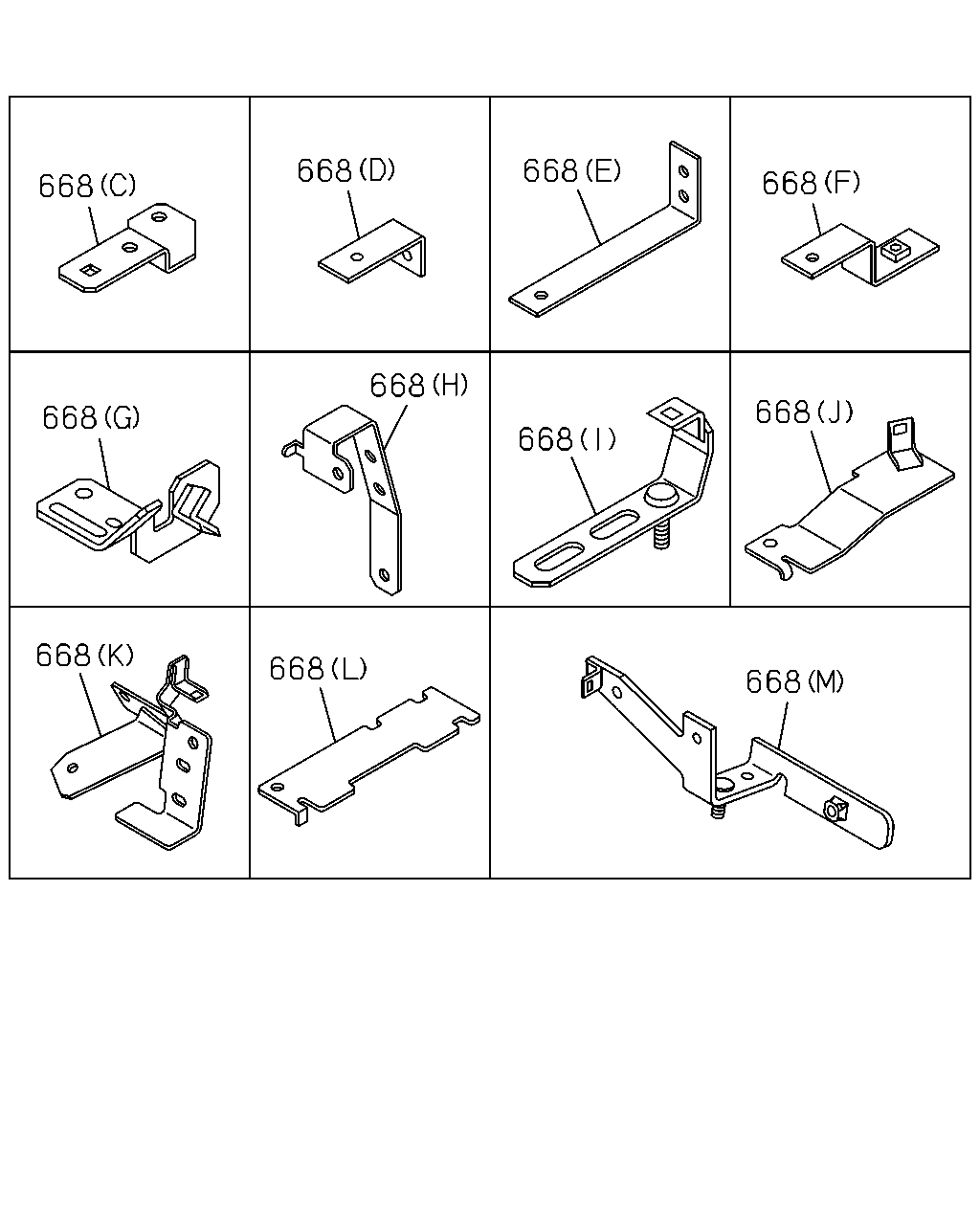

668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1310-1310 ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1307-1309 ● ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1310- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1309- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1309- ● ●
668 BRACKET; HARNESS
(L) 		8-98127-093-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1309-1502 ● ●
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1010- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1010-1501 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98032-360-0 01 1 1502-1503 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1504- ● ●

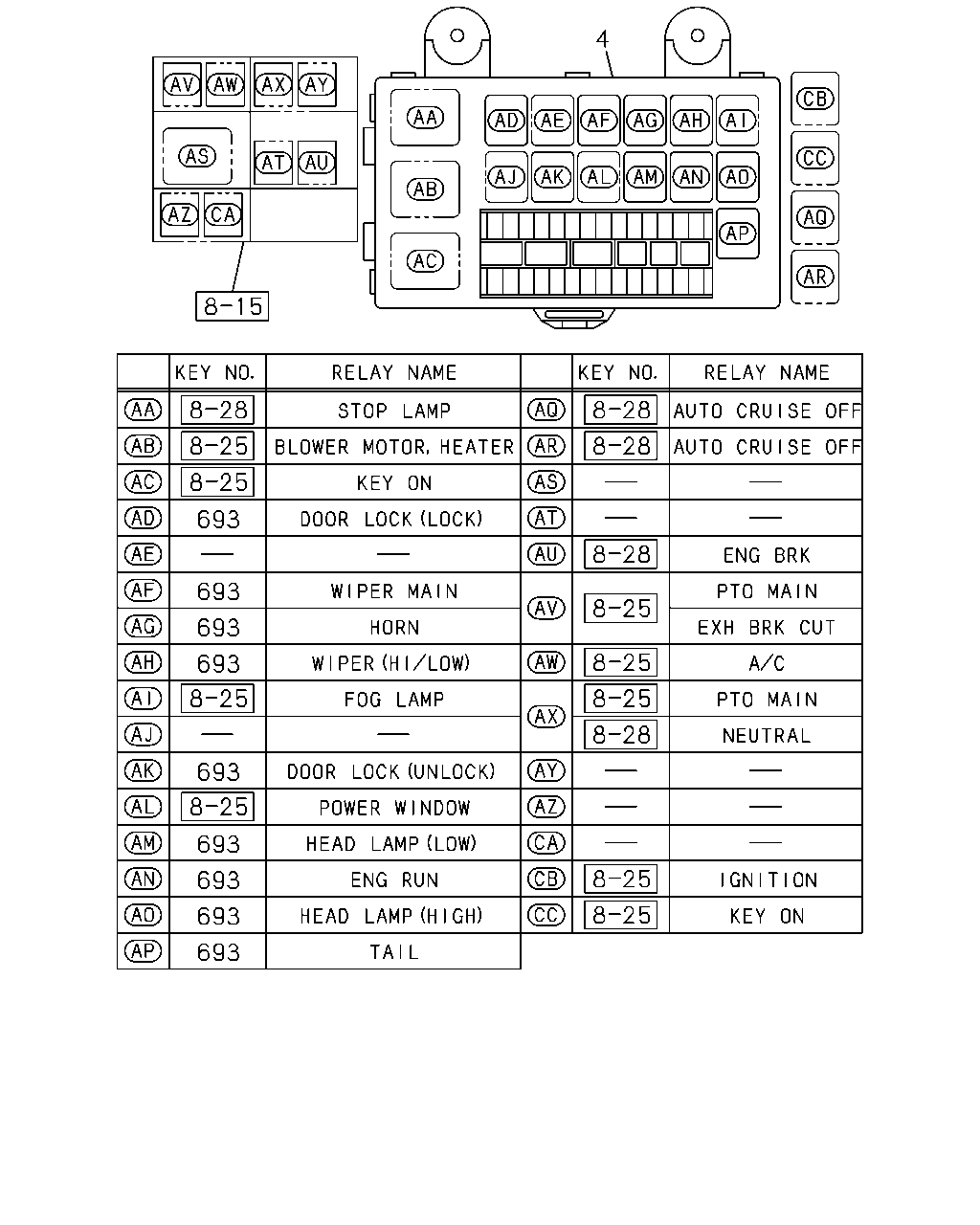

693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1010- ● ●
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1010-1206 ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1207- ● ●
765 TAPE
100X40 		1-72498-022-1 01 1 1409- ● ●

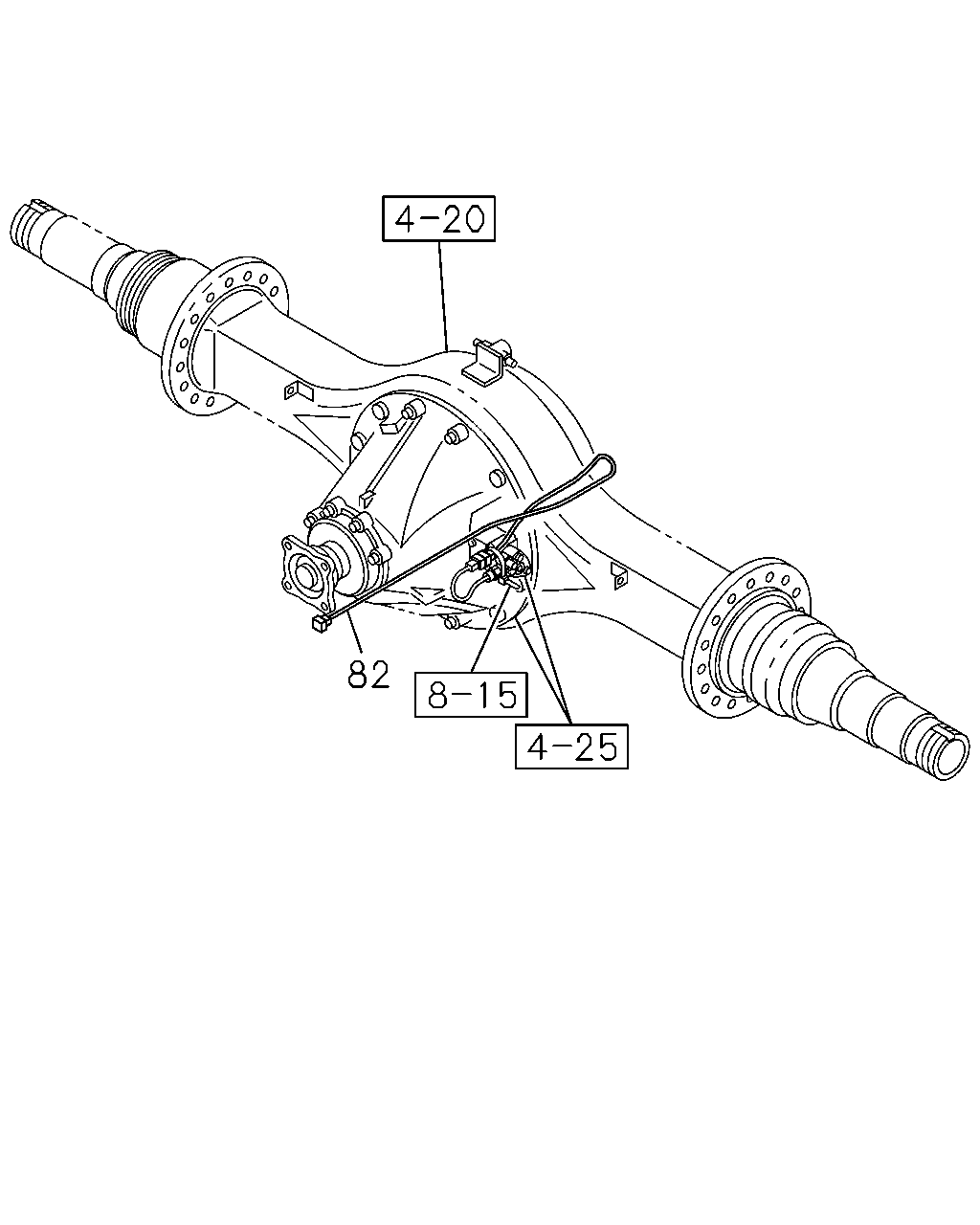

çizim 136606
82
BalonParca AdiParca NoAdetTipApplied Date A B
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> FWD RR 		8-98244-225-1 01 1 1310- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> RWD RR 		8-98244-226-0 01 1 1310- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> FWD RR 		8-98245-916-0 01 1 1310- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> RWD RR 		8-98245-917-0 01 1 1310- ●

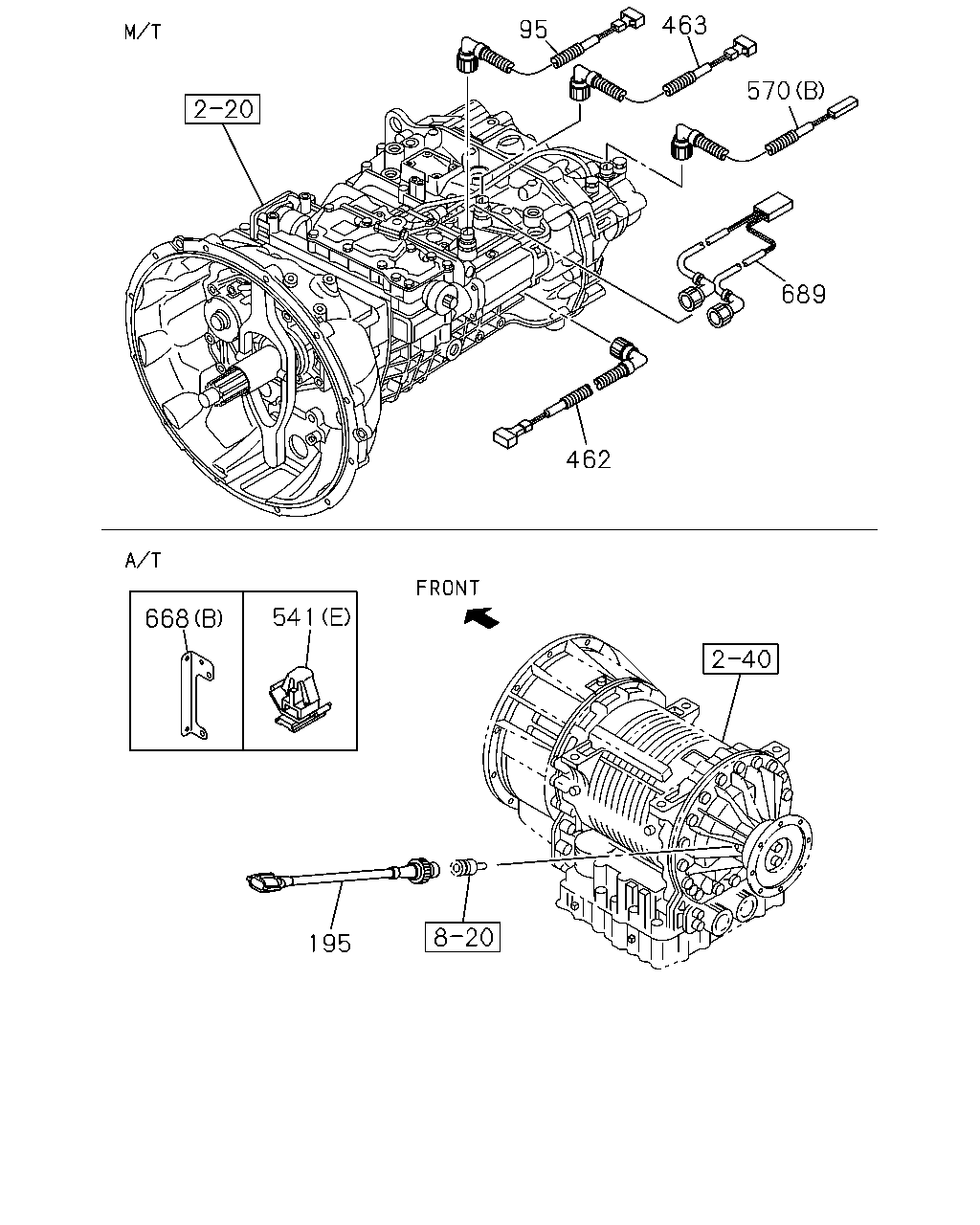

çizim 136736
95 463 570 689 462 668 195 541
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-854-0 01 1 1010- ● ●
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-855-0 01 1 1010-1305 ● ●
195 HARNESS; EXT
ALLISON MD3560P A/T(Y3B) 		1-82671-045-1 01 1 1010-1501 ● ●
195 HARNESS; EXT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> 		1-82671-045-1 01 1 1502-1503 ● ●
195 HARNESS; EXT
ALLISON MD3560P A/T(Y3B) 		1-82671-045-1 01 1 1504- ● ●
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) BLUE 		8-98145-857-0 01 1 1010-1305 ● ●
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> BLUE 		8-98145-857-0 01 1 1306- ● ●
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) BLACK 		8-98145-856-0 01 1 1010-1305 ● ●
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> BLACK 		8-98145-856-0 01 1 1306- ● ●

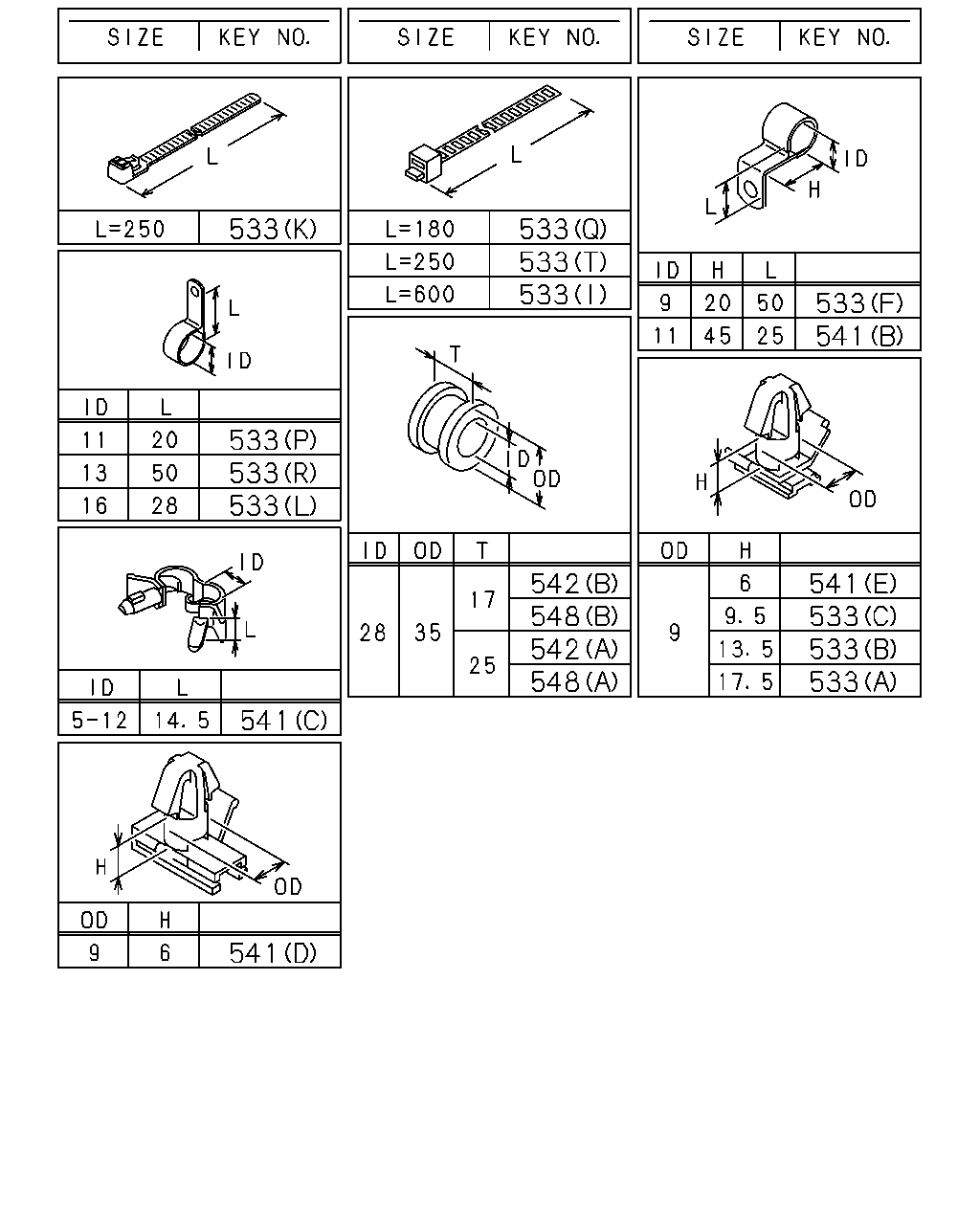

541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 02 1 1307-1404 ● ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1405- ● ●
541 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1307- ● ●
541 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
541 CLIP
(D) OD=9 H=6 		8-97368-793-0 02 1 1307- ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1010-1501 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (E) OD=9 H=6 		1-09709-178-0 01 1 1502-1503 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1504- ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) (A) 		8-98091-562-0 01 1 1010-1404 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU) (A) 		8-98091-562-0 01 1 1405-1405 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) 		8-98091-562-0 01 1 1406- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1010-1109 ● ●
570 HARNESS; SPEED SENSOR
MANUAL TRANSMISSION<X9C> (C) 		8-98058-327-1 01 1 1110-1306 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1307- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1010-1305 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98148-602-0 01 1 1306- ● ●
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1310-1310 ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1307-1309 ● ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1310- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1309- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1309- ● ●
668 BRACKET; HARNESS
(L) 		8-98127-093-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1309-1502 ● ●
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1010- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1010-1501 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98032-360-0 01 1 1502-1503 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1504- ● ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-82659-229-1 01 1 1010-1101 ● ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98148-603-0 01 1 1102- ● ●

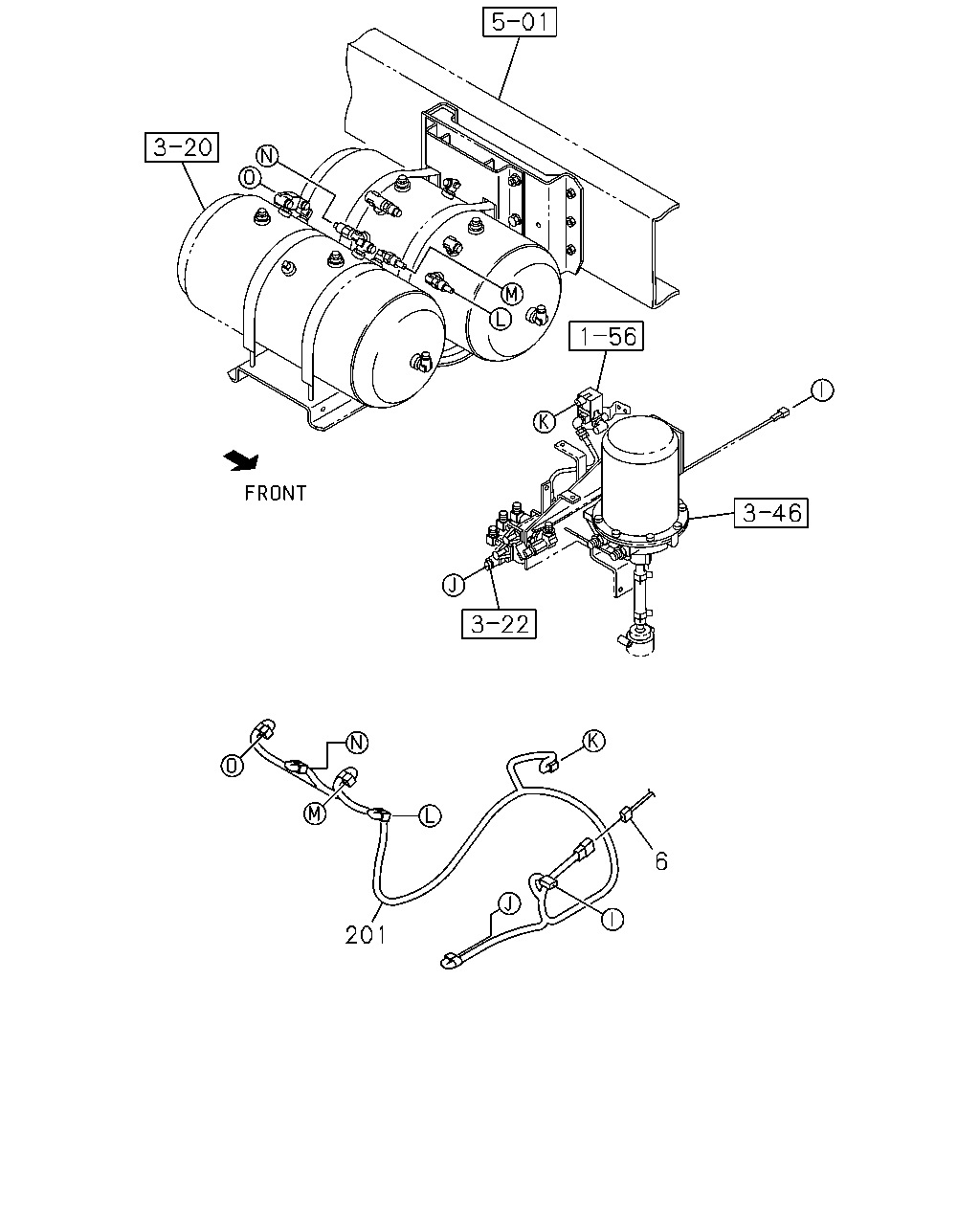

çizim 137049
201 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
201 HARNESS; AIR TANK 8-98097-914-1 01 1 1010-1306 ● ●
201 HARNESS; AIR TANK 8-98097-914-1 01 1 1307- ● ●

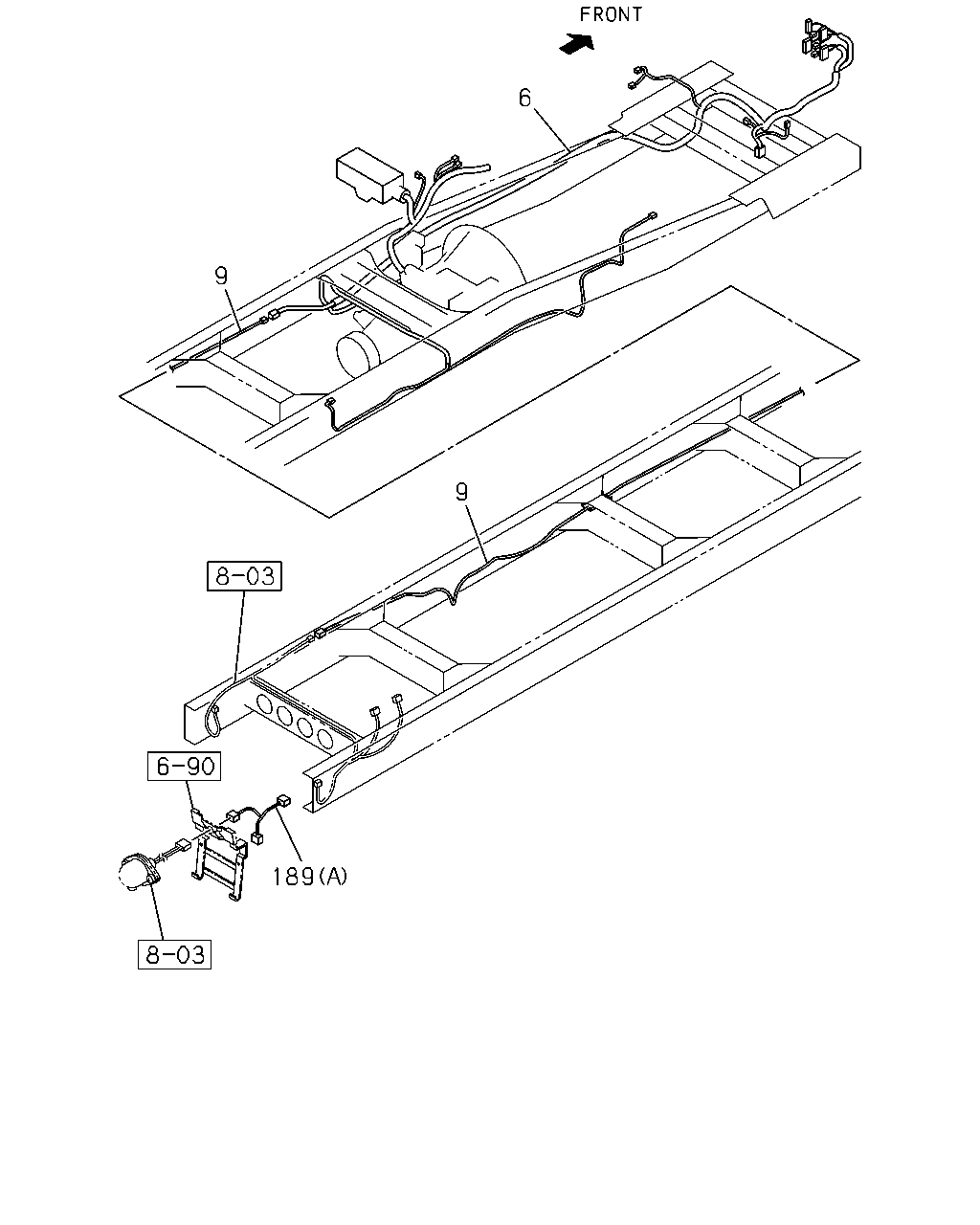

çizim 137073
9 6 9 189
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-152-1 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-151-2 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-148-1 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> 		8-98242-149-1 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-150-1 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98170-696-0 01 1 1010-1309 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98170-696-0 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) 		8-98168-674-0 01 1 1010-1306 ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) 		8-98246-421-0 01 1 1307-1309 ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98246-421-0 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-621-0 01 1 1010-1309 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98168-621-0 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) 		8-98168-623-0 01 1 1010-1309 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N> 		8-98168-623-0 01 1 1310- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) 		8-98168-626-0 01 1 1010-1309 ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98168-626-0 01 1 1310- ●
189 HARNESS; EXT
(B) 		8-98098-510-0 01 1 1307- ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98131-066-0 01 1 1206- ● ●

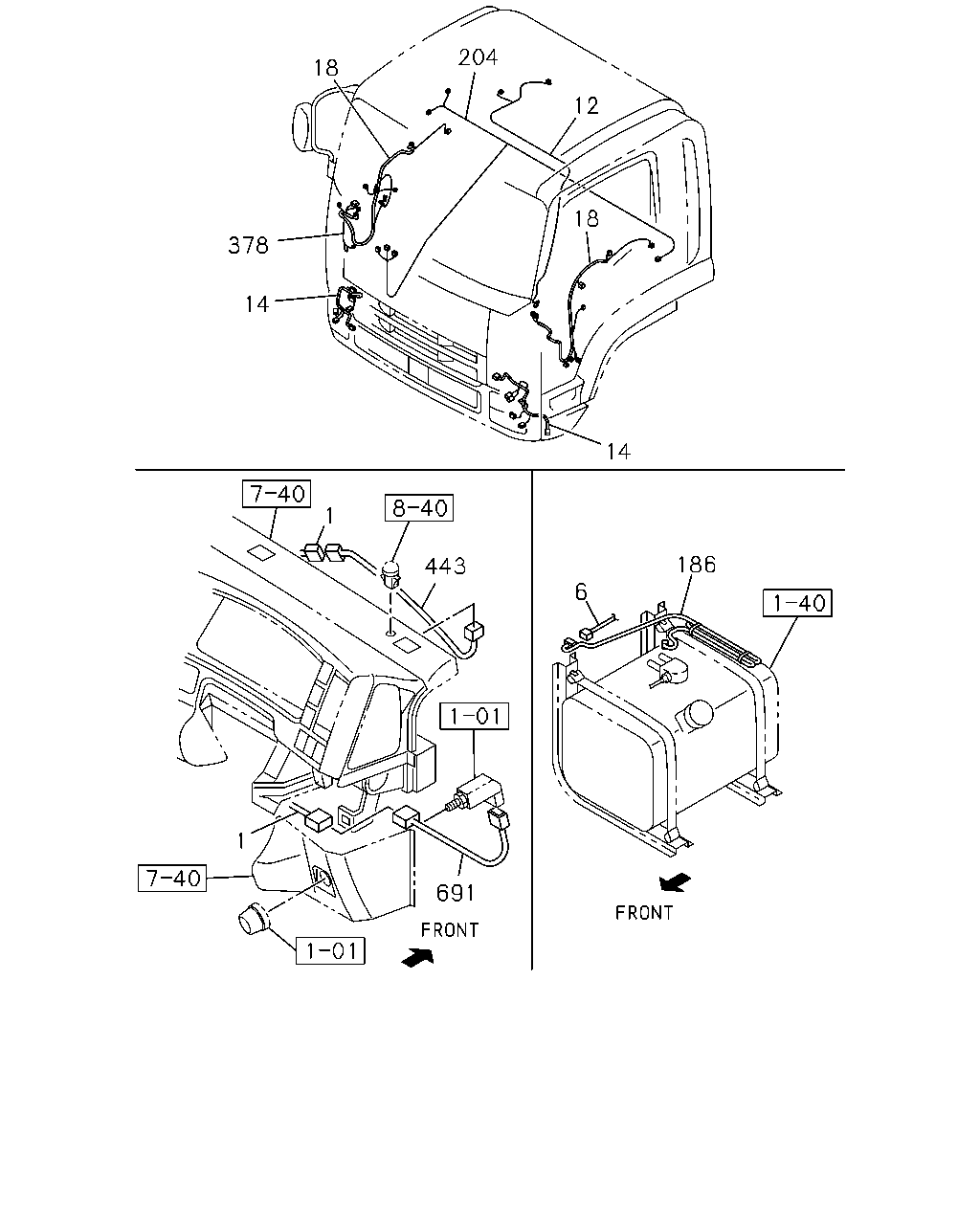

çizim 137204
14 12 18 204 18 378 14 443 1 186 6 691 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-766-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-765-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-768-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-767-0 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-062-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-062-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98207-991-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-991-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-990-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-990-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-028-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-028-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98214-496-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98214-496-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-978-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98214-495-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98214-495-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-976-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-999-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-999-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98207-986-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-986-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-979-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-984-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-984-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-977-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98188-002-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98188-002-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98207-987-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-987-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-985-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-985-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98224-989-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-988-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98225-001-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-842-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98225-000-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-840-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-982-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-843-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-980-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-841-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-983-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-981-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-067-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-067-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98085-073-1 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-073-1 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98156-939-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98156-939-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98156-940-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98156-940-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98085-030-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-030-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-008-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-008-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98085-026-3 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-026-3 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-004-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-004-2 01 1 1110-1203 ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
12 HARNESS; ROOF 8-98079-072-1 01 1 1010- ● ●
14 HARNESS; HEADLAMP
EXC. CORNERING LAMP<T87> 		8-94270-986-0 02 1 1307- ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> CORNERING LAMP<T87> 		8-94270-986-0 02 1 1307- ●
14 HARNESS; HEADLAMP
CORNERING LAMP<T87> 		8-98077-292-1 02 1 1210- ● ●
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1010-1209 ● ●
14 HARNESS; HEADLAMP
EXC. CORNERING LAMP<T87> 		8-98069-166-0 02 1 1210-1306 ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98069-166-1 02 1 1307- ●
18 HARNESS; DOOR 8-98079-076-5 01 1 1010- ● ●
18 HARNESS; DOOR 8-98079-079-5 01 1 1010- ● ●
186 HARNESS; FUEL TANK
FUEL TANK 400L<SDH> 		8-98099-650-0 01 1 1010- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> 		8-98085-300-1 01 1 1010-1306 ● ●
204 HARNESS; CABLE,FLOOR
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-300-1 01 1 1307- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-286-1 01 1 1010-1306 ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-286-1 01 1 1307- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) A/T<X9D> 		8-98085-299-2 01 1 1010-1306 ● ●
204 HARNESS; CABLE,FLOOR
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-299-2 01 1 1307- ● ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98085-281-2 01 1 1010-1306 ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-281-2 01 1 1307- ● ●
378 HARNESS; EXT,MIRROR 8-98056-541-0 02 1 1010-1010 ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1010- ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1010- ● ●

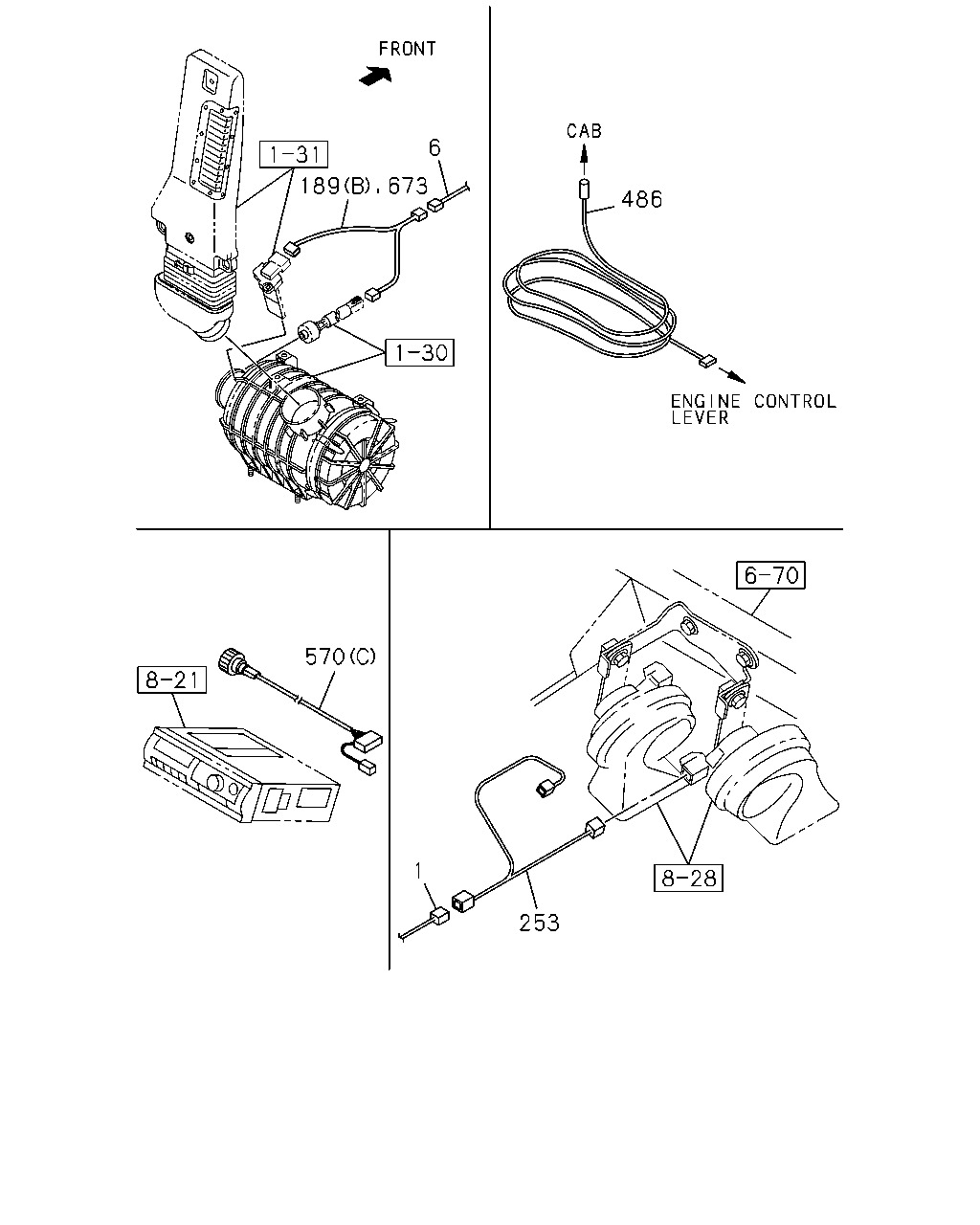

çizim 137213
189 673 6 486 570 1 253
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-766-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-765-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-768-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-767-0 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-062-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-062-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98207-991-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-991-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-990-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-990-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-028-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-028-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98214-496-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98214-496-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-978-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98214-495-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98214-495-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-976-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-999-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-999-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98207-986-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-986-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-979-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-984-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-984-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-977-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98188-002-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98188-002-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98207-987-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-987-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-985-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-985-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98224-989-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-988-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98225-001-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-842-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98225-000-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-840-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-982-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-843-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-980-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-841-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-983-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-981-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-067-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-067-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98085-073-1 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-073-1 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98156-939-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98156-939-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98156-940-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98156-940-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98085-030-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-030-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-008-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-008-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98085-026-3 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-026-3 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-004-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-004-2 01 1 1110-1203 ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
189 HARNESS; EXT
(B) 		8-98098-510-0 01 1 1307- ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98131-066-0 01 1 1206- ● ●
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 1010- ● ●
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1010- ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) (A) 		8-98091-562-0 01 1 1010-1404 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU) (A) 		8-98091-562-0 01 1 1405-1405 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) 		8-98091-562-0 01 1 1406- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1010-1109 ● ●
570 HARNESS; SPEED SENSOR
MANUAL TRANSMISSION<X9C> (C) 		8-98058-327-1 01 1 1110-1306 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1307- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1010-1305 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98148-602-0 01 1 1306- ● ●
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 1010-1306 ● ●
çizim 189080
339 6 595 1 570 638 535 536 6 302
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-766-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-765-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-768-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-767-0 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-062-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-062-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98207-991-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-991-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-990-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-990-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-028-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-028-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98214-496-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98214-496-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-978-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98214-495-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98214-495-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-976-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-999-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-999-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98207-986-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-986-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-979-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-984-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-984-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-977-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98188-002-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98188-002-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98207-987-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-987-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-985-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-985-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98224-989-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-988-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98225-001-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-842-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98225-000-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-840-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-982-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-843-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-980-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-841-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-983-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-981-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-067-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-067-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98085-073-1 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-073-1 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98156-939-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98156-939-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98156-940-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98156-940-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98085-030-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-030-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-008-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-008-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98085-026-3 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-026-3 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-004-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-004-2 01 1 1110-1203 ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
302 HARNESS; POWER CAB TILT 8-97620-490-1 01 1 1010- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 200L FRAME SIDE<N20> 		8-98227-392-1 01 1 1307- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 400L<SDH> 		8-98227-393-0 01 1 1307- ● ●
535 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1010-1306 ● ●
535 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1307- ● ●
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) (A) 		8-98091-562-0 01 1 1010-1404 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU) (A) 		8-98091-562-0 01 1 1405-1405 ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT) (A) 		8-98091-562-0 01 1 1406- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1010-1109 ● ●
570 HARNESS; SPEED SENSOR
MANUAL TRANSMISSION<X9C> (C) 		8-98058-327-1 01 1 1110-1306 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (C) 		8-98058-327-1 01 1 1307- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1010-1305 ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98148-602-0 01 1 1306- ● ●
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1010- ● ●
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 1010-1306 ● ●
çizim 189082
13 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-287-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-286-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-285-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2015<VZF> EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-284-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-147-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-147-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-145-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-145-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-146-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98242-146-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-144-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2015<VZF> 		8-98242-144-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98171-453-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-753-1 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-753-1 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-753-1 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98174-334-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98232-751-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98232-751-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-751-0 01 1 1502- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98174-333-0 01 1 1010-1306 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98232-752-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-752-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-752-0 01 1 1502- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98171-452-1 01 1 1010-1306 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98232-750-0 01 1 1307-1309 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98232-750-0 01 1 1310-1501 ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N>,VIN MODEL YEAR 2015<VZF> 		8-98232-750-0 01 1 1502- ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V50A(K89) 		8-98088-082-1 01 1 1010-1010 ● ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V50A(K89) 		8-98177-215-1 01 1 1011- ● ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98088-083-1 01 1 1010-1010 ● ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-216-1 01 1 1011- ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) 		8-98088-068-1 01 1 1010-1010 ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) 		8-98177-208-1 01 1 1011- ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98088-069-1 01 1 1010-1010 ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-209-1 01 1 1011- ● ●
çizim 189085
2 2 2 314 431 431 431 431 431 1 485 1 408 409 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-766-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-765-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-768-0 01 1 1502- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98303-767-0 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-062-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-062-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98207-991-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-991-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-844-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-061-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-990-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-990-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-854-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> A/T<X9D> 		8-98188-028-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98188-028-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98214-496-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. VIN MODEL YEAR 2013<VZD> 		8-98214-496-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-978-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98188-027-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98214-495-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98214-495-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-976-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98187-999-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98187-999-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98207-986-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-986-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98224-979-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-987-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-984-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-984-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),ASSISTOR SHIFT CONTROL<WX8> 		8-98224-977-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98188-002-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98188-002-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98207-987-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013<VZD> 		8-98207-987-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98187-990-0 01 1 1204-1206 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98207-985-0 01 1 1207-1209 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2013<VZD> 		8-98207-985-0 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98224-989-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-845-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-988-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1307-1501 ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-855-1 01 1 1502- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> A/T<X9D> 		8-98225-001-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-842-1 01 1 1307- ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98225-000-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-840-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-982-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98232-843-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-980-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98232-841-1 01 1 1307- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98224-983-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2013<VZD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98224-981-1 01 1 1210-1306 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-067-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-067-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98085-073-1 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-073-1 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98156-939-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) A/T<X9D> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98156-939-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> 		8-98156-940-0 01 1 1010-1109 ● ●
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) A/T<X9D> EXC. IN HOUSE PRODUCTION<TKF> 		8-98156-940-0 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) 		8-98085-030-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-030-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-008-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-008-2 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) 		8-98085-026-3 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF> 		8-98085-026-3 01 1 1110-1203 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68) 		8-98085-004-2 01 1 1010-1109 ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF> 		8-98085-004-2 01 1 1110-1203 ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1010- ● ●
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1207-1306 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1307-1501 ● ●
2 DIODE; CABLE HARNESS
ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1502- ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (D) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1502- ● ●
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (C) BLACK 2P-1.5A 		8-94422-639-1 03 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (C) BLACK 2P-1.5A 		8-94422-639-1 03 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1207-1306 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1307-1501 ● ●
2 DIODE; CABLE HARNESS
ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1502- ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1502- ● ●
2 DIODE; CABLE HARNESS
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1010-1206 ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1207-1306 ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1307-1501 ● ●
2 DIODE; CABLE HARNESS
ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1502- ● ●
2 DIODE; CABLE HARNESS
ZF9S1110 M/T(Y5E) (B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1502- ● ●
314 RESISTOR; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> BLUE 		1-82691-204-0 01 1 1010-1206 ● ●
314 RESISTOR; HARNESS
ZF9S1110 M/T(Y5E) BLUE 		1-82691-204-0 01 1 1010-1206 ● ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1307- ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1307- ● ●
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1010-1306 ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1010- ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (F) 10P GREEN 		1-82698-579-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (C) 10P BLUE 		1-82699-598-0 02 1 1010-1206 ● ●
431 CONNECTOR; JOINT
AIR BAG DRIVER & PASSENGER(AK5) A/T<X9D> (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
431 CONNECTOR; JOINT
ZF9S1110 M/T(Y5E) (G) 10P GREEN 		1-82699-599-0 01 1 1010-1206 ● ●
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1010-1306 ● ●
çizim 363720
533 533 533 533 533 541 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
DIFF LOCK<C3N> (F) ID=17 		1-09700-840-0 02 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 02 1 1311- ●
533 CLIP
WHEEL BASE 5000MM(50W) (N) ID=20 L=70 		1-09700-485-0 04 1 1307- ●
533 CLIP
(N) ID=20 L=70 		1-09700-485-0 04 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 200L FRAME SIDE<N20> (E) ID=15 L=65 		1-09700-466-0 28 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 400L<SDH> (E) ID=15 L=65 		1-09700-466-0 29 1 1307- ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 01 1 1307-1404 ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 01 1 1307- ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 02 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307- ● ●
533 CLIP
(O) L=135 		1-09987-143-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 04 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 03 1 1307- ●
533 CLIP
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 18 1 1307- ●
533 CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 17 1 1307- ●
533 CLIP
WHEEL BASE 5900MM(59W) (E) ID=15 L=65 		1-09700-466-0 22 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) (E) ID=15 L=65 		1-09700-466-0 30 1 1307- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 04 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (R) ID=13 L=50 		0-95235-286-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1310-1310 ● ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (S) ID=14 L=44 		9-09917-427-0 02 1 1310- ● ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 06 1 1310-1310 ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 11 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (E) ID=15 L=65 		1-09700-466-0 05 1 1310-1310 ●
533 CLIP
DIFF LOCK<C3N> (T) L=250 		1-09707-126-0 01 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5 		1-09709-181-0 01 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 1307- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1307-1309 ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 02 1 1310- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (E) ID=15 L=65 		1-09700-466-0 16 1 1307- ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1307-1309 ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 01 1 1310- ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (I) L=600 		1-09707-107-1 01 1 1307- ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1307- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1307- ● ●
533 CLIP
(L) ID=16 L=28 		0-95235-556-0 02 1 1307-1309 ● ●
533 CLIP
(M) ID=35 L=50 		1-09701-214-0 01 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1206-1306 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
H.S.A SYSTEM<6EP> (K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
(Q) L=180 		1-09707-162-1 01 1 1010-1205 ● ●
533 CLIP
(Q) L=180 		1-09707-162-1 01 1 1206-1206 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1206-1206 ● ●
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (Q) L=180 		1-09707-162-1 01 1 1207- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1207- ● ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 02 1 1307-1404 ● ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1405- ● ●
541 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1307- ● ●
541 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
541 CLIP
(D) OD=9 H=6 		8-97368-793-0 02 1 1307- ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1010-1501 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (E) OD=9 H=6 		1-09709-178-0 01 1 1502-1503 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1504- ● ●
çizim 365180
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1010- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1010- ● ●
çizim 365215
533 533 533 533 541 541 533 533 533 542 548 542 548 533 541 541 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
DIFF LOCK<C3N> (F) ID=17 		1-09700-840-0 02 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 02 1 1311- ●
533 CLIP
WHEEL BASE 5000MM(50W) (N) ID=20 L=70 		1-09700-485-0 04 1 1307- ●
533 CLIP
(N) ID=20 L=70 		1-09700-485-0 04 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 200L FRAME SIDE<N20> (E) ID=15 L=65 		1-09700-466-0 28 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 400L<SDH> (E) ID=15 L=65 		1-09700-466-0 29 1 1307- ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 01 1 1307-1404 ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 01 1 1307- ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 02 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307- ● ●
533 CLIP
(O) L=135 		1-09987-143-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 04 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 03 1 1307- ●
533 CLIP
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 18 1 1307- ●
533 CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 17 1 1307- ●
533 CLIP
WHEEL BASE 5900MM(59W) (E) ID=15 L=65 		1-09700-466-0 22 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) (E) ID=15 L=65 		1-09700-466-0 30 1 1307- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 04 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (R) ID=13 L=50 		0-95235-286-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1310-1310 ● ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1311- ●
533 CLIP
DIFF LOCK<C3N> (S) ID=14 L=44 		9-09917-427-0 02 1 1310- ● ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 06 1 1310-1310 ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 11 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (E) ID=15 L=65 		1-09700-466-0 05 1 1310-1310 ●
533 CLIP
DIFF LOCK<C3N> (T) L=250 		1-09707-126-0 01 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5 		1-09709-181-0 01 1 1307- ●
533 CLIP
WHEEL BASE 7100MM(71W) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (C) OD=9 H=9.5 		1-09709-179-0 01 1 1307- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1307-1309 ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 02 1 1310- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (E) ID=15 L=65 		1-09700-466-0 16 1 1307- ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (G) ID=11 L=41 		1-09700-403-0 02 1 1307-1309 ●
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5000MM(50W) (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (G) ID=11 L=41 		1-09700-403-0 02 1 1310- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1307-1309 ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1310- ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 01 1 1310- ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1307- ● ●
533 CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (I) L=600 		1-09707-107-1 01 1 1307- ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1307- ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1307- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1307- ● ●
533 CLIP
(L) ID=16 L=28 		0-95235-556-0 02 1 1307-1309 ● ●
533 CLIP
(M) ID=35 L=50 		1-09701-214-0 01 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1206-1306 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
H.S.A SYSTEM<6EP> (K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1307-1309 ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1310- ● ●
533 CLIP
(Q) L=180 		1-09707-162-1 01 1 1010-1205 ● ●
533 CLIP
(Q) L=180 		1-09707-162-1 01 1 1206-1206 ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1206-1206 ● ●
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (Q) L=180 		1-09707-162-1 01 1 1207- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1207- ● ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 02 1 1307-1404 ● ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1405- ● ●
541 CLIP
(A) ID=11 L=41 		1-09700-403-0 01 1 1307- ● ●
541 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
541 CLIP
(D) OD=9 H=6 		8-97368-793-0 02 1 1307- ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1010-1501 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (E) OD=9 H=6 		1-09709-178-0 01 1 1502-1503 ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1504- ● ●
542 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307- ● ●
542 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
542 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307- ● ●
548 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1307- ● ●
548 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307-1308 ● ●
548 GROMMET
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307-1308 ●
548 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1307-1308 ●
548 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1309- ● ●
çizim 408103
267 639 267 639 267 639 534 639 267 535 267 535 534 534 290 293 295 525 536 640 290
BalonParca AdiParca NoAdetTipApplied Date A B
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
267 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1309 ● ●
267 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1310- ●
267 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1307-1310 ● ●
267 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1311- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (C) M8X35 FLANGE 		0-28650-835-0 02 1 1311- ●
267 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1307- ● ●
267 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 02 1 1307- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (E) M8X16 FLANGE 		0-28050-816-0 04 1 1310- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 03 1 1311- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1307- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-1309 ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1310-1310 ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 02 1 1310-1310 ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307-1309 ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307-1309 ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
525 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
534 BOLT
(C) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1307- ● ●
534 BOLT
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1307- ● ●
535 BOLT; BRKT FIX
(A) M8X35 FLANGE 		0-28650-835-0 01 1 1010-1306 ● ●
535 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1307- ● ●
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1311- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (D) M8X16 FLANGE 		0-28050-816-0 06 1 1310- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1310-1310 ● ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1310- ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ● ●
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
640 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 04 1 1310-1310 ●
640 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 05 1 1310-1310 ●
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
çizim 426715
668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1310-1310 ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1307-1309 ● ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1310- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1309- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1309- ● ●
668 BRACKET; HARNESS
(L) 		8-98127-093-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1309-1502 ● ●
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1010- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1010-1501 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98032-360-0 01 1 1502-1503 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1504- ● ●
çizim 471355
668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1307- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1310-1310 ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1311- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (S) 		1-47477-648-0 01 1 1310- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1307-1309 ● ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1310- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1310- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1307- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1307-1308 ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1309- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1309- ● ●
668 BRACKET; HARNESS
(L) 		8-98127-093-0 01 1 1307-1308 ● ●
668 BRACKET; HARNESS
(G) 		8-97616-305-0 01 1 1309-1502 ● ●
668 BRACKET; HARNESS
(T) 		8-98254-592-0 01 1 1503- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1307- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1010- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1010-1501 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98032-360-0 01 1 1502-1503 ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
