◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#69741) — 93 parça

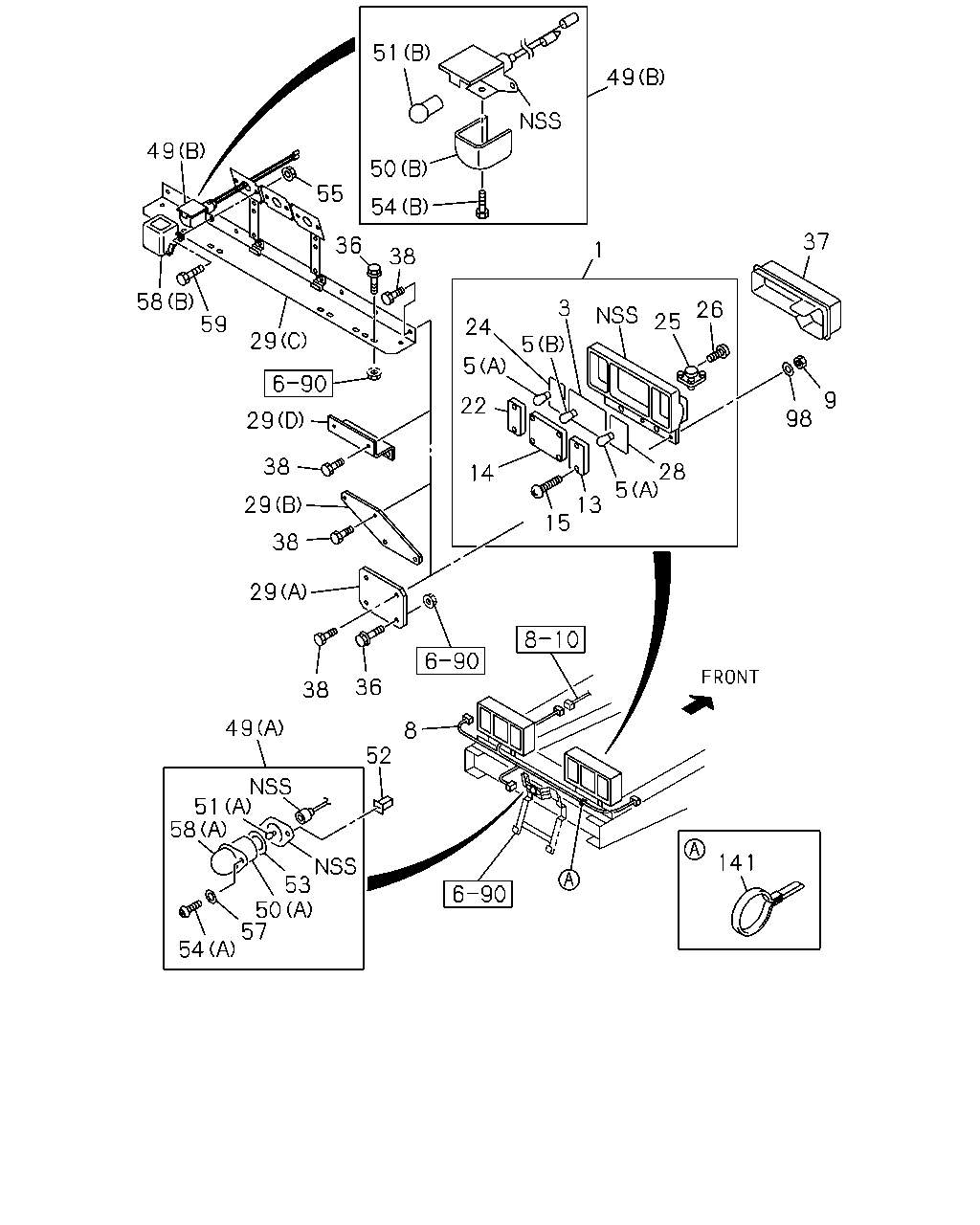

çizim 136405
49 51 50 54 55 49 58 29 36 29 59 38 29 38 29 38 36 38 24 1 3 5 5 22 14 15 28 5 13 98 9 37 26 25 8 141 52 49 51 58 53 50 57 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 1010-1306 ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-325-0 01 1 1307- ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 1010- ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 1010-1306 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1010-1306 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 1010-1306 ● ●
3 GASKET; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-505-0 02 1 1307- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1010-1306 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 1010-1306 ● ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (A) 24V 21W 		1-82194-108-0 04 1 1307- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1010-1306 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 1010-1306 ● ●
5 BULB; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> (B) 24V 21/5W 		1-82194-109-0 02 1 1307- ● ●
8 HARNESS; RR COMB LAMP 8-98064-342-3 01 1 1010-1201 ● ●
8 HARNESS; RR COMB LAMP 8-98203-887-0 01 1 1202- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1010-1306 ● ●
9 NUT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> M6 		0-91110-506-0 04 1 1307- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1010-1306 ● ●
13 LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9> 		8-94174-639-0 01 1 1307- ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1010-1306 ● ●
13 LENS; TURN SIGNAL
REVERSING WARNING BUZZER<YM9> 		8-94174-638-0 01 1 1307- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1010-1306 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94178-625-0 01 1 1307- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1010-1306 ● ●
14 LENS; TAIL & STOP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94178-624-0 01 1 1307- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1010-1306 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 1010-1306 ● ●
15 SCREW; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1307- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 1010-1306 ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 1010-1306 ● ●
22 LENS; BACKUP,RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-512-1 02 1 1307- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1010-1306 ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 1010-1306 ● ●
24 GASKET; BACK,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-506-0 02 1 1307- ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 1010- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1010-1306 ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 01 1 1307- ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 1010- ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 1010-1306 ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1010-1306 ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 1010-1306 ● ●
28 GASKET; TURN,LAMP
REVERSING WARNING BUZZER<YM9> 		8-94257-507-0 02 1 1307- ● ●
29 BRACKET; LAMP,RR COMB
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) REVERSING WARNING BUZZER<YM9> (D) 		8-98210-509-0 02 1 1307- ● ●
29 BRACKET; LAMP,RR COMB
EXC. COUNTRY NEW ZEALAND(CX6) (C) 		8-98029-390-3 01 1 1206-1306 ● ●
29 BRACKET; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> EXC. COUNTRY NEW ZEALAND(CX6) (C) 		8-98029-390-3 01 1 1307- ● ●
29 BRACKET; LAMP,RR COMB
WHEEL BASE 5000MM(50W) (B) 		8-98174-666-0 02 1 1010-1107 ●
29 BRACKET; LAMP,RR COMB
WHEEL BASE 7100MM(71W) (A) 		1-82237-050-1 02 1 1010-1107 ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 1010-1107 ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 1108-1205 ● ●
29 BRACKET; LAMP,RR COMB
COUNTRY NEW ZEALAND(CX6) (A) 		1-82237-050-1 02 1 1206-1306 ● ●
29 BRACKET; LAMP,RR COMB
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) REVERSING WARNING BUZZER<YM9> COUNTRY NEW ZEALAND(CX6) (A) 		1-82237-050-1 02 1 1307- ● ●
36 BOLT; BRKT,RR COMB
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) REVERSING WARNING BUZZER<YM9> COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
36 BOLT; BRKT,RR COMB
EXC. COUNTRY NEW ZEALAND(CX6) M8X40 FLANGE 		0-28650-840-0 02 1 1206-1306 ● ●
36 BOLT; BRKT,RR COMB
REVERSING WARNING BUZZER<YM9> EXC. COUNTRY NEW ZEALAND(CX6) M8X40 FLANGE 		0-28650-840-0 02 1 1307- ● ●
36 BOLT; BRKT,RR COMB
WHEEL BASE 5000MM(50W) M8X25 FLANGE 		0-28650-825-0 04 1 1010-1107 ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 1108-1205 ● ●
36 BOLT; BRKT,RR COMB
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 02 1 1206-1306 ● ●
36 BOLT; BRKT,RR COMB
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) REVERSING WARNING BUZZER<YM9> M8X25 FLANGE 		0-28650-825-0 04 1 1307- ● ●
36 BOLT; BRKT,RR COMB
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 02 1 1010-1107 ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1107 ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 1010-1306 ● ●
37 COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94129-274-4 01 1 1307- ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 1010-1306 ● ●
37 COVER; RR COMB LAMP
REVERSING WARNING BUZZER<YM9> 		8-94128-858-4 01 1 1307- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1010-1306 ● ●
38 BOLT; LAMP,RR COMB
REVERSING WARNING BUZZER<YM9> M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1307- ● ●
49 LAMP; LICENSE PLATE
EXC. COUNTRY NEW ZEALAND(CX6) (B) 24V 5W 		8-97105-380-0 02 1 1206-1509 ● ●
49 LAMP; LICENSE PLATE
EXC. COUNTRY NEW ZEALAND(CX6) (B) 24V 5W 		8-98329-430-0 02 1 1510- ● ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 1010-1205 ● ●
49 LAMP; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) (A) 24V 10W 		1-82120-024-1 01 1 1206- ● ●
50 LENS; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		8-97108-212-0 02 1 1206- ● ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 1010-1205 ● ●
50 LENS; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-82235-006-0 01 1 1206- ● ●
51 BULB; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 24V 5W 		1-82194-039-0 02 1 1206- ● ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 1010-1205 ● ●
51 BULB; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 24V 10W 		1-82194-037-0 01 1 1206- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1010-1205 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1206- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 1010-1205 ● ●
53 GASKET; LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) 		1-82126-005-0 01 1 1206- ● ●
54 SCREW; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) M4X8 		8-94419-312-0 02 1 1206- ● ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 1010-1205 ● ●
54 SCREW; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) M5X20 		1-82129-007-0 02 1 1206- ● ●
55 NUT; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) M5 FLANGE 		1-09984-170-0 04 1 1206- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 1010-1205 ● ●
57 WASHER; PL,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) 		1-82129-008-0 02 1 1206- ● ●
58 COVER; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		8-97076-590-1 02 1 1206- ● ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 1010-1205 ● ●
58 COVER; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-82129-005-0 01 1 1206- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
EXC. COUNTRY NEW ZEALAND(CX6) M5X20 		9-93490-520-0 04 1 1206- ● ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 1010-1306 ● ●
98 WASHER
REVERSING WARNING BUZZER<YM9> ID=6.4 OD=18 		0-91610-706-0 04 1 1307- ● ●
141 CLIP; LICENSE & BODY HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1307- ● ●
