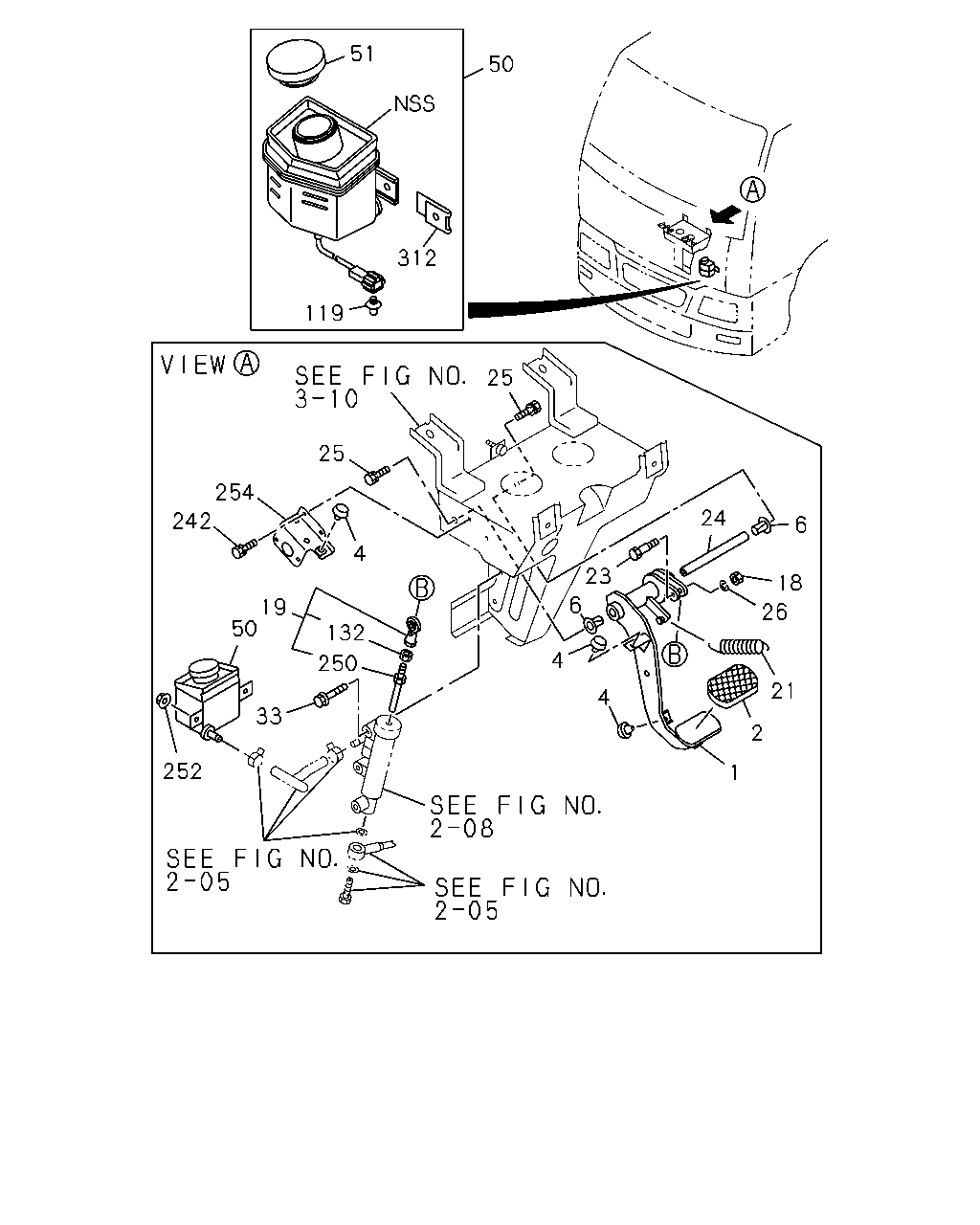

2-03 — CLUTCH PEDAL AND CONTROL
(#6974) — 24 parça
51
50
312
119
25
25
254
242
4
19
50
132
250
33
252
24
6
18
26
23
6
4
4
21
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-440-2
01
1
9908-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9908-0103
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
9908-0103
4
STOPPER; CLU PEDAL
1-47319-014-1
02
1
0104-0109
4
STOPPER; CLU PEDAL
1-47319-014-1
04
1
0110-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9908-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9908-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
9908-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
9908-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
9908-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
9908-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9908-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9908-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
9908-
50
TANK; OIL,CLU
1-47530-182-0
01
1
9908-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
9908-
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
9908-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9908-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
9908-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
9908-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9908-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
9908-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
9908-
