◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#69738) — 33 parça

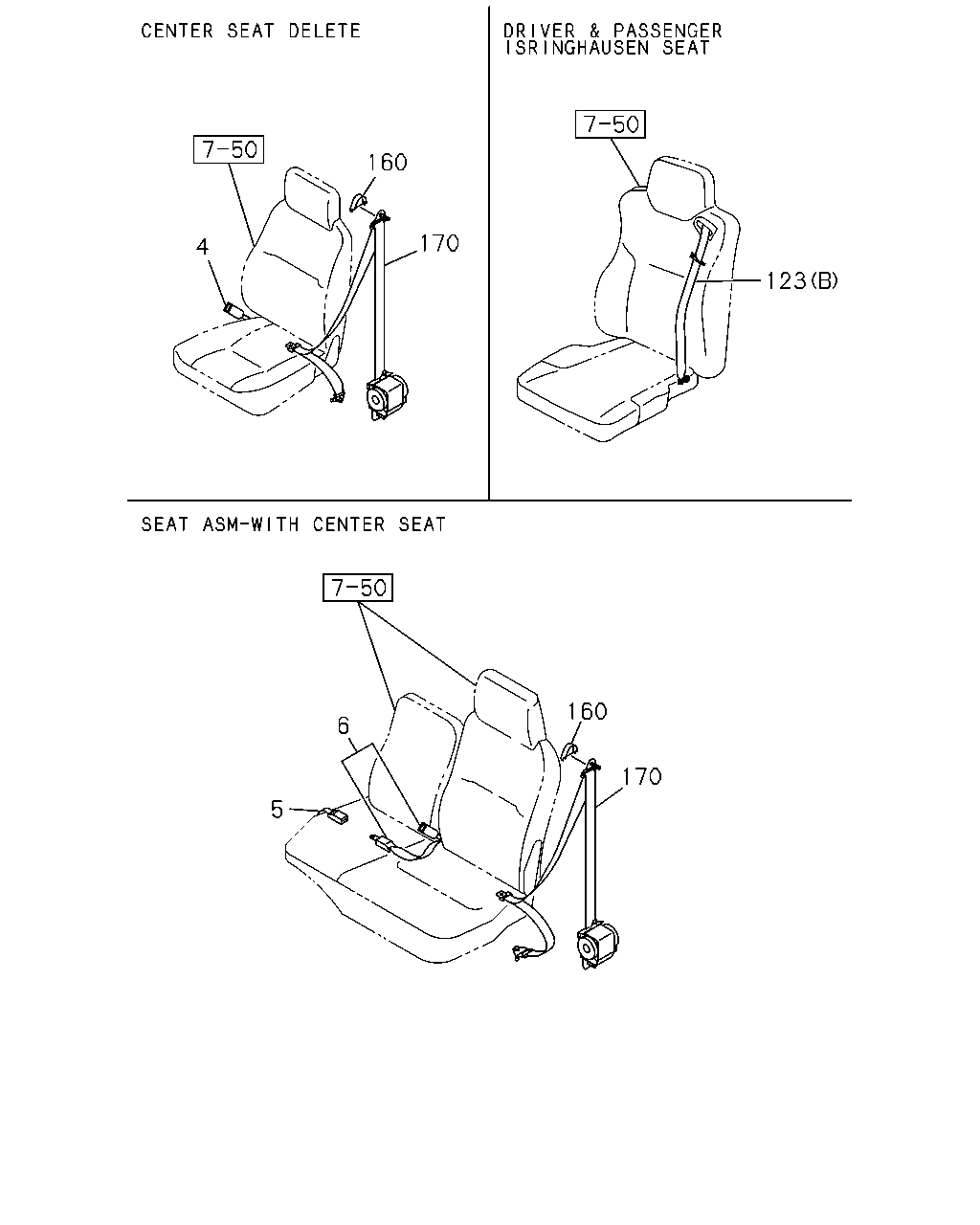

çizim 135873
4 160 170 123 5 6 160 170
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-376-1 01 1 1010-1306 ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1307- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1010- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-768-3 01 1 1010-1209 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1210-1306 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1307- ● ●
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-971-0 01 1 1010-1306 ● ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1307- ● ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-969-0 01 1 1010-1306 ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-968-0 01 1 1307-1508 ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98333-917-0 01 1 1509- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1010-1306 ● ●
160 COVER; THROUGH ANCHOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97405-991-0 01 1 1307- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-771-5 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-521-2 01 1 1210-1306 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97423-521-2 01 1 1307-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97428-394-0 01 1 1408- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97407-770-4 01 1 1010-1209 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1210-1306 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97423-516-1 01 1 1307-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 189074
88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1010-1306 ● ●
88 PLUG; HOLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> DARK GRAY 		8-97411-466-0 01 1 1307- ● ●
88 PLUG; HOLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97411-466-0 01 1 1307- ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1010-1201 ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1202-1306 ● ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> OD=25 BLACK 		1-76798-019-0 01 1 1307- ● ●
çizim 189077
123
BalonParca AdiParca NoAdetTipApplied Date A B
123 BELT ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-971-0 01 1 1010-1306 ● ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1307- ● ●
123 BELT ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-969-0 01 1 1010-1306 ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-968-0 01 1 1307-1508 ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98333-917-0 01 1 1509- ● ●
