◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#69737) — 431 parça

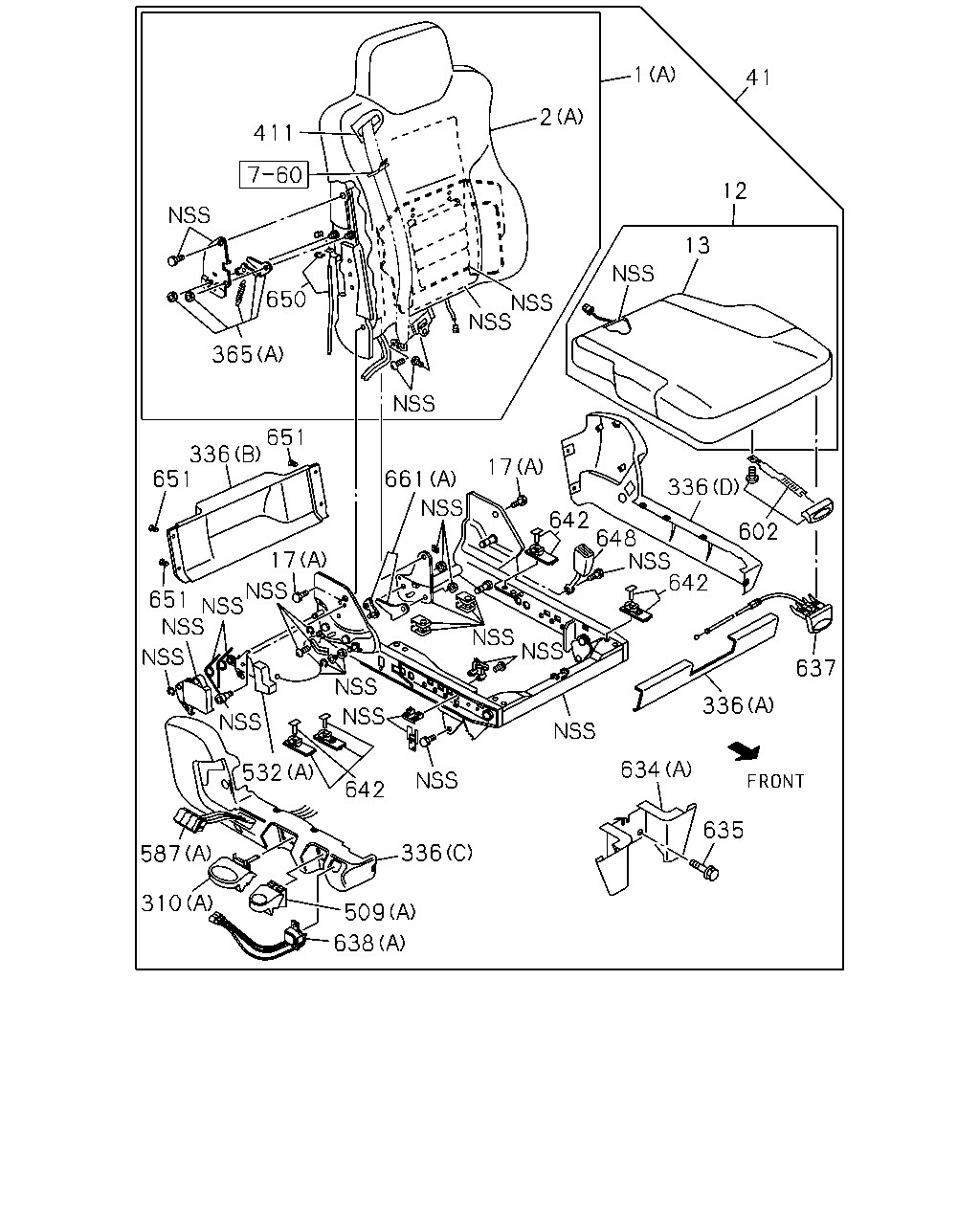

çizim 134244
635 634 336 637 602 642 648 336 17 41 642 661 17 13 12 1 2 651 642 336 509 638 310 587 532 651 651 336 365 650 411
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 1010-1306 ● ●
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1307- ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 1010-1306 ● ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-961-0 01 1 1307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 1010-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98232-352-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1010-1306 ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1010-1306 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1307- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-991-0 01 1 1307- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1010- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1010-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1010- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1010- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1010- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1010-1306 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1010- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1010-1306 ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1307- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1307- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-987-0 01 1 1307- ● ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1010- ● ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1010- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-981-0 01 1 1307- ● ●
587 VALVE; LUMBAR SUPPORT
(A) 		8-98097-986-0 01 1 1010- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-985-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1010-1306 ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT
(A) 		8-98088-279-0 01 1 1010-1306 ● ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98088-279-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98088-279-0 02 1 1307- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1010-1306 ● ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1307- ● ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1307- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1010-1306 ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1307- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1307- ● ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1010- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-993-0 01 1 1307- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1010-1306 ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1307- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1307- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1010-1306 ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1307- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1307- ● ●
650 CABLE 8-98097-973-0 01 1 1010-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301-1306 ● ●
650 CABLE 8-98232-354-0 01 1 1307- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1307- ● ●
651 RIVET 8-98194-075-0 04 1 1010-1306 ● ●
651 RIVET 8-98194-075-0 04 1 1307- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1307- ● ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1010- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-979-0 01 1 1307- ● ●

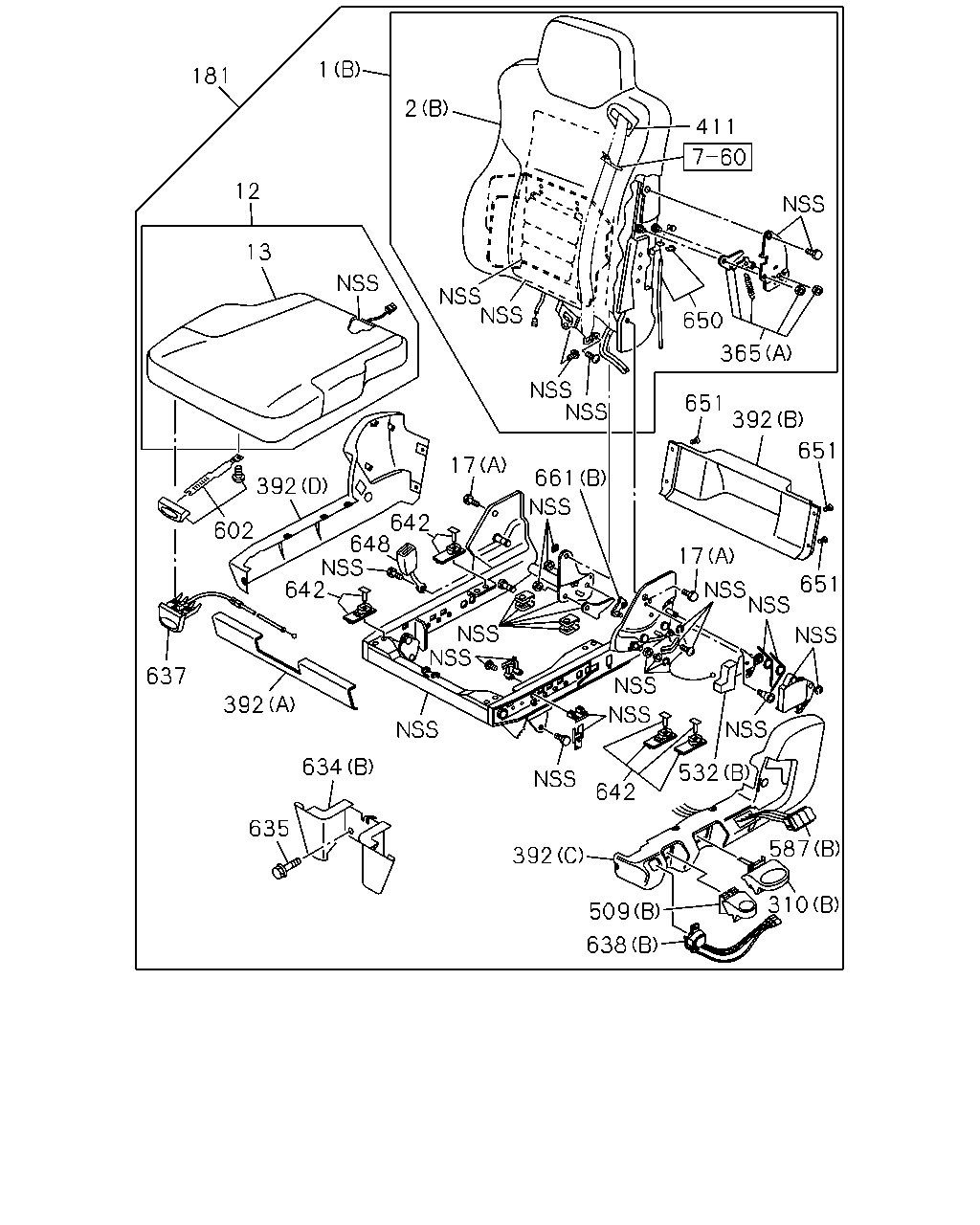

çizim 135017
310 587 509 638 392 642 634 532 392 637 642 392 602 648 642 17 17 651 651 392 651 661 13 12 181 1 411 650 2 365 635
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 1010-1306 ● ●
1 BACK ASM; SEAT
(A) 		8-98097-964-0 01 1 1307- ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 1010-1306 ● ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-961-0 01 1 1307- ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 1010-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98232-352-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1010-1306 ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1307- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1010-1306 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1307- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1307- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307- ● ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1307- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-991-0 01 1 1307- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
(A) 		8-98097-992-0 01 1 1010- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1010-1306 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1010- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (D) 		8-98097-977-0 01 1 1307-1508 ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (D) 		8-98333-916-0 01 1 1509- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (C) 		8-98097-983-0 01 1 1307- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98097-995-0 01 1 1307- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-996-0 01 1 1307- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1010-1306 ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1307- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1307- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-987-0 01 1 1307- ● ●
509 LEVER; DAMPER
(A) 		8-98097-988-0 01 1 1010- ● ●
532 LEVER ASM; TILT
(A) 		8-98097-982-0 01 1 1010- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-981-0 01 1 1307- ● ●
587 VALVE; LUMBAR SUPPORT
(A) 		8-98097-986-0 01 1 1010- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-985-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1010-1306 ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1307- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT
(A) 		8-98088-279-0 01 1 1010-1306 ● ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98088-279-0 01 1 1307- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98088-279-0 02 1 1307- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1010-1306 ● ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 1307- ● ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1307- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1010-1306 ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1307- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1307- ● ●
638 VALVE; LOWERING
(A) 		8-98097-994-0 01 1 1010- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-993-0 01 1 1307- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1010-1306 ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1307- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1307- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1010-1306 ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1307- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1307- ● ●
650 CABLE 8-98097-973-0 01 1 1010-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301-1306 ● ●
650 CABLE 8-98232-354-0 01 1 1307- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1307- ● ●
651 RIVET 8-98194-075-0 04 1 1010-1306 ● ●
651 RIVET 8-98194-075-0 04 1 1307- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1307- ● ●
661 LOCK ASM; RECLINING
(A) 		8-98097-980-0 01 1 1010- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98097-979-0 01 1 1307- ● ●

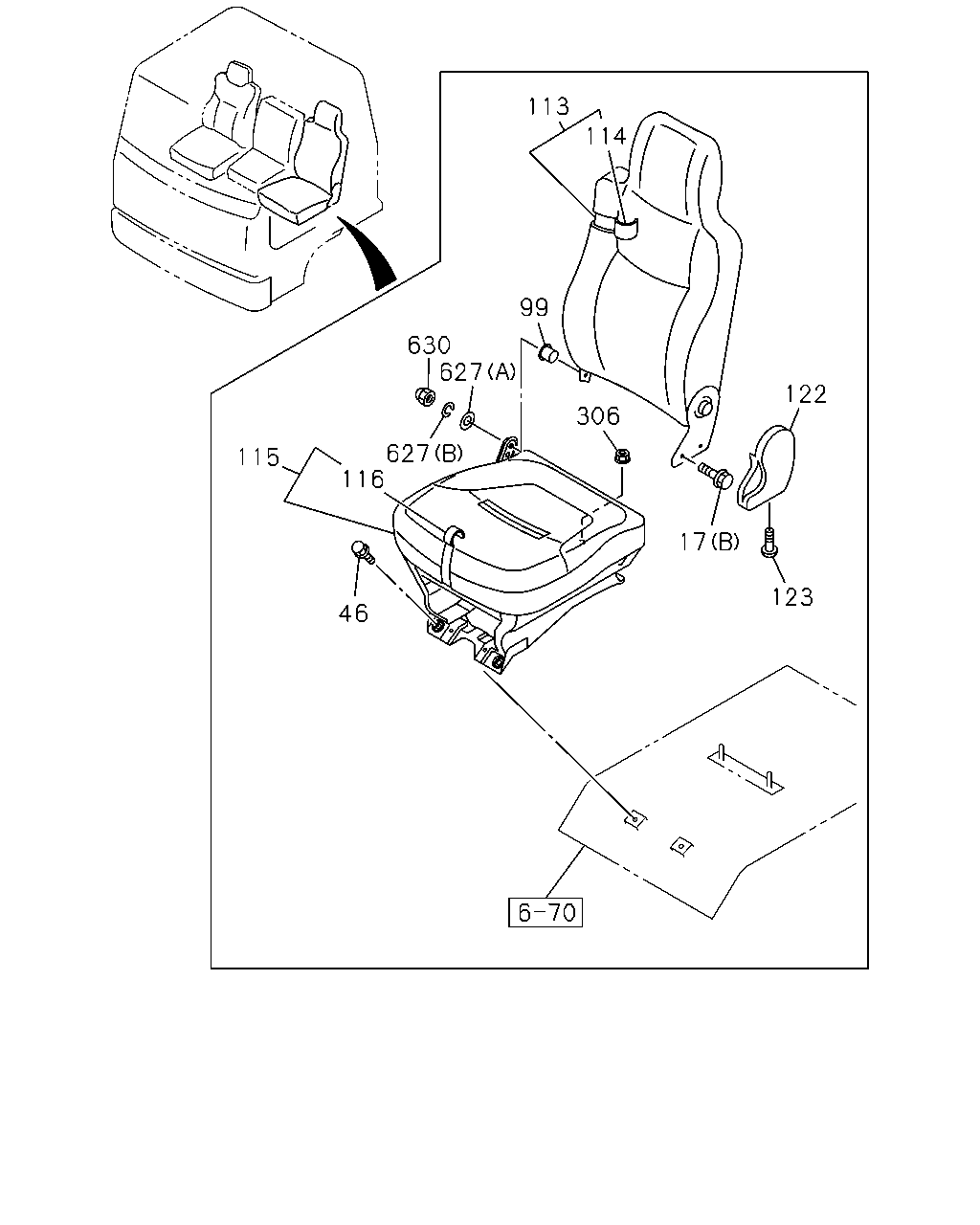

çizim 135135
113 114 122 123 17 306 99 630 627 627 116 115 46
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1307- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010-1306 ● ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) M8X20 		8-98092-334-0 02 1 1307- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1010-1010 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-1306 ● ●
99 BUSHING; SEAT BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98112-751-0 01 1 1307- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1010-1010 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010-1306 ● ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-422-0 01 1 1307- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1010-1010 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010-1306 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-424-0 01 1 1307- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1010-1010 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-0 01 1 1010-1306 ● ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-418-1 01 1 1307- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1010-1010 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010-1306 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DARK GRAY 		8-97421-420-0 01 1 1307- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1010-1306 ● ●
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97409-967-0 01 1 1307- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1010-1306 ● ●
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M5 		8-98070-026-0 01 1 1307- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1010-1306 ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98063-223-0 01 1 1307- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1010-1306 ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98063-224-0 01 1 1307- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1010-1306 ● ●
630 NUT; CAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8 		8-98063-225-0 01 1 1307- ● ●

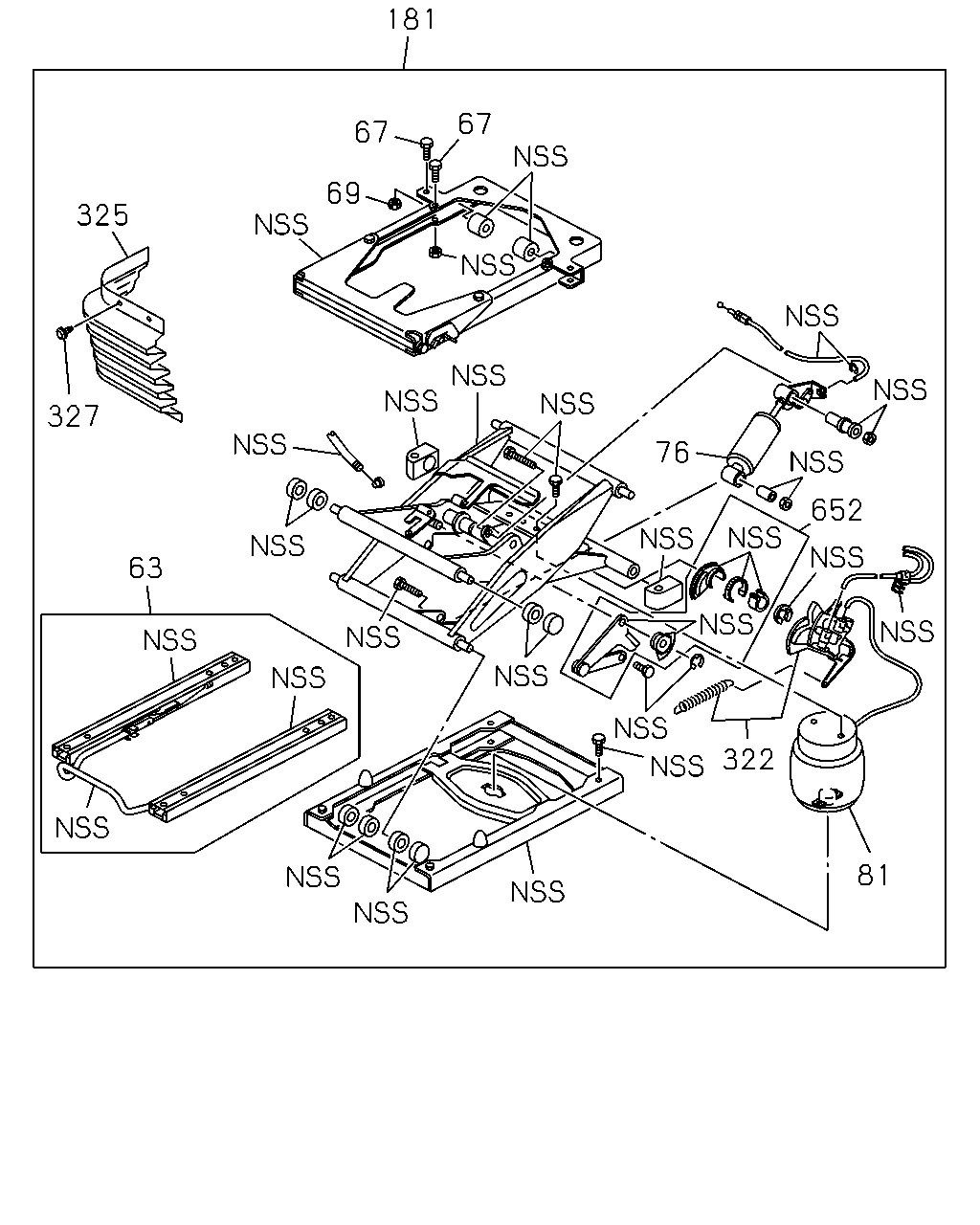

çizim 135200
652 76 81 322 63 327 325 69 67 67 181
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1010-1306 ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1307- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1307- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1010-1306 ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1307- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1307- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1010-1306 ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1307- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1307- ● ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1307- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1010-1306 ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1010-1306 ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1307- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1307- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1010-1306 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1307- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1010-1306 ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1307- ● ●

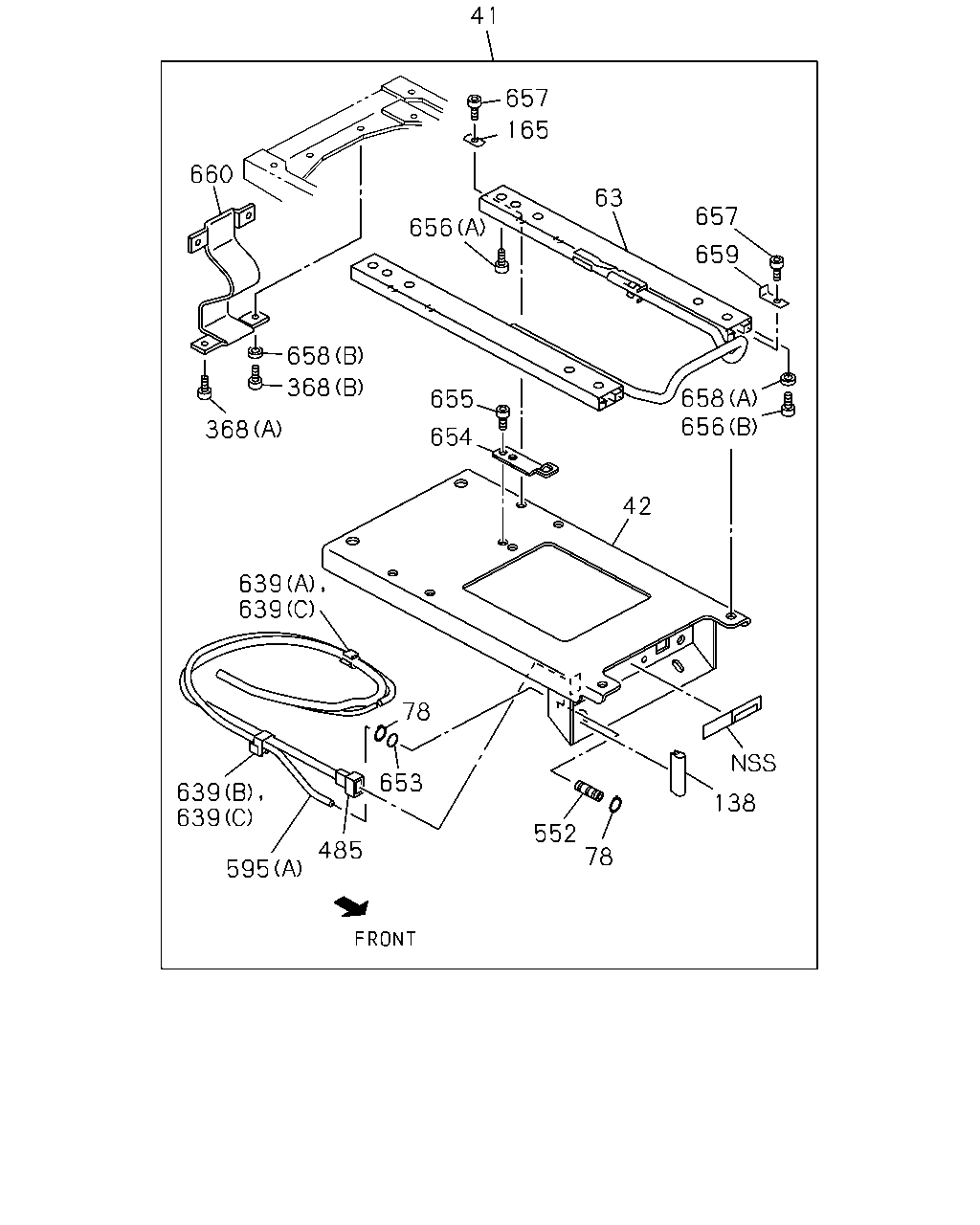

çizim 135279
41 657 63 657 656 659 658 655 656 654 658 660 368 368 639 639 78 653 485 639 639 595 552 78 138 42 165
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1010- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1010-1306 ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1307- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1307- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1010-1306 ● ●
78 RING; SNAP 8-98101-900-0 02 1 1307- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1307- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1010-1306 ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1307- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1307- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1010-1306 ● ●
165 WASHER; PL 1-75590-086-0 04 1 1307- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1307- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1010-1306 ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1010-1306 ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1307- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1010-1306 ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 1010-1306 ● ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-361-0 01 1 1307- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1010-1306 ● ●
552 CONNECTOR 8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1010-1306 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1010- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1307-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1010-1306 ● ●
653 GASKET 8-98101-901-0 01 1 1307- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1307- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1010-1306 ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1307- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1307- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1010-1306 ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1307- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1307- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1010-1306 ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1307- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1307- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1010-1306 ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1010-1306 ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1307- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1307- ● ●
659 STOPPER 8-98106-356-0 02 1 1010-1306 ● ●
659 STOPPER 8-98106-356-0 02 1 1307- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1307- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1010-1306 ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1307- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1307- ● ●

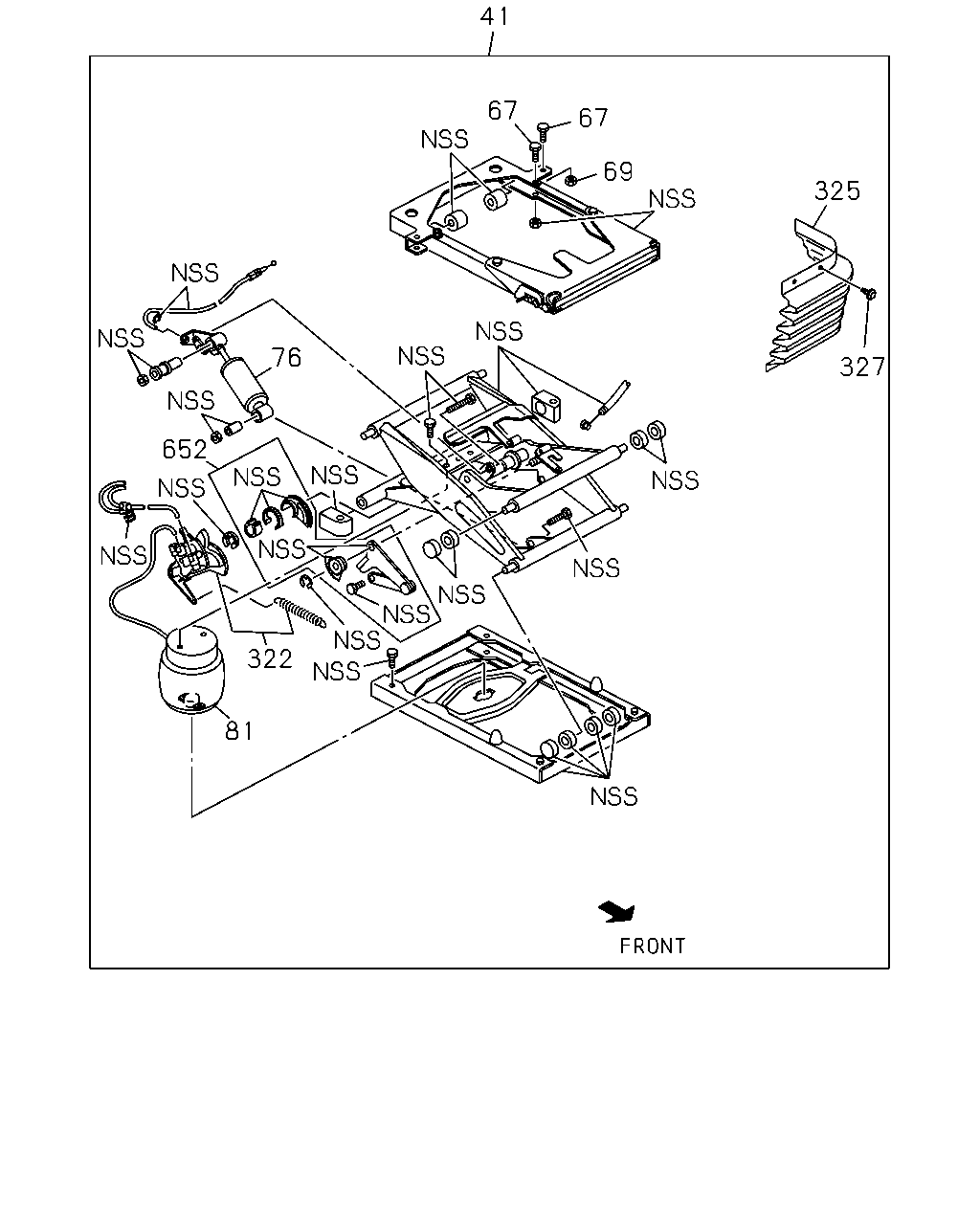

çizim 189075
41 67 69 67 76 325 327 322 81 652
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1306 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307- ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1306 ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1010-1306 ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1307- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1307- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1010-1306 ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1307- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1307- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1010-1306 ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-001-0 01 1 1307-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1010-1306 ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1307- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1307- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1010-1306 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1307- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1010-1306 ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1307- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1307- ● ●

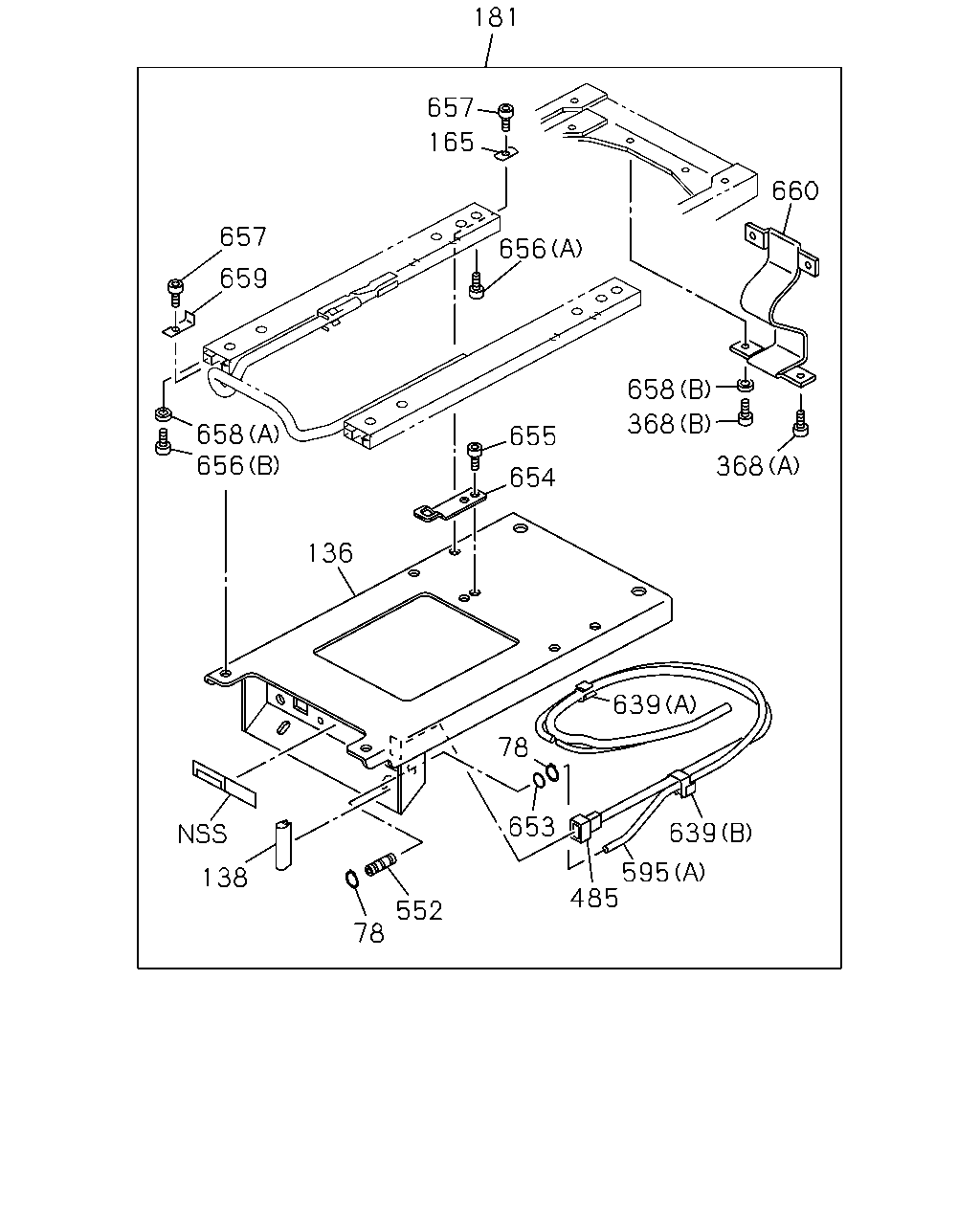

çizim 322610
181 660 657 656 658 165 368 655 657 368 654 658 136 656 138 552 78 639 78 653 639 595 485 659
BalonParca AdiParca NoAdetTipApplied Date A B
78 RING; SNAP 8-98101-900-0 02 1 1010-1306 ● ●
78 RING; SNAP 8-98101-900-0 02 1 1307- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1307- ● ●
136 STAND; PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-346-0 01 1 1307- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1010-1306 ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1307- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1307- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1010-1306 ● ●
165 WASHER; PL 1-75590-086-0 04 1 1307- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1307- ● ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1307- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1010-1306 ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1307- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1010-1306 ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1307- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1010-1306 ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1307- ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 1010-1306 ● ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-361-0 01 1 1307- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1010-1306 ● ●
552 CONNECTOR 8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-902-0 01 1 1307-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1010-1306 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1010- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-349-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1010-1306 ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1307-1508 ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-350-0 01 1 1307-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1010-1306 ● ●
653 GASKET 8-98101-901-0 01 1 1307- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1307- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1010-1306 ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1307- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1307- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1010-1306 ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1307- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1010-1306 ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1307- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1307- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1010-1306 ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1307- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1307- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1010-1306 ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1307- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1010-1306 ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1307- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1307- ● ●
659 STOPPER 8-98106-356-0 02 1 1010-1306 ● ●
659 STOPPER 8-98106-356-0 02 1 1307- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1307- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1010-1306 ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1307- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1307- ● ●

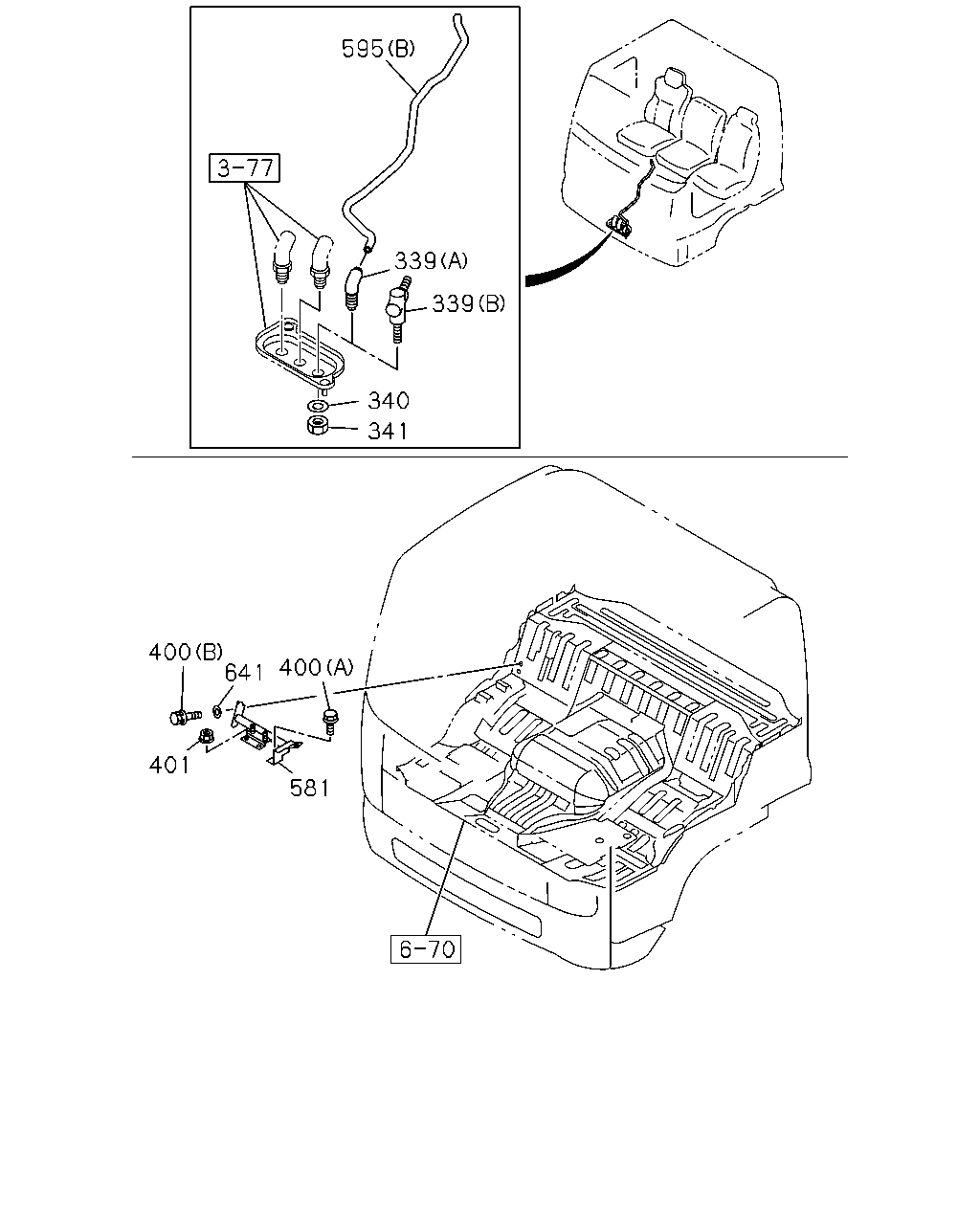

çizim 363765
339 339 595 340 341 400 400 401 581 641
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
(A) 		8-98014-971-0 01 1 1010-1306 ● ●
339 UNION; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98014-971-0 01 1 1307- ● ●
339 UNION; DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		1-09656-751-0 01 1 1307- ● ●
340 WASHER; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> ID=12.5 		0-91610-712-0 02 1 1307- ● ●
341 NUT; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M12 		9-09840-280-0 01 1 1307- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1010-1306 ● ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 1307- ● ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98098-996-0 04 1 1307- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1010-1306 ● ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 1307- ● ●
401 NUT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M10 FLANGE 		0-91180-110-0 04 1 1307- ● ●
581 PIPE; SEAT 8-97589-693-3 01 1 1010-1306 ● ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-693-3 01 1 1307- ● ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98228-516-0 01 1 1307- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1010-1306 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1307- ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1010- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1010-1306 ● ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 1307- ● ●
641 WASHER; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98099-007-0 04 1 1307- ● ●
çizim 365149
506 360 175 188 176 126 359 16 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1010- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1010- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1010-1010 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1010-1010 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1010-1010 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1010-1010 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1010- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1010- ● ●

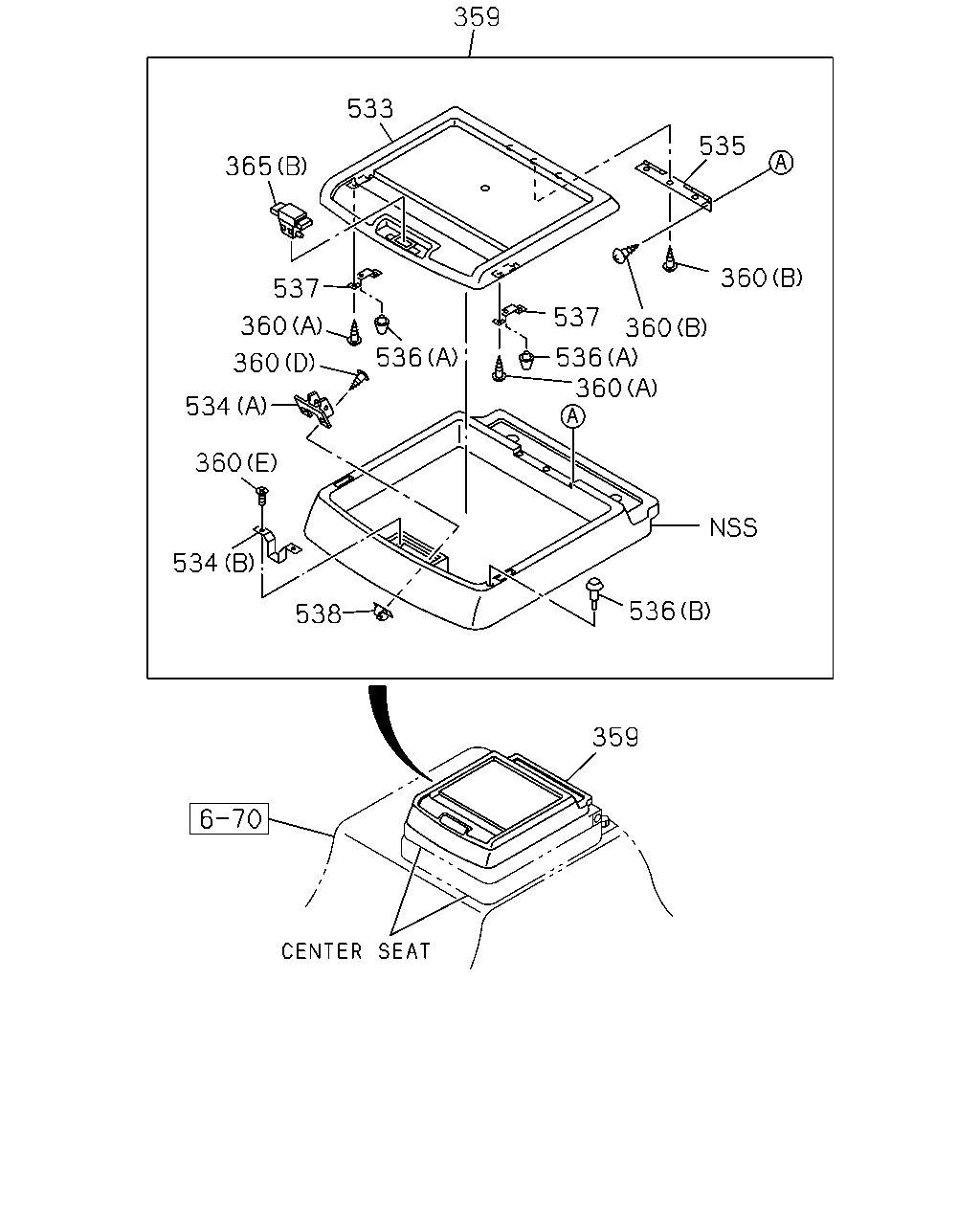

çizim 365193
536 360 536 537 360 360 535 359 533 365 537 360 536 360 534 360 534 538 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1010-1306 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1307- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1010- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1010- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 1010-1010 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1010- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 1010-1010 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 1010-1010 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 1010-1010 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
