7-45 — CONSOLE BOX (#69736) — 36 parça

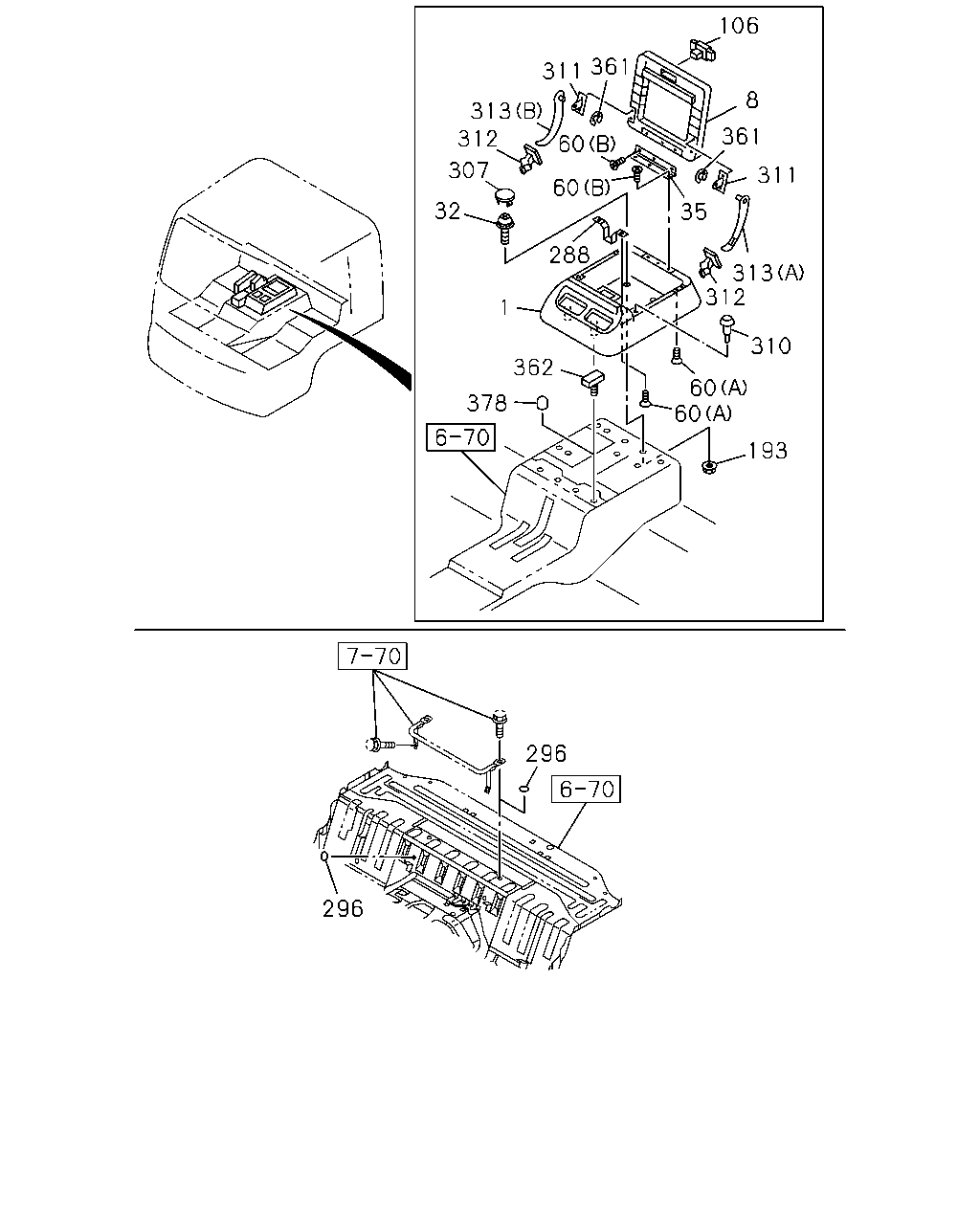

çizim 134307
106 361 311 313 312 307 32 60 60 8 361 311 35 288 1 313 312 310 60 60 362 378 193 296 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 1010-1306 ● ●
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97408-710-0 01 1 1307- ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 1010-1306 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97408-712-0 01 1 1307- ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 1010-1306 ● ●
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-38050-616-0 02 1 1307- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 1010-1306 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-182-1 01 1 1307- ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1010-1306 ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 1307- ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 		8-94279-325-0 04 1 1010-1306 ● ●
60 SCREW; BOX
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) M5X14 		8-94279-325-0 04 1 1307- ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> 		1-72538-312-0 01 1 1010-1306 ● ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-312-0 01 1 1307- ● ●
193 NUT; PARCEL BOX
CENTER SEAT DELETE<SP9> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
193 NUT; PARCEL BOX
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M8 FLANGE 		0-91180-108-0 02 1 1307- ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-190-0 01 1 1010-1306 ● ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-190-0 01 1 1307- ● ●
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1010- ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 1010-1306 ● ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97407-951-0 02 1 1307- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-187-0 02 1 1010-1306 ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-187-0 02 1 1307- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 1010-1306 ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-188-2 02 1 1307- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 1010-1306 ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-186-1 02 1 1307- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 1010-1306 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-72538-184-3 01 1 1307- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 1010-1306 ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		1-72538-185-3 01 1 1307- ● ●
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 1010-1306 ● ●
361 RING; SNAP
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> ID=5 		9-09185-405-0 02 1 1307- ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> 		1-72538-308-0 02 1 1010-1306 ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-72538-308-0 02 1 1307- ● ●
378 CAP; STUD
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-71736-200-0 02 1 1307- ● ●
