◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#69732) — 16 parça

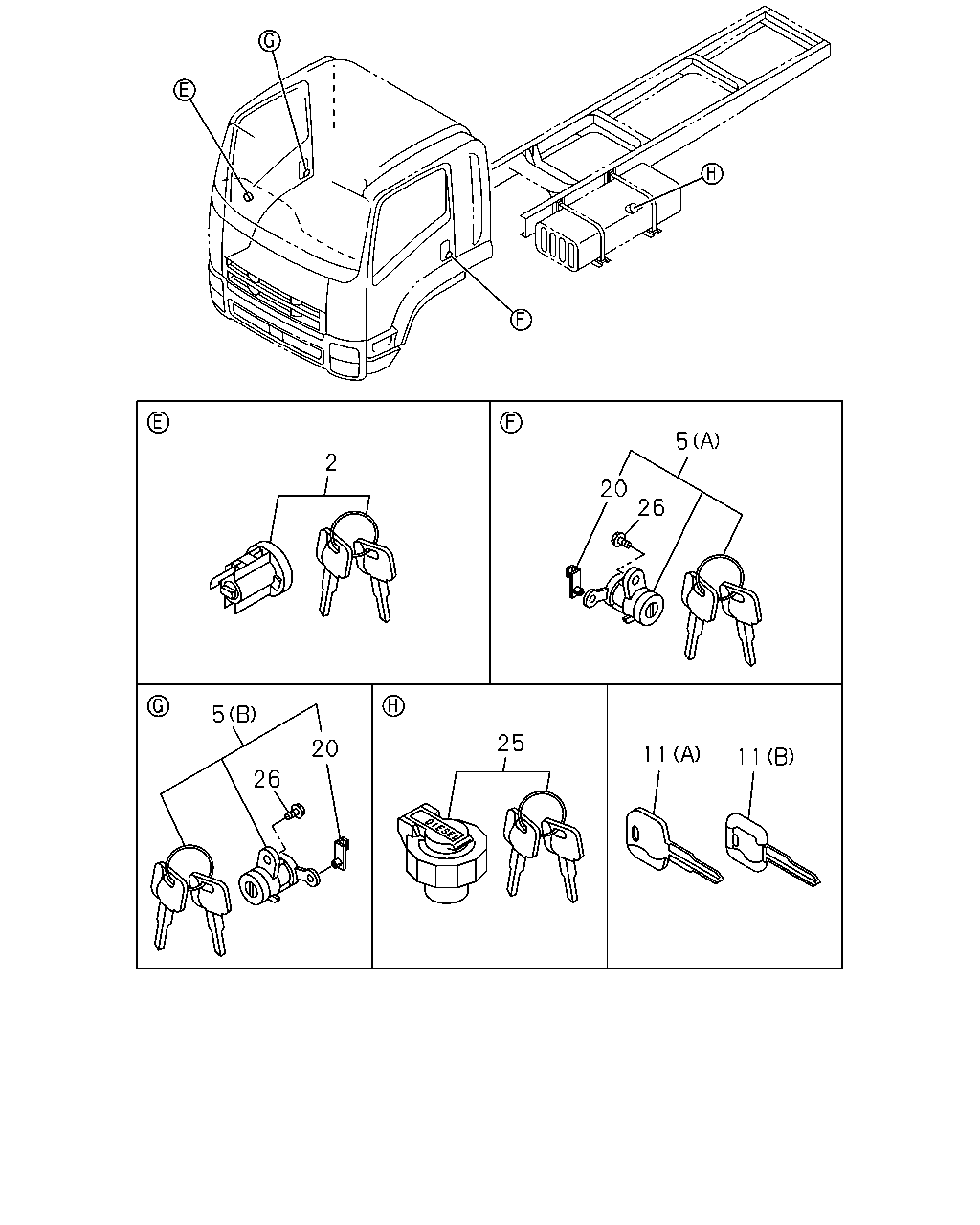

çizim 132753
2 5 20 26 5 20 26 25 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 1010-1203 ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1204- ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1010- ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1010- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 1010- ● ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 1010- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1010- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1010- ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK 200L FRAME SIDE<N20> 		8-98146-010-0 01 1 1010- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1010- ● ●
çizim 189076
20 20 1 20 1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20> (A) 		8-98145-977-0 01 1 1010-1203 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 200L FRAME SIDE<N20> (A) 		8-98201-214-0 01 1 1204- ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 400L<SDH> (B) 		8-98041-686-1 01 1 1010-1203 ● ●
1 CYLINDER SET; CAR LOCK
FUEL TANK 400L<SDH> (B) 		8-98201-160-0 01 1 1204- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1010- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1010- ● ●
