◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#69721) — 74 parça

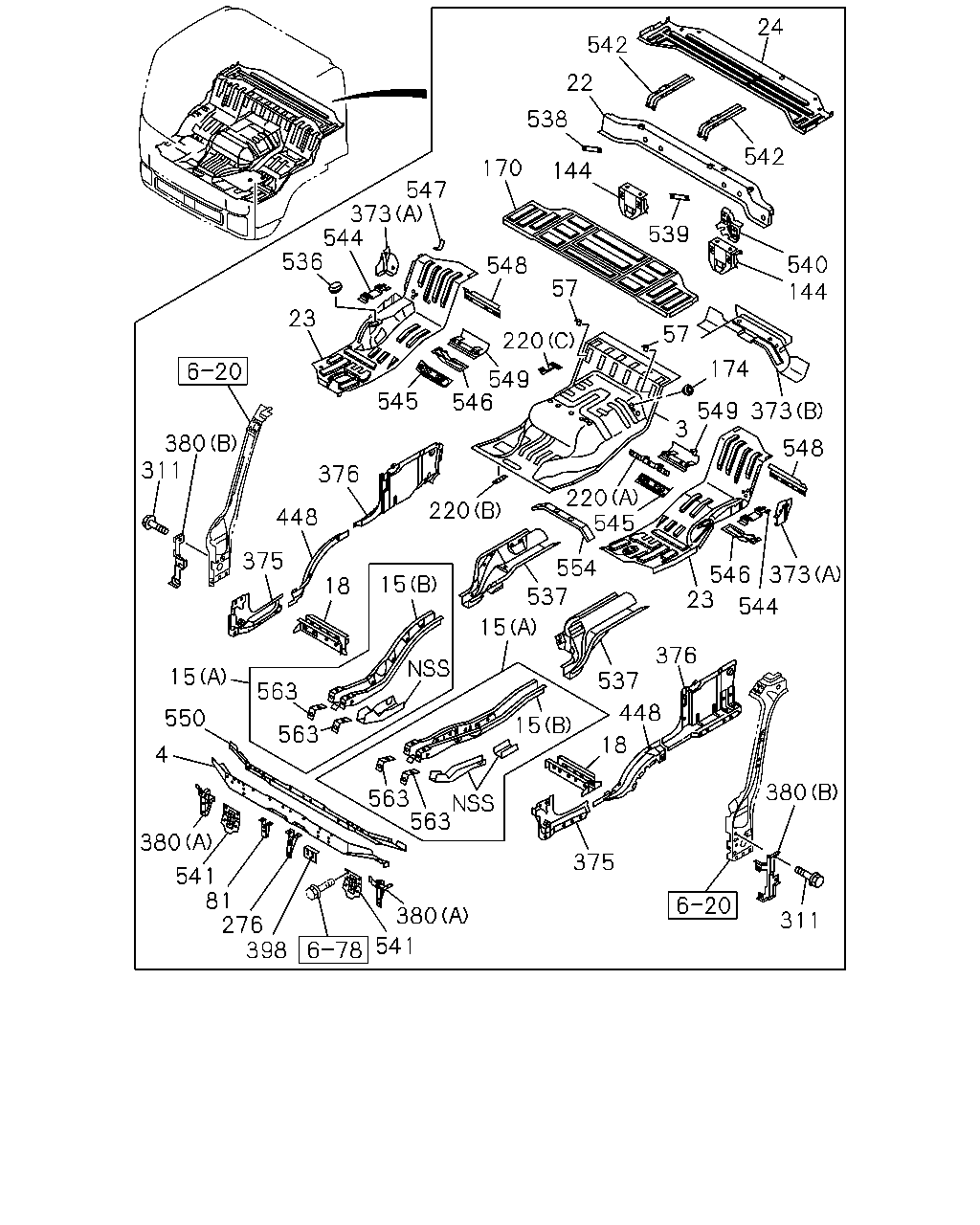

çizim 189081
24 542 22 538 170 144 539 542 540 144 57 174 373 548 549 3 57 548 547 373 544 536 23 545 546 549 220 380 311 375 448 376 18 15 550 4 380 541 81 276 398 541 380 563 563 563 563 15 15 537 554 220 220 545 546 373 544 23 376 537 448 18 15 375 311 380
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-265-0 01 1 1307- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1010-1306 ● ●
3 HOOD ASM; ENG
ALLISON MD3560P A/T(Y3B) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1010-1306 ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1307- ● ●
3 HOOD ASM; ENG
ALLISON MD3560P A/T(Y3B) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1307- ● ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1010-1306 ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1307- ● ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-360-4 01 1 1010-1306 ● ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-360-4 01 1 1307- ● ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1010- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1010- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1010- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1010- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1010- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1010- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1010- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1010- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1010- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1010- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1010- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1010- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1010- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98228-266-0 01 1 1307-1507 ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1010-1306 ● ●
373 REINFORCEMENT; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98081-349-3 01 1 1307-1507 ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1010- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1010- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1010-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1010- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1010- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1010- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1010- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1010- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1010- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1010- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1010- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1010- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1010- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1010- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1010- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98050-188-0 01 1 1307- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1010-1306 ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97584-373-1 01 1 1307- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1010- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1010- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1010- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1010- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1010- ● ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98050-189-1 01 1 1307- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1010-1306 ● ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97588-958-4 01 1 1307- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1010- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1010- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1010- ● ●
