◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#69720) — 17 parça

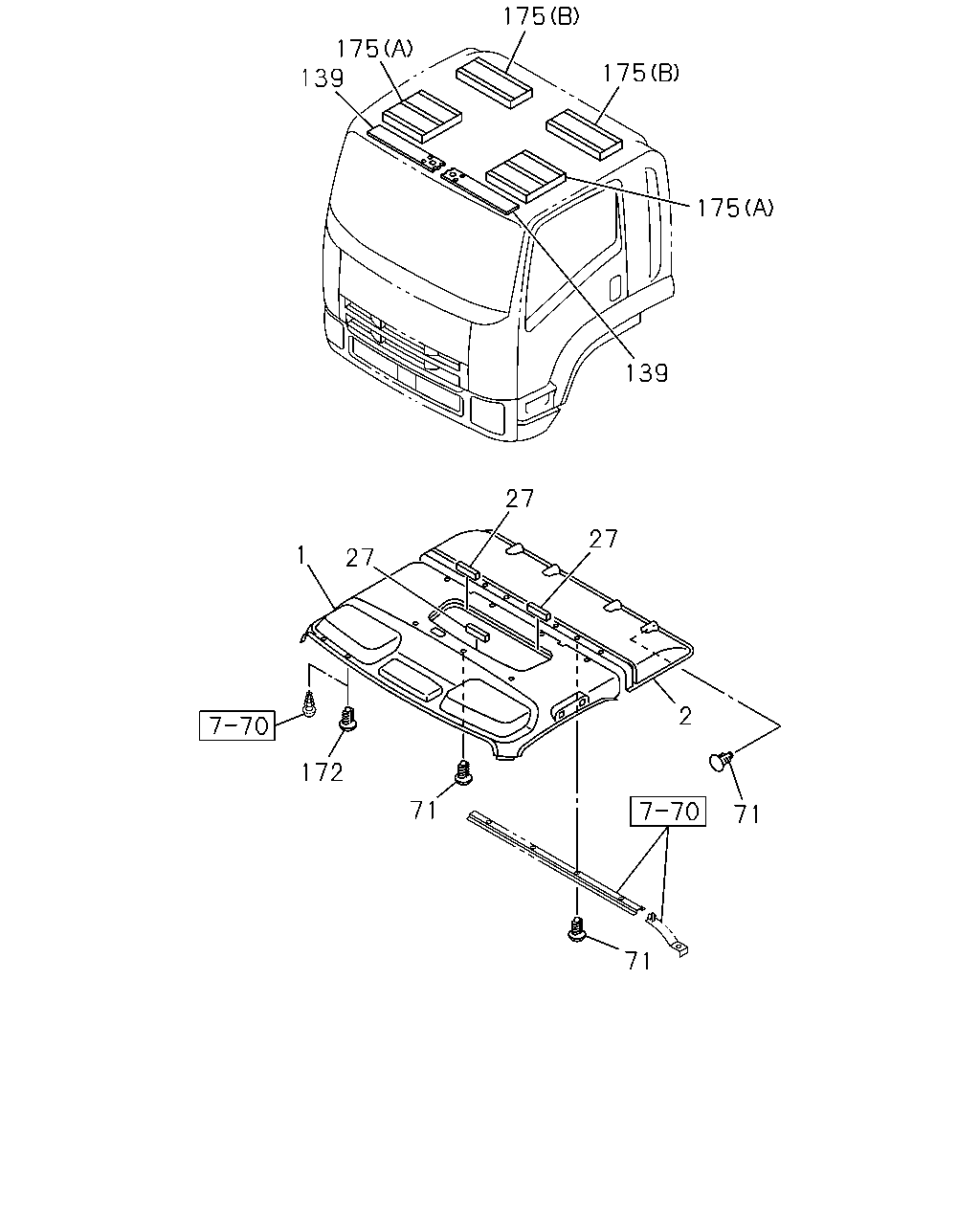

çizim 131502
139 175 175 175 175 139 27 27 1 27 172 71 71 71 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-363-0 01 1 1010-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-744-0 01 1 1307-1308 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-360-0 01 1 1010-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-741-0 01 1 1307-1308 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-741-0 01 1 1309- ● ●
2 LINING; HD,ROOF RR
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-455-5 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-674-0 01 1 1010-1306 ● ●
2 LINING; HD,ROOF RR
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97415-674-0 01 1 1307-1307 ● ●
2 LINING; HD,ROOF RR
ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97427-627-0 01 1 1307- ● ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1010- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1010- ● ●
139 SEAL; ROOF 8-98169-116-0 02 1 1010- ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 14 1 1010-1306 ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 12 1 1307-1307 ● ●
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 12 1 1308- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1010- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1010- ● ●
