6-05 — FRONT PANEL (#69710) — 298 parça

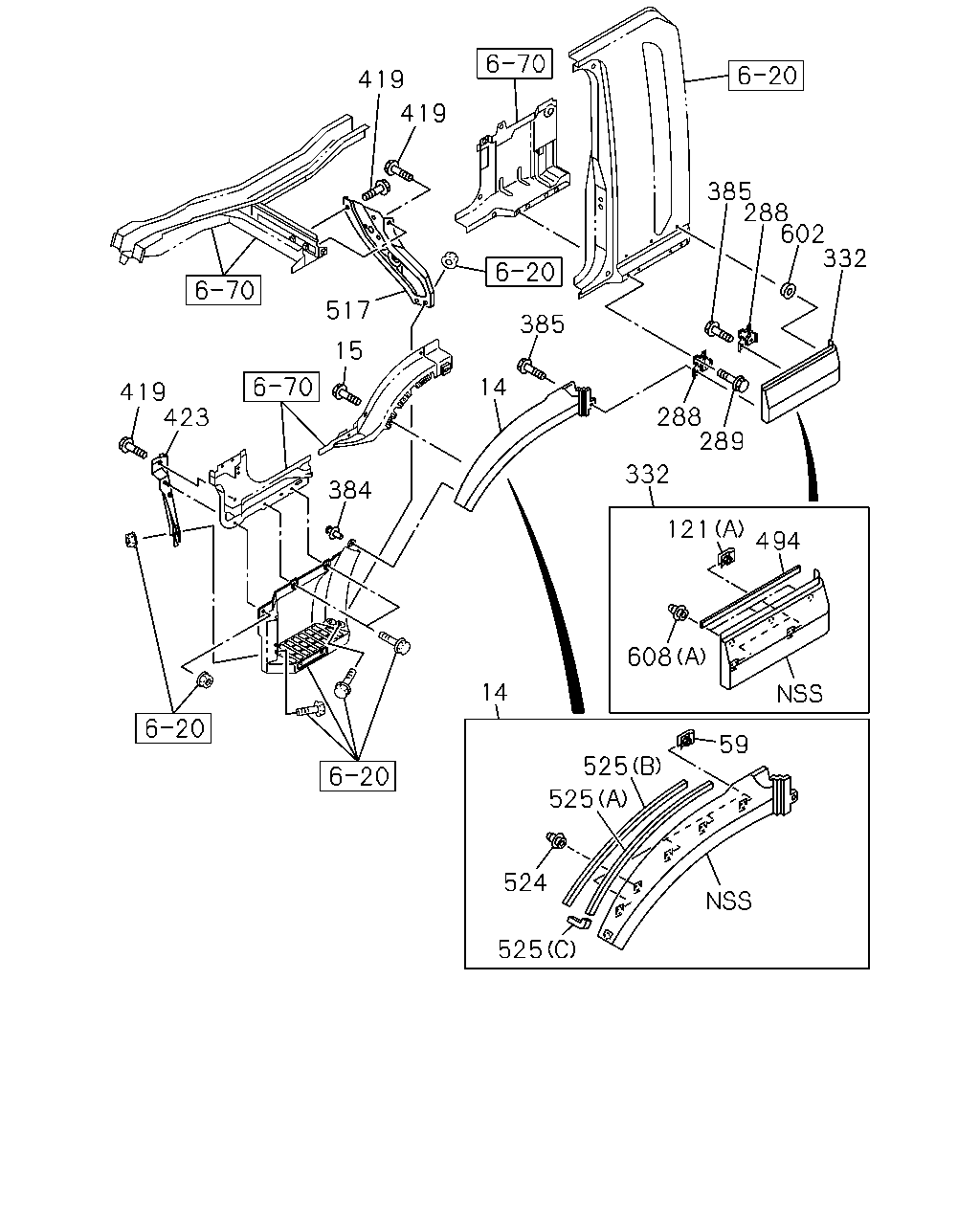

çizim 126415
525 524 525 59 525 14 608 121 332 494 289 288 332 602 288 385 385 14 384 15 517 419 419 423 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1010- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1010- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1010- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1010- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1010- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1010- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1010- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1010- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1010- ● ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-947-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-948-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-957-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-958-2 01 1 1405- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-967-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-968-2 01 1 1401- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-768-2 01 1 1203- ● ●
332 FENDER; RR
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-769-2 01 1 1203- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-819-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97411-818-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1010- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1010- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1010- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1010- ● ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1010- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1010- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1010- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1010- ● ●
494 FINISHER; FENDER 8-98072-723-0 01 1 1010- ● ●
494 FINISHER; FENDER 8-98041-172-1 01 1 1010- ● ●
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1010- ● ●
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1010- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1010- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1010- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1010- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1010- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1010-1302 ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ● ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1010- ● ●

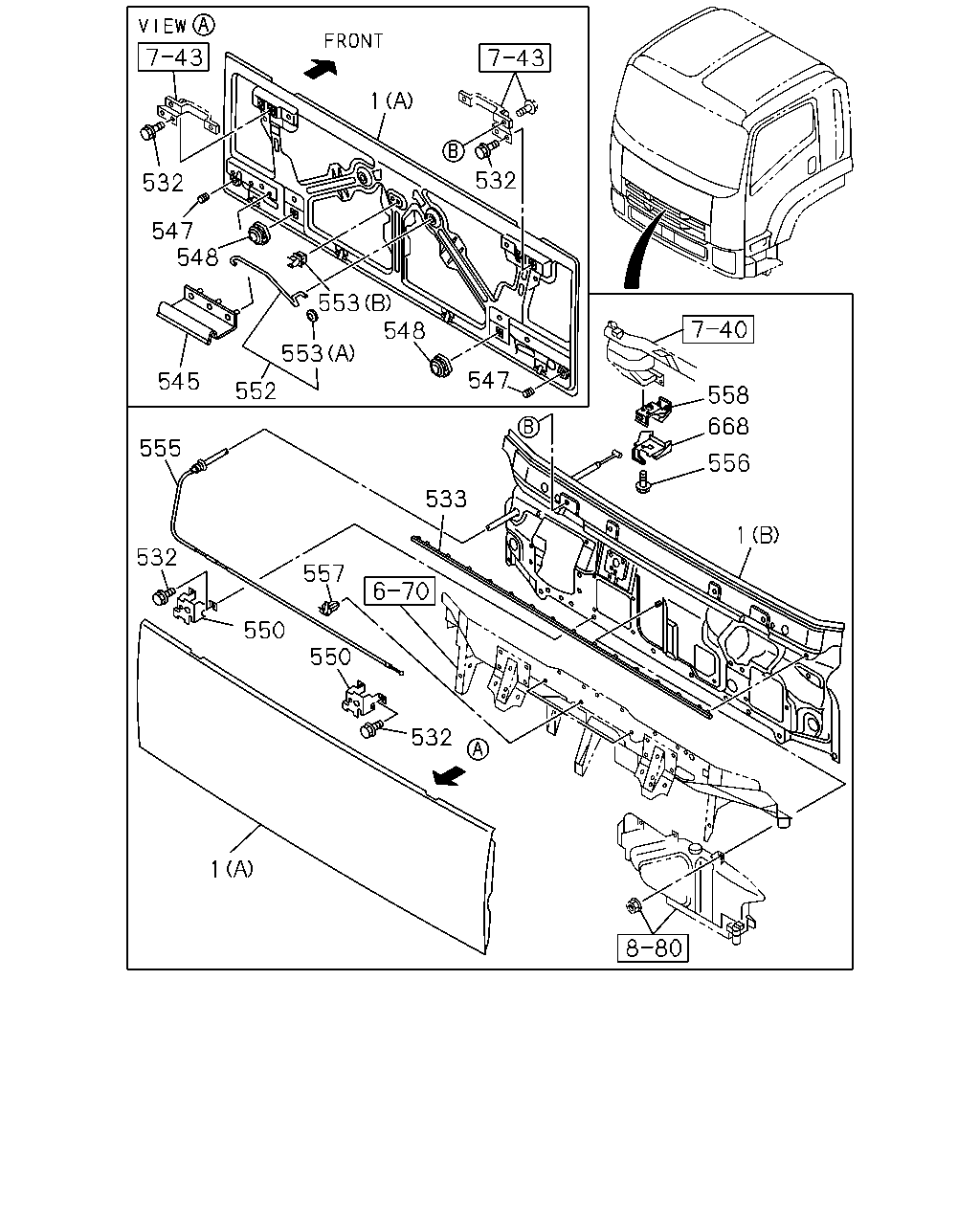

çizim 126535
1 532 532 547 548 545 552 553 553 548 547 558 668 556 1 533 557 555 532 550 550 532 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1010- ● ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1010- ● ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1010- ● ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1010- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1010- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1010- ● ●
552 STAY; FRT LID 8-98089-838-0 01 1 1010- ● ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1010- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1010- ● ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1010- ● ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1010- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1010- ● ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1010- ● ●

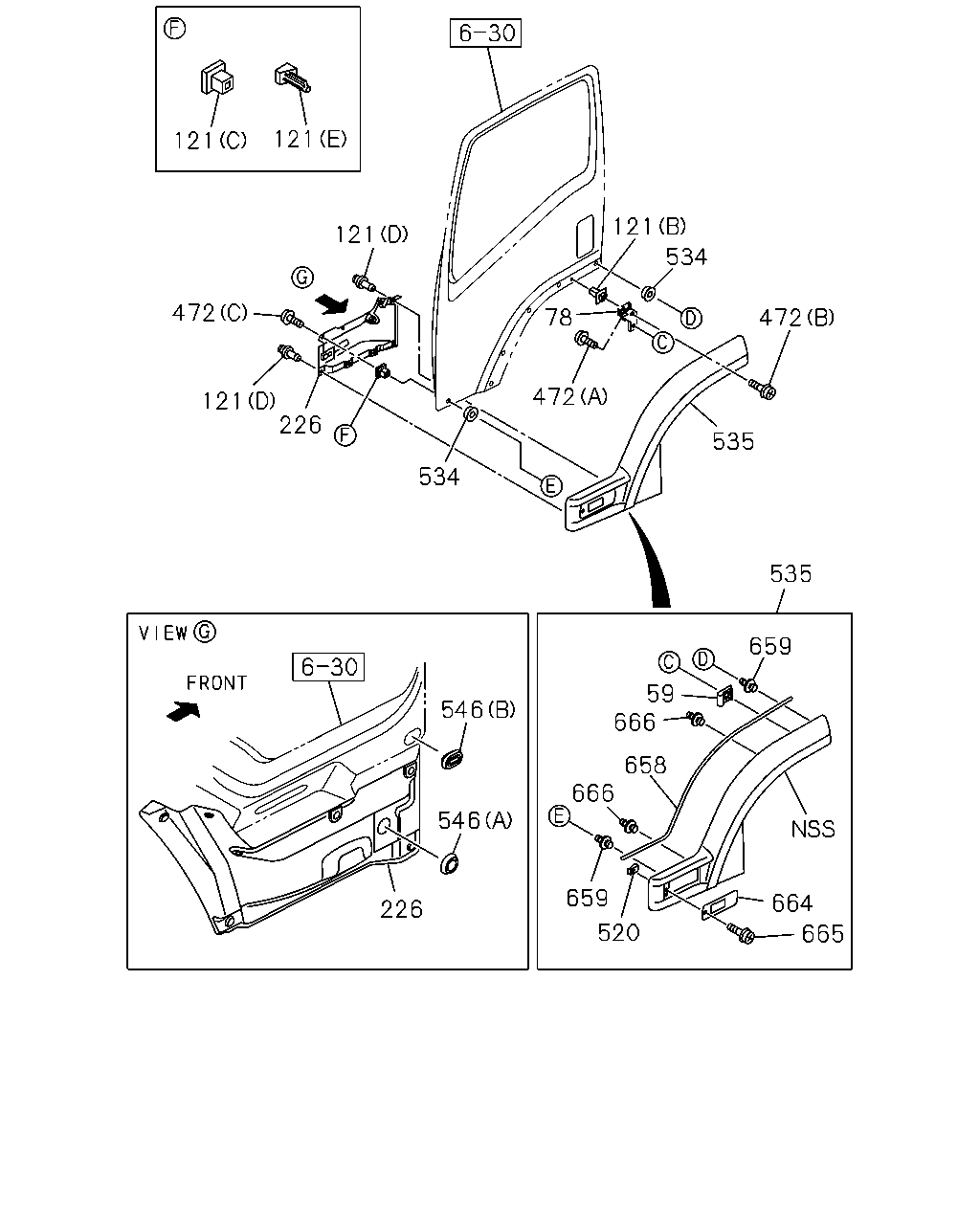

çizim 126548
546 546 226 520 664 659 665 666 666 658 59 659 535 472 472 78 121 534 534 226 121 472 121 121 121 535
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW 8-94279-723-0 02 1 1010- ● ●
59 GROMMET; SCREW 8-94279-723-0 08 1 1010- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1010- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1010- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1010- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1010- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1010- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1010- ● ●
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1010- ● ●
226 PROTECTOR; FRT 8-98037-715-2 01 1 1010- ● ●
226 PROTECTOR; FRT 8-98037-714-2 01 1 1010- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1010- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1010- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1010- ● ●
520 NUT; FENDER 8-94279-501-0 02 1 1010- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1010-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-975-1 01 1 1405- ● ●
535 FENDER; BLISTER
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97427-976-1 01 1 1405- ● ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-985-1 01 1 1405- ● ●
535 FENDER; BLISTER
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97427-986-1 01 1 1405- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-969-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97427-970-1 01 1 1401- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-795-1 01 1 1203- ● ●
535 FENDER; BLISTER
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-805-1 01 1 1203- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-379-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-359-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-384-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-364-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-381-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-361-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-374-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-354-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-382-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-362-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-383-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97415-363-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-380-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-360-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-387-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-367-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-376-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-356-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-389-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-369-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-392-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-372-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-745-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-744-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-373-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-353-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-391-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-371-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-375-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-355-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-390-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-370-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-377-1 01 1 1010- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-357-1 01 1 1010- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-503-0 01 1 1010- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98106-502-0 01 1 1010- ● ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1010- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1010- ● ●
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1010- ● ●
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1010- ● ●
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97428-022-0 01 1 1405- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR A P RED(549) CAB ALL PAINTING<TFD> 		8-97428-025-0 01 1 1405- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97428-023-0 01 1 1405- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR RMS ORANGE(550) CAB ALL PAINTING<TFD> ORANGE 		8-97428-026-0 01 1 1405- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97428-024-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HANSON BLUE(551) CAB ALL PAINTING<TFD> DARK BLUE 		8-97428-027-0 01 1 1401- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-845-0 01 1 1203- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TOLL GREEN(543) CAB ALL PAINTING<TFD> GREEN 		8-97423-846-0 01 1 1203- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-553-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> BEIGE 		8-97421-525-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1010- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1010- ● ●
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1010- ● ●
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1010- ● ●

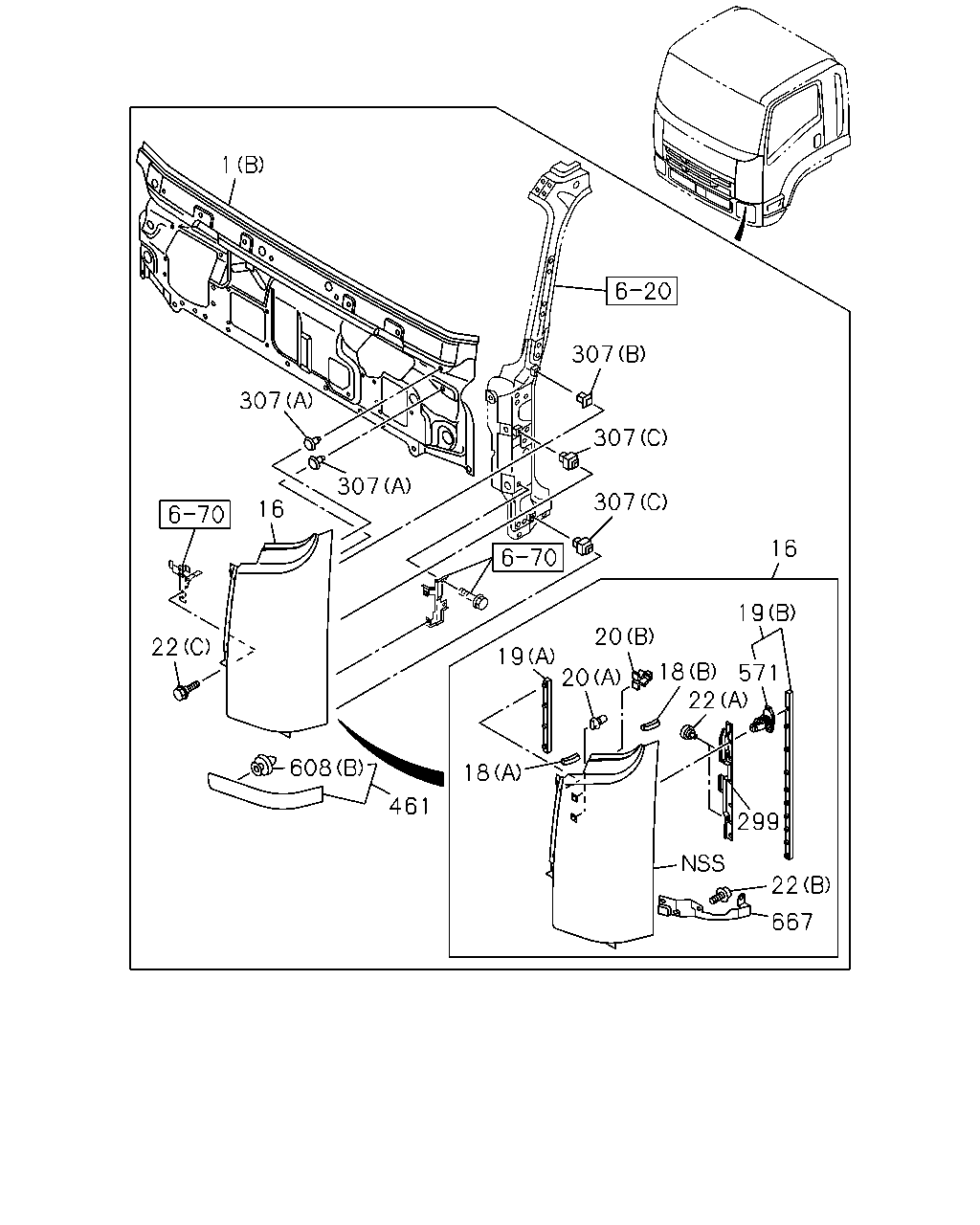

çizim 126716
1 307 307 307 16 19 18 20 20 19 18 299 571 22 22 667 461 608 22 16 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) 		8-97427-973-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR A P RED(549) 		8-97427-974-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-983-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR RMS ORANGE(550) ORANGE 		8-97427-984-4 01 1 1405- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-965-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HANSON BLUE(551) DARK BLUE 		8-97427-966-4 01 1 1401- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-799-4 01 1 1203- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TOLL GREEN(543) GREEN 		8-97423-800-4 01 1 1203- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-664-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-769-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-902-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97408-246-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-739-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-734-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97417-667-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-772-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-742-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-737-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-835-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR FT ORANGE(609) BEIGE 		8-97411-834-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-666-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-771-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-741-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-736-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-673-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-778-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-671-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-776-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-670-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-775-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-672-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-663-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-665-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-770-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-740-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-735-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-743-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-738-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-669-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-774-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-668-4 01 1 1010- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-773-4 01 1 1010- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1010-1306 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1010-1306 ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1307- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1010- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1010- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1010-1306 ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1010-1306 ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307- ● ●
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1010-1306 ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1010-1306 ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1307- ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1010-1505 ● ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ● ●
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1010- ● ●
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1010- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1010- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1010- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1010- ● ●
461 PANEL; FRT SIDE 8-98058-164-2 01 1 1010- ● ●
461 PANEL; FRT SIDE 8-98058-163-2 01 1 1010- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1010-1306 ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1307- ● ●
608 CLIP
(B) 		8-98282-490-0 02 1 1408- ● ●
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1010- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 1010- ● ●
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 1010- ● ●

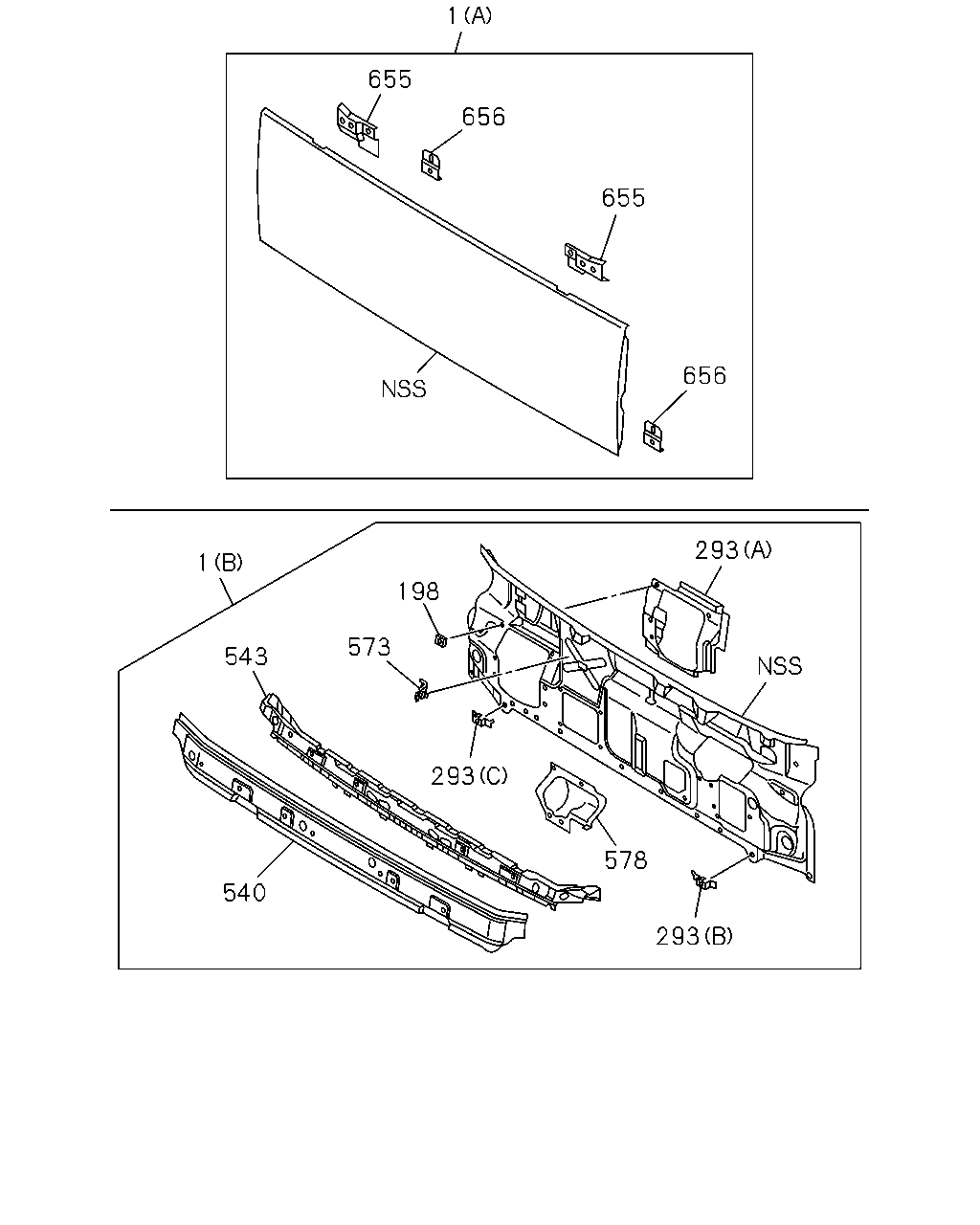

çizim 189056
656 655 656 655 1 543 573 198 293 540 578 293 293 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1010- ● ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1010- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1010- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1010- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1010- ● ●
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1010- ● ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1010- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1010- ● ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1010- ● ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1010- ● ●
655 PATCH; HINGE 8-98031-263-0 01 1 1010- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1010- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
