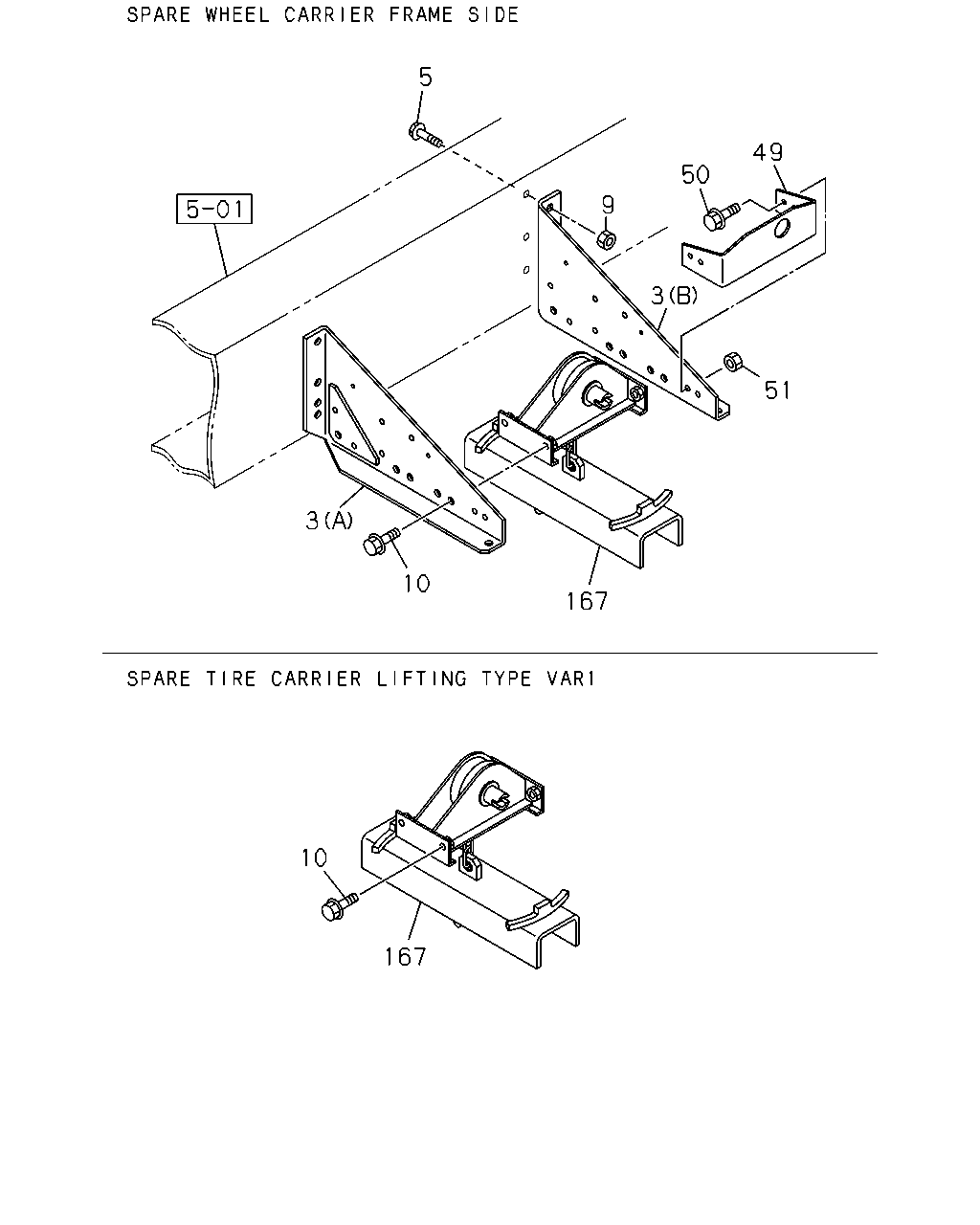

5-30 — SPARE TIRE CARRIER AND COVER (#69706) — 45 parça

167 10 167 3 10 5 50 9 49 3 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98106-690-0	01	1	1010-1107	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	8-98106-690-0	01	1	1108-1306	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98106-690-0	01	1	1108-1306		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B)	8-98106-690-0	01	1	1307-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98106-690-0	01	1	1307-		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-98106-691-0	01	1	1010-1107	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A)	8-98106-691-0	01	1	1108-1306	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-98106-691-0	01	1	1108-1306		●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A)	8-98106-691-0	01	1	1307-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-98106-691-0	01	1	1307-		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	1010-1107	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12X45 FLANGE	0-28051-245-0	06	1	1108-1306	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	1108-1306		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> M12X45 FLANGE	0-28051-245-0	06	1	1307-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	1307-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	1010-1107	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12	0-91110-512-0	06	1	1108-1306	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	1108-1306		●
9	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> M12	0-91110-512-0	06	1	1307-	●
9	NUT; BRKT TO FRAME WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	1307-		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1010-1107	●	●
10	BOLT; TIRE HANGER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1108-1306	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M12X30 FLANGE	0-28651-230-0	04	1	1108-1306	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1108-1306		●
10	BOLT; TIRE HANGER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1307-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> M12X30 FLANGE	0-28651-230-0	04	1	1307-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1307-		●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	1010-1107	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-53631-466-1	01	1	1108-1306	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	1108-1306		●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM>	1-53631-466-1	01	1	1307-	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	1307-		●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	1010-1107	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8X30 FLANGE	0-28650-830-0	04	1	1108-1306	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	1108-1306		●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> M8X30 FLANGE	0-28650-830-0	04	1	1307-	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	1307-		●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	1010-1107	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8	0-91110-508-0	04	1	1108-1203	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	1108-1203		●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) M8 FLANGE	0-91180-108-0	04	1	1204-1306	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	1204-1306		●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> M8 FLANGE	0-91180-108-0	04	1	1307-	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	1307-		●
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-210-4	01	1	1010-	●	●
