Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11305 - FVZ AUST/NZ EURO5
▶
5 - Frame, Cab Mounting
▶

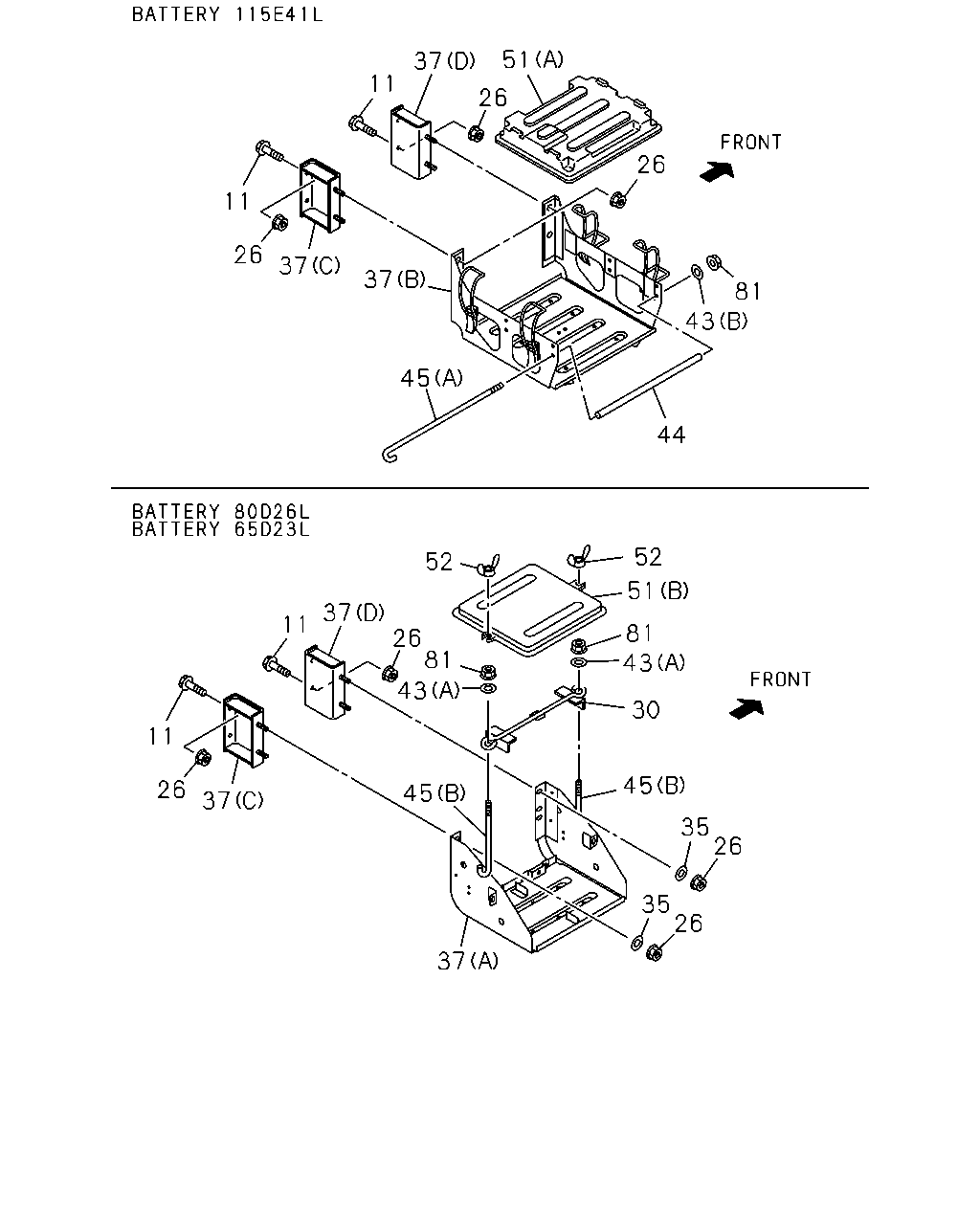

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#69705) — 21 parça
Tümü
A - FGY5MV
B - FGZ5MV
37
11
51
26
26
81
43
44
45
37
37
26
11
11
26
37
11
37
52
26
81
43
45
37
35
26
26
35
45
30
43
81
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1010-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1306
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1010-1306
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1307-
●
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1010-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1010-
●
●
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1010-
●
●
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98174-413-0
01
1
1010-1405
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-641-1
01
1
1406-
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1010-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1010-
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1010-
●
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1010-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1010-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1010-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1010-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1010-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
