◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#69701) — 73 parça

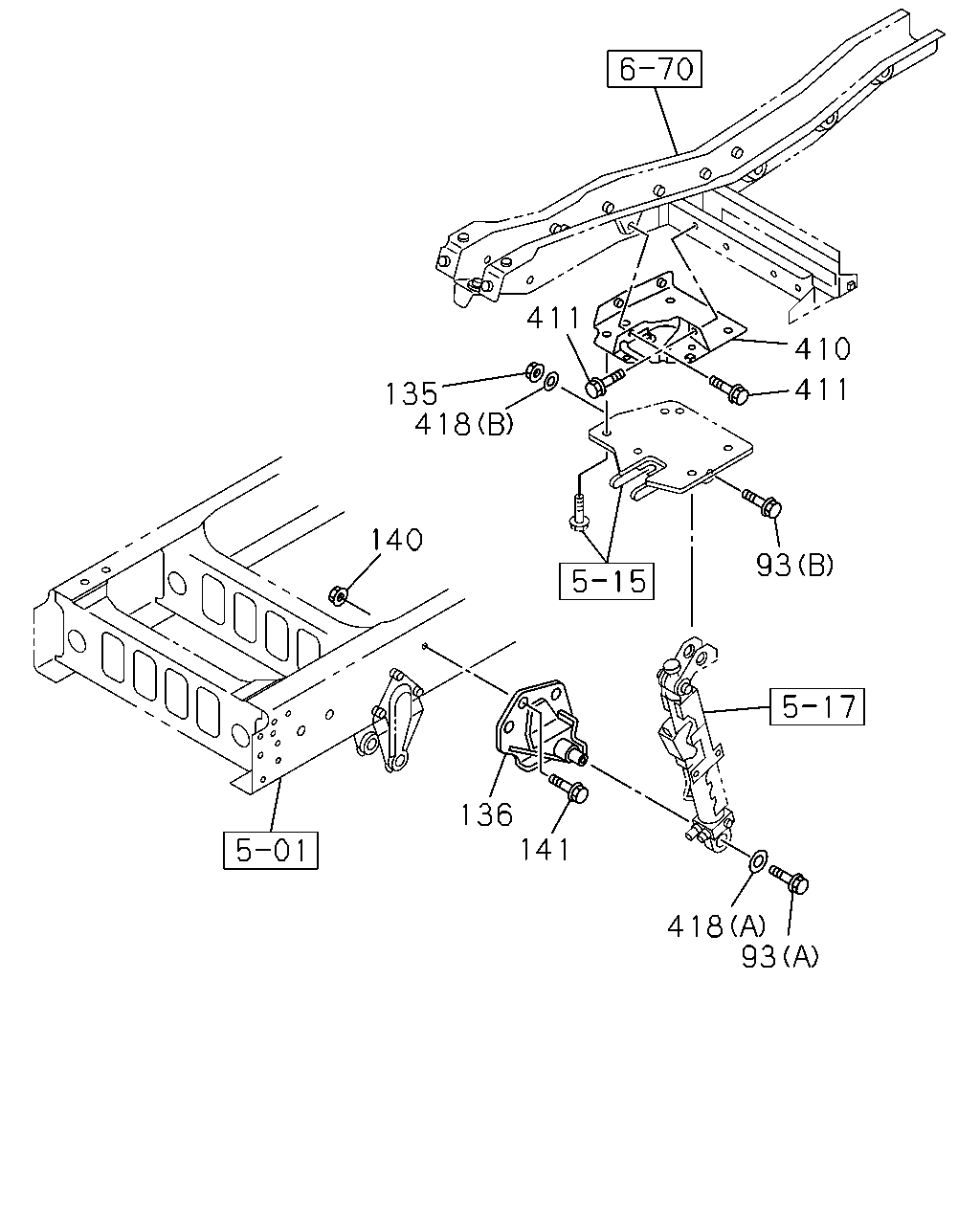

çizim 125460
140 136 141 418 93 93 418 135 411 411 410
BalonParca AdiParca NoAdetTipApplied Date A B
93 BOLT; PIN
(A) M10X20 FLANGE 		0-28651-020-0 01 1 1010- ● ●
93 BOLT; PIN
(B) M14X70 FLANGE 		0-29261-470-0 01 1 1010- ● ●
135 NUT; PIN
M14 		0-91110-514-0 01 1 1010- ● ●
136 BRACKET; OIL CYL 8-98077-938-0 01 1 1010- ● ●
140 NUT; BRKT
M14 FLANGE 		0-91180-214-0 04 1 1010- ● ●
141 BOLT; BRKT
M14X40 FLANGE 		0-28661-440-0 04 1 1010- ● ●
410 REINFORCEMENT; CAB TILT 8-97588-837-5 01 1 1010- ● ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ● ●
418 WASHER; PL,PIN
(B) ID=15 		0-91610-514-0 01 1 1010- ● ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1010- ● ●

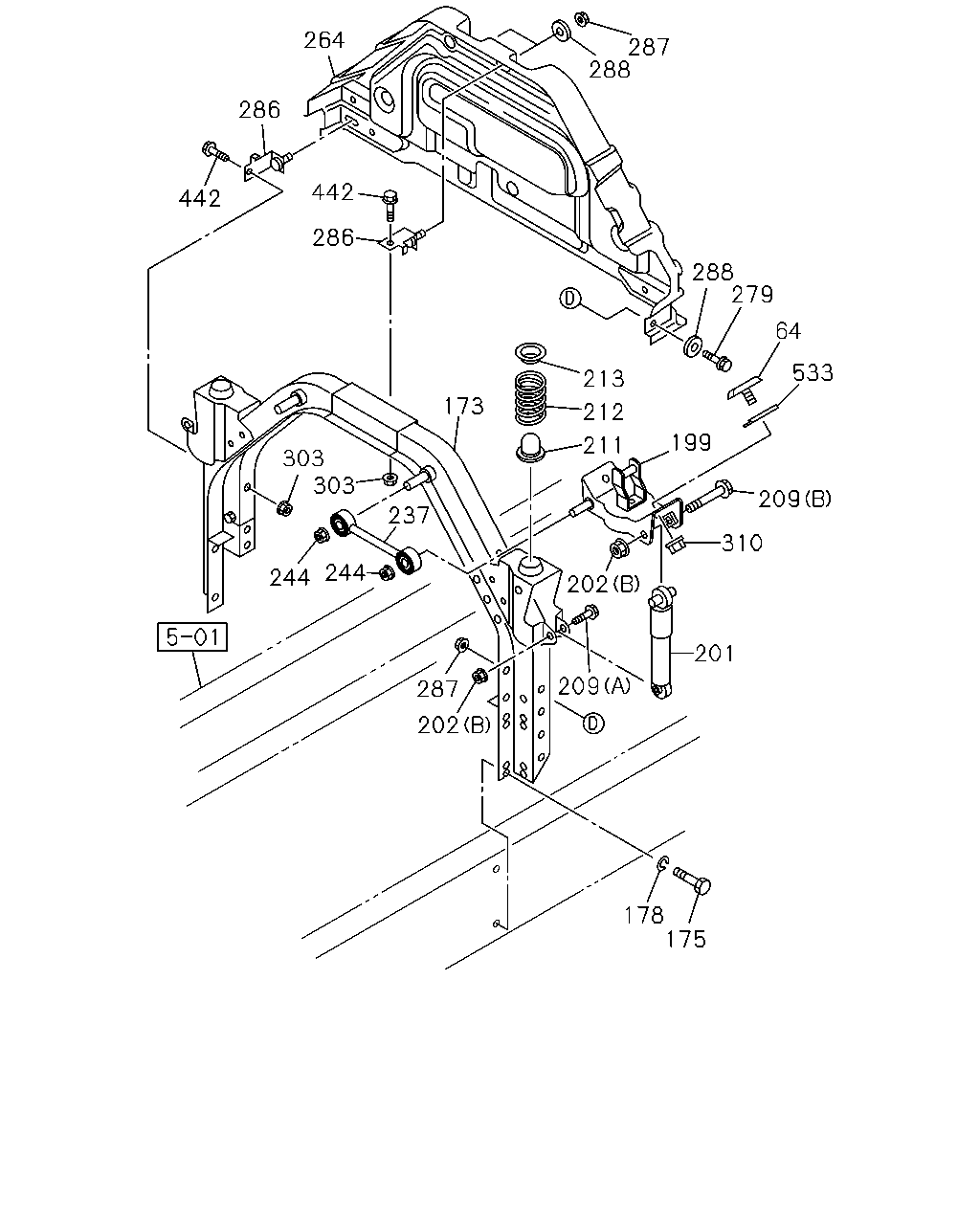

çizim 125488
264 286 442 442 286 303 303 244 244 287 288 288 279 64 533 209 310 201 178 175 202 209 287 202 211 199 212 213 173 237
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1010- ● ●
173 MEMBER; CAB MTG RR 8-98022-592-8 01 1 1010- ● ●
175 BOLT; MEMBER TO FRAME
M12X35 		0-20951-235-0 08 1 1010- ● ●
178 WASHER; LK,MEMBER
ID=12.2 		0-91510-612-0 08 1 1010- ● ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1010- ● ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1010- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1010-1401 ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 02 1 1010- ● ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1010- ● ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1010- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1010- ● ●
212 SPRING; COIL 1-09580-398-1 02 1 1010- ● ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1010- ● ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1010- ● ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1010- ● ●
264 PANEL; BACK 1-53194-609-2 01 1 1010- ● ●
279 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
286 BRACKET; LOW 1-53457-187-0 02 1 1010- ● ●
287 NUT
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 1010- ● ●
303 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
442 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
533 SPACER; MTG RUBBER 8-98077-323-0 04 1 1010- ● ●

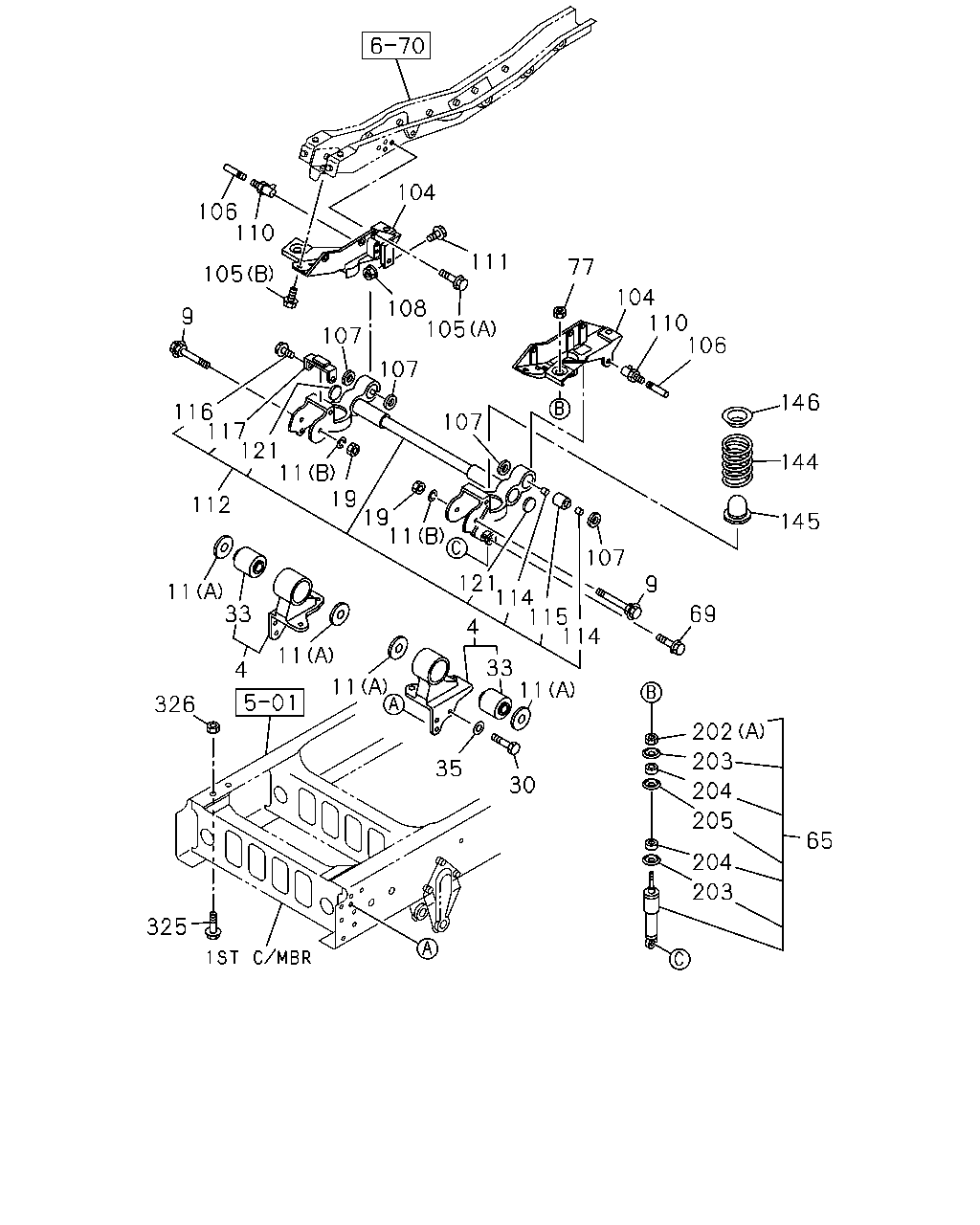

çizim 189046
106 111 104 77 106 110 104 146 145 144 147 105 108 107 105 110 116 112 33 11 4 326 11 4 35 11 30 325 33 114 115 114 121 11 19 19 11 121 117 107 202 69 9 203 204 203 204 205 65 11 107 9
BalonParca AdiParca NoAdetTipApplied Date A B
4 BRACKET; FRT MTG 1-53453-270-0 01 1 1010- ● ●
4 BRACKET; FRT MTG 1-53453-269-0 01 1 1010- ● ●
9 BOLT
M16X125 		1-51361-023-0 02 1 1010- ● ●
11 WASHER; LK
(B) ID=16.2 		0-91510-816-0 02 1 1010- ● ●
11 WASHER; LK
(A) ID=34.5 		1-53458-281-1 04 1 1010- ● ●
19 NUT
M16 		0-91110-516-0 02 1 1010- ● ●
30 BOLT; CAB FRT FOOT
M14X50 		0-20951-450-0 10 1 1010- ● ●
33 BUSHING; RUBBER,CAB MTG BRKT,FRT 1-53458-636-1 02 1 1010- ● ●
35 WASHER; PL,CAB MTG BRKT
ID=15 		8-98010-627-1 10 1 1010- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-345-0 02 1 1010- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 FLANGE 		0-28051-260-0 02 1 1010- ● ●
77 NUT 8-97359-039-0 02 1 1010- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98022-421-2 01 1 1010- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98022-420-2 01 1 1010- ● ●
105 BOLT; BRKT TO CAB FRAME
(B) M12X35 FLANGE 		0-28651-235-0 04 1 1010- ● ●
105 BOLT; BRKT TO CAB FRAME
(A) M10X30 FLANGE 		0-28661-030-0 08 1 1010- ● ●
106 PIN; BRKT TO LINK ARM 1-53459-642-1 02 1 1010- ● ●
107 WASHER; LINK ARM PIN,CAB FRT SUSPENSIO 1-53459-643-2 04 1 1010- ● ●
108 NUT; PIN LOCK BOLT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
110 NIPPLE; GREASE,LINK ARM PIN
PT1/8 ELBOW 		0-90301-610-0 02 1 1010- ● ●
111 BOLT; PIN LOCK,LINK ARM
M8X50 FLANGE 		0-28050-850-0 02 1 1010- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98148-517-0 01 1 1010- ● ●
114 BUSHING; FLOATING LINK PIN 1-09330-068-0 04 1 1010- ● ●
115 BUSHING; RUBBER,FLOATING LINK ARM 1-53459-315-2 02 1 1010- ● ●
116 BOLT; STOPPER RUBBER,LINK ARM
M8X20 FLANGE 		0-28050-820-0 04 1 1010- ● ●
117 RUBBER; STOPPER,LINK ARM,CAB FRT MTG 1-53458-321-1 02 1 1010- ● ●
121 PLUG; FLOATING LINK ARM 9-09860-031-0 02 1 1010- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-518-1 02 1 1010- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-144-0 02 1 1010- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-132-1 02 1 1010- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
202 NUT; S/ABS
(A) M10 		9-09110-410-0 02 1 1010- ● ●
203 WASHER; RUBBER,SHOCK
ID=10.5 OD=38 		9-51631-062-0 04 1 1010- ● ●
204 RUBBER; CUSHION,SHOCK
TOKICO 		9-51631-603-0 04 1 1010- ● ●
205 WASHER; RUBBER,SHOCK
ID=13 OD=38 		9-51631-063-0 02 1 1010- ● ●
325 BOLT; GUIDE NUT
M12X40 FLANGE 		0-28651-240-0 02 1 1010- ● ●
326 NUT; GUIDE NUT
M12 		0-91110-512-0 02 1 1010- ● ●
