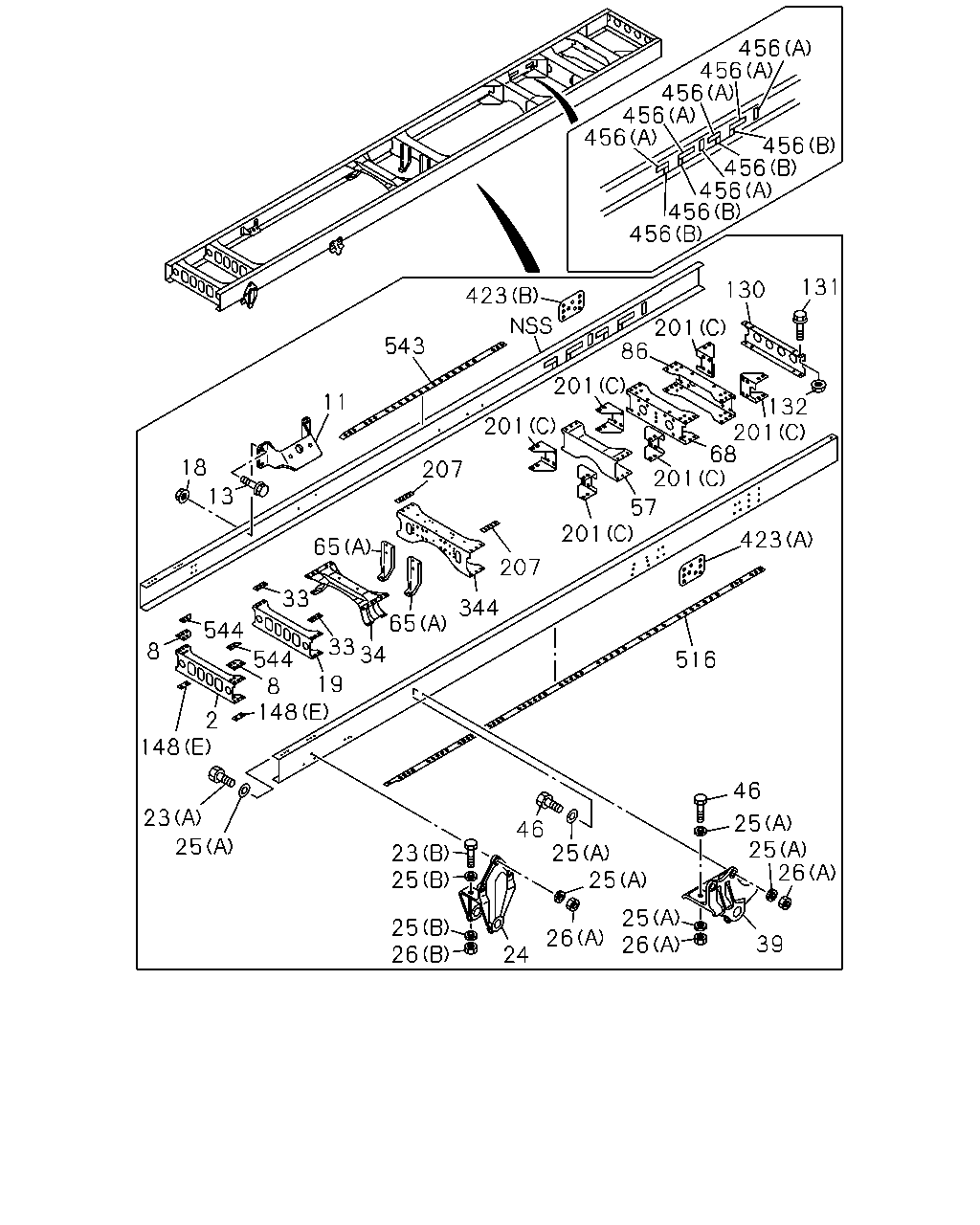

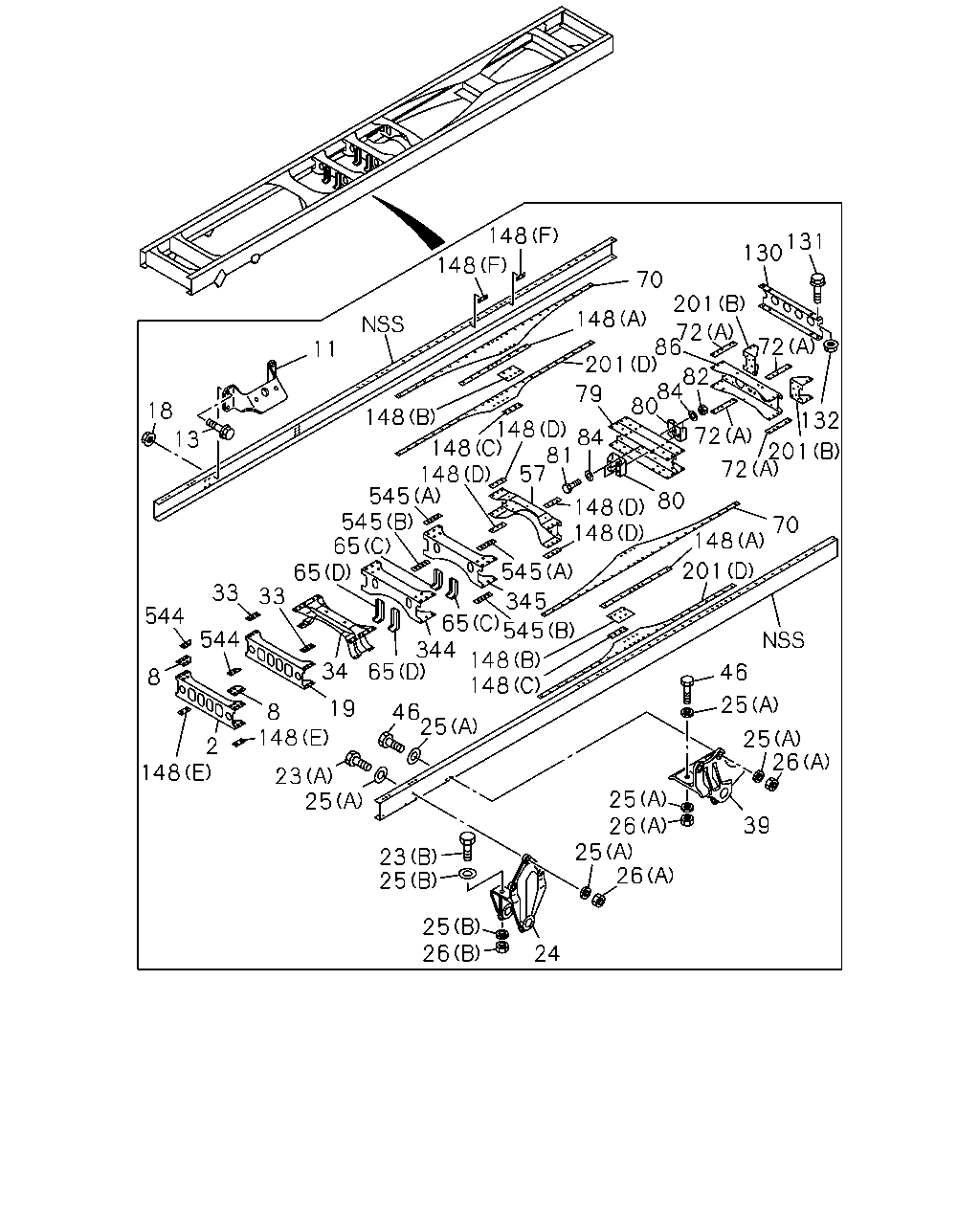

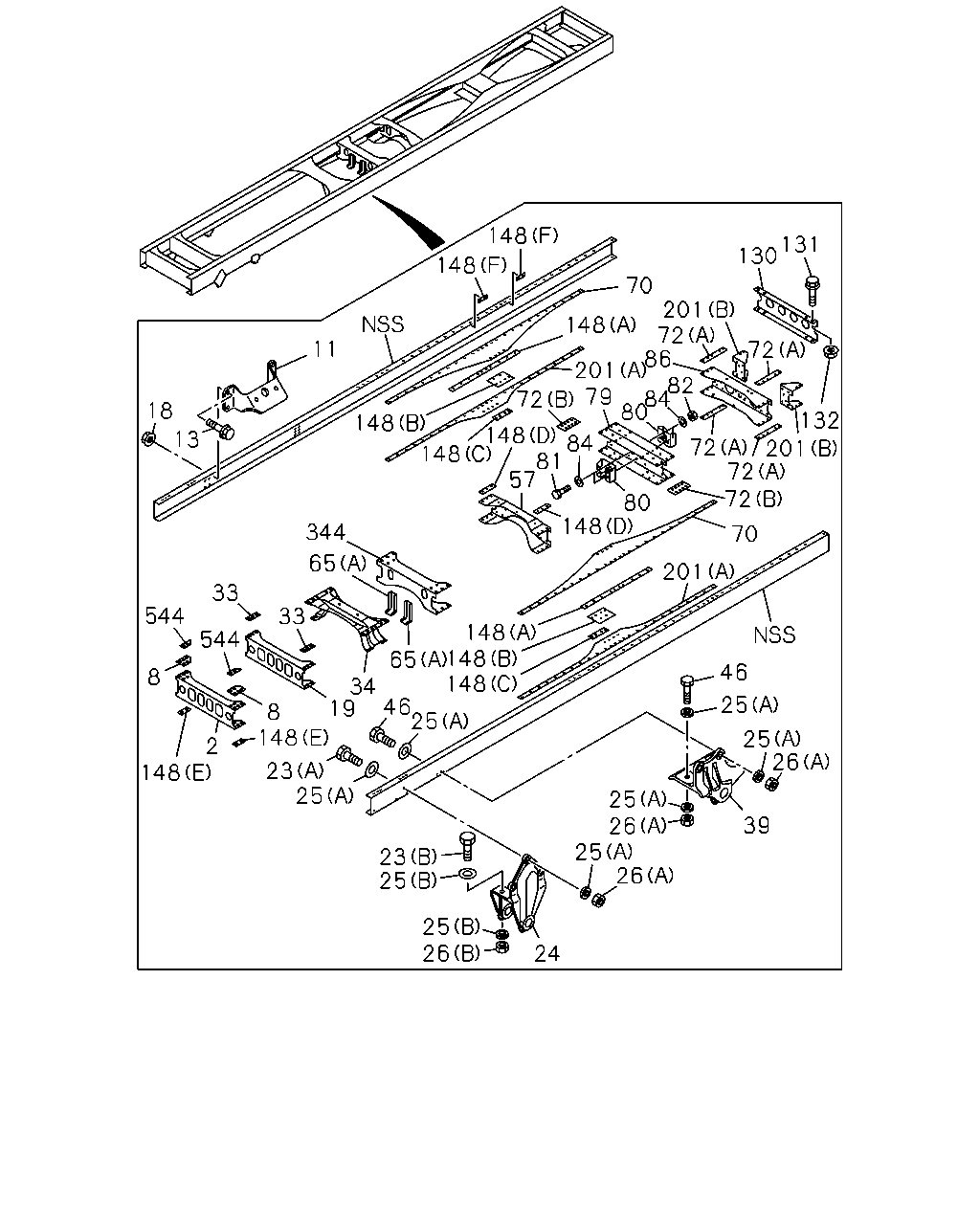

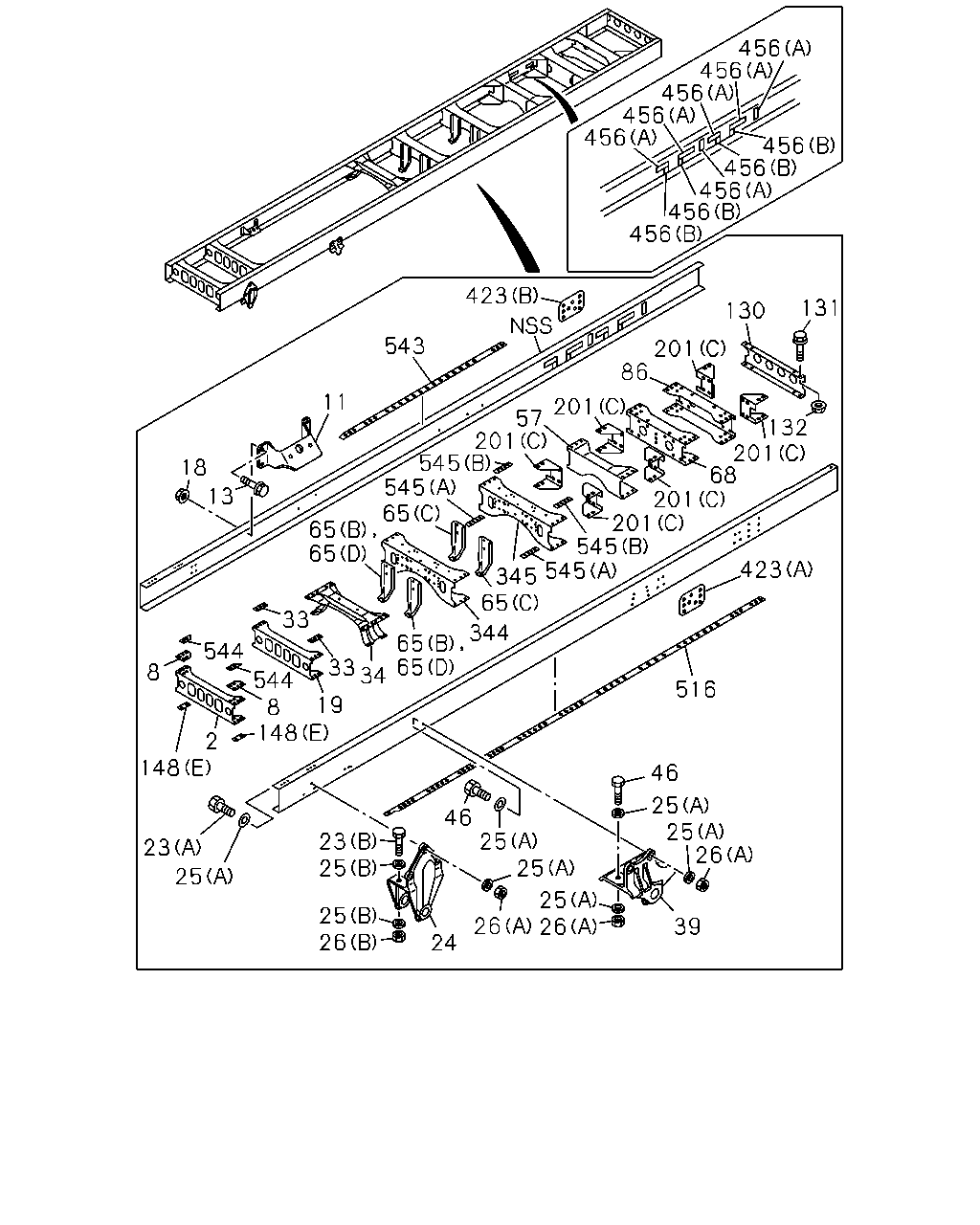

5-01 — FRAME AND OTHER PARTS (#69700) — 389 parça

18 13 544 544 33 33 65 344 8 148 2 8 148 23 25 23 25 25 26 24 26 25 26 25 39 26 25 25 46 201 70 72 72 201 132 131 130 70 201 72 72 86 82 72 84 80 79 201 148 148 148 11 148 148 148 72 84 81 57 148 80 148 65 148 148 25 46 34 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97623-448-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) COUNTRY NEW ZEALAND(CX6) (A)	8-97614-150-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1112-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-126-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1307-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-97614-139-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (C)	8-97614-133-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (B)	8-97611-329-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	02	1	1307-	●		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1211-1306			●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1010-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1010-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	1010-	●		●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1010-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (B)	8-97619-805-0	02	1	1010-	●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	1010-		●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	1010-	●		●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	1010-		●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	1010-	●		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1010-		●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	1010-	●		●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1010-		●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	1010-	●		●
82	NUT; BRKT M14	0-91110-514-0	02	1	1010-		●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	1010-	●		●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1010-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1010-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	1010-	●		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1010-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1010-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	1010-	●		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1010-		●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1010-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1010-	●		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1010-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1010-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1010-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1307-	●		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97639-429-0	01	1	1011-1306	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1307-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-1010	●	●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1011-1210	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1011-1210		●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-1306	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1211-1306		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1307-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●

456 456 456 456 456 456 456 456 456 456 423 543 11 18 13 130 201 86 201 201 207 65 33 544 8 148 23 25 148 2 544 34 19 33 344 207 201 57 201 68 201 132 131 423 516 46 25 25 26 39 26 25 25 25 46 23 25 25 26 24 26 8 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97623-448-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) COUNTRY NEW ZEALAND(CX6) (A)	8-97614-150-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1112-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-126-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1307-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-97614-139-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (C)	8-97614-133-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (B)	8-97611-329-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	02	1	1307-	●		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1211-1306			●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGY***)	8-97612-105-4	01	1	1010-	●		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1010-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	1010-	●		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1010-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1010-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	1010-	●		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1010-		●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1010-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1010-	●		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1010-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1010-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1010-			●
207	SPACER; 4TH C/MBR AIR SUS(FGY***) 0.25KG	8-97611-244-0	02	1	1010-	●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1307-	●		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97639-429-0	01	1	1011-1306	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1307-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-1010	●	●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1011-1210	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1011-1210		●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-1306	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1211-1306		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1307-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
423	PATCH AIR SUS(FGY***) (A)	8-97619-809-0	01	1	1010-	●		●
423	PATCH AIR SUS(FGY***) (B)	8-97619-810-0	01	1	1010-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	1010-1201	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1202-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	1010-1201	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1202-	●		●
516	GUSSET; LWR AIR SUS(FGY***)	8-97638-247-0	02	1	1010-	●
516	GUSSET; LWR AIR SUS(FGY***)	8-97620-292-1	02	1	1010-			●
543	GUSSET; UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1010-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●

18 13 11 543 423 456 456 456 456 456 456 456 456 456 456 131 130 201 86 201 57 201 545 545 65 65 65 33 544 8 544 8 148 2 148 23 25 23 25 25 26 24 26 26 25 25 25 46 39 26 25 25 46 516 423 19 34 33 65 65 344 65 345 545 545 201 201 68 201 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97623-448-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) COUNTRY NEW ZEALAND(CX6) (A)	8-97614-150-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1112-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-126-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1307-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-97614-139-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (C)	8-97614-133-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (B)	8-97611-329-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	02	1	1307-	●		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1211-1306			●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGY***)	8-97612-105-4	01	1	1010-	●		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1010-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	1010-	●		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1010-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1010-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	1010-	●		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1010-		●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1010-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1010-	●		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1010-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1010-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1010-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1307-	●		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97639-429-0	01	1	1011-1306	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1307-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-1010	●	●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1011-1210	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1011-1210		●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-1306	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1211-1306		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1307-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-413-0	01	1	1211-1306			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***)	8-97645-413-0	01	1	1307-			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-1210			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
423	PATCH AIR SUS(FGY***) (A)	8-97619-809-0	01	1	1010-	●		●
423	PATCH AIR SUS(FGY***) (B)	8-97619-810-0	01	1	1010-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	1010-1201	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1202-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	1010-1201	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1202-	●		●
516	GUSSET; LWR AIR SUS(FGY***)	8-97638-247-0	02	1	1010-	●
516	GUSSET; LWR AIR SUS(FGY***)	8-97620-292-1	02	1	1010-			●
543	GUSSET; UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1010-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	1307-			●
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	1010-			●

148 148 11 18 13 148 131 130 201 70 148 72 86 82 84 80 201 79 84 148 81 57 148 148 545 545 65 65 33 33 544 544 34 65 46 19 8 8 2 148 148 23 25 23 25 25 26 24 26 25 26 25 39 26 25 25 46 25 148 148 344 545 65 345 545 201 148 148 80 148 70 72 201 132 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1010-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1010-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1010-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1010-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1010-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1010-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1010-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1010-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1010-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1010-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1010-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1010-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1010-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1010-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1010-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1010-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1010-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1010-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1010-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97623-448-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) COUNTRY NEW ZEALAND(CX6) (A)	8-97614-150-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1112-		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-126-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1010-1012	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	1101-1306	●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1307-	●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	1010-1109		●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-97614-139-0	02	1	1110-1111		●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (C)	8-97614-133-0	02	1	1010-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1307-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (B)	8-97611-329-0	02	1	1211-1306			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	02	1	1307-	●		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (D)	8-97614-128-0	02	1	1010-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97612-486-0	02	1	1211-1306			●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1010-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1010-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	1010-	●		●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1010-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (B)	8-97619-805-0	02	1	1010-	●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	1010-		●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	1010-	●		●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	1010-		●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	1010-	●		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1010-		●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	1010-	●		●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1010-		●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	1010-	●		●
82	NUT; BRKT M14	0-91110-514-0	02	1	1010-		●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	1010-	●		●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1010-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1010-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1010-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1010-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1010-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	1010-	●		●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1010-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1010-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1010-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	1010-	●		●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	1010-		●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1010-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1010-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1010-	●		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1010-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1010-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1010-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1010-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1307-	●		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97639-429-0	01	1	1011-1306	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1307-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1010-1010	●	●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1011-1210	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1011-1210		●	●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-1306	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1211-1306		●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1307-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-413-0	01	1	1211-1306			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***)	8-97645-413-0	01	1	1307-			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1010-1210			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-1306			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-1306			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1307-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1010-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1010-			●
545	SPACER; 5TH C/MBR (B) 0.25KG	8-97611-244-0	02	1	1307-			●
545	SPACER; 5TH C/MBR (A) 0.24KG	8-97611-245-0	02	1	1010-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
