Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11305 - FVZ AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶

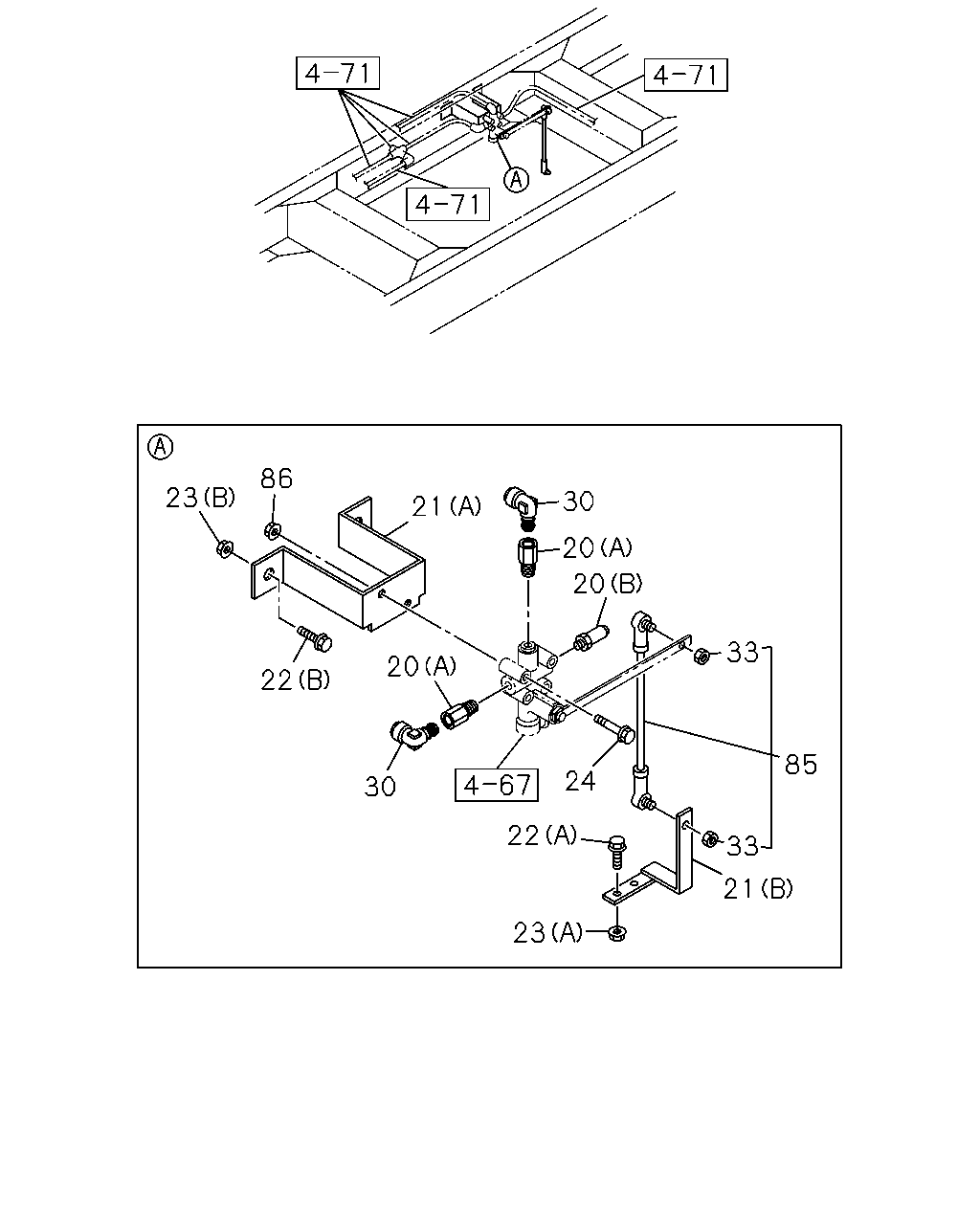

4-70 — AIR SUSPENSION VALVE AND CONTROL
(#69697) — 17 parça
23
86
22
21
30
20
20
20
30
24
22
23
33
21
85
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CONNECTOR; LEVELING VLV
(B)
1-09661-289-0
01
1
1010-
20
CONNECTOR; LEVELING VLV
(A)
8-97633-779-0
02
1
1010-
21
BRACKET; LEVELING VLV
(A)
1-53497-632-0
01
1
1010-
21
BRACKET; LEVELING VLV
(B)
1-53497-705-0
01
1
1010-
22
BOLT; BRKT
(A) M8X30 FLANGE
0-28650-830-0
02
1
1010-
22
BOLT; BRKT
(B) M12X35 FLANGE
0-28651-235-0
02
1
1010-
23
NUT; BRKT
(A) M8 FLANGE
0-91180-208-0
02
1
1010-
23
NUT; BRKT
(B) M12 FLANGE
0-91180-212-0
02
1
1010-
24
BOLT; LEVELING VLV
M8X60 FLANGE
0-28050-860-0
02
1
1010-
30
CONNECTOR; PIPE,LEVELING VALVE
8-97633-775-0
02
1
1010-
33
NUT
1-52139-044-0
02
1
1010-
85
ROD; LEVELING VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W)
8-98235-409-0
01
1
1303-1306
85
ROD; LEVELING VLV
1-52137-036-0
01
1
1010-1302
85
ROD; LEVELING VLV
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
1-52137-036-0
01
1
1303-1306
85
ROD; LEVELING VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W)
1-52137-036-0
01
1
1303-1306
85
ROD; LEVELING VLV
1-52137-036-0
01
1
1307-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-208-0
02
1
1010-
