◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#69692) — 145 parça

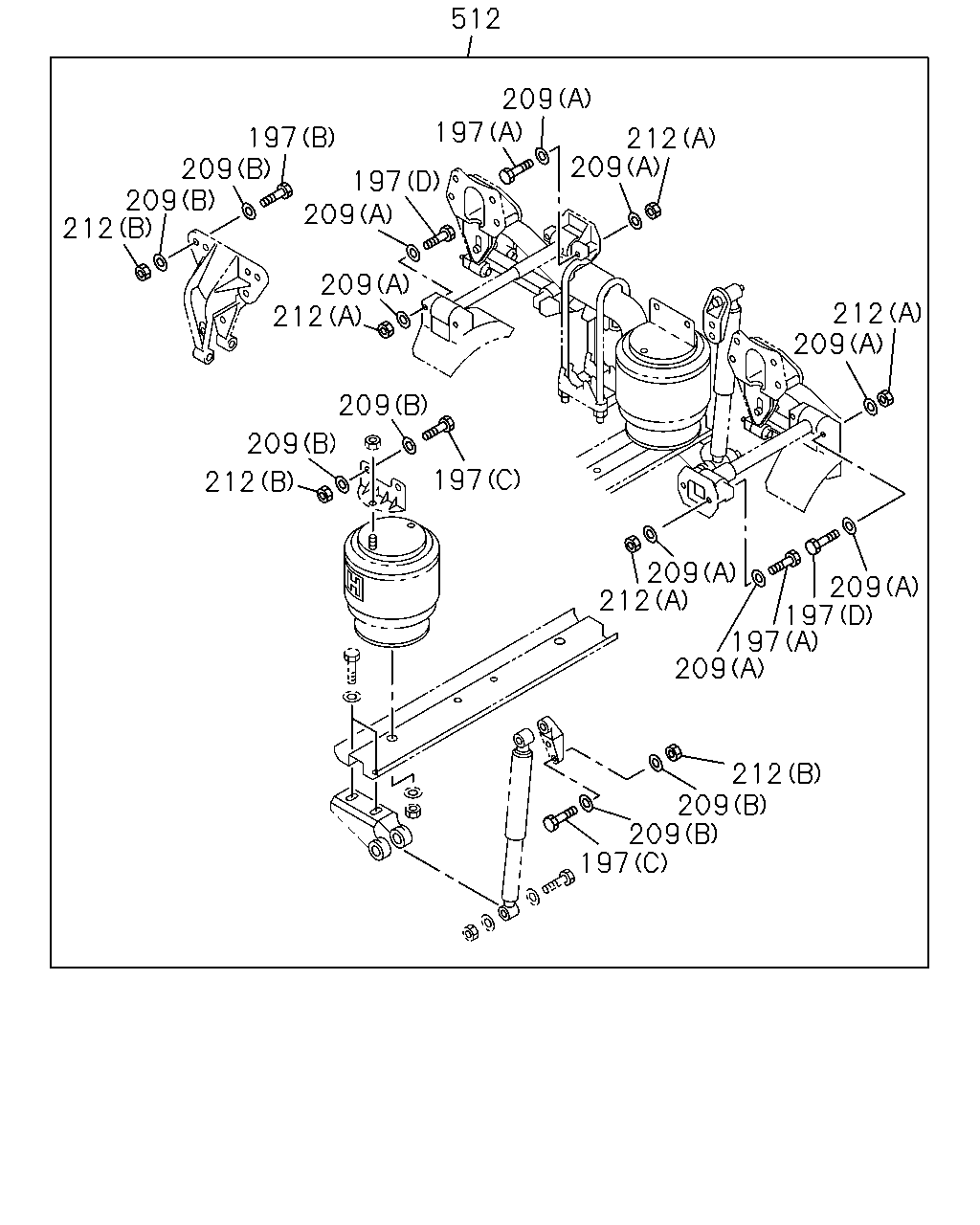

çizim 124834
512 212 209 209 197 197 197 209 212 209 209 197 197 209 212 209 212 209 209 209 209 212 209 212 209 209 197 212 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 1010- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1010- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1010- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1010- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1010- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1010- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1010- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1010- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1010- ●

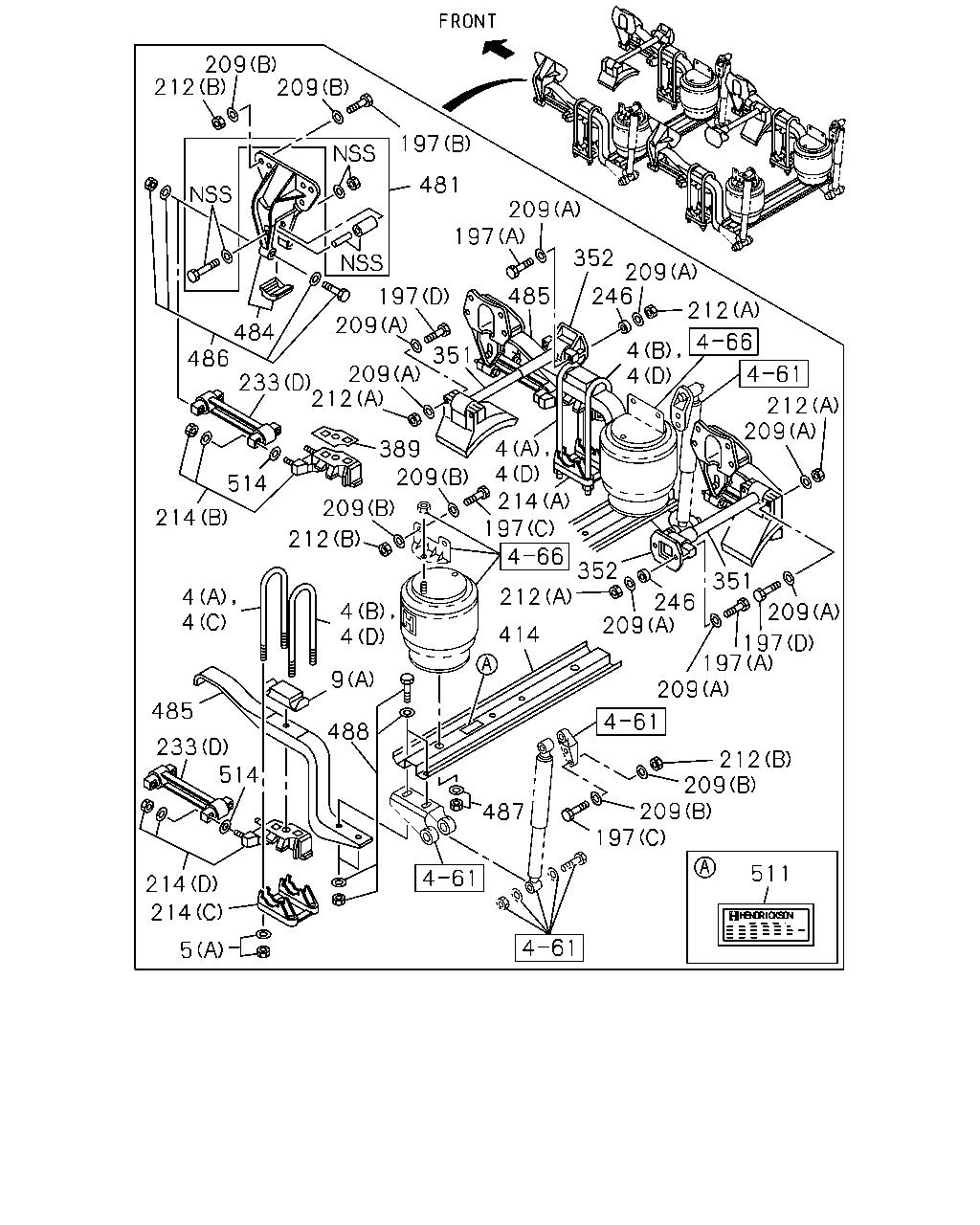

çizim 189054
209 212 209 197 484 486 214 514 233 209 389 212 209 209 197 481 197 209 4 4 485 233 514 214 214 5 488 9 4 4 212 209 487 414 197 511 209 212 209 209 197 197 209 209 209 246 351 485 352 4 214 4 197 212 4 246 209 4 352 212 212 351
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) (C) L=356 		1-51371-229-0 02 1 1303-1306 ●
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) (D) L=381 		1-51371-230-0 06 1 1303-1306 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1010-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=356 		1-51371-229-0 04 1 1303-1306 ●
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) (A) L=356 		1-51371-229-0 04 1 1303-1306 ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1307- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1010-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (B) L=381 		1-51371-230-0 04 1 1303-1306 ●
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) (B) L=381 		1-51371-230-0 04 1 1303-1306 ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1307- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1010- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1010- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1010- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 1010-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 1010- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1010- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1010- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1010- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1010- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1010- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1010- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1010- ●
214 SEAT; SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) (B) 		8-98235-545-0 02 1 1303-1306 ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1010- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1010- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1010-1302 ●
214 SEAT; SPR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (B) 		1-51385-105-0 02 1 1303-1306 ●
214 SEAT; SPR
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) (B) 		1-51385-105-0 02 1 1303-1306 ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1307- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1010- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1010- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C) L=525 		1-51511-656-0 02 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (C) L=525 		1-51511-656-0 02 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) L=530 		1-51511-678-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=530 		1-51511-678-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E) L=565 		1-51511-685-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (E) L=565 		1-51511-685-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (E) L=555 		1-51511-660-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (E) L=555 		1-51511-660-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (E) L=555 		1-51511-660-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (A) L=530 		1-51511-678-0 03 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=530 		1-51511-678-0 03 1 1112- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1010- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1010- ●
389 PLATE; CASTER
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) 		8-98235-546-0 02 1 1303-1306 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1010- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1010- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1010- ●
485 SPRING; LEAF 1-51410-240-0 04 1 1010-1306 ●
485 SPRING; LEAF 1-51410-259-0 04 1 1307- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1010- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1010- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1010- ●
511 LABEL
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) 		1-51399-034-0 01 1 1303-1306 ●
511 LABEL 1-51399-034-0 02 1 1010-1302 ●
511 LABEL
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) 		1-51399-034-0 02 1 1303-1306 ●
511 LABEL
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		1-51399-034-0 02 1 1303-1306 ●
511 LABEL 1-51399-034-0 01 1 1307- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1010-1302 ●
514 SPACER; TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) 		1-09503-299-0 08 1 1303-1306 ●
514 SPACER; TORQUE ROD
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		1-09503-299-0 08 1 1303-1306 ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1307- ●

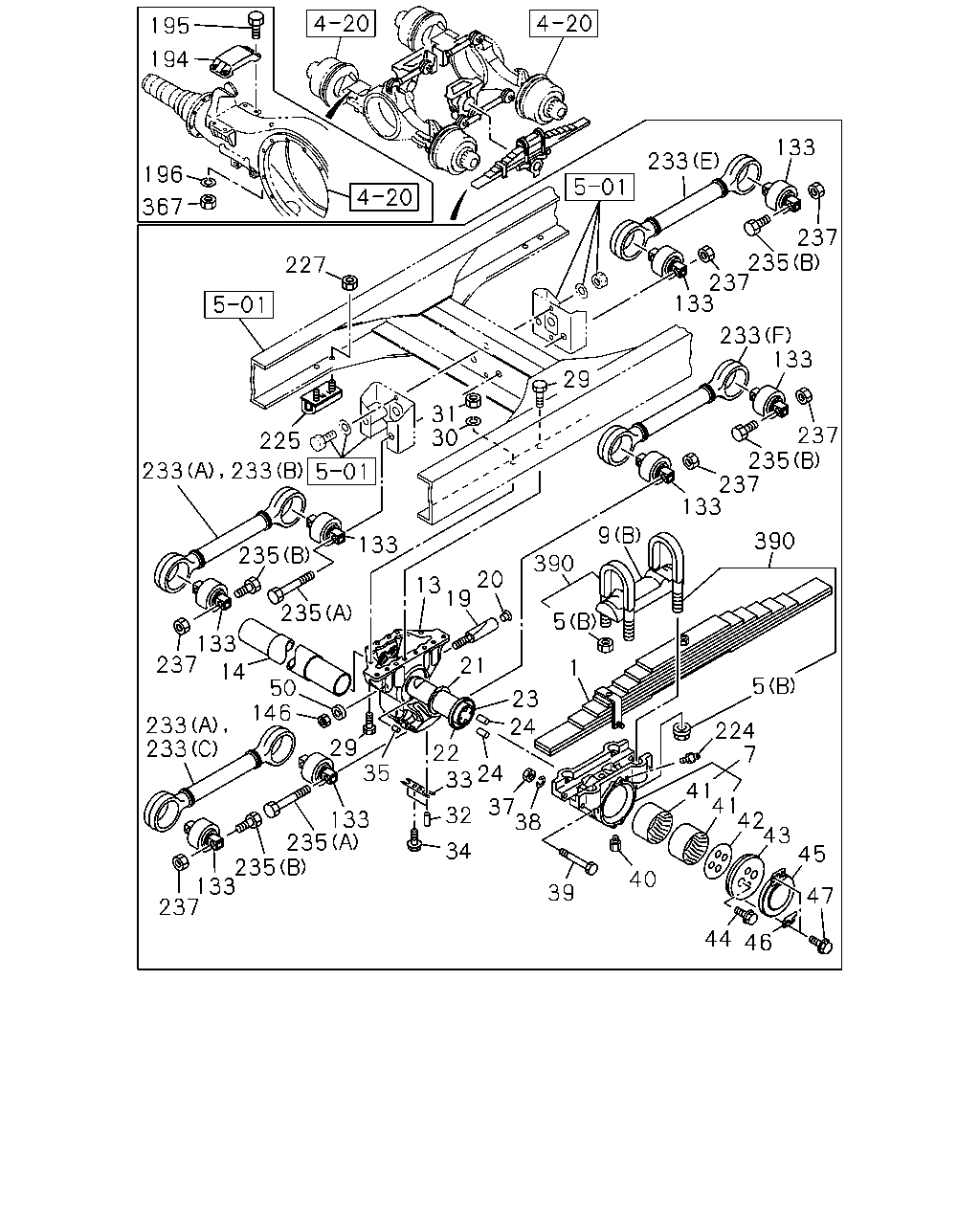

çizim 189058
233 133 237 235 237 133 133 233 237 235 237 133 29 31 227 195 196 194 367 225 233 233 390 390 9 5 224 7 41 41 42 43 45 47 46 44 40 39 38 37 5 23 24 22 24 33 32 34 133 235 35 29 20 21 1 19 13 133 235 235 133 14 50 146 233 233 237 235 133 237 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-880-0 02 1 1010- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1010- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1010- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1010- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1010- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 1010-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1010- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1010- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1010- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1010- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1010- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1010- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1010- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1010- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1010- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1010- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1010- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1010- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1010- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1010- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1010- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1010- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1010- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1010- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1010- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1010- ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1010- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1010- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1010- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1010- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1010- ●
46 BRACKET; COVER 1-51387-015-2 02 1 1010- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1010- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1010- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1010- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1010- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1010- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1010- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1010- ●
194 PAD; CONTACT 1-42124-101-0 04 1 1010- ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 1010- ●
196 WASHER; LK
ID=14.2 		0-91510-514-0 16 1 1010- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1010- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-072-2 01 1 1010- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-077-3 01 1 1010- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-100-2 01 1 1010- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-1 01 1 1010- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1010- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1010- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C) L=525 		1-51511-656-0 02 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (C) L=525 		1-51511-656-0 02 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) L=530 		1-51511-678-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (B) L=530 		1-51511-678-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E) L=565 		1-51511-685-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (E) L=565 		1-51511-685-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (E) L=555 		1-51511-660-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (E) L=555 		1-51511-660-0 01 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (E) L=555 		1-51511-660-0 01 1 1112- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (A) L=530 		1-51511-678-0 03 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 1010-1111 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=530 		1-51511-678-0 03 1 1112- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1010- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1010- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1010- ●
367 NUT
M14 		0-91110-514-0 16 1 1010- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 1010- ●
