Sayfa 4-25 - Isuzu EPC

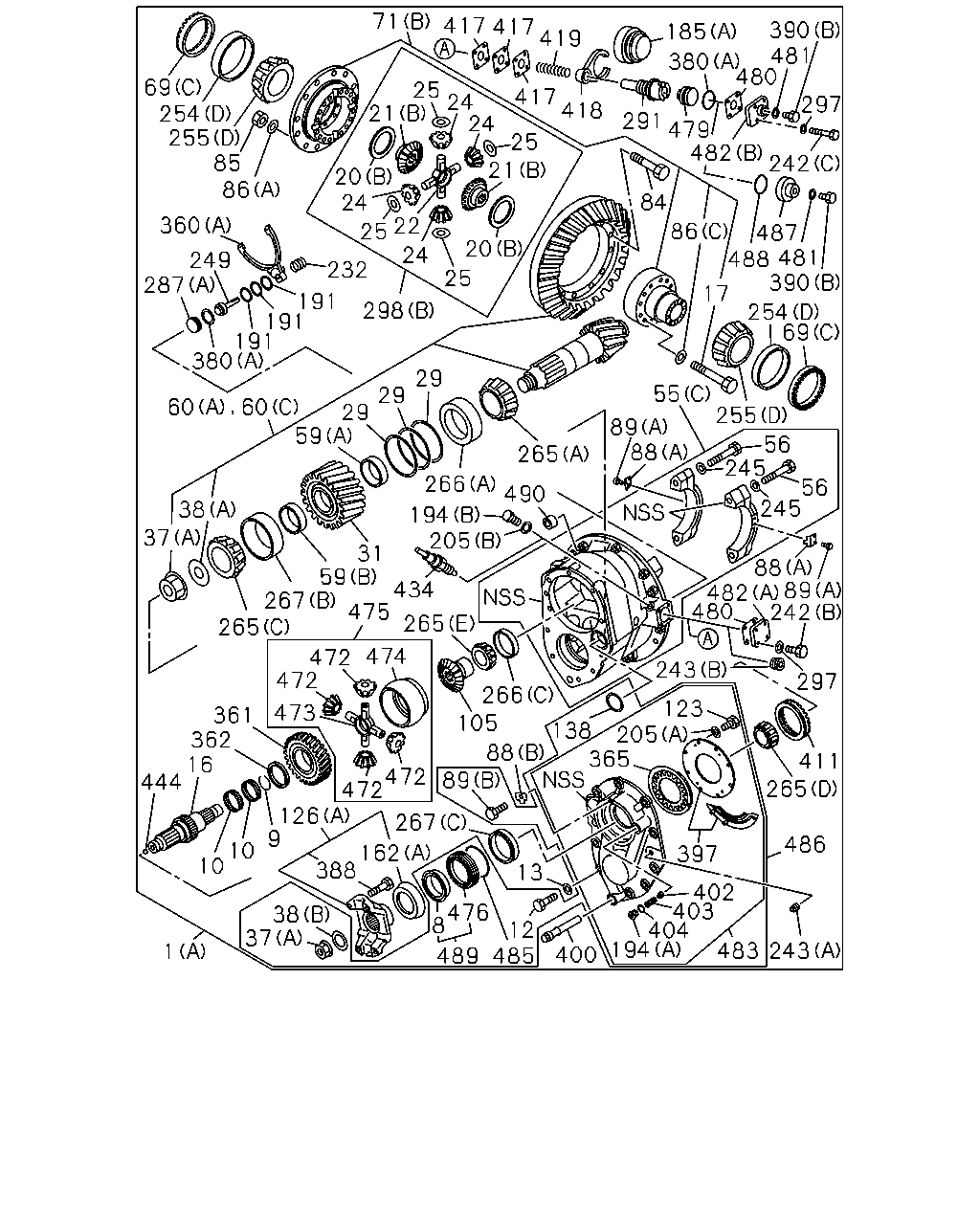

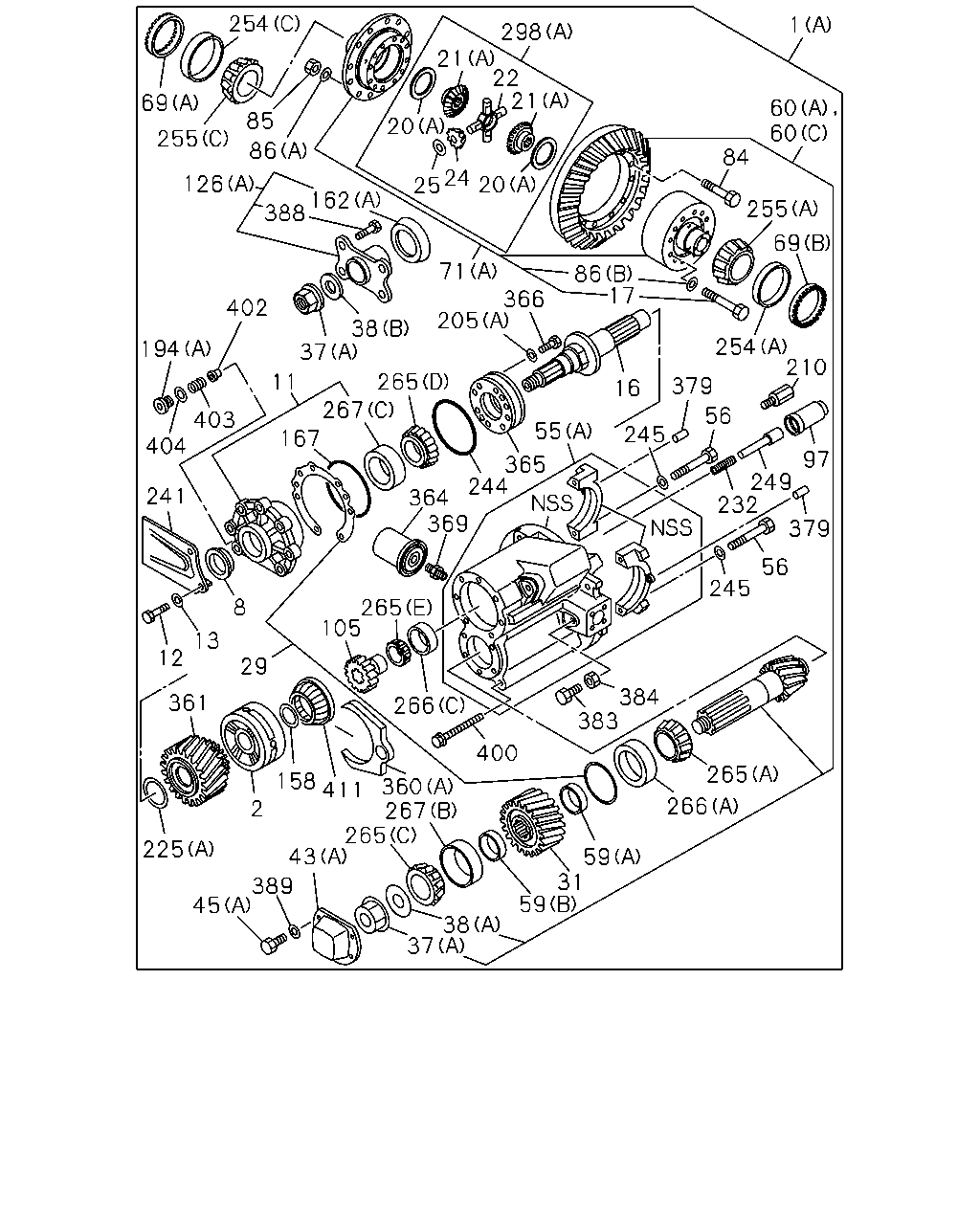

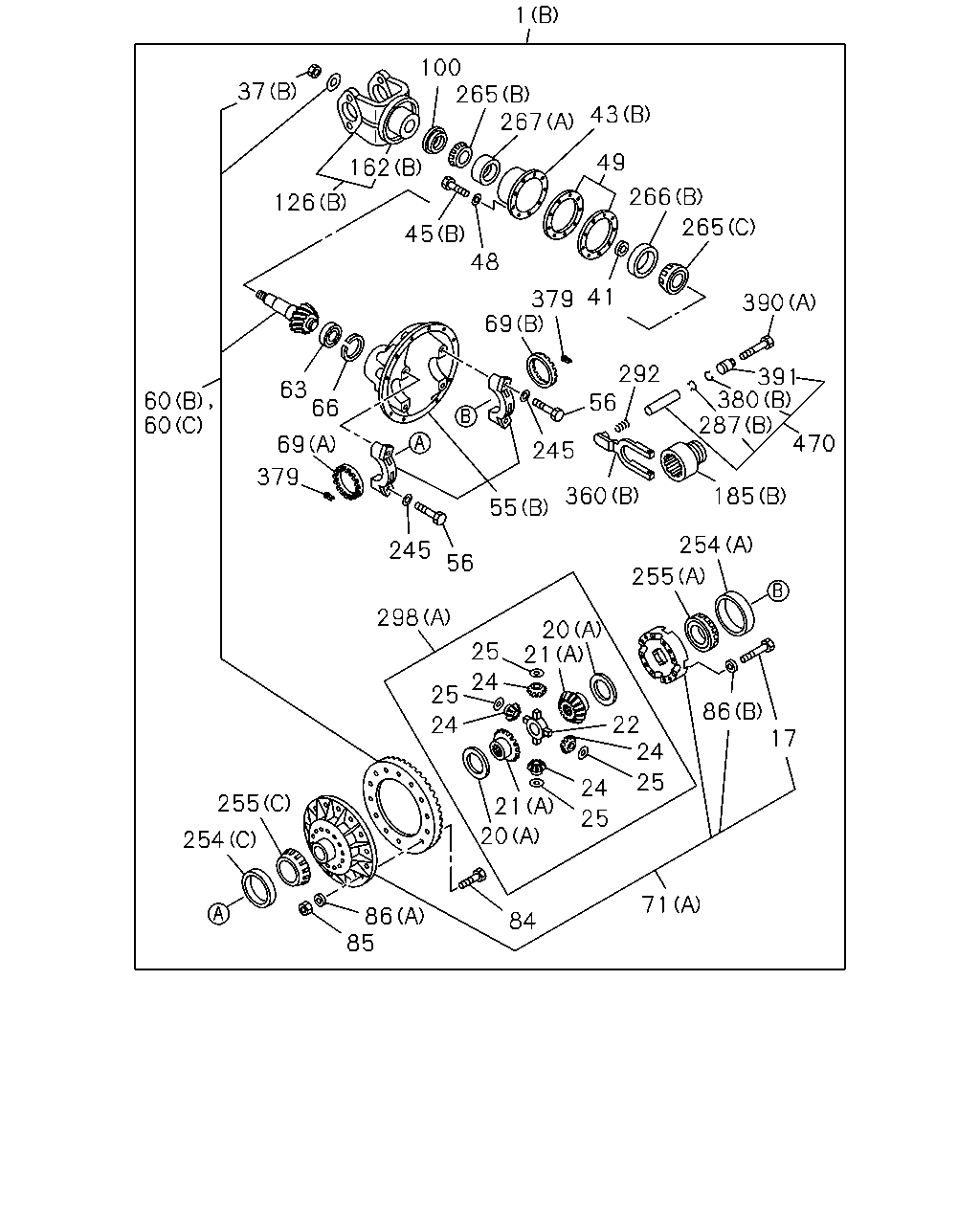

4-25 — REAR FINAL DRIVE (#69682) — 740 parça

1 100 265 267 43 49 266 265 390 391 380 287 470 185 254 255 86 17 71 24 22 25 24 25 21 20 20 24 25 24 25 21 20 360 55 245 298 56 255 254 86 85 41 379 69 56 292 245 45 162 126 37 60 60 379 69 63 66 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-574-0	01	1	1307-1309		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	1-41003-574-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	8-98326-185-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	1-41003-579-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	8-98326-190-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	1-41003-580-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	8-98326-191-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	1-41003-578-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	8-98326-189-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1307-				●
1	DRIVE ASM; FINAL,RR (A) 37/7	1-41003-573-0	01	1	1307-1503				●
1	DRIVE ASM; FINAL,RR (A) 37/7	8-98326-184-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR (B) 43/7	1-41003-352-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-357-0	01	1	1010-1306		●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-576-0	01	1	1307-1309			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	1-41003-576-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	8-98326-187-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-315-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-575-0	01	1	1307-1309	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	1-41003-575-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	8-98326-186-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-358-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1307-			●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	32	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B)	8-98248-435-0	02	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (B)	8-98248-447-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1307-	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	02	1	1307-	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	08	1	1307-	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	08	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1307-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-341-0	01	1	1010-1306	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-341-0	01	1	1307-	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1010-1306	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1307-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1010-1306	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1010-1306	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1307-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1010-1306	●	●	●
48	WASHER; LK,FINAL PINION	1-41329-034-0	08	1	1010-1306	●	●	●
48	WASHER; LK,FINAL PINION	1-41329-034-0	08	1	1307-	●	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-090-0	01	1	1010-1306	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-090-0	01	1	1307-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1307-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-064-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (C)	8-98248-318-0	01	1	1307-1503	●	●	●	●
55	CARRIER; DIFF (C)	8-98323-322-0	01	1	1504-	●	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	08	1	1307-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-592-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-597-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	02	1	1307-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-733-0	01	1	1010-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-734-0	01	1	1010-			●
63	BEARING; PINION PILOT	1-41219-046-0	01	1	1010-1306	●	●	●
63	BEARING; PINION PILOT	1-41219-046-0	01	1	1307-	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-047-0	01	1	1010-1306	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-047-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (C)	8-98248-389-0	02	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (B)	8-98248-396-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1307-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (C)	1-41329-084-0	16	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1307-	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-185-0	01	1	1010-1306	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-185-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1010-1306	●		●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1307-	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1010-1306	●		●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1307-	●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (B)	1-41379-003-0	01	1	1310-	●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (A)	8-98248-492-0	01	1	1310-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	08	1	1307-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1010-1306	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1010-1306	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	02	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-047-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-048-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-089-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1307-	●	●	●	●
287	PISTON; SHIFT UNIT DIFF LOCK<C3N> (B)	1-48262-013-0	01	1	1310-	●	●	●
287	PISTON; SHIFT UNIT (A)	8-98248-337-0	01	1	1307-	●	●	●	●
292	SPRING; PISTON DIFF LOCK<C3N>	1-48265-008-0	01	1	1310-	●	●	●
298	GEAR KIT; DIFF,RR AXLE (B)	8-98248-398-0	01	1	1307-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1307-	●	●	●	●
360	FORK; SHIFT DIFF LOCK<C3N> (B)	1-41371-007-0	01	1	1310-	●	●	●
360	FORK; SHIFT (A)	1-41519-046-0	01	1	1010-1306	●	●	●
360	FORK; SHIFT (A)	8-98248-330-0	01	1	1307-	●	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1010-1306	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1010-1306	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1307-	●	●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (B)	1-48269-075-0	01	1	1310-	●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (A)	1-48269-215-0	02	1	1310-	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1307-1309	●	●	●	●
380	GASKET; PISTON EXC. DIFF LOCK<C3N> (A)	1-48269-215-0	01	1	1310-	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1310-				●
390	BOLT; CAGING DIFF LOCK<C3N> (A)	1-48269-071-0	01	1	1310-	●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (B)	8-98248-487-0	01	1	1310-	●	●	●
391	CYLINDER; SHIFT DIFF LOCK<C3N>	1-48269-070-0	01	1	1310-	●	●	●
470	SHIFT KIT DIFF LOCK<C3N>	1-48269-258-0	01	1	1310-	●	●	●

185 380 390 481 297 242 482 479 291 84 17 86 487 481 488 390 254 69 55 255 89 88 56 245 56 245 89 88 482 480 242 297 411 265 486 243 402 403 404 194 400 13 12 485 476 489 162 388 38 37 1 10 10 9 126 472 472 89 267 88 365 205 123 243 138 266 105 474 472 472 473 361 362 16 444 265 267 59 31 475 265 205 194 266 434 490 265 29 29 29 59 60 60 38 37 380 191 191 191 232 20 24 25 22 24 25 20 298 24 21 25 24 25 21 69 254 255 85 86 360 249 287 71 417 417 419 417 418 480 483 397 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-574-0	01	1	1307-1309		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	1-41003-574-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	8-98326-185-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	1-41003-579-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	8-98326-190-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	1-41003-580-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	8-98326-191-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	1-41003-578-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	8-98326-189-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1307-				●
1	DRIVE ASM; FINAL,RR (A) 37/7	1-41003-573-0	01	1	1307-1503				●
1	DRIVE ASM; FINAL,RR (A) 37/7	8-98326-184-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR (B) 43/7	1-41003-352-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-357-0	01	1	1010-1306		●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-576-0	01	1	1307-1309			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	1-41003-576-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	8-98326-187-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-315-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-575-0	01	1	1307-1309	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	1-41003-575-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	8-98326-186-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-358-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1307-			●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1010-1306	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1307-	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-41519-085-0	01	1	1307-	●	●	●	●
10	BEARING; INPUT SHAFT	8-98248-371-0	02	1	1307-	●	●	●	●
12	BOLT; COVER TO CASE	1-41159-008-0	07	1	1010-1306	●	●	●
12	BOLT; COVER TO CASE	8-98248-338-0	10	1	1307-	●	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	07	1	1010-1306	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	10	1	1307-	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-032-0	01	1	1010-1306	●	●	●
16	SHAFT ASM; INPUT	8-98248-369-0	01	1	1307-	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	32	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B)	8-98248-435-0	02	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (B)	8-98248-447-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1307-	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	02	1	1307-	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	08	1	1307-	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	08	1	1307-	●	●	●	●
29	SHIM; BRG RET	1-41154-091-0	01	1	1010-1306	●	●	●
29	SHIM; BRG RET	8-98248-388-0	01	1	1307-	●	●	●	●
31	GEAR; DRIVEN,HELICAL	1-41251-423-0	01	1	1010-1306	●	●	●
31	GEAR; DRIVEN,HELICAL	8-98248-386-0	01	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1307-	●	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1010-1306	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1307-	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	1010-1306	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	1307-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1307-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-064-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (C)	8-98248-318-0	01	1	1307-1503	●	●	●	●
55	CARRIER; DIFF (C)	8-98323-322-0	01	1	1504-	●	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	08	1	1307-	●	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1010-1306	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1307-	●	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1010-1306	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1307-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-592-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-597-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	02	1	1307-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-733-0	01	1	1010-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-734-0	01	1	1010-			●
69	NUT; ADJ,DIFF CAGE (C)	8-98248-389-0	02	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (B)	8-98248-396-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1307-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1010-1306	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1010-1306	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	24	1	1307-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (C)	1-41329-084-0	16	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (A)	8-98248-329-0	02	1	1307-	●	●	●	●
88	PLATE; LK,ADJ NUT (B)	8-98248-367-0	01	1	1307-	●	●	●	●
89	BOLT; LK PLATE (A)	8-98248-327-0	04	1	1307-	●	●	●	●
89	BOLT; LK PLATE (B)	8-98248-700-0	01	1	1307-	●	●	●	●
105	GEAR; SIDE	1-41561-119-0	01	1	1010-1306	●	●	●
105	GEAR; SIDE	8-98248-384-0	01	1	1307-	●	●	●	●
123	BOLT; BAFFLE PLATE	8-98248-700-0	08	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1010-1306	●		●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1307-	●	●	●
138	GASKET; CARRIER COVER	8-98248-336-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1010-1306	●		●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1307-	●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (B)	1-41379-003-0	01	1	1310-	●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (A)	8-98248-492-0	01	1	1310-	●	●	●
191	SHIM; SHIFT ROD SLEEVE	8-98248-333-0	AR	1	1307-	●	●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1307-1309	●	●	●	●
194	PLUG EXC. DIFF LOCK<C3N> (B)	1-41119-072-0	01	1	1310-	●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1310-				●
194	PLUG (A)	1-41119-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1307-1309	●	●	●	●
194	PLUG EXC. DIFF LOCK<C3N> (A)	1-41119-077-0	01	1	1310-	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1310-				●
194	PLUG (A)	1-41329-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41329-077-0	01	1	1307-	●	●	●	●
205	WASHER; PL (B)	1-41229-168-0	01	1	1307-1309	●	●	●	●
205	WASHER; PL EXC. DIFF LOCK<C3N> (B)	1-41229-168-0	01	1	1310-	●	●	●
205	WASHER; PL (B)	1-41229-168-0	01	1	1310-				●
205	WASHER; PL (A)	1-41329-016-0	06	1	1010-1306	●	●	●
205	WASHER; PL (A)	1-41329-016-0	08	1	1307-	●	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	1010-1306	●	●	●
232	SPRING; PISTON	1-48265-008-0	01	1	1307-	●	●	●	●
242	BOLT; COVER DIFF LOCK<C3N> (C)	8-98248-327-0	04	1	1310-1503	●	●	●
242	BOLT; COVER (B)	1-48269-221-0	04	1	1307-1309	●	●	●	●
242	BOLT; COVER EXC. DIFF LOCK<C3N> (B)	1-48269-221-0	04	1	1310-1503	●	●	●
242	BOLT; COVER (B)	1-48269-221-0	04	1	1310-1503				●
242	BOLT; COVER (A)	1-42119-226-0	04	1	1010-1306	●	●	●
242	BOLT; COVER (A)	1-42119-226-0	04	1	1307-	●	●	●	●
243	PLUG; COVER EXC. DIFF LOCK<C3N> (B)	8-98323-334-0	01	1	1504-	●	●	●
243	PLUG; COVER (B)	8-98323-334-0	01	1	1504-				●
243	PLUG; COVER (A)	8-98248-342-0	01	1	1307-	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	08	1	1307-	●	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	1010-1306	●	●	●
249	SHAFT; SHIFT FORK	8-98248-335-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1010-1306	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1010-1306	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	02	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-047-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-048-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-089-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1307-	●	●	●	●
287	PISTON; SHIFT UNIT DIFF LOCK<C3N> (B)	1-48262-013-0	01	1	1310-	●	●	●
287	PISTON; SHIFT UNIT (A)	8-98248-337-0	01	1	1307-	●	●	●	●
291	ROD; PUSH DIFF LOCK<C3N>	8-98248-335-0	01	1	1310-	●	●	●
297	WASHER; COVER	1-48269-229-0	04	1	1307-1503	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (B)	8-98248-398-0	01	1	1307-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1307-	●	●	●	●
360	FORK; SHIFT DIFF LOCK<C3N> (B)	1-41371-007-0	01	1	1310-	●	●	●
360	FORK; SHIFT (A)	1-41519-046-0	01	1	1010-1306	●	●	●
360	FORK; SHIFT (A)	8-98248-330-0	01	1	1307-	●	●	●	●
361	GEAR; DRIVE	1-41251-423-0	01	1	1010-1306	●	●	●
361	GEAR; DRIVE	8-98248-376-0	01	1	1307-	●	●	●	●
362	BEARING; THRUST	8-98248-373-0	01	1	1307-	●	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	1010-1306	●	●	●
365	PUMP ASM; OIL	8-98248-340-0	01	1	1307-	●	●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (B)	1-48269-075-0	01	1	1310-	●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (A)	1-48269-215-0	02	1	1310-	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1307-1309	●	●	●	●
380	GASKET; PISTON EXC. DIFF LOCK<C3N> (A)	1-48269-215-0	01	1	1310-	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1310-				●
388	BOLT; COUPLING ALLISON MD3560P A/T(Y3B)	1-37249-160-0	04	1	1010-1306	●		●
388	BOLT; COUPLING ALLISON MD3560P A/T(Y3B)	1-37249-160-0	04	1	1307-	●	●	●
388	BOLT; COUPLING ZF9S1110 M/T(Y5E)	1-37249-204-0	04	1	1010-1306	●	●	●
388	BOLT; COUPLING ZF9S1110 M/T(Y5E)	1-37249-204-0	04	1	1307-	●	●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (A)	1-48269-071-0	01	1	1310-	●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (B)	8-98248-487-0	01	1	1310-	●	●	●
397	BAFFLE; OIL	8-98248-341-0	01	1	1307-	●	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1010-1306	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1307-	●	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1010-1306	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1307-	●	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1010-1306	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1307-	●	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1010-1306	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1307-	●	●	●	●
411	SLEEVE; CLU	1-41519-082-0	01	1	1010-1306	●	●	●
411	SLEEVE; CLU	8-98248-368-0	01	1	1307-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N>	8-98248-333-0	03	1	1310-	●	●	●
418	SHIFT FORK; DIFF LK DIFF LOCK<C3N>	8-98248-481-0	01	1	1310-	●	●	●
419	SPRING; DIFF LK DIFF LOCK<C3N>	1-48265-008-0	01	1	1310-	●	●	●
434	SWITCH; DIFF LOCK DIFF LOCK<C3N>	8-98248-478-0	01	1	1310-	●	●	●
444	BALL	8-98248-495-0	01	1	1307-	●	●	●	●
472	GEAR; PINION,IAD	8-98248-379-0	04	1	1307-	●	●	●	●
473	SPIDER; PINION,IAD	8-98248-380-0	01	1	1307-	●	●	●	●
474	CASE; IAD	8-98248-381-0	01	1	1307-	●	●	●	●
475	DIFF ASM; INTER,AXLE	8-98248-377-0	01	1	1307-	●	●	●	●
476	ADJUSTING RING; INPUT SHAFT	8-98248-366-0	01	1	1307-1503	●	●	●	●
476	ADJUSTING RING; INPUT SHAFT	8-98323-326-0	01	1	1504-	●	●	●	●
479	PISTON; DIFF LOCK DIFF LOCK<C3N>	8-98248-337-0	01	1	1310-	●	●	●
480	GASKET; COVER,DIFF LOCK	8-98248-484-0	01	1	1307-1503	●	●	●	●
481	GASKET; CAGING DIFF LOCK<C3N>	1-48269-254-0	01	1	1310-	●	●	●
482	COVER; DIFF LOCK DIFF LOCK<C3N> (B)	8-98248-489-0	01	1	1310-1503	●	●	●
482	COVER; DIFF LOCK (A)	1-48269-220-0	01	1	1307-1309	●	●	●	●
482	COVER; DIFF LOCK EXC. DIFF LOCK<C3N> (A)	1-48269-220-0	01	1	1310-1503	●	●	●
482	COVER; DIFF LOCK (A)	1-48269-220-0	01	1	1310-1503				●
483	COVER ASM; COVER,W/PUMP	8-98248-339-0	01	1	1307-1503	●	●	●	●
483	COVER ASM; COVER,W/PUMP	8-98323-323-0	01	1	1504-	●	●	●	●
485	GASKET; ADJUSTING RING	8-98323-332-0	01	1	1504-	●	●	●	●
486	RETROFIT KIT; CARRIER	8-98323-329-0	01	1	1307-	●	●	●	●
487	COVER; SCREW,DIFF LOCK	8-98323-330-0	01	1	1504-	●	●	●	●
488	GASKET; COVER,SCREW	8-98323-333-0	01	1	1504-	●	●	●	●
489	KIT; ADJUSTING RING	8-98326-192-0	01	1	1307-1503	●	●	●	●
490	DOWEL; TAPERED,CASE	1-42319-162-0	04	1	1504-	●	●	●	●

245 56 379 16 55 365 232 249 97 210 254 379 56 245 384 383 400 266 105 369 364 244 69 255 84 60 60 21 22 298 21 1 20 24 25 20 162 388 126 86 85 254 86 71 205 366 17 265 266 59 31 360 267 265 8 13 29 12 361 2 225 45 43 158 411 265 38 37 59 265 267 167 403 194 402 255 69 404 11 37 38 241 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-574-0	01	1	1307-1309		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	1-41003-574-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	8-98326-185-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	1-41003-579-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	8-98326-190-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	1-41003-580-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	8-98326-191-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	1-41003-578-0	01	1	1310-1503		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	8-98326-189-0	01	1	1504-		●
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1307-				●
1	DRIVE ASM; FINAL,RR (A) 37/7	1-41003-573-0	01	1	1307-1503				●
1	DRIVE ASM; FINAL,RR (A) 37/7	8-98326-184-0	01	1	1504-				●
1	DRIVE ASM; FINAL,RR (B) 43/7	1-41003-352-0	01	1	1010-		●
1	DRIVE ASM; FINAL,RR (A) 43/7	1-41003-357-0	01	1	1010-1306		●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-576-0	01	1	1307-1309			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	1-41003-576-0	01	1	1310-1503			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	8-98326-187-0	01	1	1504-			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-315-0	01	1	1010-1306	●
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1307-	●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (A) 45/7	1-41003-575-0	01	1	1307-1309	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	1-41003-575-0	01	1	1310-1503	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	8-98326-186-0	01	1	1504-	●
1	DRIVE ASM; FINAL,RR (A) 41/6	1-41003-358-0	01	1	1010-1306			●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1307-			●
2	DIFF ASM; INTER,FINAL	1-41510-264-0	01	1	1010-1306	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1010-1306	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1307-	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41151-090-0	01	1	1010-1306	●	●	●
12	BOLT; COVER TO CASE	1-41159-008-0	07	1	1010-1306	●	●	●
12	BOLT; COVER TO CASE	8-98248-338-0	10	1	1307-	●	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	07	1	1010-1306	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	10	1	1307-	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-032-0	01	1	1010-1306	●	●	●
16	SHAFT ASM; INPUT	8-98248-369-0	01	1	1307-	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	16	1	1010-1306	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	32	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B)	8-98248-435-0	02	1	1307-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1010-1306	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (B)	8-98248-447-0	02	1	1307-	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1010-1306	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1307-	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	01	1	1010-1306	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	02	1	1307-	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	04	1	1010-1306	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	08	1	1307-	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	04	1	1010-1306	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	08	1	1307-	●	●	●	●
29	SHIM; BRG RET	1-41154-091-0	01	1	1010-1306	●	●	●
29	SHIM; BRG RET	8-98248-388-0	01	1	1307-	●	●	●	●
31	GEAR; DRIVEN,HELICAL	1-41251-423-0	01	1	1010-1306	●	●	●
31	GEAR; DRIVEN,HELICAL	8-98248-386-0	01	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1307-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1010-1306	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1307-	●	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1010-1306	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1307-	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	1010-1306	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	1307-	●	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1010-1306	●	●	●
43	CAGE; FINAL PINION (B)	1-41151-077-0	01	1	1307-	●	●	●	●
43	CAGE; FINAL PINION (A)	1-41329-068-0	01	1	1010-1306	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1010-1306	●	●	●
45	BOLT; FINAL PINION CAGE (B)	1-41159-008-0	08	1	1307-	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41329-070-0	05	1	1010-1306	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1307-	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-064-0	01	1	1010-1306	●	●	●
55	CARRIER; DIFF (C)	8-98248-318-0	01	1	1307-1503	●	●	●	●
55	CARRIER; DIFF (C)	8-98323-322-0	01	1	1504-	●	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	04	1	1010-1306	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	08	1	1307-	●	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1010-1306	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1307-	●	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1010-1306	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1307-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1307-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-592-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-597-0	01	1	1010-		●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	01	1	1010-1306	●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	02	1	1307-	●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-733-0	01	1	1010-			●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-734-0	01	1	1010-			●
69	NUT; ADJ,DIFF CAGE (C)	8-98248-389-0	02	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1307-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1010-1306	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (B)	8-98248-396-0	01	1	1307-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1010-1306	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1307-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1010-1306	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	12	1	1010-1306	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	24	1	1307-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	1010-1306	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (C)	1-41329-084-0	16	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	12	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	1307-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1010-1306	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1307-	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-41329-067-0	01	1	1010-1306	●	●	●
105	GEAR; SIDE	1-41561-119-0	01	1	1010-1306	●	●	●
105	GEAR; SIDE	8-98248-384-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1010-1306	●	●	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1307-	●	●	●	●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1010-1306	●		●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1307-	●	●	●
158	RING; SNAP	1-41519-043-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1010-1306	●	●	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1307-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1010-1306	●		●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1307-	●	●	●
167	GASKET; FINAL PINION CAGE	1-41349-155-0	01	1	1010-1306	●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1307-1309	●	●	●	●
194	PLUG EXC. DIFF LOCK<C3N> (B)	1-41119-072-0	01	1	1310-	●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1310-				●
194	PLUG (A)	1-41119-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1307-1309	●	●	●	●
194	PLUG EXC. DIFF LOCK<C3N> (A)	1-41119-077-0	01	1	1310-	●	●	●
194	PLUG (A)	1-41119-077-0	01	1	1310-				●
194	PLUG (A)	1-41329-077-0	01	1	1010-1306	●	●	●
194	PLUG (A)	1-41329-077-0	01	1	1307-	●	●	●	●
205	WASHER; PL (B)	1-41229-168-0	01	1	1307-1309	●	●	●	●
205	WASHER; PL EXC. DIFF LOCK<C3N> (B)	1-41229-168-0	01	1	1310-	●	●	●
205	WASHER; PL (B)	1-41229-168-0	01	1	1310-				●
205	WASHER; PL (A)	1-41329-016-0	06	1	1010-1306	●	●	●
205	WASHER; PL (A)	1-41329-016-0	08	1	1307-	●	●	●	●
210	CONNECTOR; SHIFT UNIT	1-41329-083-0	01	1	1010-1306	●	●	●
225	WASHER; THRUST (A)	1-41349-160-0	01	1	1010-1306	●	●	●
225	WASHER; THRUST (B)	1-41349-162-0	01	1	1010-1306	●	●	●
225	WASHER; THRUST (B)	1-41349-162-0	01	1	1307-	●	●	●	●
232	SPRING; PISTON	1-41329-023-0	01	1	1010-1306	●	●	●
232	SPRING; PISTON	1-48265-008-0	01	1	1307-	●	●	●	●
241	COVER; SHIFT HSG	1-41329-080-0	01	1	1010-1306	●	●	●
244	GASKET; COVER	1-41349-155-0	01	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	04	1	1010-1306	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	08	1	1307-	●	●	●	●
249	SHAFT; SHIFT FORK	1-41329-066-0	01	1	1010-1306	●	●	●
249	SHAFT; SHIFT FORK	8-98248-335-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1010-1306	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1010-1306	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	02	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1307-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-047-0	01	1	1010-1306	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-048-0	01	1	1010-1306	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-089-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1307-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1010-1306	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1307-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (B)	8-98248-398-0	01	1	1307-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1010-1306	●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1307-	●	●	●	●
360	FORK; SHIFT DIFF LOCK<C3N> (B)	1-41371-007-0	01	1	1310-	●	●	●
360	FORK; SHIFT (A)	1-41519-046-0	01	1	1010-1306	●	●	●
360	FORK; SHIFT (A)	8-98248-330-0	01	1	1307-	●	●	●	●
361	GEAR; DRIVE	1-41251-423-0	01	1	1010-1306	●	●	●
361	GEAR; DRIVE	8-98248-376-0	01	1	1307-	●	●	●	●
364	FILTER; OIL PUMP	1-41383-004-0	01	1	1010-1306	●	●	●
365	PUMP ASM; OIL	1-41381-010-0	01	1	1010-1306	●	●	●
365	PUMP ASM; OIL	8-98248-340-0	01	1	1307-	●	●	●	●
366	BOLT; PUMP	1-41389-018-0	06	1	1010-1306	●	●	●
369	PLUG; STRAINER	1-41389-020-0	01	1	1010-1306	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1010-1306	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1010-1306	●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1307-	●	●	●	●
383	BOLT; SET,SHIFT UNIT	1-41329-064-0	01	1	1010-1306	●	●	●
384	NUT; LK,SHIFT UNIT	1-41329-065-0	01	1	1010-1306	●	●	●
388	BOLT; COUPLING ALLISON MD3560P A/T(Y3B)	1-37249-160-0	04	1	1010-1306	●		●
388	BOLT; COUPLING ALLISON MD3560P A/T(Y3B)	1-37249-160-0	04	1	1307-	●	●	●
388	BOLT; COUPLING ZF9S1110 M/T(Y5E)	1-37249-204-0	04	1	1010-1306	●	●	●
388	BOLT; COUPLING ZF9S1110 M/T(Y5E)	1-37249-204-0	04	1	1307-	●	●	●	●
389	WASHER; FINAL PINION CAGE	1-41329-069-0	05	1	1010-1306	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1010-1306	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1307-	●	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1010-1306	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1307-	●	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1010-1306	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1307-	●	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1010-1306	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1307-	●	●	●	●
411	SLEEVE; CLU	1-41519-082-0	01	1	1010-1306	●	●	●
411	SLEEVE; CLU	8-98248-368-0	01	1	1307-	●	●	●	●

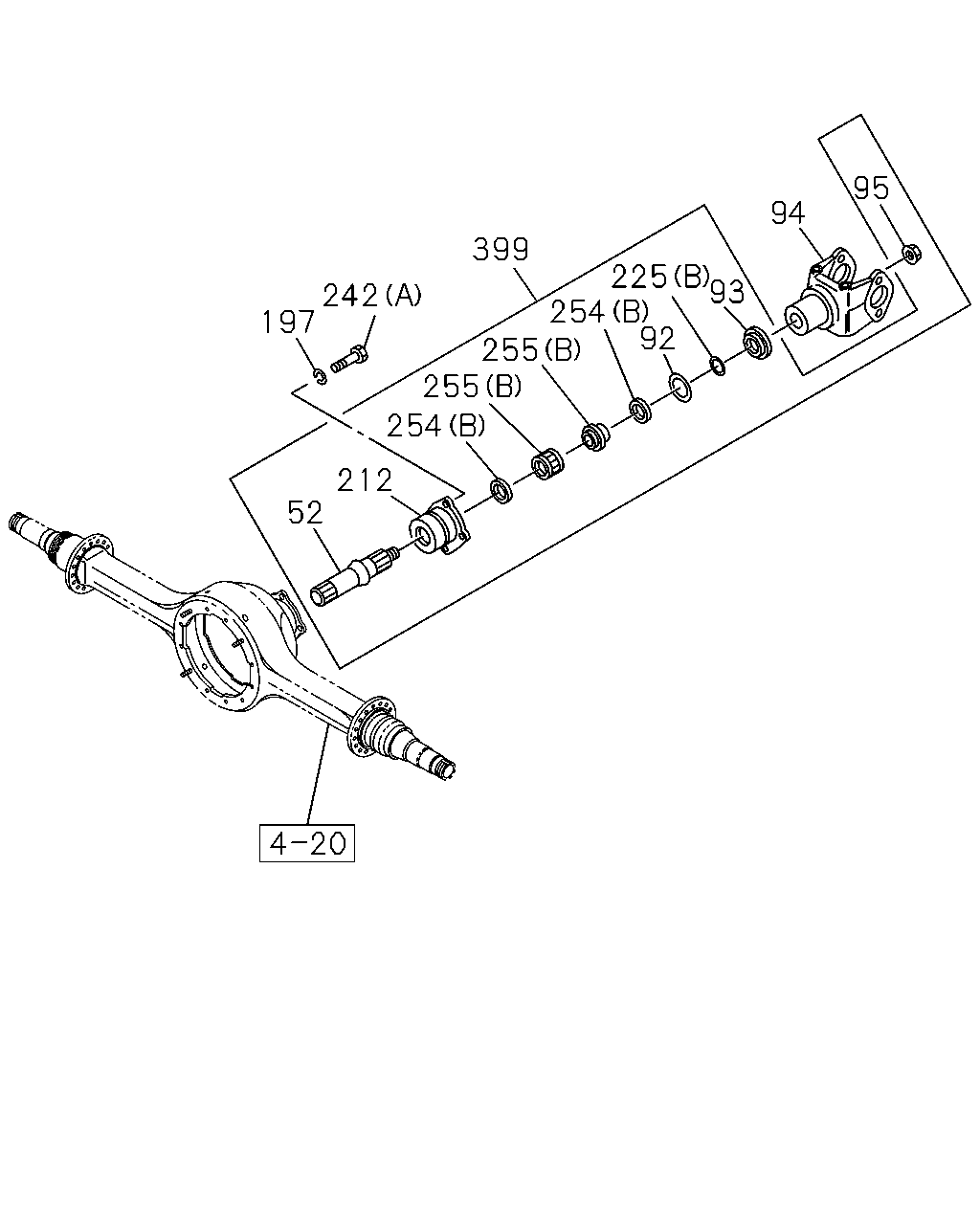

95 94 93 92 225 254 255 255 254 212 52 197 242 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	SHAFT; OUTPUT	1-41343-025-0	01	1	1010-1306	●	●	●
52	SHAFT; OUTPUT	1-41343-025-0	01	1	1307-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	1010-1306	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	1307-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	1010-1306	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	1307-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-315-0	01	1	1010-1306	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-315-0	01	1	1307-	●	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	1010-1306	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	1307-	●	●	●	●
197	COVER; HELICAL GEAR CASE	1-41329-037-0	04	1	1010-1306	●	●	●
197	COVER; HELICAL GEAR CASE	1-41329-037-0	04	1	1307-	●	●	●	●
212	COVER	1-41519-049-0	01	1	1010-1306	●	●	●
212	COVER	1-41519-049-0	01	1	1307-	●	●	●	●
225	WASHER; THRUST (A)	1-41349-160-0	01	1	1010-1306	●	●	●
225	WASHER; THRUST (B)	1-41349-162-0	01	1	1010-1306	●	●	●
225	WASHER; THRUST (B)	1-41349-162-0	01	1	1307-	●	●	●	●
242	BOLT; COVER DIFF LOCK<C3N> (C)	8-98248-327-0	04	1	1310-1503	●	●	●
242	BOLT; COVER (B)	1-48269-221-0	04	1	1307-1309	●	●	●	●
242	BOLT; COVER EXC. DIFF LOCK<C3N> (B)	1-48269-221-0	04	1	1310-1503	●	●	●
242	BOLT; COVER (B)	1-48269-221-0	04	1	1310-1503				●
242	BOLT; COVER (A)	1-42119-226-0	04	1	1010-1306	●	●	●
242	BOLT; COVER (A)	1-42119-226-0	04	1	1307-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1010-1306	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1307-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1307-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1010-1306	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1010-1306	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1307-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1307-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1010-1306	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1307-	●	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-024-0	01	1	1010-1306	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-024-0	01	1	1307-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
