Sayfa 4-20 - Isuzu EPC

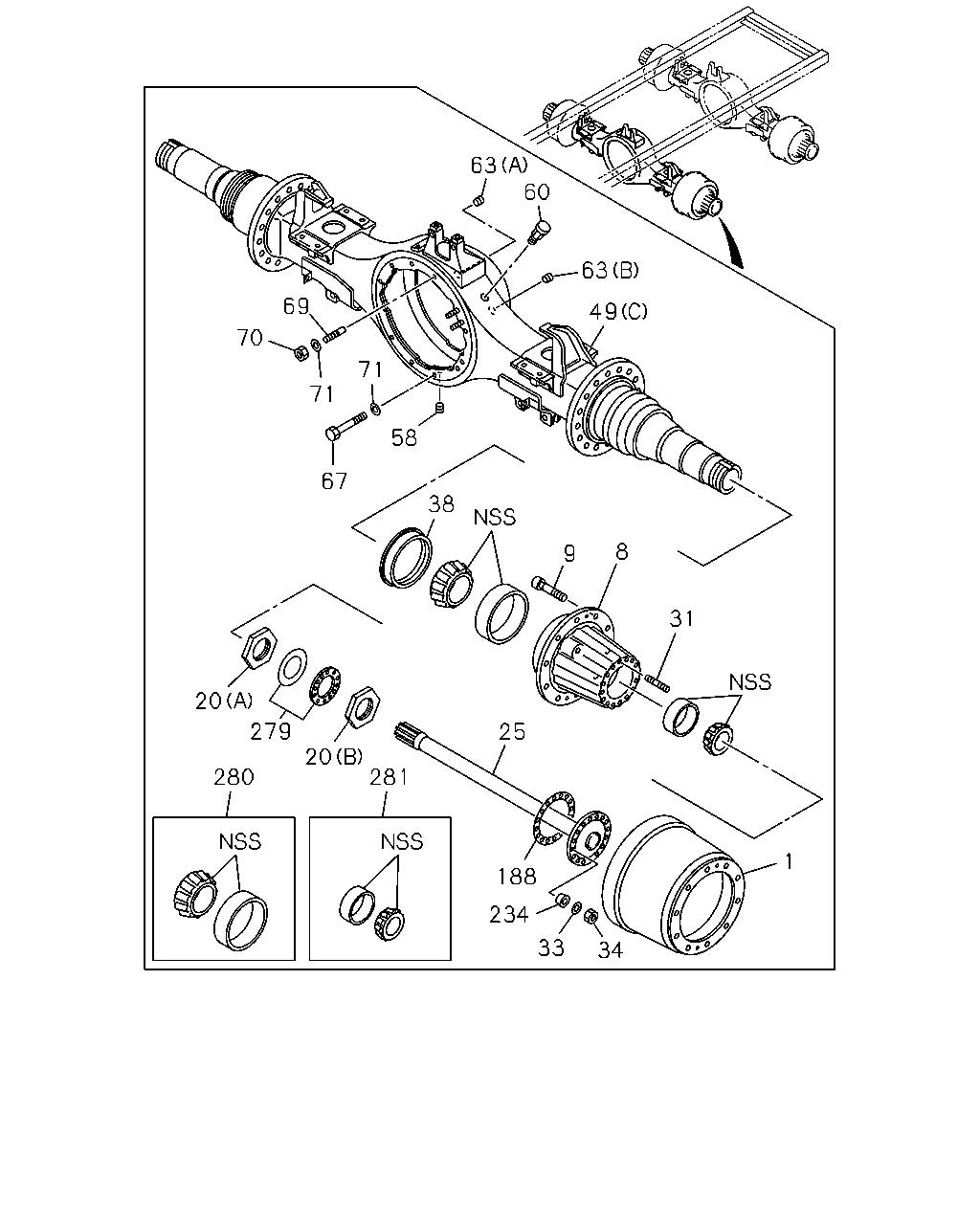

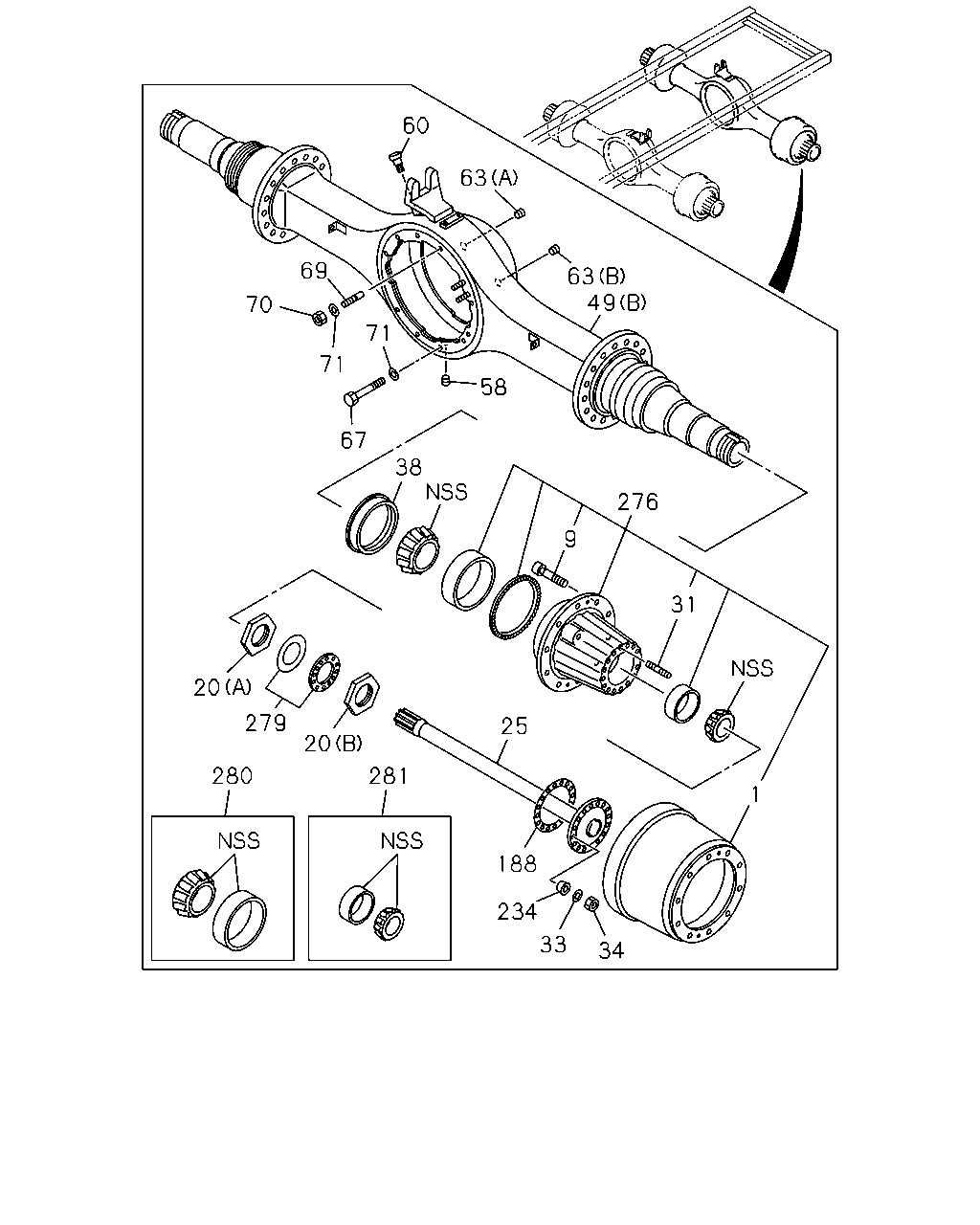

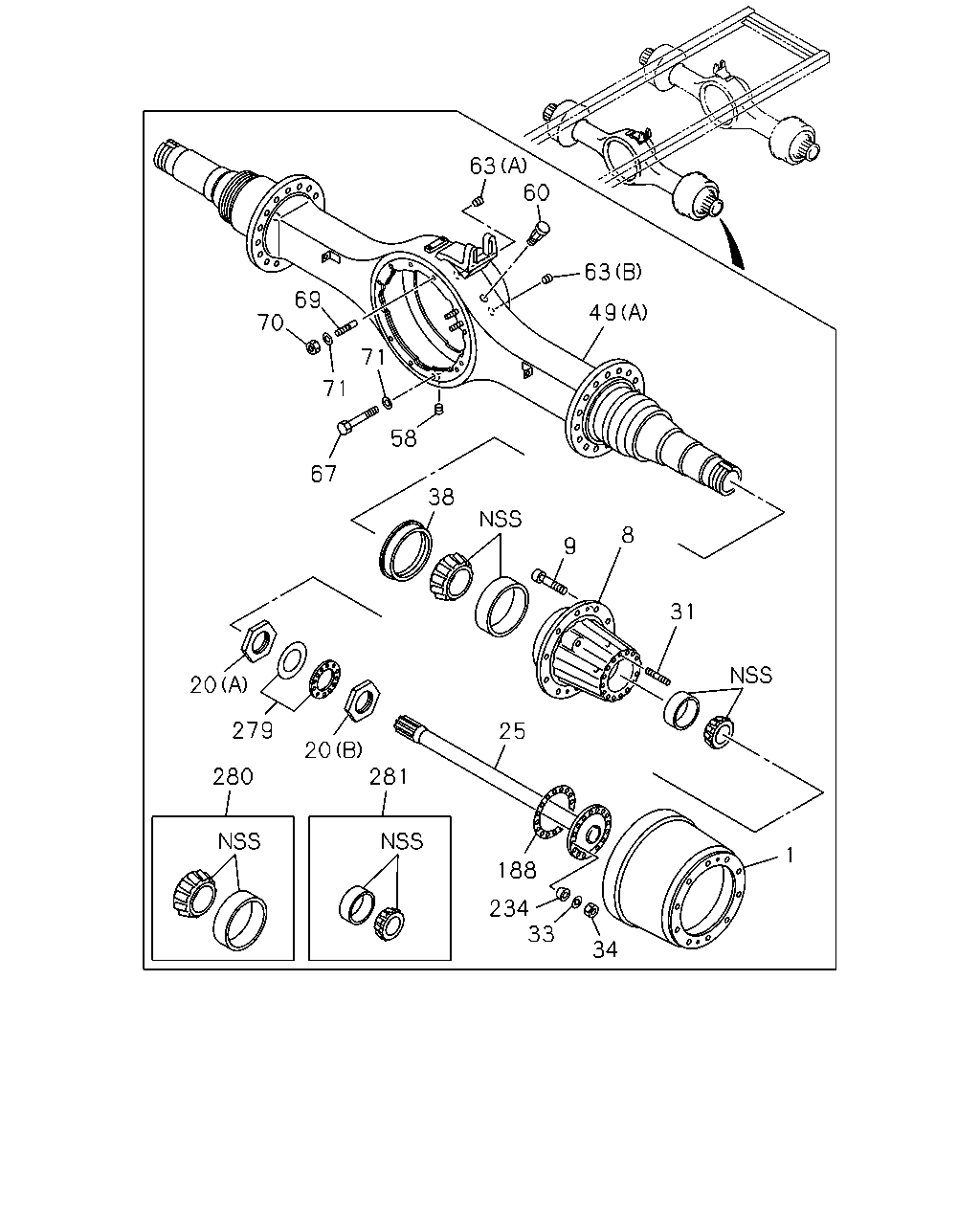

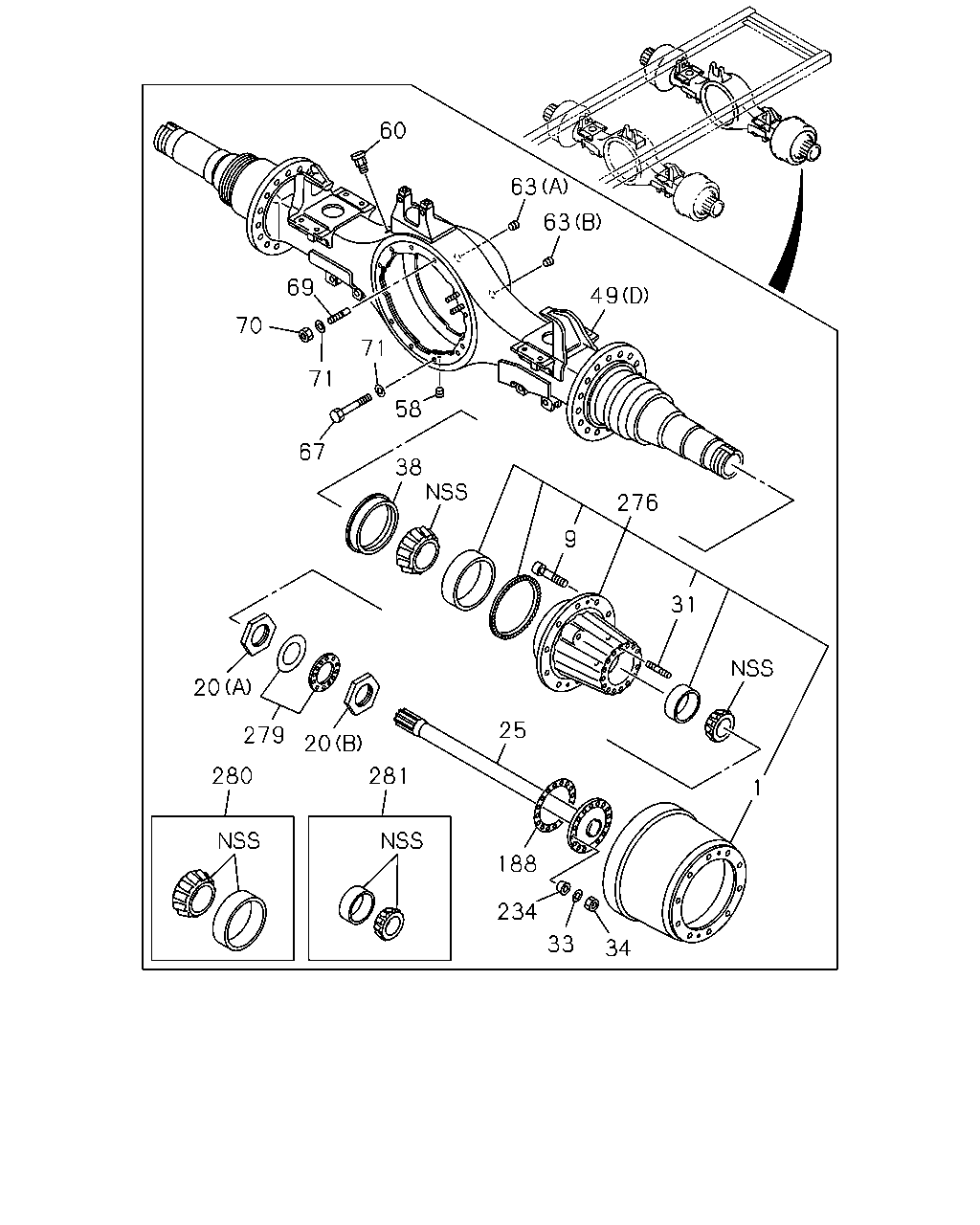

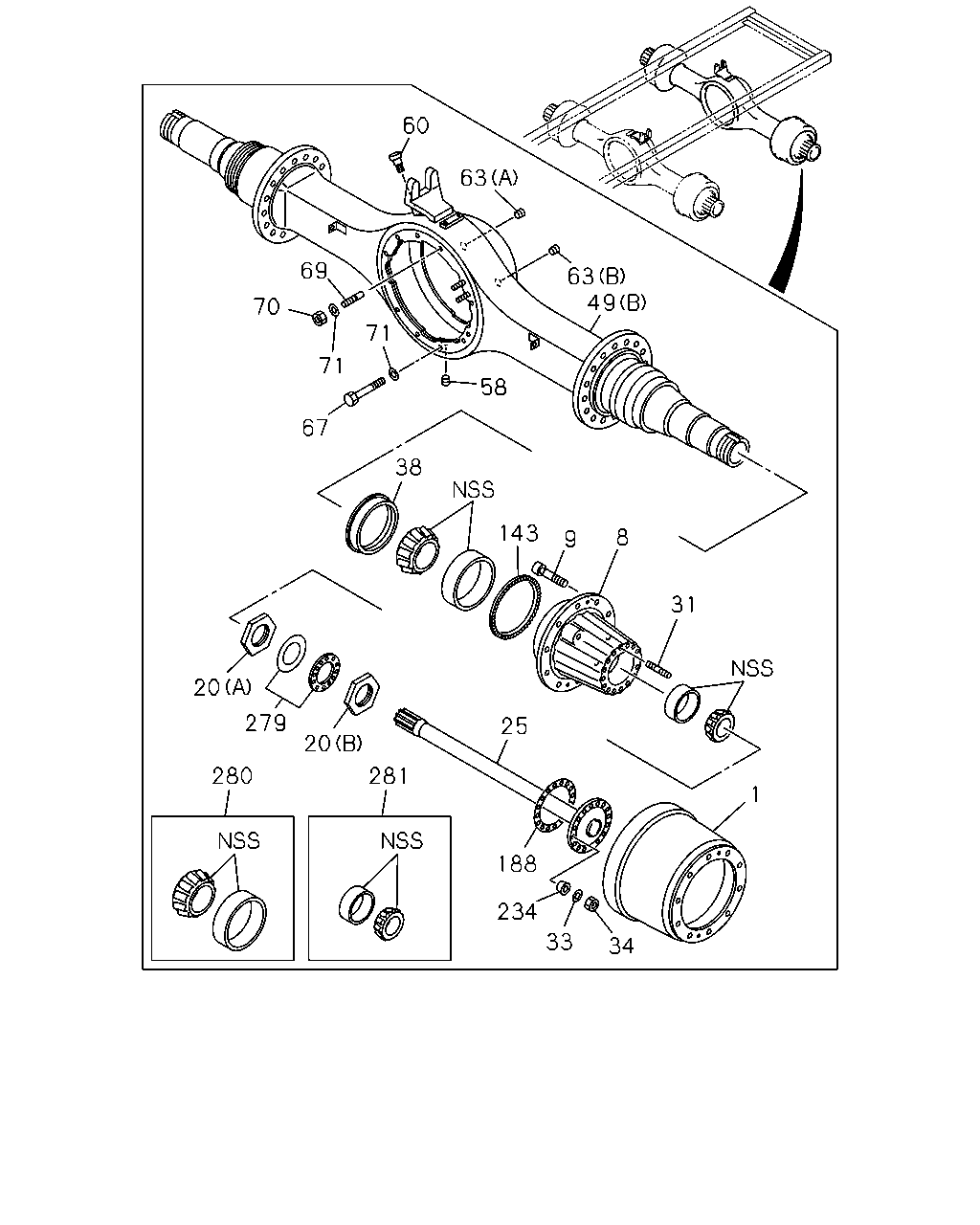

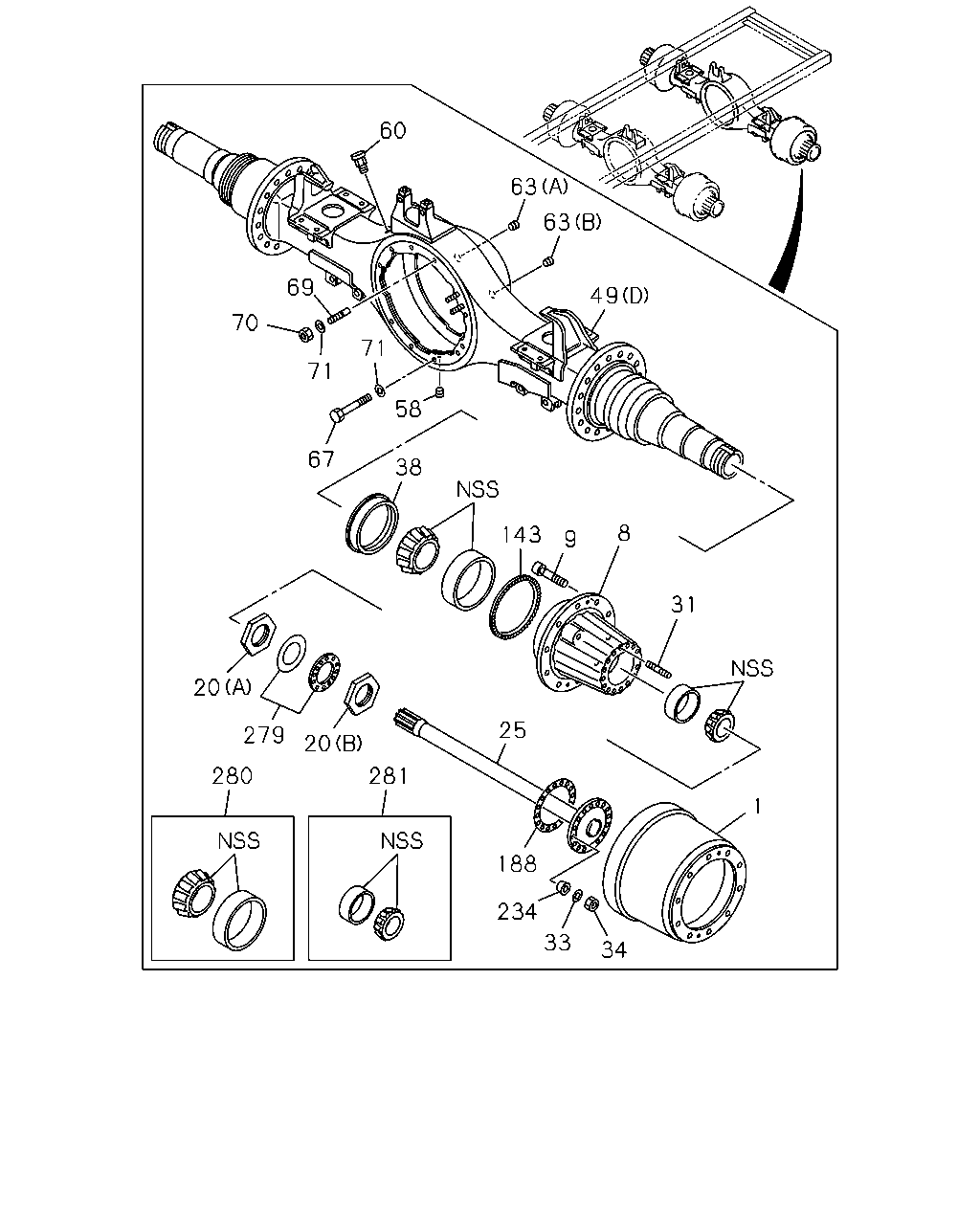

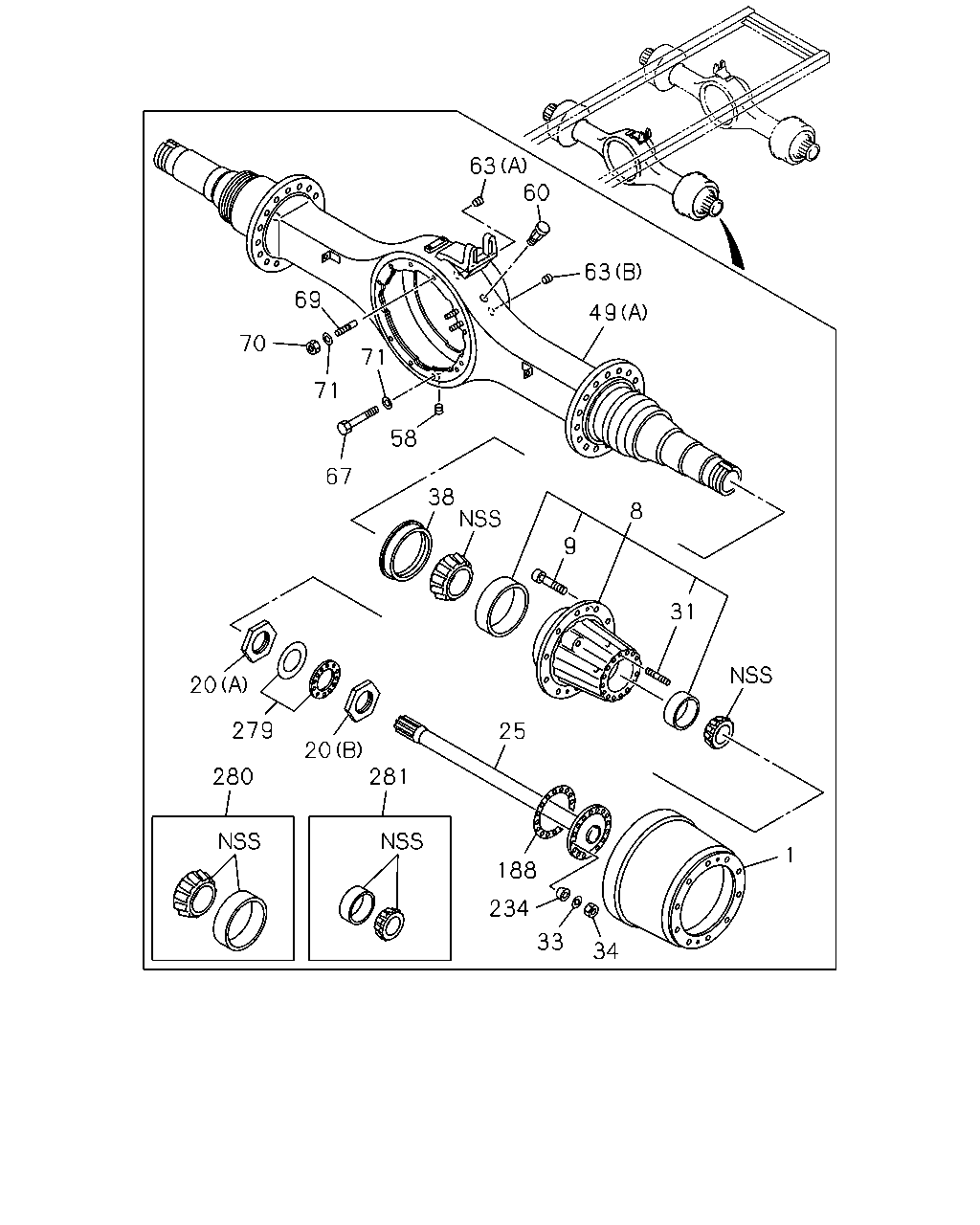

4-20 — REAR AXLE CASE AND SHAFT (#69681) — 812 parça

34 33 234 188 25 281 20 279 280 20 38 143 9 8 31 1 67 71 71 58 49 63 63 60 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

34 33 234 188 281 20 280 279 20 67 71 71 69 70 63 60 63 49 9 8 31 38 58 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

25 188 234 33 34 1 281 20 279 280 20 38 58 67 71 71 70 69 60 63 63 49 9 8 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

34 33 234 188 281 20 279 20 280 25 31 276 1 9 38 67 71 71 70 69 60 63 63 49 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
276	HUB & DRUM ASM WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-162-0	02	1	1108-1204	●
276	HUB & DRUM ASM	1-42311-158-0	02	1	1010-1107	●	●
276	HUB & DRUM ASM DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-158-0	02	1	1108-1204	●
276	HUB & DRUM ASM	1-42311-158-0	02	1	1108-1204		●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

60 63 63 49 69 70 71 71 58 67 38 9 276 31 25 20 279 280 281 20 188 234 33 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
276	HUB & DRUM ASM WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-162-0	02	1	1108-1204	●
276	HUB & DRUM ASM	1-42311-158-0	02	1	1010-1107	●	●
276	HUB & DRUM ASM DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-158-0	02	1	1108-1204	●
276	HUB & DRUM ASM	1-42311-158-0	02	1	1108-1204		●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

63 60 63 49 69 70 71 71 67 58 38 9 8 31 1 25 20 279 280 20 281 188 234 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

60 63 63 49 69 70 71 71 58 67 38 143 9 8 31 1 25 20 279 280 281 20 188 234 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
143	RING; EXCITER	1-42319-224-0	02	1	1205-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

280 20 279 20 281 25 188 234 33 34 1 31 8 9 38 67 58 71 70 69 71 63 60 63 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-419-0	02	1	1010-1204	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	02	1	1205-1306	●	●
1	DRUM; BRK,RR	1-42315-422-0	04	1	1307-	●	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-159-0	02	1	1108-1204	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1205-1208	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	02	1	1209-1306	●
8	HUB; RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42311-166-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1010-1107	●	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-155-0	02	1	1108-1204	●
8	HUB; RR AXLE	1-42311-155-0	02	1	1108-1204		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	02	1	1205-1306	●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE	1-42311-164-0	02	1	1205-1306		●
8	HUB; RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42311-164-0	04	1	1307-	●
8	HUB; RR AXLE	1-42311-164-0	04	1	1307-		●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1108-1208	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	20	1	1209-1306	●
9	PIN; WHEEL,RR AXLE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET)	1-42339-032-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1010-1107	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	20	1	1108-1306	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	20	1	1108-1306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42339-033-0	40	1	1307-	●
9	PIN; WHEEL,RR AXLE	1-42339-033-0	40	1	1307-		●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (A)	1-42129-065-0	04	1	1307-	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	02	1	1010-1306	●	●
20	NUT; BRG,RR HUB (B)	1-42129-067-0	04	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD RH,REARWARD LH	1-42171-548-0	02	1	1307-	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	01	1	1010-1306	●	●
25	SHAFT; AXLE,RR FORWARD LH,REARWARD RH	1-42171-585-0	02	1	1307-	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	16	1	1010-1306	●	●
31	STUD; AXLE SHAFT TO HUB	1-42319-171-0	32	1	1307-	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	16	1	1010-1306	●	●
33	WASHER; AXLE SHAFT	1-42179-003-0	32	1	1307-	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	16	1	1010-1306	●	●
34	NUT; AXLE SHAFT	1-42179-005-0	32	1	1307-	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	02	1	1010-1306	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-172-0	04	1	1307-	●	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (C)	1-42190-746-0	01	1	1307-		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (D)	1-42190-747-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (C)	1-42190-744-0	01	1	1307-		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (D)	1-42190-745-0	01	1	1307-		●
49	CASE; RR AXLE (A)	1-42190-739-0	01	1	1010-1306	●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (A)	1-42190-752-0	01	1	1307-	●
49	CASE; RR AXLE (B)	1-42190-740-0	01	1	1010-1306	●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (B)	1-42190-751-0	01	1	1307-	●
49	CASE; RR AXLE (C)	1-42190-737-0	01	1	1010-1306		●
49	CASE; RR AXLE ZF9S1110 M/T(Y5E) (A)	1-42190-750-0	01	1	1307-	●
49	CASE; RR AXLE (D)	1-42190-738-0	01	1	1010-1306		●
49	CASE; RR AXLE ALLISON MD3560P A/T(Y3B) (B)	1-42190-753-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	01	1	1010-1306	●	●
58	PLUG; DRAIN,AXLE CASE	1-42129-054-0	02	1	1307-	●	●
60	BREATHER; RR AXLE CASE	1-09893-032-0	02	1	1401-	●	●
60	BREATHER; RR AXLE CASE	1-09893-028-0	02	1	1010-1312	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	02	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (A)	1-42119-135-0	04	1	1307-	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	01	1	1010-1306	●	●
63	PLUG; OIL FILLER,AXLE CASE (B)	1-42129-054-0	02	1	1307-	●	●
67	BOLT; FINAL DRIVE SETTING	1-42119-136-0	14	1	1010-	●	●
69	STUD; AXLE CASE REARWARD L=88.14	1-42119-133-0	04	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD,REARWARD L=88.14	1-42119-133-0	07	1	1307-	●	●
69	STUD; AXLE CASE FORWARD L=88.14	1-42119-133-0	03	1	1010-1306	●	●
69	STUD; AXLE CASE FORWARD L=69.85	1-42119-134-0	03	1	1010-	●	●
70	NUT; CARRIER	1-42179-005-0	10	1	1010-	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	12	1	1010-1306	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-41229-168-0	24	1	1307-	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	02	1	1010-1306	●	●
188	GASKET; AXLE SHAFT	1-42175-013-0	04	1	1307-	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	16	1	1010-1306	●	●
234	DOWEL; AXLE SHAFT	1-42319-162-0	32	1	1307-	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	02	1	1010-1306	●	●
279	RING & WASHER; LK,BRG NUT	1-42179-022-0	04	1	1307-	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	02	1	1010-1306	●	●
280	BEARING SET; HUB,INNER	1-85573-012-0	04	1	1307-	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	02	1	1010-1306	●	●
281	BEARING SET; HUB,OUTER	1-85573-013-0	04	1	1307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
