1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶

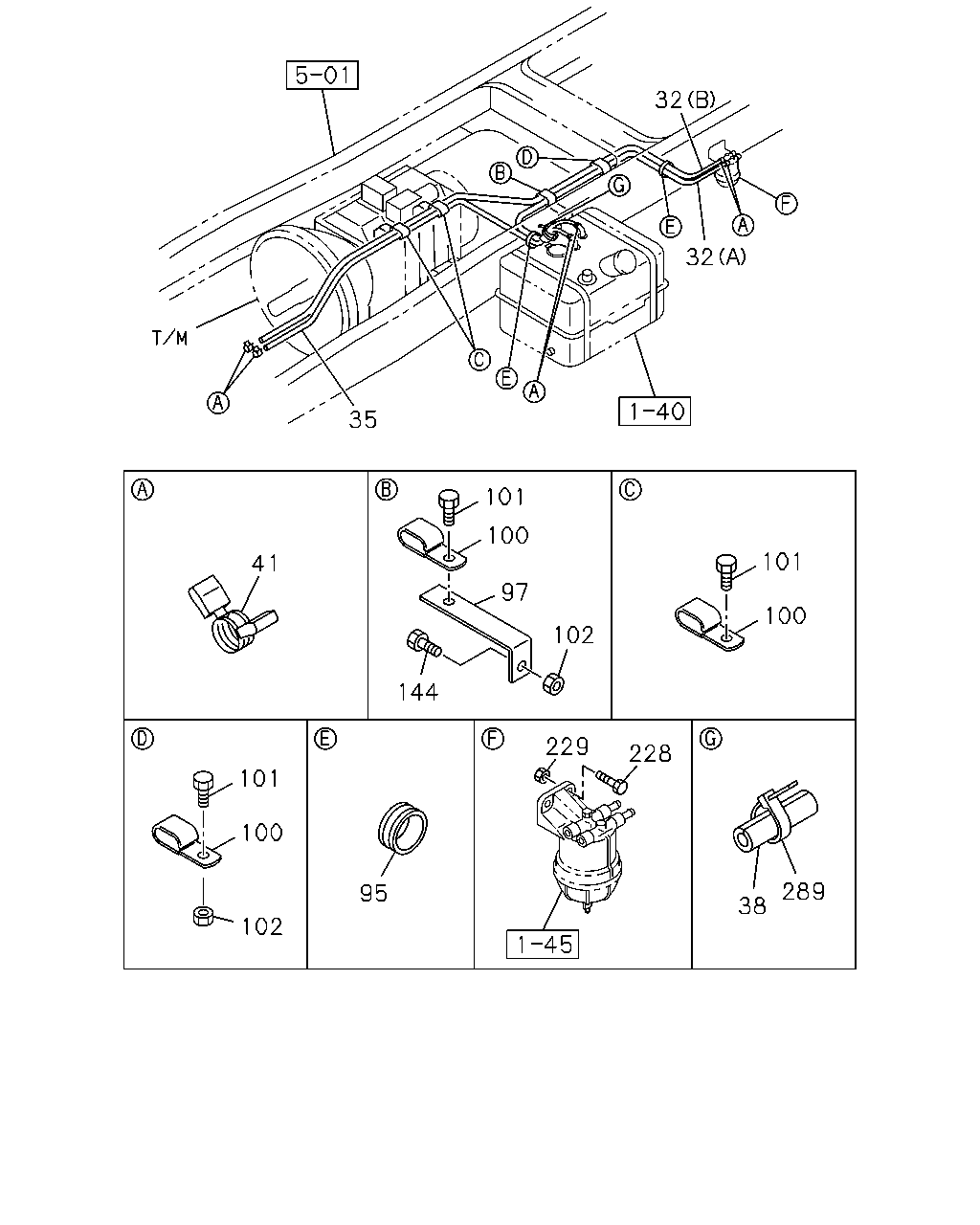

1-41 — FUEL PIPING; CHASSIS
(#6968) — 14 parça
32
32
35
101
100
101
41
97
100
102
144
229
228
101
100
289
95
38
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=1650 SERVICED BY L=3000
0-01260-300-0
01
1
9908-
32
PIPE; DELIVERY,FUEL TANK
(B) L=1800 SERVICED BY L=3000
0-01260-300-0
01
1
9908-
35
PIPE; FUEL TANK,RETURN
L=1450 SERVICED BY L=3000
0-01260-300-0
01
1
9908-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150
1-09360-677-1
01
1
0009-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
06
1
9908-
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
02
1
9908-
97
BRACKET; CLIP
L=115
1-47475-305-0
01
1
9908-
100
CLIP; FUEL PIPE
ID=16X2 L=20
9-09535-536-0
04
1
9908-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28680-825-0
04
1
9908-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
02
1
9908-
144
BOLT; CLIP,FUEL PIPE,C/MBR
M8X35 FLANGE
0-28680-835-0
01
1
9908-
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28081-040-0
02
1
9908-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
9908-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
02
1
0009-
