◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#69679) — 96 parça
çizim 122776
348 274 267 274 267 272
BalonParca AdiParca NoAdetTipApplied Date A B
267 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 06 1 1010- ● ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1010- ●
348 BRACKET; CLIP 8-98034-794-0 01 1 1010- ● ●
348 BRACKET; CLIP 8-98034-793-0 01 1 1010- ● ●

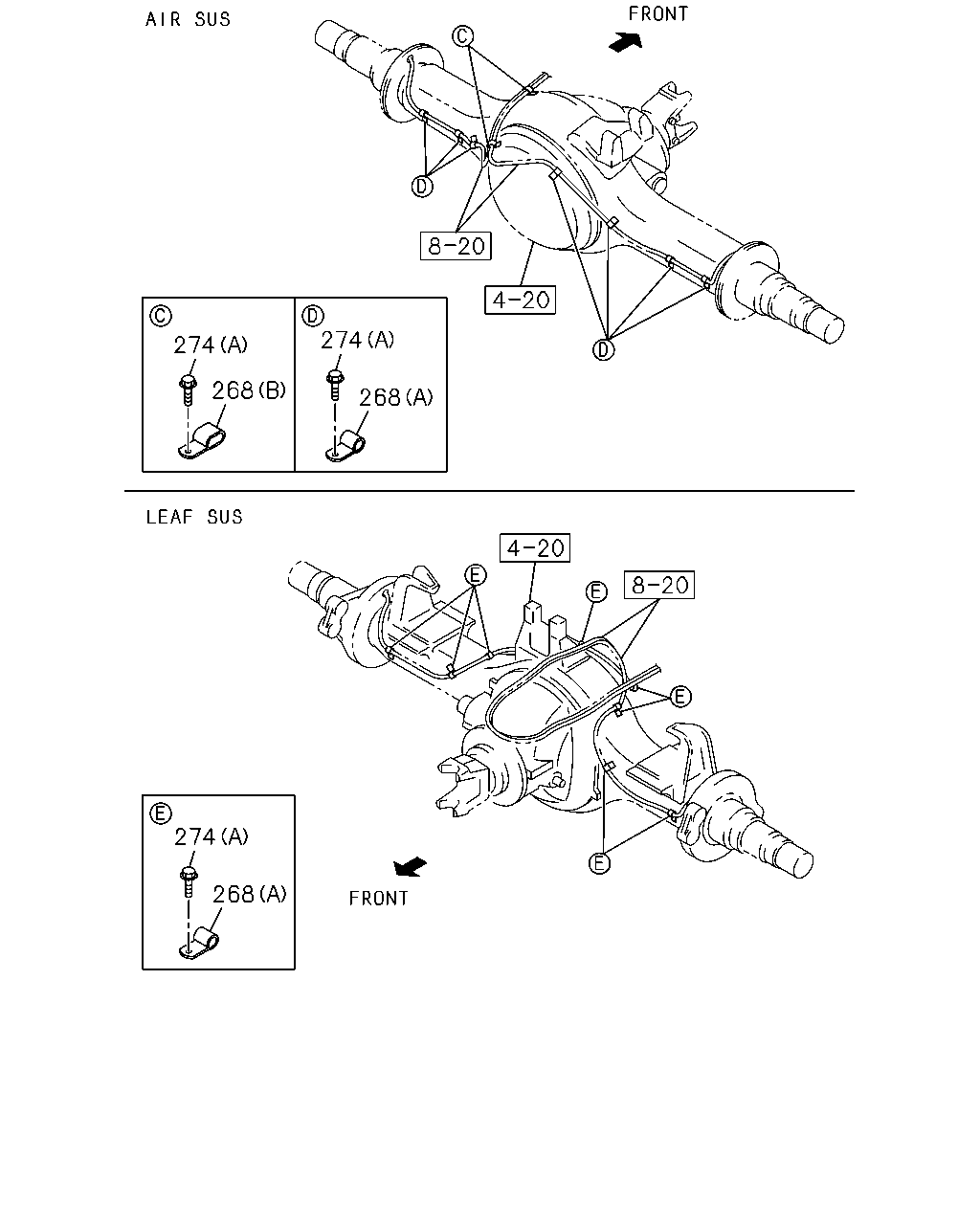

çizim 122874
274 274 268 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1010- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1010- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1010- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1010- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1010- ●

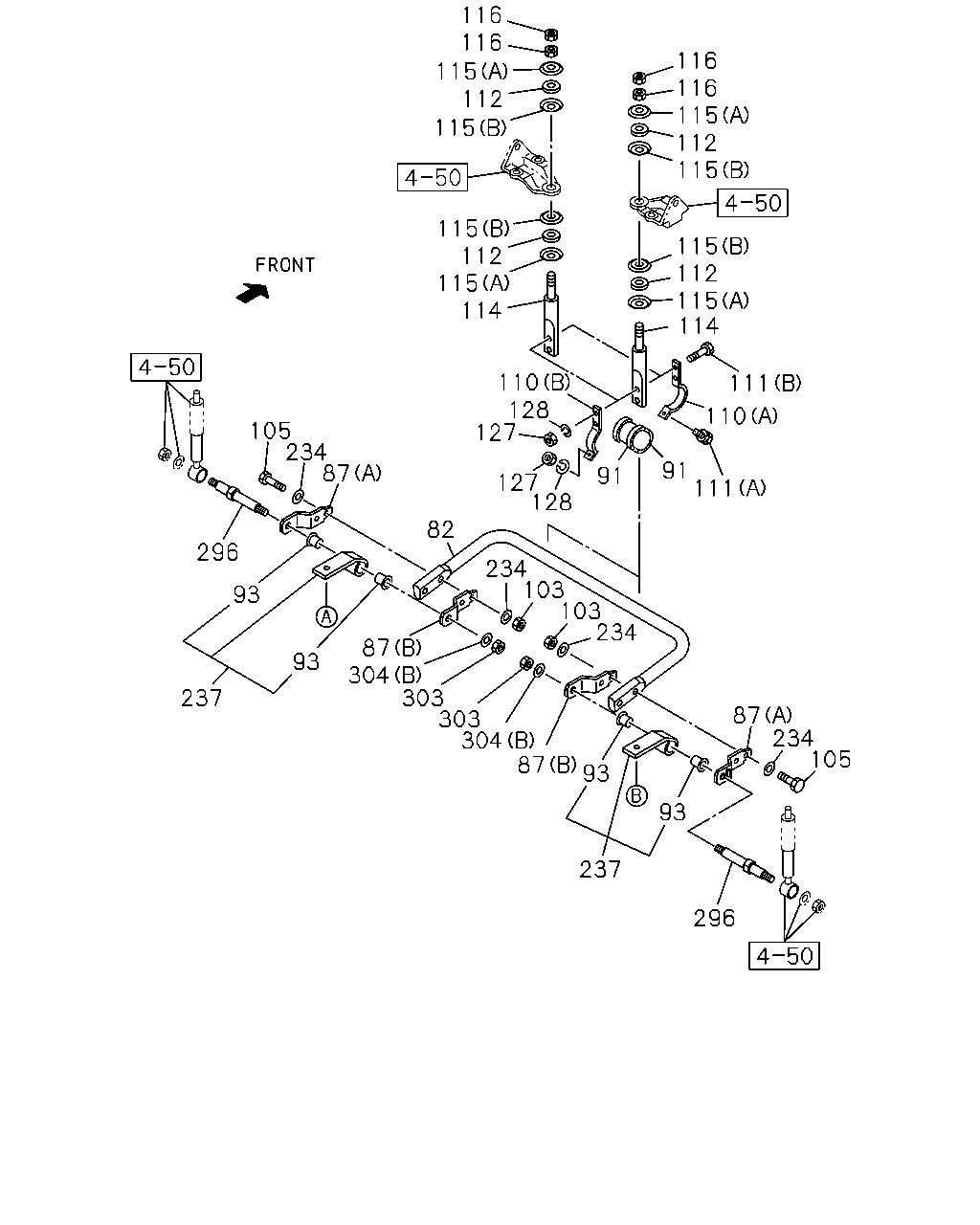

çizim 189035
116 116 115 112 115 115 112 115 114 111 110 91 111 91 116 116 115 112 115 115 112 115 114 110 128 127 127 128 105 87 234 296 93 237 93 87 304 303 303 304 87 93 93 237 296 82 234 103 103 234 87 234 105
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98012-961-1 01 1 1010-1306 ● ●
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1307- ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1010-1306 ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1307- ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 1010-1306 ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1307- ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1010-1306 ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1307- ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1010-1306 ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1307- ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1010-1306 ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1307- ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1010-1306 ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1307- ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1010-1306 ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1307- ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 1010-1306 ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1307- ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-065-0 02 1 1010-1306 ● ●
114 ROD; STAB BAR 1-51773-065-0 02 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1307- ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 1010-1306 ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1307- ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1010-1306 ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1307- ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1010-1306 ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1307- ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1010-1306 ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1307- ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1010-1306 ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1307- ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 1010-1306 ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1307- ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1010-1306 ● ●
296 PIN; STAB 8-98022-874-1 02 1 1307- ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1010-1306 ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 1307- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1010- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●

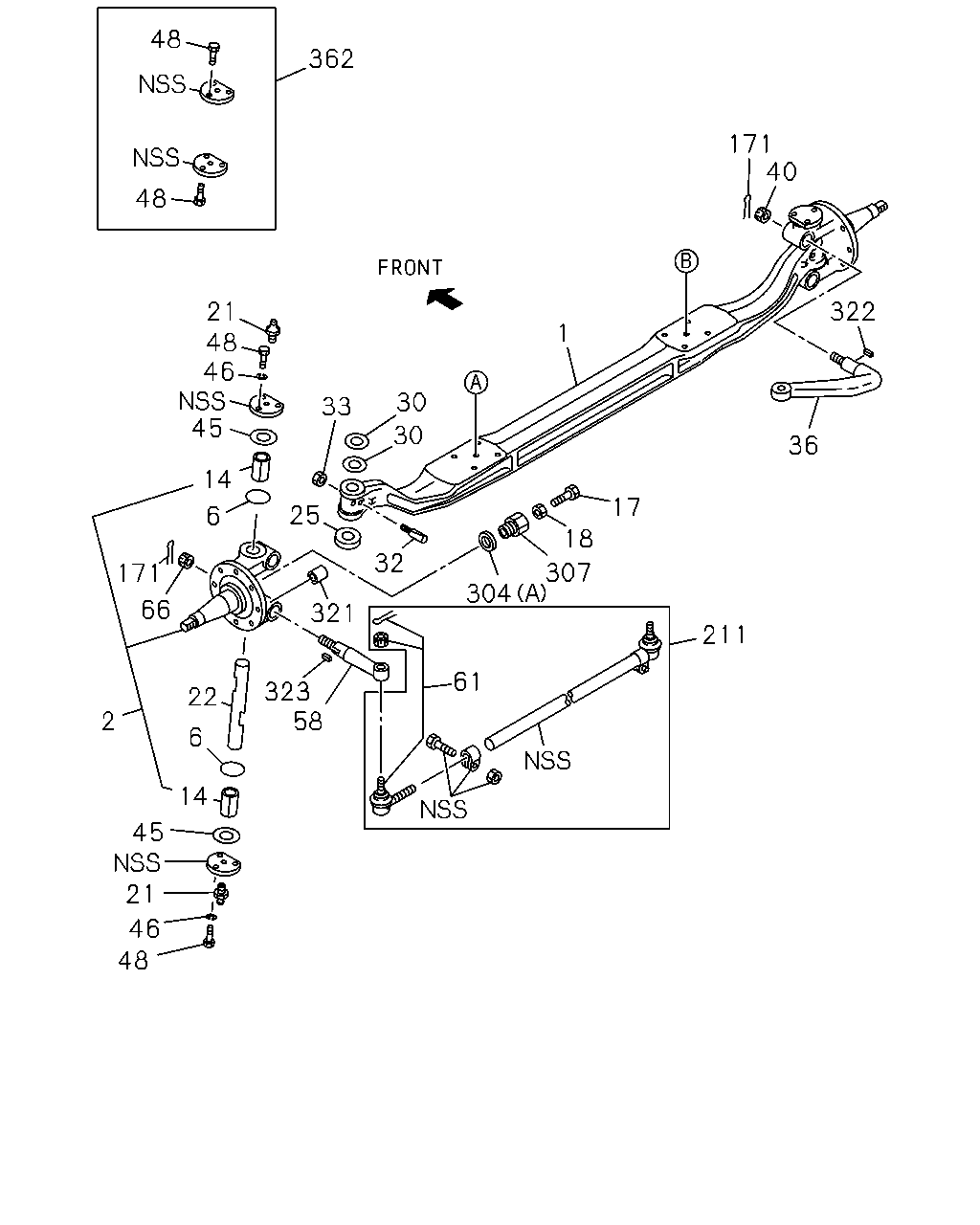

çizim 189039
48 48 362 1 171 322 36 211 17 18 307 304 61 321 323 58 32 30 30 33 25 22 6 14 2 45 21 46 48 66 171 6 14 45 46 48 21 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-161-0 01 1 1010- ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 1010- ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 1010- ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 1010- ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1010- ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 1010- ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 1010- ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 1010- ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1010- ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 1010- ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 1010- ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 1010- ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 1010- ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 1010- ● ●
36 ARM; KNUCKLE 1-43133-087-0 01 1 1010- ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 1010- ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 1010- ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1010- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1010- ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 1010- ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 1010- ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 1010- ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 1010- ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 1010- ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1010- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1010- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1010- ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 1010-1306 ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1307- ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1010- ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1010- ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1010- ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1010- ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1010- ● ●
