◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#69678) — 708 parça

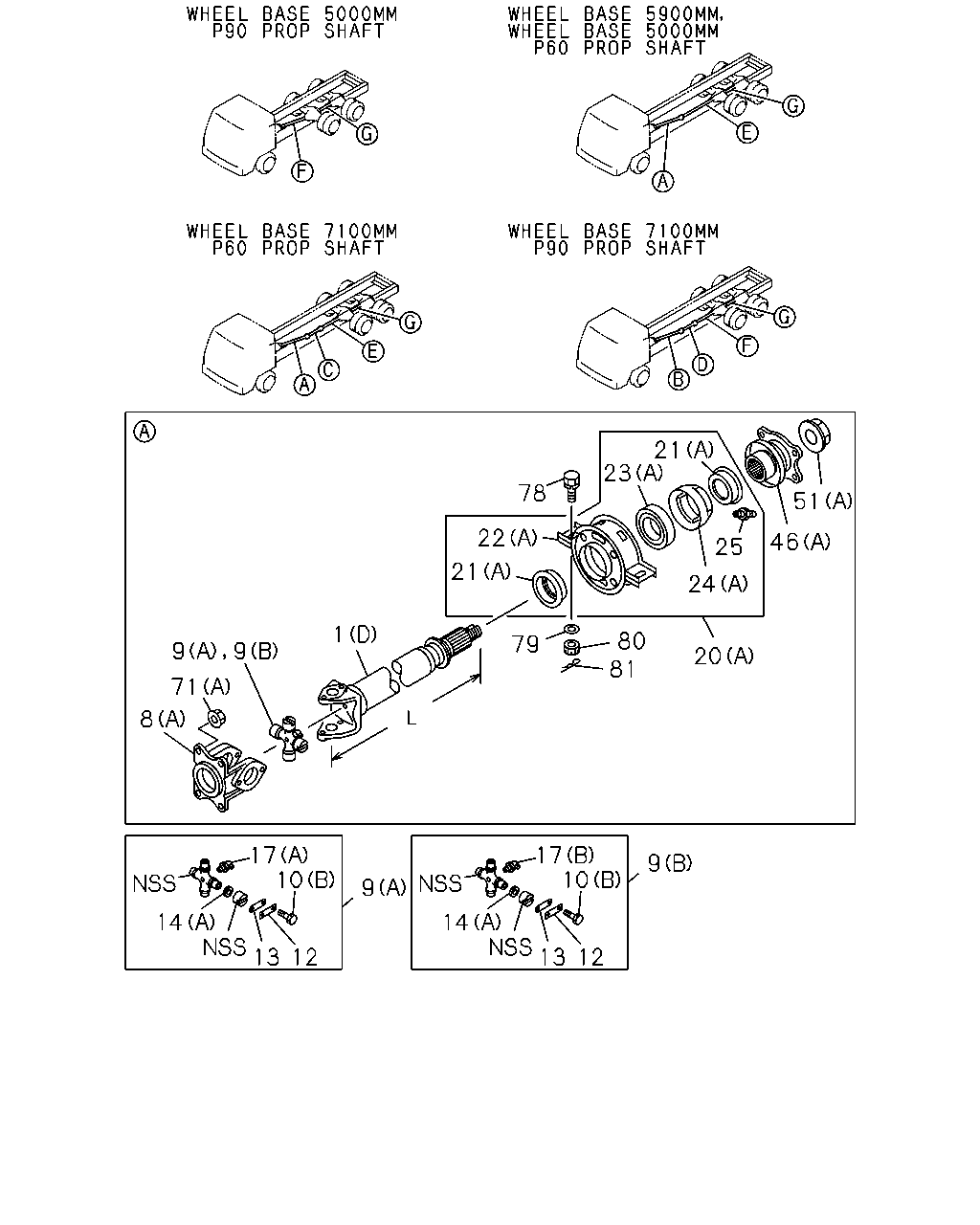

çizim 122827
9 9 71 8 1 17 14 13 12 17 14 13 12 9 10 9 10 79 81 20 80 21 78 22 23 21 51 25 24 46
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 1010- ●
1 SHAFT; PROP
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644 		8-98171-501-0 01 1 1010- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 1010- ●
1 SHAFT; PROP
(G) L=441 		1-37124-191-0 01 1 1010- ● ● ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 1010-1111 ●
1 SHAFT; PROP
(D) L=1014 		8-98201-571-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 1010- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98201-572-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1226 		1-37151-722-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 04 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 1010- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1010-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37300-111-0 01 1 1010-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END 		1-37300-094-1 AR 1 1010- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 1010- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1010-1306 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 32 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 12 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 12 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1307- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1204-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1204-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1010- ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1010- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1010- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1010- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1010- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ● ●

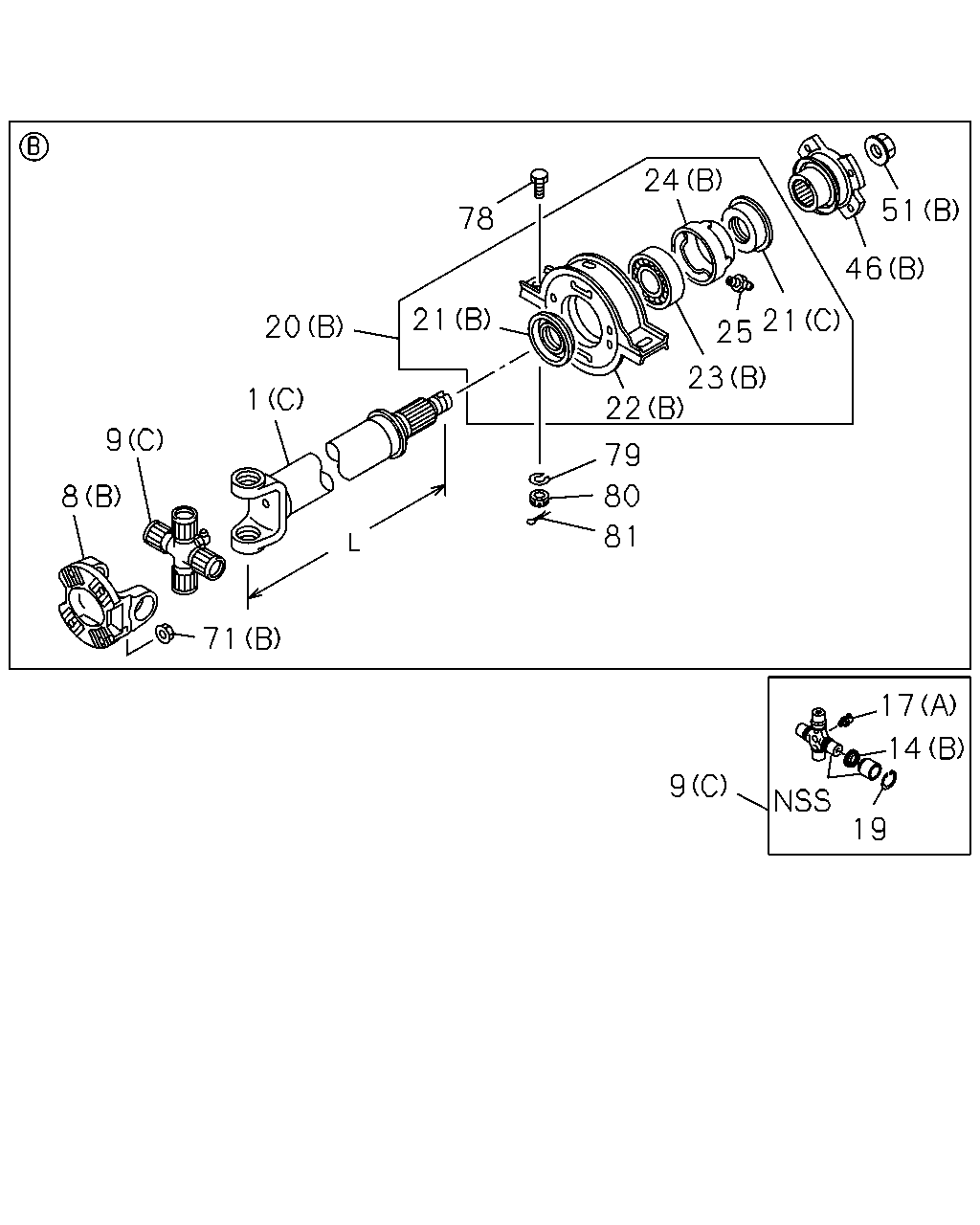

çizim 122863
8 9 71 1 20 21 78 22 24 21 25 23 46 51 79 80 81 9 19 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 1010- ●
1 SHAFT; PROP
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644 		8-98171-501-0 01 1 1010- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 1010- ●
1 SHAFT; PROP
(G) L=441 		1-37124-191-0 01 1 1010- ● ● ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 1010-1111 ●
1 SHAFT; PROP
(D) L=1014 		8-98201-571-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 1010- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98201-572-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1226 		1-37151-722-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 04 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 1010- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1010-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37300-111-0 01 1 1010-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END 		1-37300-094-1 AR 1 1010- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1307- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1204-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1204-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1010- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1010- ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1010- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1010- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1010- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1010- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ● ● ●

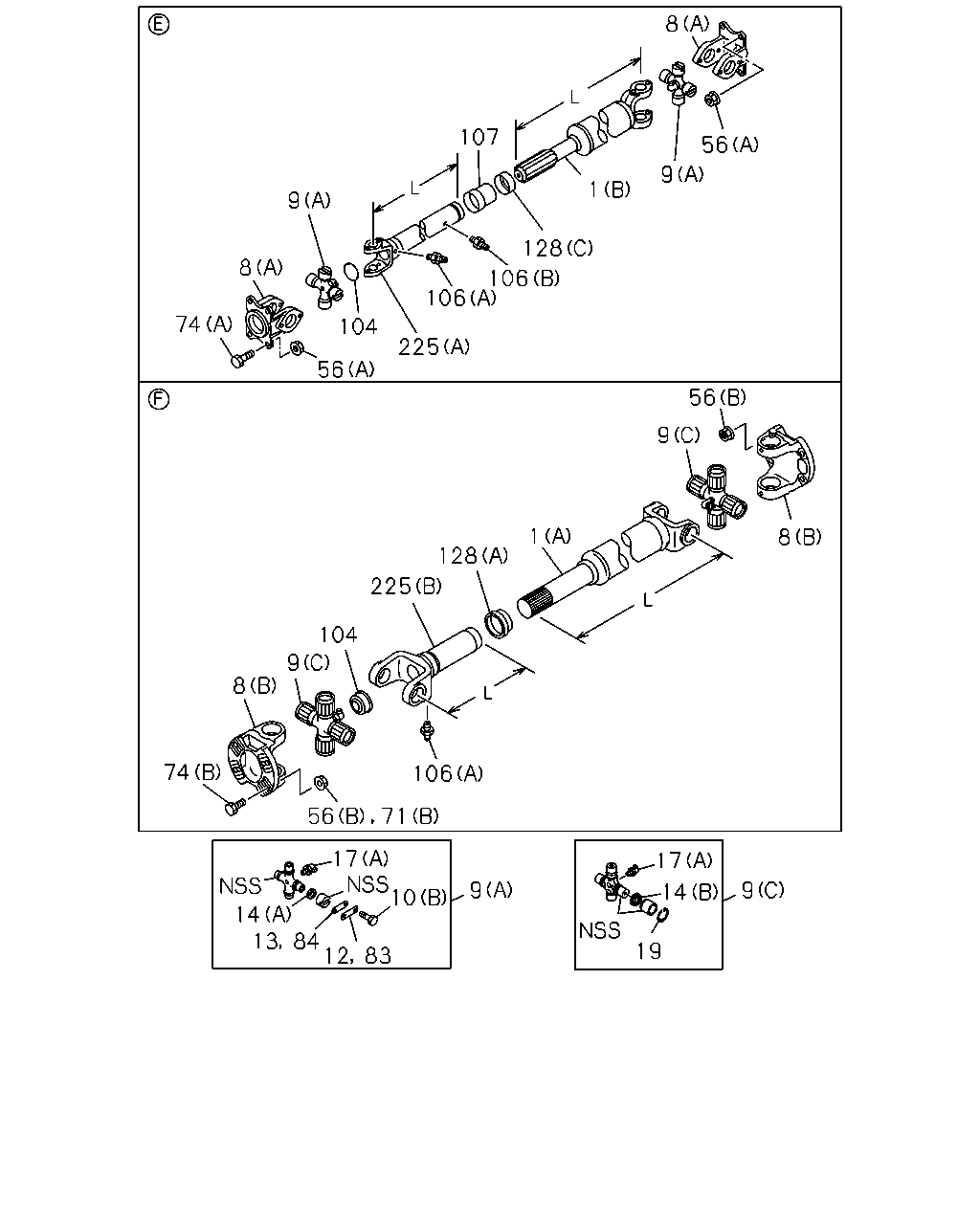

çizim 189033
8 56 9 1 128 106 106 225 104 9 8 56 74 56 9 1 128 225 104 9 8 106 71 56 74 17 10 14 13 12 83 9 17 14 19 9 8 107 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 1010- ●
1 SHAFT; PROP
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644 		8-98171-501-0 01 1 1010- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 1010- ●
1 SHAFT; PROP
(G) L=441 		1-37124-191-0 01 1 1010- ● ● ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 1010-1111 ●
1 SHAFT; PROP
(D) L=1014 		8-98201-571-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 1010- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98201-572-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1226 		1-37151-722-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 04 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 1010- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1010-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37300-111-0 01 1 1010-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END 		1-37300-094-1 AR 1 1010- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 1010- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1010-1306 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 32 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 12 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 12 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1307- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1204-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1204-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1010- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 08 1 1010- ● ●
56 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 08 1 1010- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 08 1 1010- ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1010- ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1010- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1010- ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) (A) M16X48 		1-09000-383-0 04 1 1010- ● ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) (A) M16X48 		1-09000-383-0 04 1 1010- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (B) M14X50 		1-09000-645-0 04 1 1010- ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (B) M14X50 		1-09000-645-0 04 1 1010- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010- ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 1010- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010- ● ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1010- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1010- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1010- ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1010- ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 1010- ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 1010- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1010- ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 1010- ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1010- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1010- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-109-1 01 1 1010- ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1010- ● ●
çizim 189037
9 102 128 1 9 10 198 96 96 198 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 1010- ●
1 SHAFT; PROP
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644 		8-98171-501-0 01 1 1010- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 1010- ●
1 SHAFT; PROP
(G) L=441 		1-37124-191-0 01 1 1010- ● ● ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 1010-1111 ●
1 SHAFT; PROP
(D) L=1014 		8-98201-571-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 1010- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98201-572-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1226 		1-37151-722-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 1010- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1010-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37300-111-0 01 1 1010-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END 		1-37300-094-1 AR 1 1010- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 1010- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1010-1306 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 32 1 1307- ●
96 BOLT; PROP SHAFT 1-09088-006-0 08 1 1010- ● ● ●
102 YOKE; TRANSFER TO AXLE
L=303.3 		1-37241-094-0 01 1 1010- ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-017-0 01 1 1010- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1010- ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 1010- ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1010- ● ●
198 PLATE; PROP SHAFT 1-37319-009-0 04 1 1010- ● ● ●

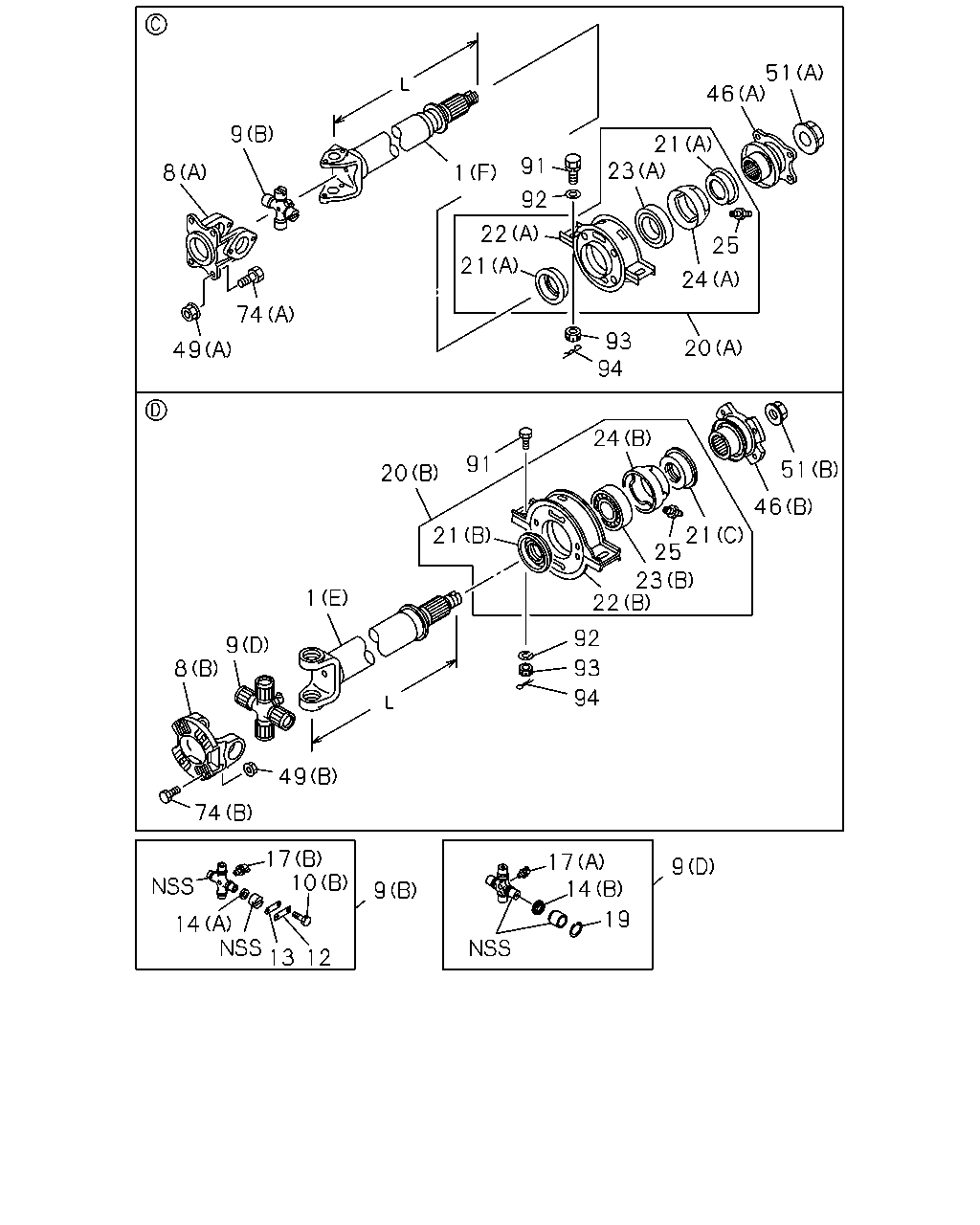

çizim 189040
9 8 74 49 1 91 22 92 21 23 21 46 51 25 24 20 93 94 20 91 21 1 9 8 74 49 92 93 94 22 23 25 21 46 51 24 17 10 14 13 12 9 17 14 19 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 1010- ●
1 SHAFT; PROP
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (D) L=644 		8-98171-501-0 01 1 1010- ●
1 SHAFT; PROP
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 1010- ●
1 SHAFT; PROP
(G) L=441 		1-37124-191-0 01 1 1010- ● ● ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 1010-1111 ●
1 SHAFT; PROP
(D) L=1014 		8-98201-571-0 01 1 1112- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 1010- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98201-572-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 1010-1111 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1226 		1-37151-722-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 1010- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1010-1306 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1010-1306 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 04 1 1307- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1010- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(E) 		1-37300-090-0 02 1 1010- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1010-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37300-111-0 01 1 1010-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 01 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
(B) 1ST 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 2ND 		1-37300-095-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END 		1-37300-094-1 AR 1 1010- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) 1ST 		1-37300-094-1 AR 1 1010- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 1010- ●
10 BOLT; UJT
(A) 		1-09087-046-0 08 1 1010- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1010-1306 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1307- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1010-1306 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 32 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 1307- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1010-1306 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 12 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 1307- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1010-1306 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 12 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 1010- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1010-1306 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1307- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1010-1306 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 16 1 1307- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1010- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1010- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1112-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1204-1306 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1307- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1010-1111 ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1112-1203 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1204-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1307- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1010- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1010- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 02 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1010-1306 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1010-1306 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 04 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1010-1306 ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1010-1306 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1307- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 02 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1010-1306 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1010-1306 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1307- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 02 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1010-1306 ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1010-1306 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1307- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 02 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1010-1306 ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1010-1306 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1307- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1010- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 02 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1010-1203 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1204-1306 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 02 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1010-1306 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1010-1306 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1307- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1010- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1010- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1010- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 02 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1010-1306 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1307- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1010- ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) (A) M16X48 		1-09000-383-0 04 1 1010- ● ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) (A) M16X48 		1-09000-383-0 04 1 1010- ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (B) M14X50 		1-09000-645-0 04 1 1010- ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) (B) M14X50 		1-09000-645-0 04 1 1010- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1010- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1010- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 1010-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1010- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
