◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶

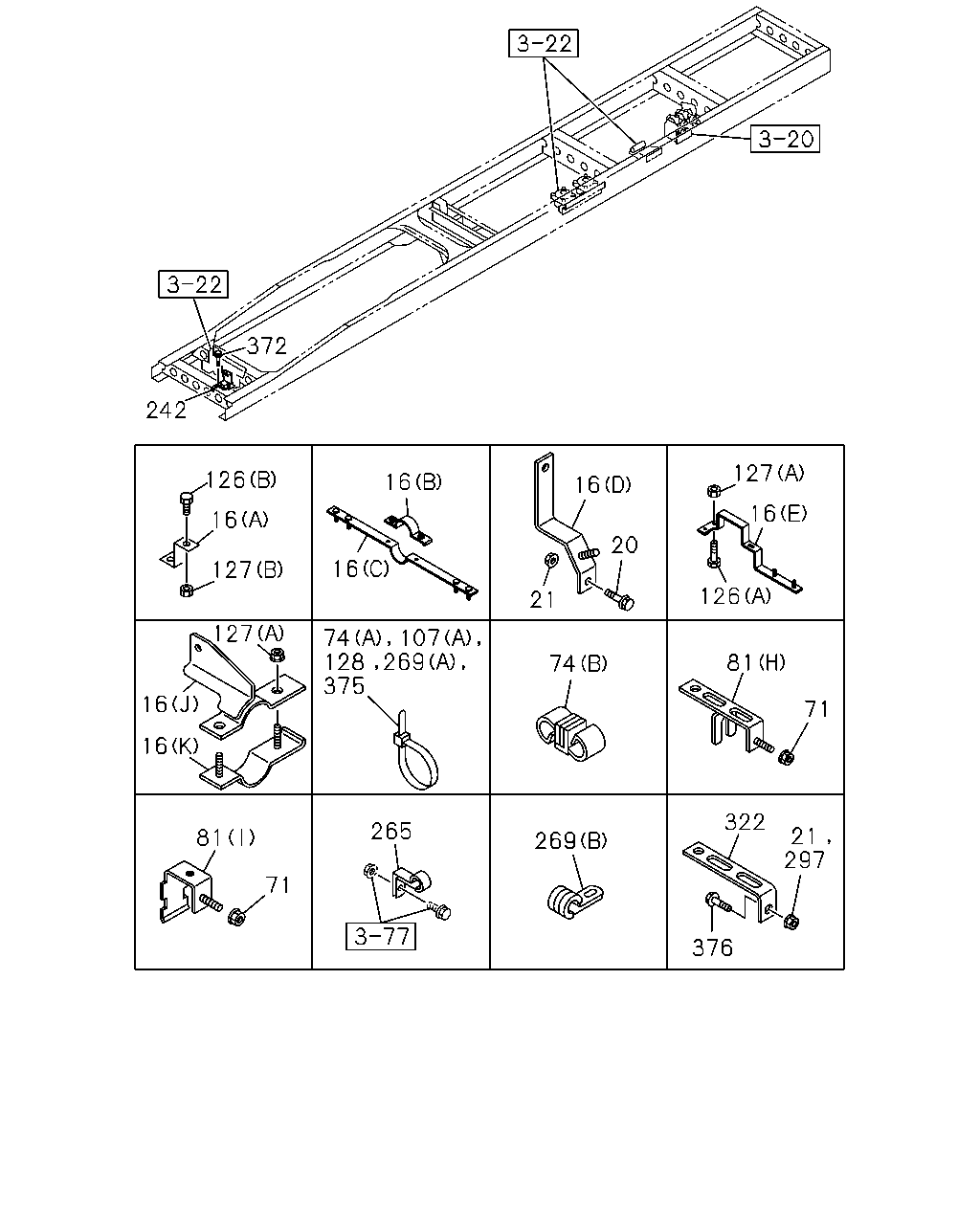

3-78 — FIXING PARTS; AIR PIPING (#69677) — 407 parça
çizim 121823
372 242 126 127 16 16 16 21 16 20 127 126 16 81 71 16 127 16 74 128 375 74 107 269 81 71 269 265 376 322 21 297
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(L) L=100 		1-47477-620-1 01 1 1307- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-761-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-761-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 02 1 1201-1306 ●
16 BRACKET; PIPE CLIP
(K) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(K) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(K) 		8-98199-763-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(K) 		8-98199-763-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 02 1 1201-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 03 1 1010- ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 15 1 1010-1306 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 11 1 1307- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1010-1306 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 1010-1306 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1307- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1010-1109 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1110-1306 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 03 1 1110-1306 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 02 1 1307- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1307- ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 1010- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 11 1 1010-1306 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 01 1 1307-1309 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1307-1309 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 01 1 1310- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1310- ●
74 CLIP; NYLON TUBE
DIFF LOCK<C3N> (A) L=350 		1-09707-183-0 01 1 1310- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 04 1 1010-1109 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 04 1 1110-1306 ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 13 1 1307- ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) EXC. COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 13 1 1307- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 10 1 1010-1306 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 08 1 1307- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 02 1 1010-1306 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 09 1 1307- ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 1010-1306 ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
(E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010-1306 ●
81 BRACKET; CLIP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 13 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 07 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 50 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1010- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 04 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 04 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 45 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ●
126 BOLT; CLIP BRKT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1201-1306 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1010- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1111-1112 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1111-1306 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 10 1 1307- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1010- ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 1010- ● ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1010- ● ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (B) ID=33 L=30 		8-97619-250-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=13 L=50 		0-95235-286-0 01 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307-1309 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307-1309 ●
269 CLIP; BAND,NYLON TUBE
EXC. DIFF LOCK<C3N> (B) ID=28 L=40 		1-09701-261-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1010- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 1010- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 1010-1306 ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1010-1306 ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1010-1306 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
çizim 122302
388 81 133 81 133 71 81 71 108 107 81 107 133 81
BalonParca AdiParca NoAdetTipApplied Date A B
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 1010-1306 ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
(E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010-1306 ●
81 BRACKET; CLIP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 13 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 07 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 50 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 08 1 1307- ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1307- ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1010- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 1010-1306 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 04 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 04 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 45 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 11 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 1010-1306 ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=350 		1-09707-183-0 20 1 1307- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
108 BOLT; TUBE CLIP
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
108 BOLT; TUBE CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
108 BOLT; TUBE CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1109 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1109 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1110-1306 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1110-1306 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
388 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 02 1 1307- ● ●
388 SEAL
100X40 		1-72498-022-1 03 1 1010- ● ●
çizim 122447
127 126 16 16 126 127 21 269 20 16 16 126 133 81 71 341 341 341 341 81 133 21 269 20 126 133 67 34 127 108 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(L) L=100 		1-47477-620-1 01 1 1307- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-761-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(J) 		8-98199-761-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 02 1 1201-1306 ●
16 BRACKET; PIPE CLIP
(K) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(K) 		8-98212-967-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 1010-1110 ●
16 BRACKET; PIPE CLIP
(K) 		8-98199-763-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(K) 		8-98199-763-0 01 1 1111-1112 ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 02 1 1201-1306 ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(J) 		8-98212-968-0 01 1 1307- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 03 1 1010- ●
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 1010- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 1010- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 1010-1110 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1111- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
34 NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE 		0-91180-108-0 01 1 1010-1109 ●
34 NUT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 1110-1306 ●
34 NUT; BRKT
EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
34 NUT; BRKT
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
34 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
67 BRACKET; CLIP
WHEEL BASE 5000MM(50W) L=100 H=30 		1-47477-645-2 01 1 1010-1109 ●
67 BRACKET; CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) L=100 H=30 		1-47477-645-2 01 1 1110-1306 ●
67 BRACKET; CLIP
EXC. COUNTRY NEW ZEALAND(CX6) L=100 H=30 		1-47477-645-2 01 1 1307- ● ●
67 BRACKET; CLIP
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) L=100 H=30 		1-47477-645-2 01 1 1307- ●
67 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) L=100 H=30 		1-47477-645-2 01 1 1307- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M10 FLANGE 		0-91180-210-0 01 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1010-1306 ● ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ● ●
71 NUT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 08 1 1307- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ●
71 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
71 NUT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
81 BRACKET; CLIP
(I) 		8-98186-380-0 01 1 1106-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (I) 		8-98186-380-0 01 1 1307- ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 1010-1306 ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (G) 		1-47479-693-0 02 1 1307- ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (D) L=60 H=30 		1-47477-716-1 02 1 1307- ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (A) L=170 		1-47479-380-0 01 1 1307- ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (B) 		8-98031-420-2 01 1 1307- ●
81 BRACKET; CLIP
(E) 		8-98129-212-0 04 1 1010-1012 ● ●
81 BRACKET; CLIP
(H) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 1010-1306 ● ●
81 BRACKET; CLIP
EXC. H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ● ●
81 BRACKET; CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> (F) L=65 B=25 		8-98135-584-0 01 1 1307- ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1010-1306 ●
81 BRACKET; CLIP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
81 BRACKET; CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) L=150 H=30 		1-47477-629-2 01 1 1307- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1010-1306 ● ●
108 BOLT; TUBE CLIP
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ● ●
108 BOLT; TUBE CLIP
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
108 BOLT; TUBE CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
126 BOLT; CLIP BRKT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 1201-1306 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010-1110 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 1010- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1111-1112 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010-1110 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 05 1 1111-1306 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 10 1 1307- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1010- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 1307- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 02 1 1307- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1010-1306 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1307- ● ●
133 BOLT; BRKT
EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 02 1 1307- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1010-1109 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) M8X30 FLANGE 		0-28650-830-0 01 1 1010-1109 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1110-1306 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1110-1306 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1309 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. H.S.A SYSTEM<6EP> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) H.S.A SYSTEM<6EP> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
EXC. COUNTRY NEW ZEALAND(CX6) M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> M8X30 FLANGE 		0-28650-830-0 01 1 1310- ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (B) ID=33 L=30 		8-97619-250-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=13 L=50 		0-95235-286-0 01 1 1010- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 06 1 1010-1306 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307-1309 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1307-1309 ●
269 CLIP; BAND,NYLON TUBE
EXC. DIFF LOCK<C3N> (B) ID=28 L=40 		1-09701-261-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 1010- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 1010- ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
341 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1307- ● ●
341 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 1307- ● ●
341 CLIP; HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 1307- ● ●
341 CLIP; HARNESS
(C) L=250 		5-09707-030-1 07 1 1307- ● ●
341 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
