3-75 — BRAKE PIPING; AIR,FRONT (#69675) — 65 parça

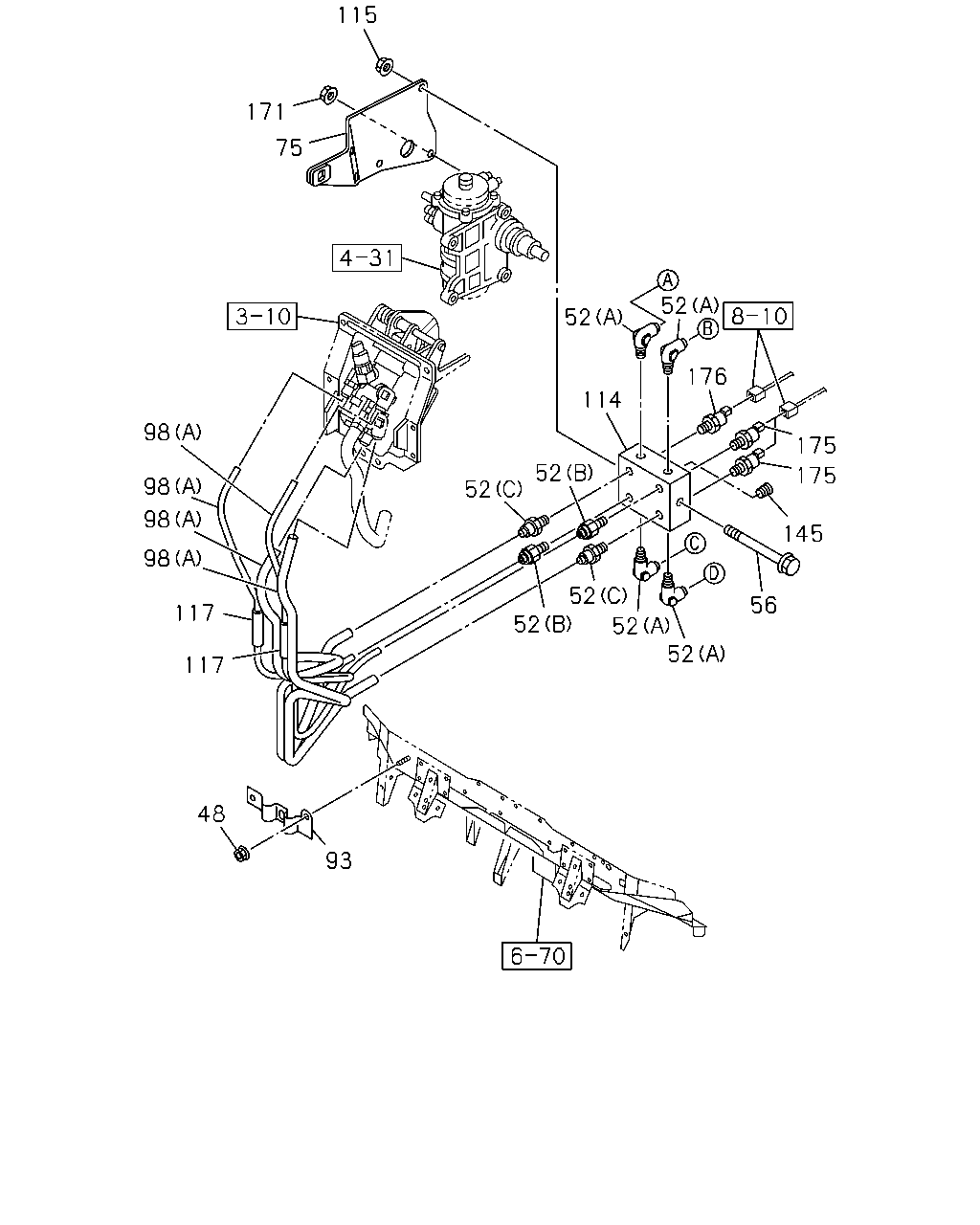

çizim 122273
115 171 75 52 114 176 52 175 175 145 56 52 52 52 52 52 52 93 48 117 117 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1010- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1010- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 1010- ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 1010- ● ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 1010- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1010- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1010- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1010- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1010- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1010- ● ●

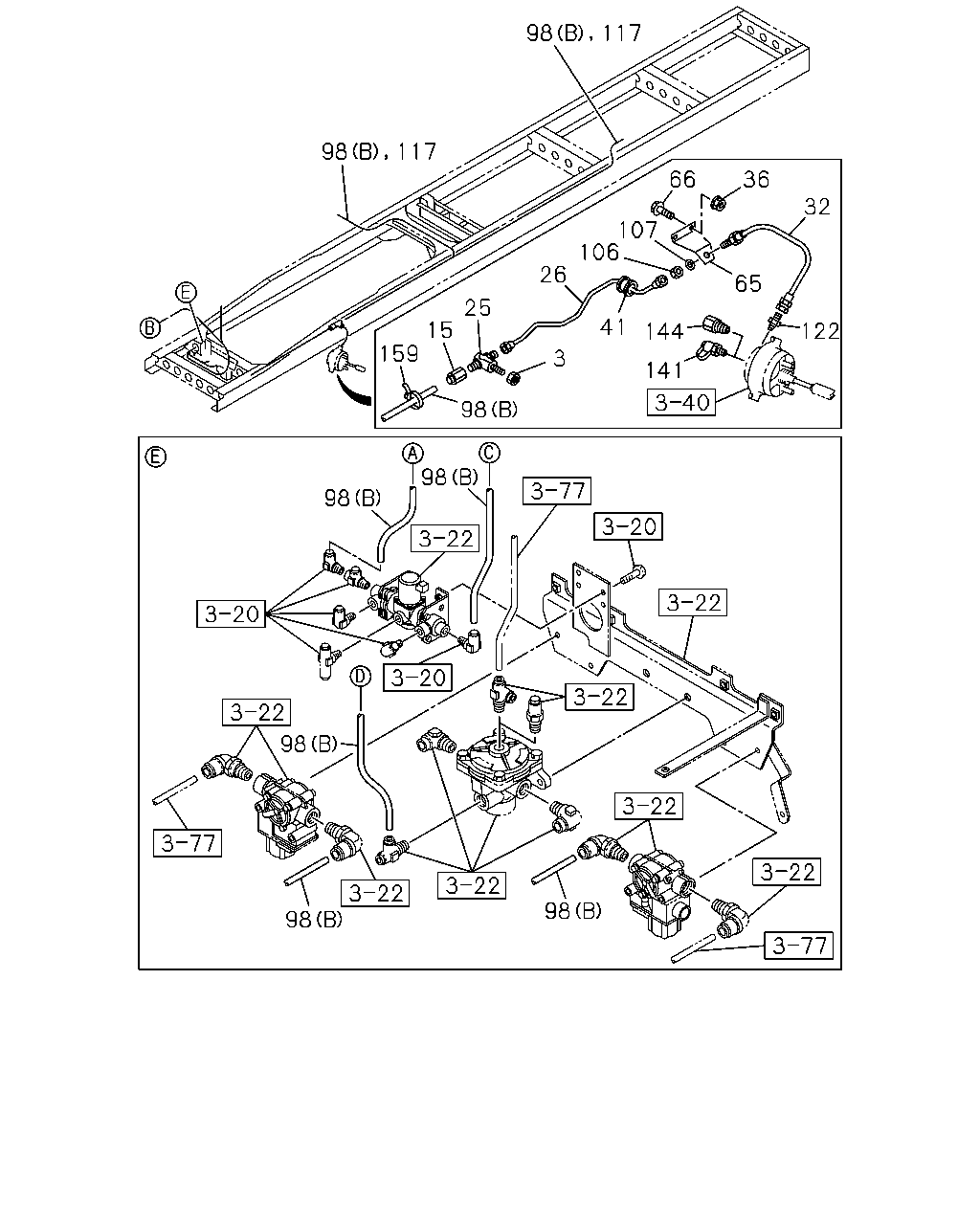

çizim 122312
3 41 144 141 122 65 32 36 66 107 106 26 25 15 159 98 98 117 98 117 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 1010- ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1010- ● ●
25 UNION; AIR PIPE
M16X2 2WAY ELBOW 		1-09654-148-1 02 1 1010- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-1 01 1 1010- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=657 		8-98126-150-1 01 1 1010- ● ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 1010- ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 1010- ● ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 1010- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 1010- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1010- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1010- ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 1010- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-816-0 02 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1010- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1010- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1010- ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 1010- ● ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1010- ● ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1010- ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1010- ● ●
