3-41 — REAR BRAKE POWER CHAMBER (#69670) — 30 parça

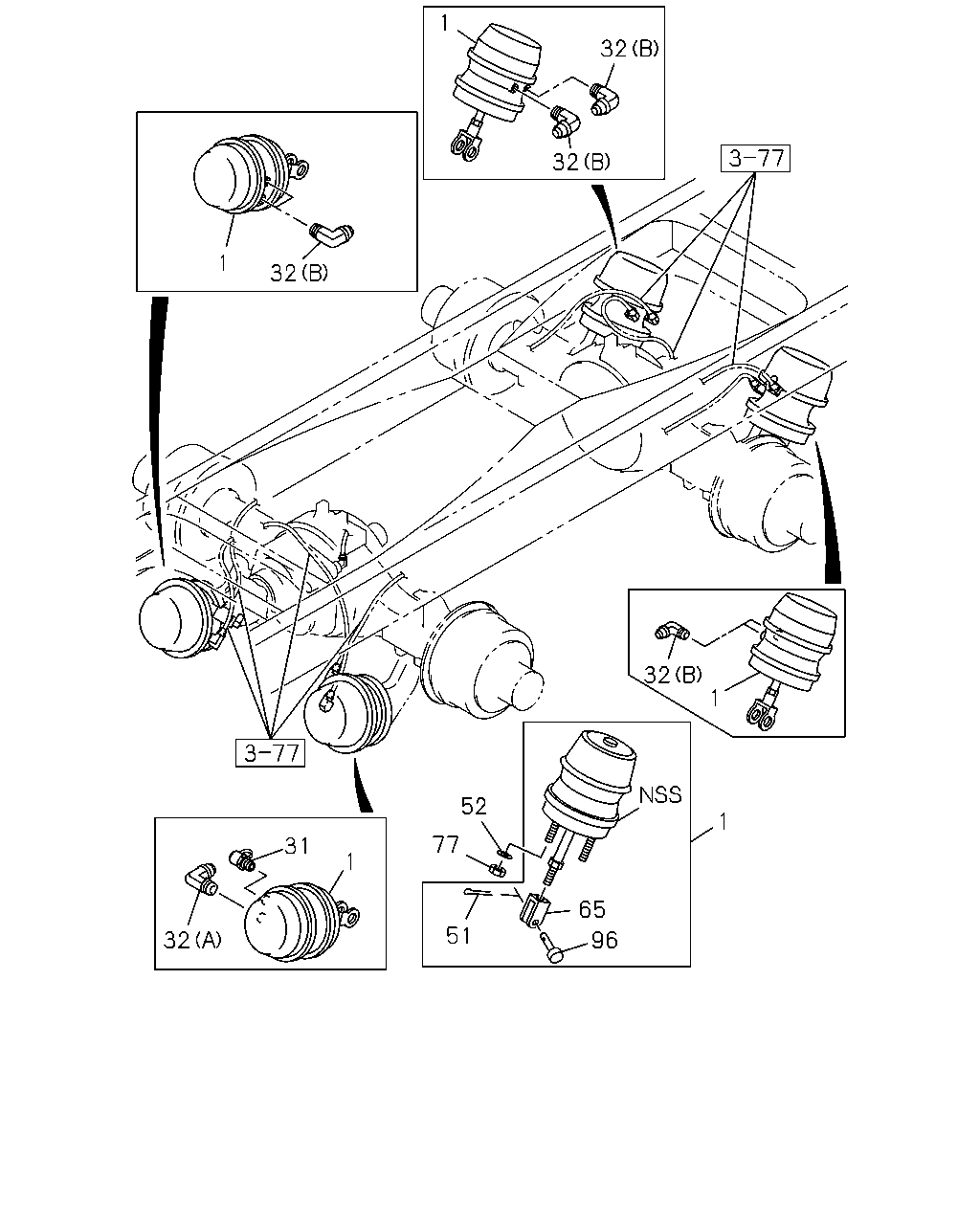

çizim 118233
1 32 32 32 1 32 1 1 52 77 65 96 51 31 32 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-943-0 01 1 1010-1205 ● ●
1 CHAMBER ASM; SPRING 1-48250-943-0 01 1 1010-1205 ● ●
1 CHAMBER ASM; SPRING 1-48250-957-0 01 1 1206-1306 ● ●
1 CHAMBER ASM; SPRING 1-48250-957-0 01 1 1206-1306 ● ●
1 CHAMBER ASM; SPRING 1-48250-957-0 02 1 1307- ● ●
1 CHAMBER ASM; SPRING 1-48250-944-0 01 1 1010-1205 ● ●
1 CHAMBER ASM; SPRING 1-48250-944-0 01 1 1010-1205 ● ●
1 CHAMBER ASM; SPRING 1-48250-958-0 01 1 1206-1306 ● ●
1 CHAMBER ASM; SPRING 1-48250-958-0 01 1 1206-1306 ● ●
1 CHAMBER ASM; SPRING 1-48250-958-0 02 1 1307- ● ●
31 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1010- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 04 1 1307- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 & RC1/4 3WAY 		1-09660-804-0 01 1 1010- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 07 1 1010-1306 ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 03 1 1307- ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 1010-1306 ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 1010-1306 ● ●
51 PIN; SPLIT 1-48259-275-0 04 1 1307- ● ●
52 WASHER; PL 1-41519-038-0 04 1 1010-1306 ● ●
52 WASHER; PL 1-41519-038-0 04 1 1010-1306 ● ●
52 WASHER; PL 1-41519-038-0 08 1 1307- ● ●
65 JOINT; JAW 1-48259-321-0 02 1 1010-1306 ● ●
65 JOINT; JAW 1-48259-321-0 02 1 1010-1306 ● ●
65 JOINT; JAW 1-48259-321-0 04 1 1307- ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1010-1306 ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1010-1306 ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 08 1 1307- ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 1010-1306 ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 1010-1306 ● ●
96 PIN; JAW JOINT 1-48259-273-0 04 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
