1-40 — FUEL TANK (#6967) — 86 parça

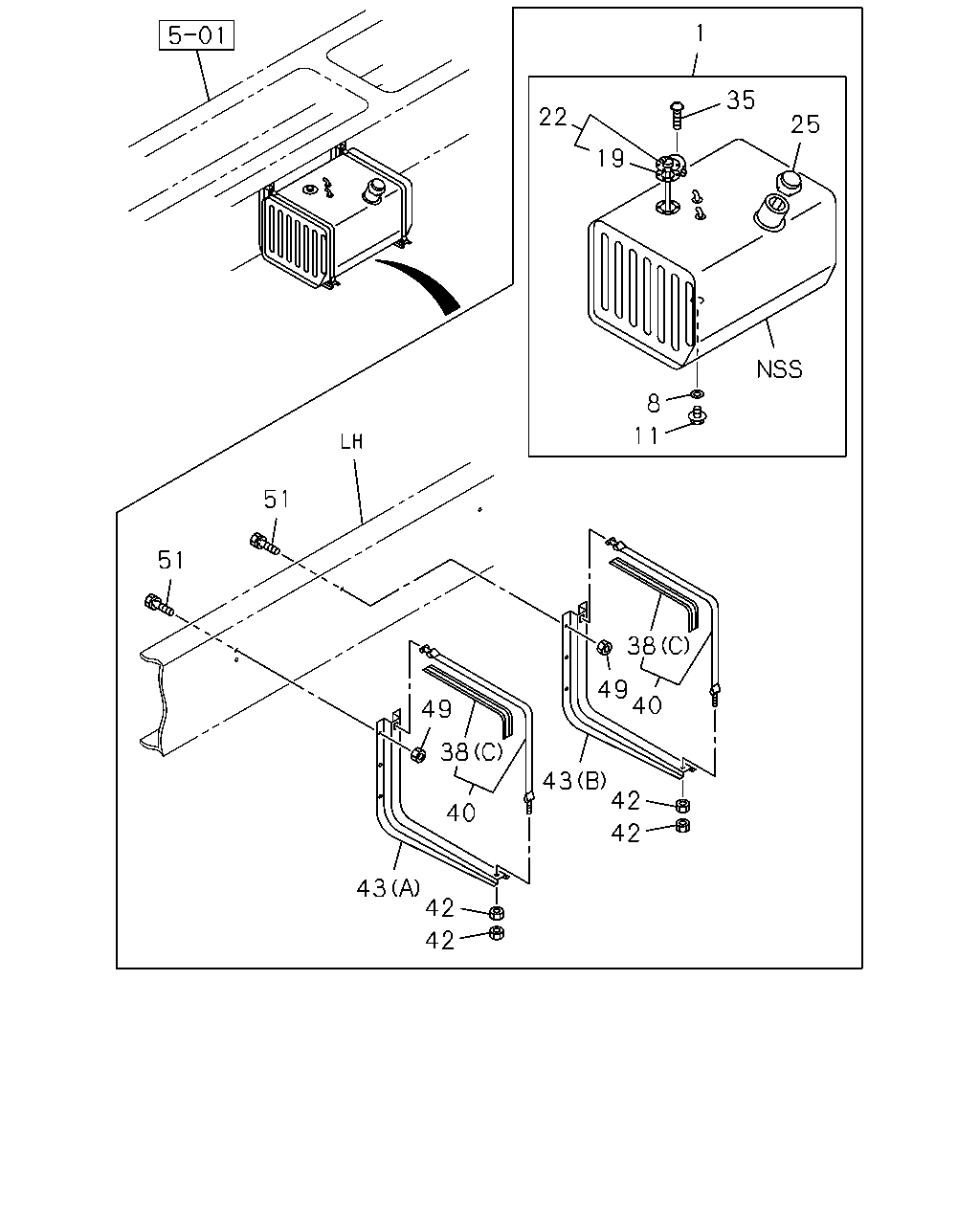

1 35 32 29 25 13 19 16 8 22 11 51 51 38 38 49 38 43 42 40 38 42 43 42 42 49 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22400-855-0	01	1	9908-0003
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22401-121-1	01	1	0004-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22401-193-0	01	1	0201-
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-028-2	01	1	9908-
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-027-0	01	1	9908-0003
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-108-2	01	1	0004-
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	01	1	9908-0003
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22401-117-1	01	1	0004-0112
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22401-190-0	01	1	0201-
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9908-0106
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9908-0003
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0006-0106
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	9908-
16	GASKET; PLUG EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	9908-
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9908-
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9908-
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9908-
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9908-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	9908-
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9908-0003
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-0112
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	9908-
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	9908-
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9908-
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9908-
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (C) L=1000	1-22553-028-1	02	1	9908-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9908-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	9908-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	9908-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	9908-
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9908-
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (A)	1-53461-435-1	01	1	9908-
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (B)	1-53461-436-4	01	1	9908-
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	9908-
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	9908-
49	NUT; BRKT M12	9-99110-512-0	08	1	9908-
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9908-
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9908-

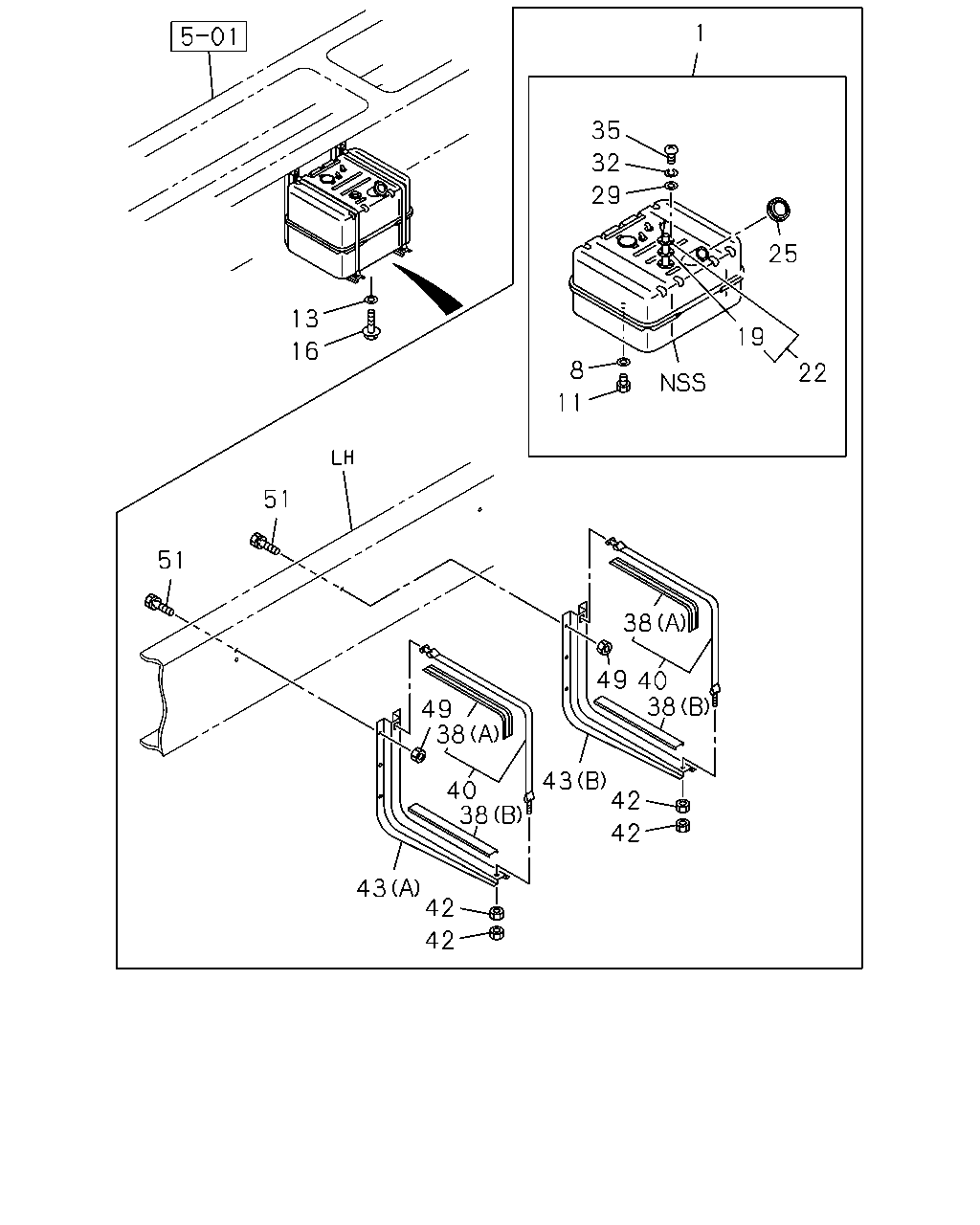

1 35 22 25 19 8 11 51 51 38 49 40 49 38 43 42 40 42 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22400-855-0	01	1	9908-0003
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22401-121-1	01	1	0004-0112
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> 720X610X496 200L	1-22401-193-0	01	1	0201-
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-028-2	01	1	9908-
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-027-0	01	1	9908-0003
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 880X549X649 300L	1-22401-108-2	01	1	0004-
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22400-854-1	01	1	9908-0003
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22401-117-1	01	1	0004-0112
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46> 720X610X496 200L	1-22401-190-0	01	1	0201-
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9908-0106
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9908-0003
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-09604-052-0	01	1	0004-0005
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0006-0106
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9908-
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	9908-
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	9908-
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9908-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	01	1	0201-
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	9908-
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9908-0003
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-0112
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	9908-
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	9908-
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (C) L=1000	1-22553-028-1	02	1	9908-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	9908-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	9908-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	9908-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	9908-
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9908-
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (A)	1-53461-435-1	01	1	9908-
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (B)	1-53461-436-4	01	1	9908-
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	9908-
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	9908-
49	NUT; BRKT M12	9-99110-512-0	08	1	9908-
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X50 FLANGE	0-28081-250-0	08	1	9908-
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 300L<RF5> M12X40 FLANGE	0-28681-240-0	08	1	9908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
