Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11305 - FVZ AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-34 - BRAKE VALVE; AIR
▶

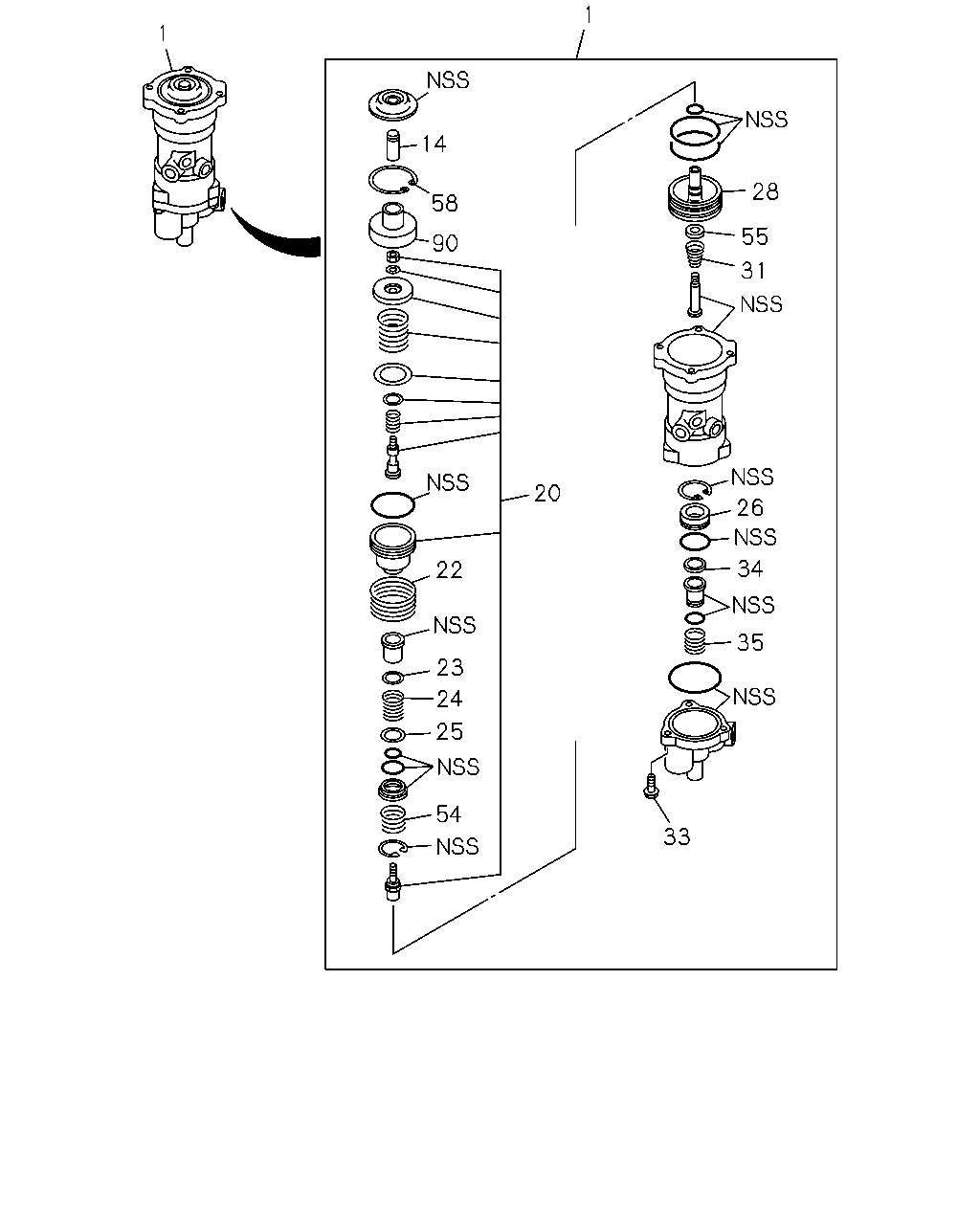

3-34 — BRAKE VALVE; AIR
(#69668) — 21 parça
Tümü
A - FGY5MV
B - FGZ5MV
◀
[334A] COMPONENT (18 parça)
[334A] REPAIR KIT (3 parça)
▶
33
35
34
26
31
55
28
20
1
54
25
23
24
22
90
58
14
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
1-48100-925-0
01
1
1010-1211
●
●
1
VALVE; BRK
8-98222-788-0
01
1
1212-
●
●
14
PLUNGER; BRK VLV
1-48119-641-0
01
1
1010-
●
●
20
PISTON; UPR,BRK VLV
1-48119-651-0
01
1
1010-
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48123-076-0
01
1
1010-
●
●
23
WASHER; UPR,BRK VLV
1-48129-299-0
01
1
1010-
●
●
24
SPRING; UPR,BRK VLV
1-48123-077-0
01
1
1010-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-300-0
01
1
1010-
●
●
26
RETAINER; VLV,BRK VLV
1-48129-308-0
01
1
1010-
●
●
28
PISTON; LWR,BRK VLV
1-48129-302-0
01
1
1010-
●
●
31
SPRING; VLV,BRK VLV
1-48123-079-0
01
1
1010-
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
03
1
1010-
●
●
34
RETAINER; VLV,BRK VLV
1-48129-307-0
01
1
1010-
●
●
35
SPRING; VLV,BRK VLV
1-48123-078-0
01
1
1010-
●
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-075-0
01
1
1010-
●
●
55
RETAINER; PLATE,BRK VLV
1-48129-305-0
01
1
1010-
●
●
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1010-
●
●
90
GUIDE; PLUNGER
1-48119-642-0
01
1
1010-
●
●
2
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK VLV
1-85576-454-0
01
1
1010-1211
●
●
2
REPAIR KIT; BRK VLV
8-98222-820-0
01
1
1212-
●
●
58
RING; RET,EXH,BRK VLV
1-48219-198-0
01
1
1010-
●
●
