3-22 — AIR CONTROL PARTS (#69666) — 184 parça

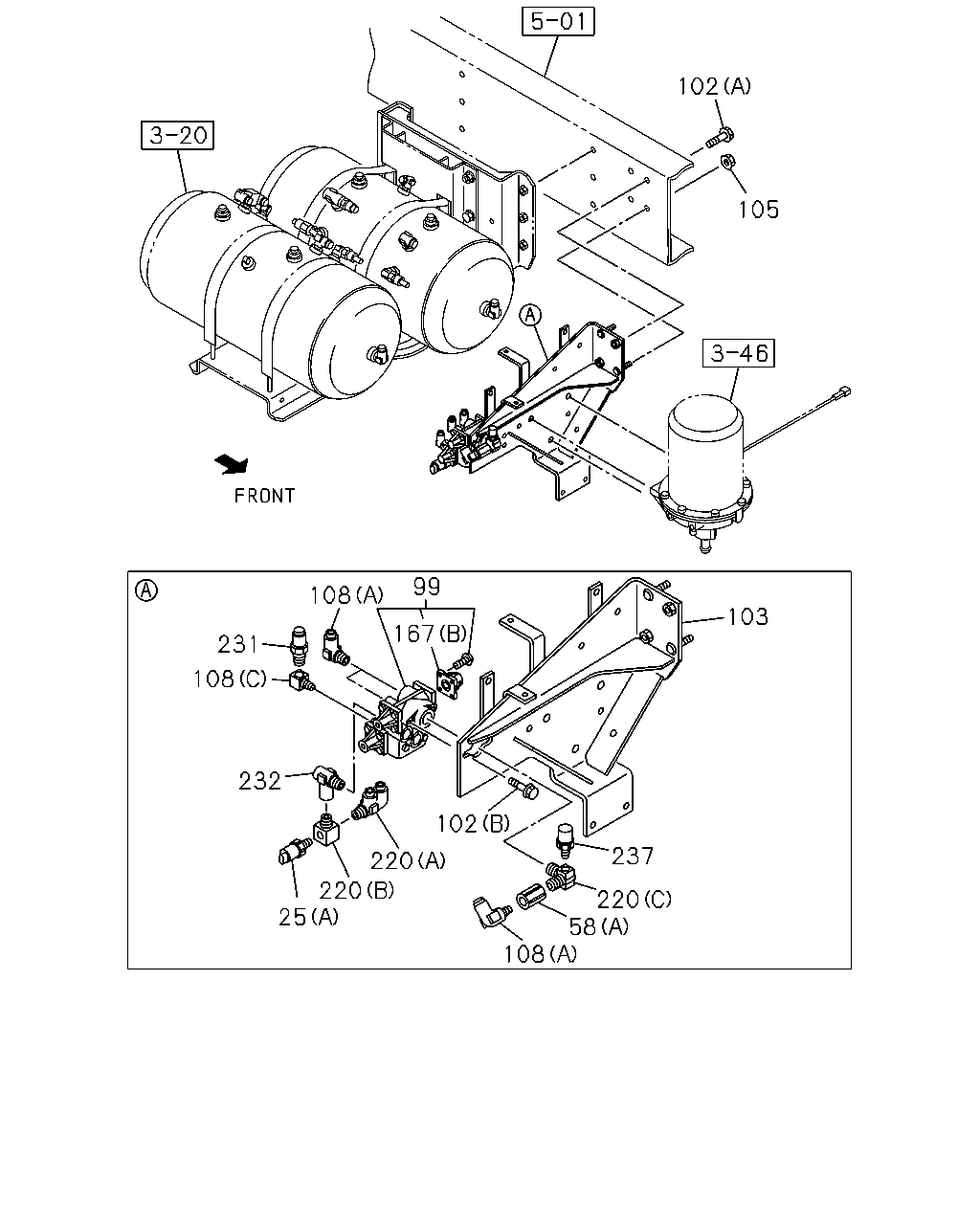

çizim 116751
103 102 105 99 167 108 231 108 232 220 25 220 237 58 108 102 220
BalonParca AdiParca NoAdetTipApplied Date A B
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1010- ● ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 1010- ● ●
99 VALVE; PROTECTION 1-48110-294-3 01 1 1010- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1010- ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 1010- ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1010- ● ●
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1010- ● ●
220 CONNECTOR; 3WAY
(C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1010- ● ●
220 CONNECTOR; 3WAY
(B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1010- ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ● ●
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1010- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 1010- ● ●

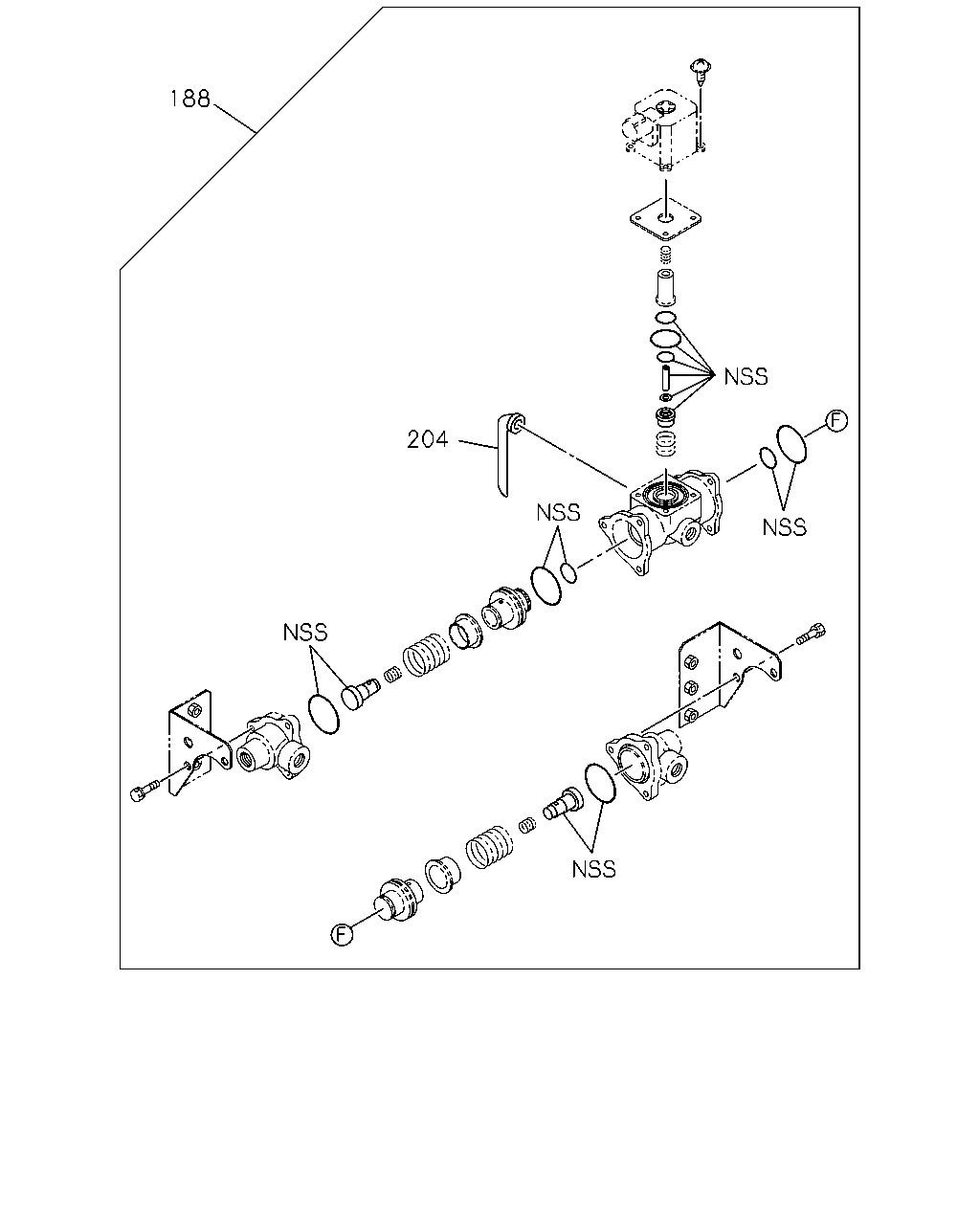

çizim 117015
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●

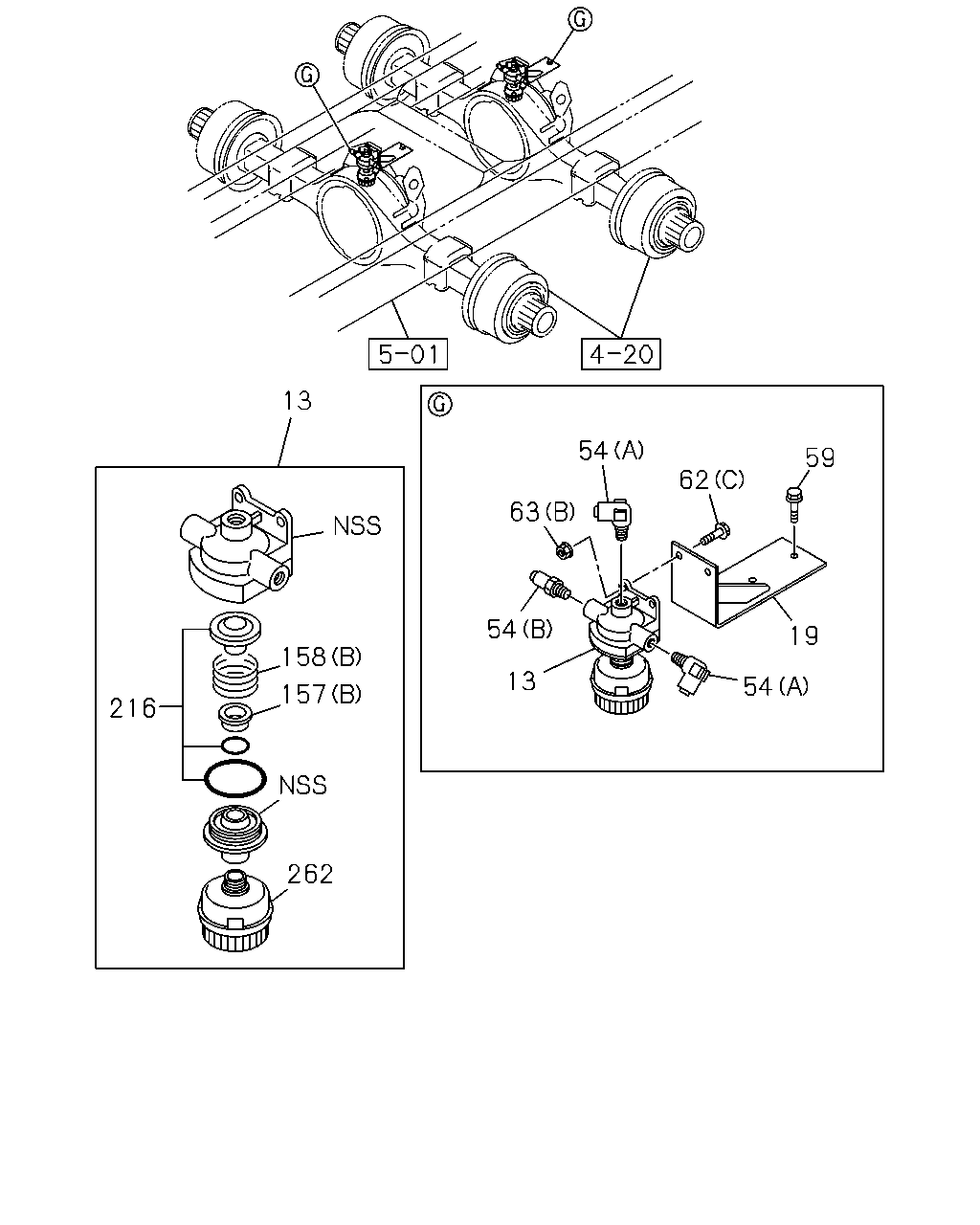

çizim 117159
13 216 158 157 262 54 63 54 13 62 59 19 54
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1010- ● ●
19 BRACKET; QUICK RELEASE VLV
REARWARD 		8-98033-795-0 01 1 1010- ●
19 BRACKET; QUICK RELEASE VLV
FORWARD 		8-98069-343-0 01 1 1010- ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 02 1 1010- ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1010- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1010- ● ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1010- ● ●
62 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
63 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
63 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1010- ●
63 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1010- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1010- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1010- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1010- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1010- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1010- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010- ● ●

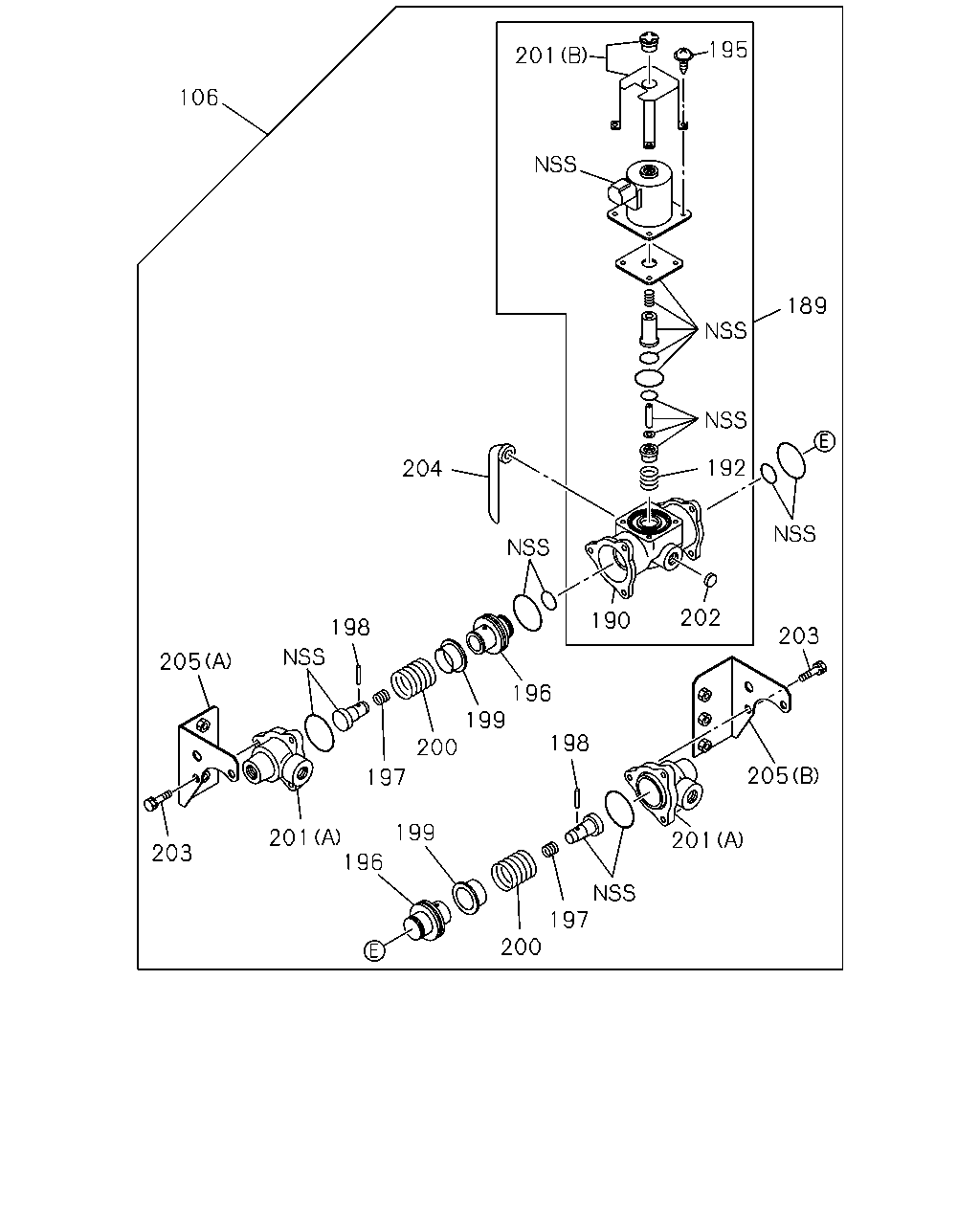

çizim 117270
203 201 197 200 199 196 205 198 204 190 202 192 201 195 189 203 205 201 197 200 196 199 198 106
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 1010- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 1010- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 1010- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 1010- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 1010- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 1010- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 1010- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 1010- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 1010- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 1010- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 1010- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 1010- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 1010- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 1010- ● ●

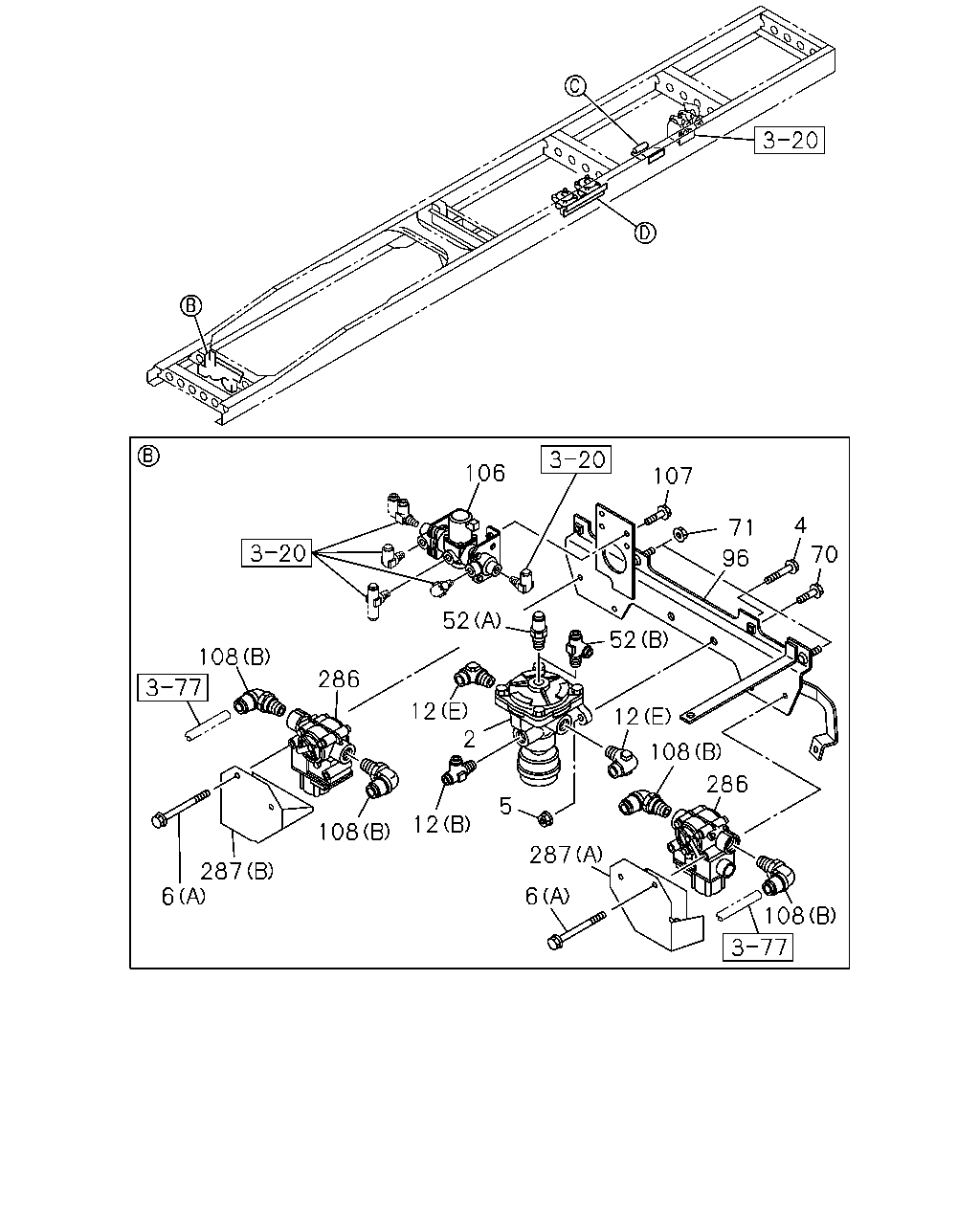

çizim 117298
106 107 71 96 4 70 52 12 108 286 108 6 287 5 12 12 108 287 6 108 286 52 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010- ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1010- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1010- ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
96 BRACKET 8-98074-613-3 01 1 1010-1410 ● ●
96 BRACKET 8-98273-496-0 01 1 1411- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 1010- ● ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 1010- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 1010- ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 1010-1410 ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1411- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(B) 		8-98273-493-0 01 1 1411- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 1010-1410 ● ●
287 COVER; MODULATOR
(A) 		8-98273-494-0 01 1 1411- ● ●

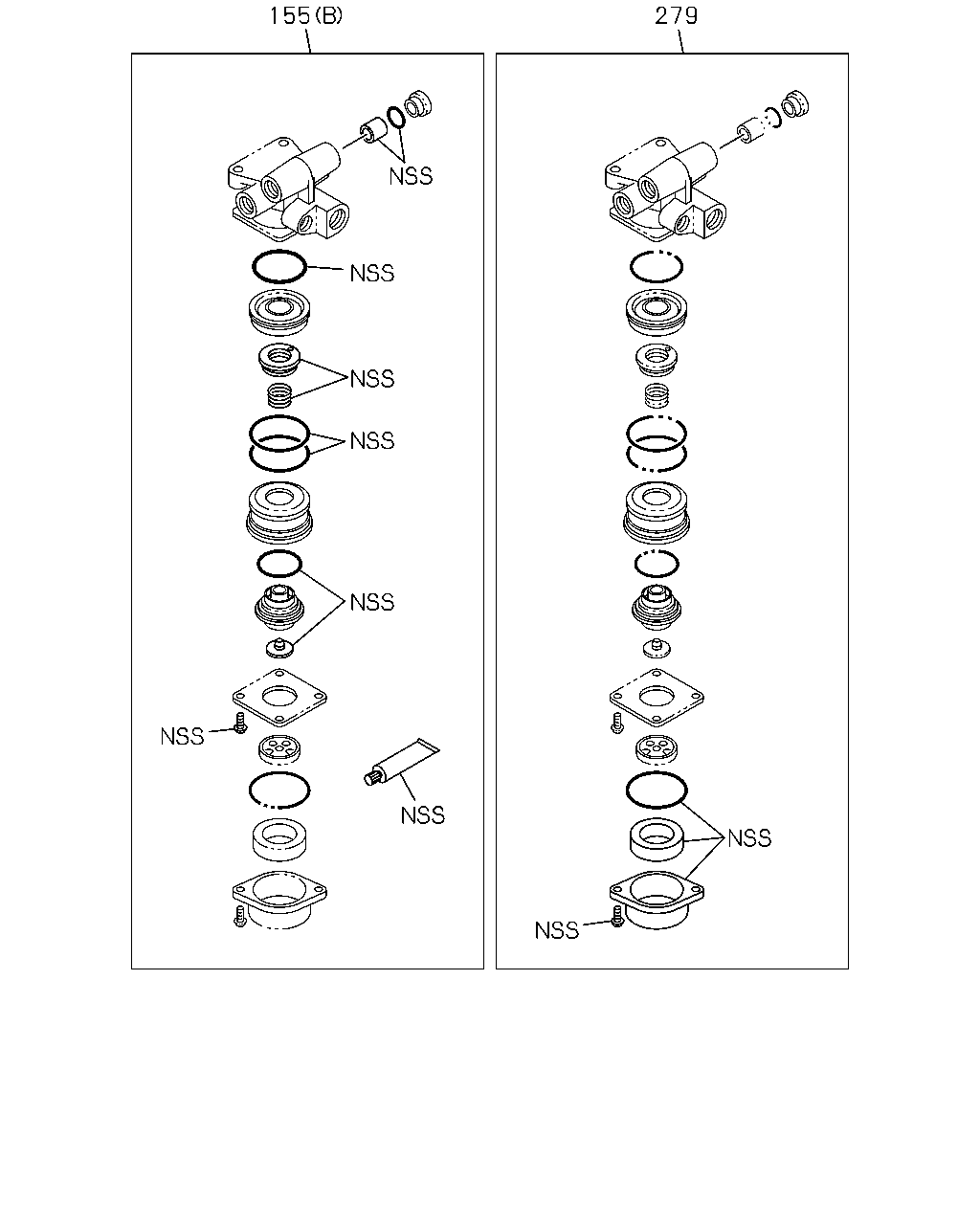

çizim 189023
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1010- ● ●

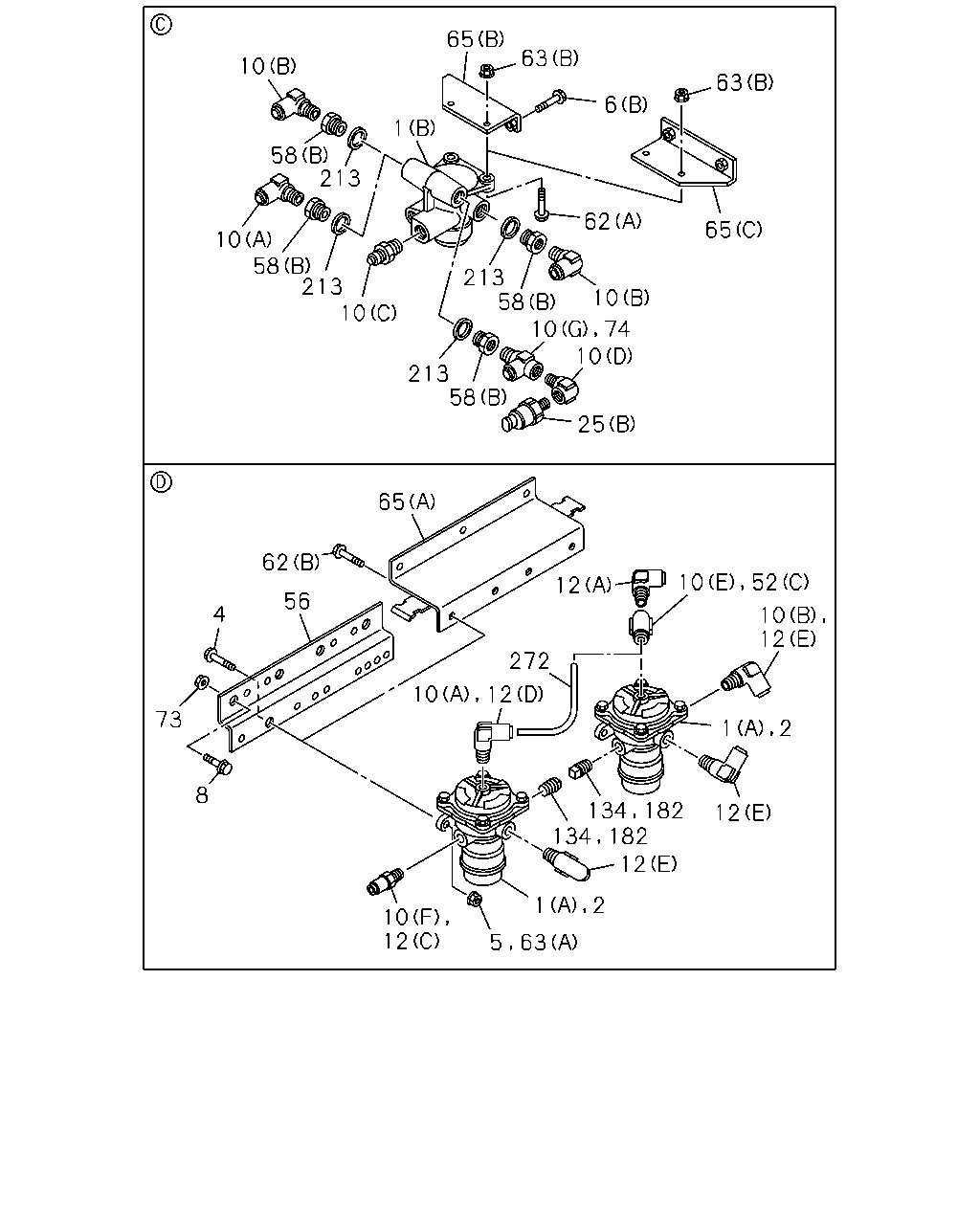

çizim 189024
10 65 6 63 63 1 58 10 213 58 62 65 213 213 58 10 10 10 213 10 74 25 58 65 62 56 4 73 8 10 272 12 10 52 10 12 1 2 12 10 12 5 63 134 1 2 134 182 182 12 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 02 1 1010- ●
1 VALVE; RELAY RWD RR
(B) 		1-48240-354-1 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010- ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 1010-1410 ● ●
6 BOLT; VLV
(A) M8X85 		1-09044-074-0 04 1 1411- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1010- ● ●
10 CONNECTOR
(G) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1307- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
10 CONNECTOR
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
10 CONNECTOR
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1010- ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 1010- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 1010- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1010- ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1010- ● ●
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1010- ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 1010- ●
56 BRACKET; RELAY VLV 1-47479-937-0 01 1 1010- ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 1010- ● ●
62 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1010- ● ●
62 BOLT; BRKT FIX
(B) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
63 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
63 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 1010- ●
63 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
65 BRACKET; RELAY VLV RR
(A) 		8-98131-580-0 01 1 1010- ●
65 BRACKET; RELAY VLV RR
(B) 		1-47471-032-0 01 1 1010-1306 ● ●
65 BRACKET; RELAY VLV RR
(C) 		8-98234-337-0 01 1 1307- ● ●
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
74 CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1010-1306 ● ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 02 1 1010- ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 1010- ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1010- ● ●
272 TUBE ASM; NYLON,UNION TO UNION
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1010- ●

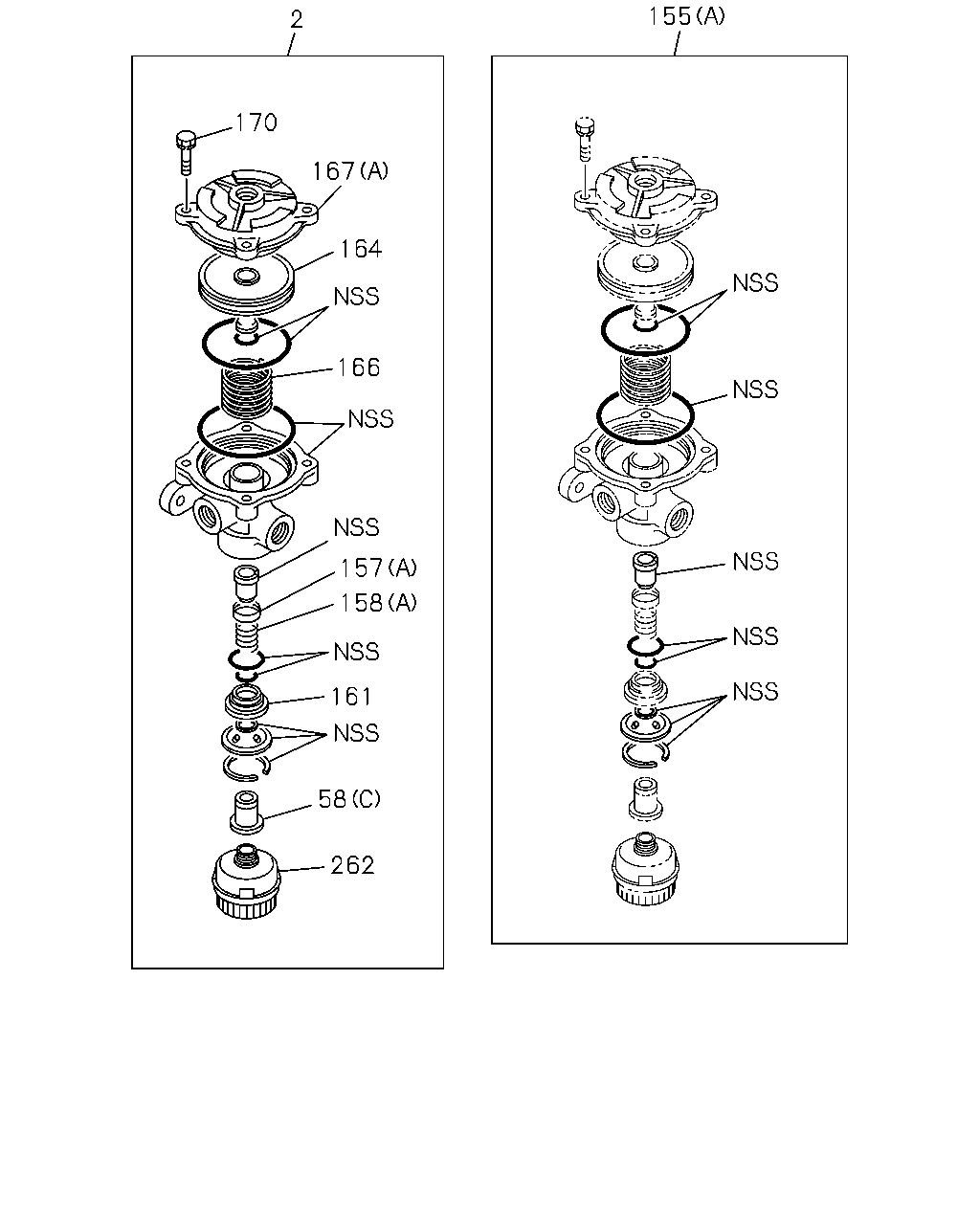

çizim 189028
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 01 1 1010- ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1010- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 1010- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 1010- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1010- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1010- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 1010- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 1010- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 1010- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 1010- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 1010- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 1010- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 1010- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1010- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1010- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 1010- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 1010- ● ●
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1307- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1010- ● ●
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1010- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1010- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1010- ● ●
çizim 488159
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
