3-20 — AIR TANK (#69665) — 359 parça

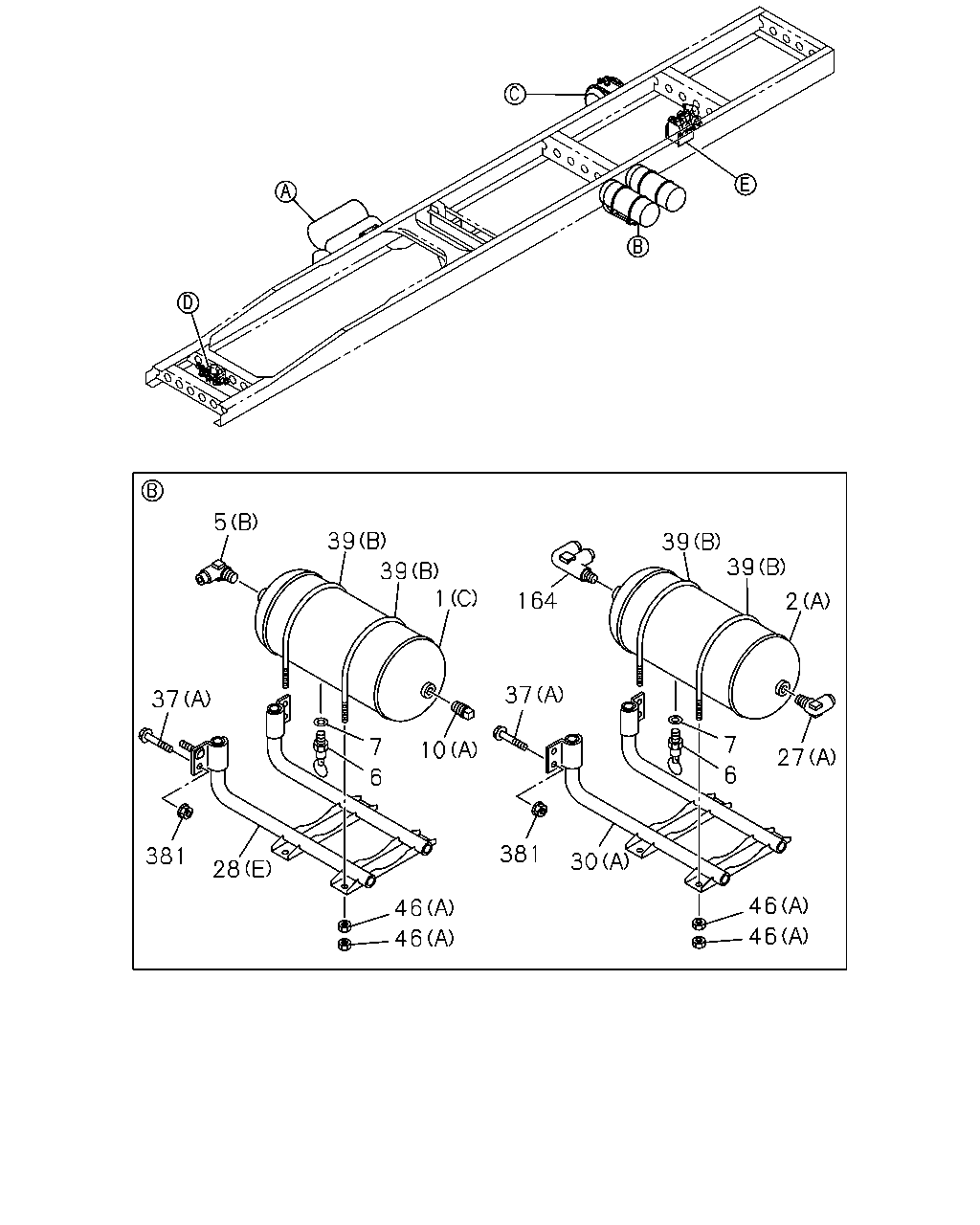

39 39 2 27 7 6 46 46 164 37 1 39 39 5 37 381 28 7 6 10 381 30 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	1110-1306	●	●
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	1010-	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	1010-	●	●
2	TANK; AIR COUNTRY NEW ZEALAND(CX6) (B)	8-98234-905-1	01	1	1307-	●	●
2	TANK; AIR (A)	1-48371-435-0	01	1	1010-1306	●	●
2	TANK; AIR EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-48371-435-0	01	1	1307-	●	●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1307-	●	●
5	UNION; AIR TANK (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-1306	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-1306		●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1307-	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1307-		●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1010-	●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1010-	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1010-1109		●
5	UNION; AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1110-1306	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1110-1306		●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1010-1306	●	●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1010-1306	●	●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	1010-	●	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1010-1306	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1010-1306		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1307-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1010-1109	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1010-1109	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1307-	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (A) PT3/8	9-09204-517-0	02	1	1307-		●
27	UNION; ELBOW,AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1307-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1010-	●	●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	1110-1306		●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	1010-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	1010-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-		●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1010-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (D)	1-48316-014-1	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (B)	1-48316-026-0	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (C)	1-48317-994-2	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (E)	8-98157-749-0	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB (A)	8-98047-746-2	01	1	1010-1306	●	●
30	BRACKET; AIR TANK,SUB EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98047-746-2	01	1	1307-	●	●
37	BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1307-	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1010-1109	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	02	1	1307-	●	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1010-	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (C) L=303	1-48317-087-2	02	1	1307-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1010-1109	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1307-	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	1010-	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE	0-91180-212-0	01	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
164	CONNECTOR; SUB AIR TANK DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1010-1306	●	●
164	CONNECTOR; SUB AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1307-	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1010-1109	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1110-1306	●	●
381	NUT; SUB TANK COUNTRY NEW ZEALAND(CX6) M14	0-91110-514-0	04	1	1110-1306	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1307-	●	●

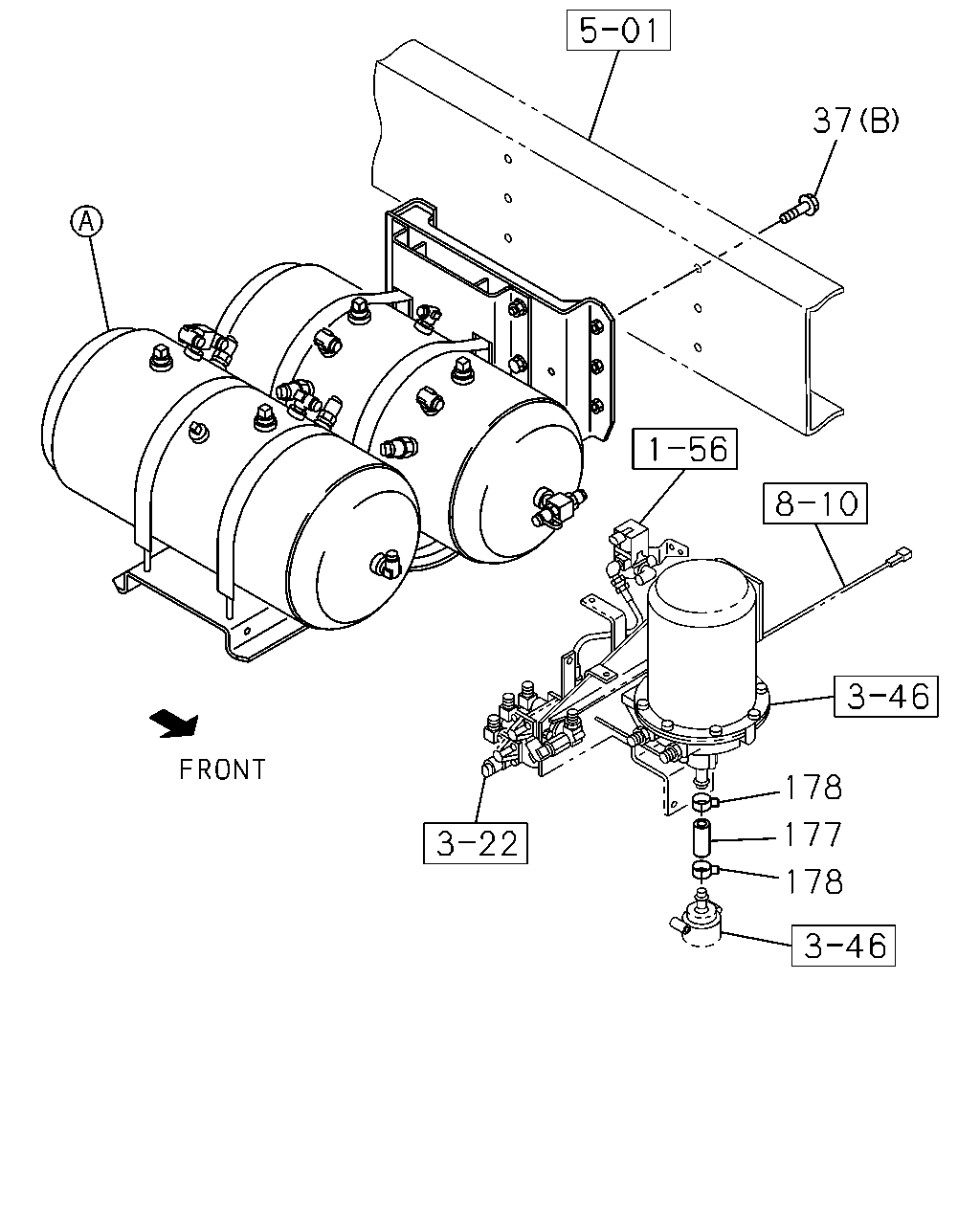

178 177 178 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1307-	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1010-1109	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	02	1	1307-	●	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1010-	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1010-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	1010-	●	●

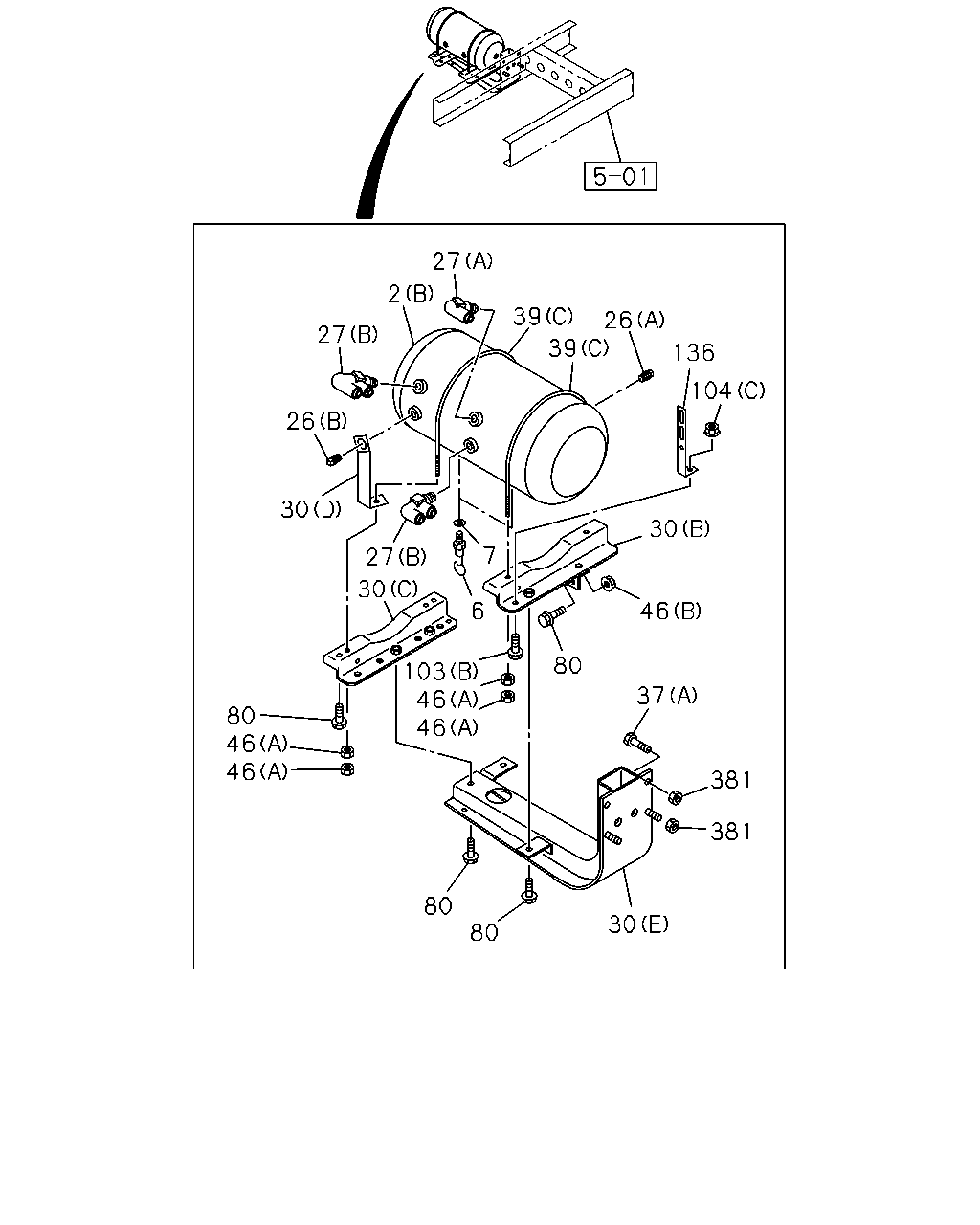

27 2 27 26 30 39 136 26 39 27 30 80 46 46 80 80 30 381 381 37 46 80 46 46 103 7 6 30 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR COUNTRY NEW ZEALAND(CX6) (B)	8-98234-905-1	01	1	1307-	●	●
2	TANK; AIR (A)	1-48371-435-0	01	1	1010-1306	●	●
2	TANK; AIR EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-48371-435-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1010-1306	●	●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1010-1306	●	●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	1307-	●	●
26	PLUG; SUB AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	1307-	●	●
26	PLUG; SUB AIR TANK COUNTRY NEW ZEALAND(CX6) (B) PT3/4	9-09204-526-0	01	1	1307-	●	●
27	UNION; ELBOW,AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1307-	●	●
27	UNION; ELBOW,AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1010-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (D)	1-48316-014-1	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (B)	1-48316-026-0	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (C)	1-48317-994-2	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB COUNTRY NEW ZEALAND(CX6) (E)	8-98157-749-0	01	1	1307-	●	●
30	BRACKET; AIR TANK,SUB (A)	8-98047-746-2	01	1	1010-1306	●	●
30	BRACKET; AIR TANK,SUB EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98047-746-2	01	1	1307-	●	●
37	BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1307-	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1010-1109	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	1110-1306	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	02	1	1307-	●	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	1010-	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (C) L=303	1-48317-087-2	02	1	1307-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1010-1109	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1307-	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	1010-	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE	0-91180-212-0	01	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE	0-28651-230-0	04	1	1307-	●	●
80	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1010-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-		●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1010-1306	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
103	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
103	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
104	NUT; BRKT COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
104	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	03	1	1010-	●	●
104	NUT; BRKT WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-	●
104	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-		●
136	BRACKET; CLIP COUNTRY NEW ZEALAND(CX6) L=225	1-47477-646-3	01	1	1307-	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1010-1109	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1110-1306	●	●
381	NUT; SUB TANK COUNTRY NEW ZEALAND(CX6) M14	0-91110-514-0	04	1	1110-1306	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	1307-	●	●

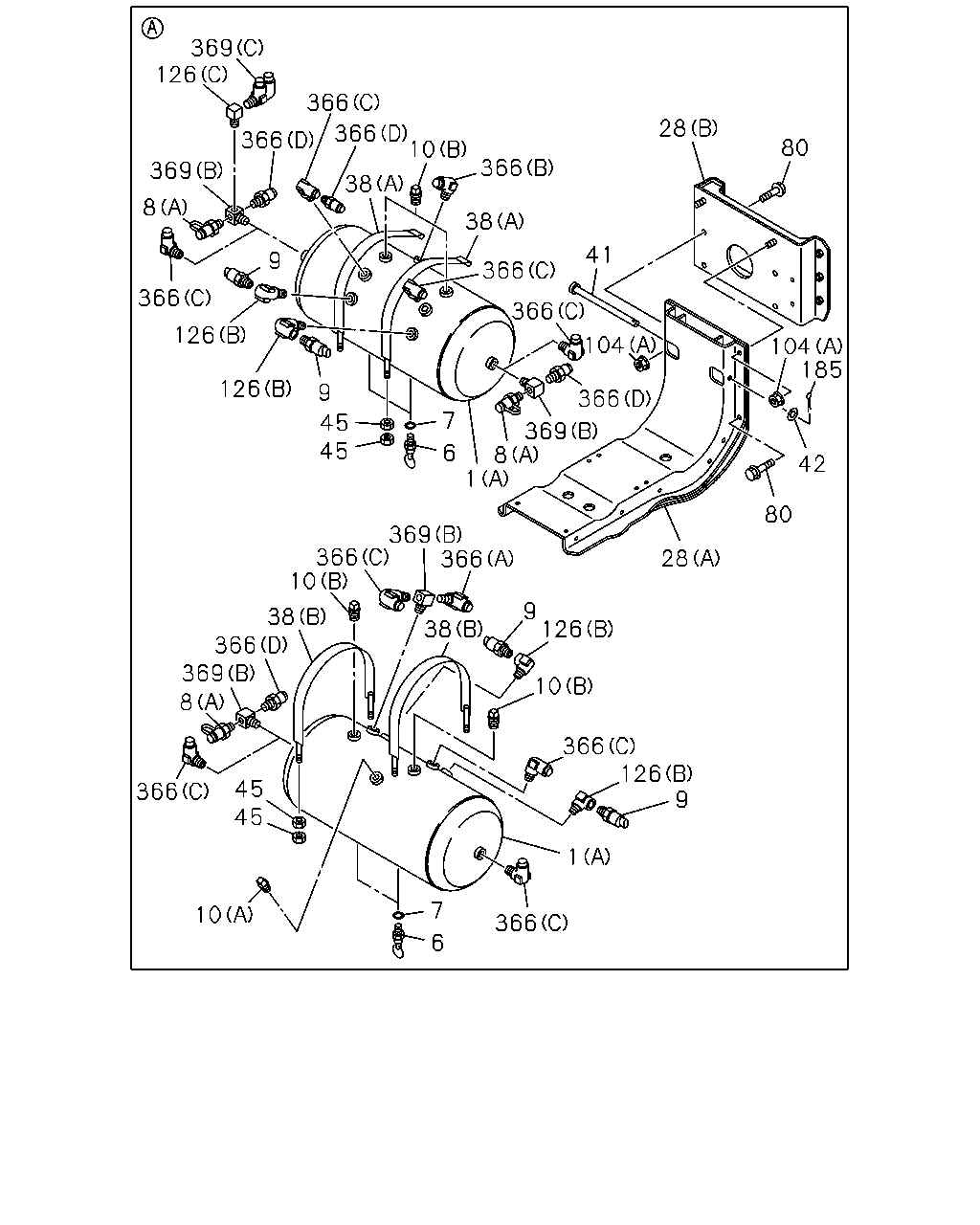

126 369 80 28 41 366 366 369 8 1 80 42 185 104 28 126 1 126 366 10 366 7 6 10 45 45 366 8 9 369 38 366 10 366 366 9 38 369 104 366 38 366 10 38 9 45 45 126 126 366 8 369 366 366 9 366 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

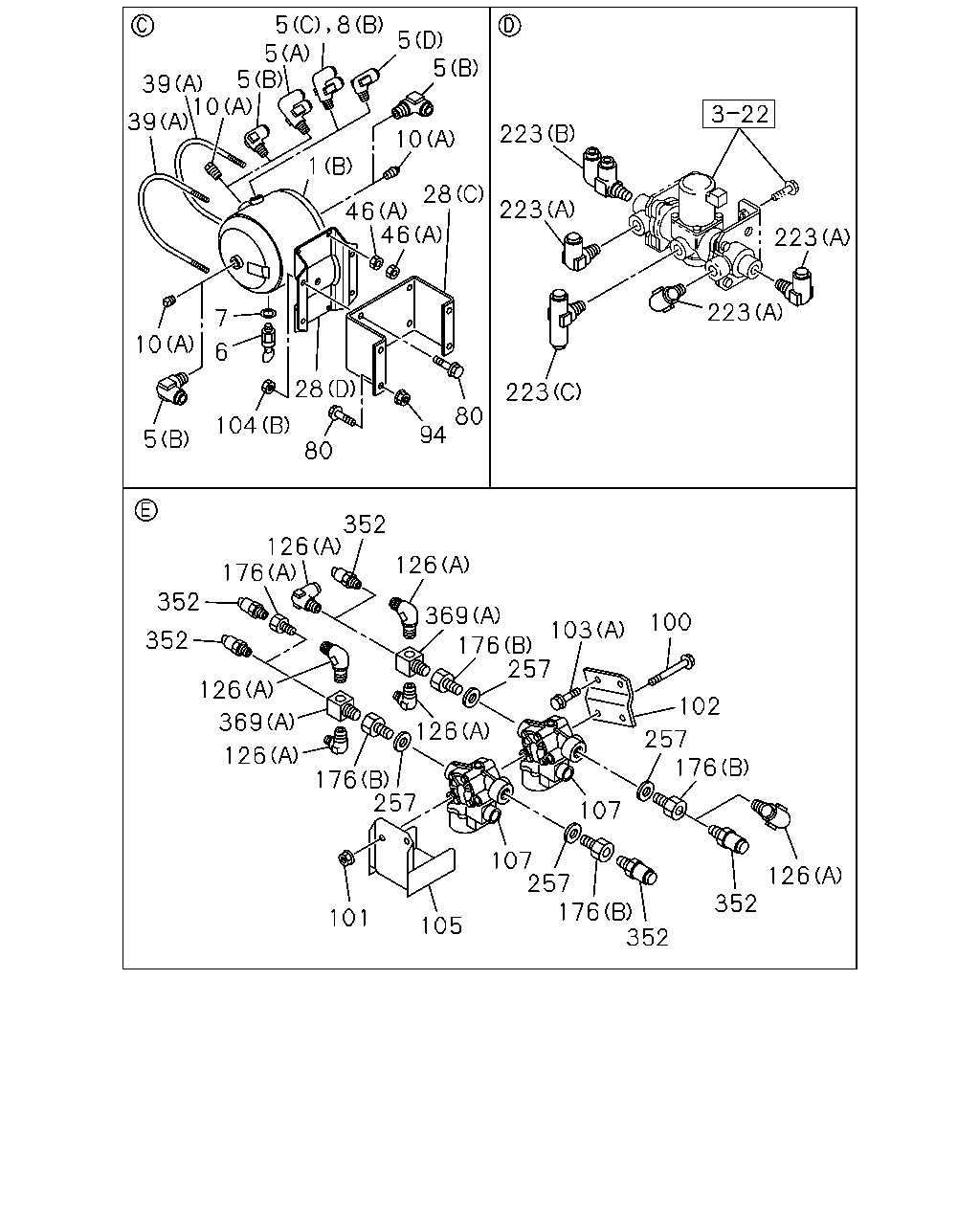

1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	1110-1306	●	●
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	1010-	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	1010-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1010-1306	●	●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1010-1306	●	●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	1307-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1010-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5000MM(50W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	04	1	1010-	●	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	1010-	●	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1010-1306	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1010-1306		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1307-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1010-1109	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1010-1109	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1307-	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (A) PT3/8	9-09204-517-0	02	1	1307-		●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	1110-1306		●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	1010-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	1010-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-		●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1010-	●	●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	1010-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	1010-	●	●
41	PIN; BAND FIX	1-09744-068-0	01	1	1010-	●	●
42	WASHER; PL ID=10.5	0-91614-510-0	01	1	1010-	●	●
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	1010-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE	0-28651-230-0	04	1	1307-	●	●
80	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1010-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-		●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1010-1306	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
104	NUT; BRKT COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
104	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	03	1	1010-	●	●
104	NUT; BRKT WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-	●
104	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-		●
126	CONNECTOR; ELBOW COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1110-1306	●	●
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	1010-	●	●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1010-	●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-		●
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	1010-	●	●
366	CONNECTOR; NYLON TUBE EXC. COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1110-1306	●	●
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1010-	●	●
366	CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1010-1109	●	●
366	CONNECTOR; NYLON TUBE COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1110-1306	●	●
366	CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1307-	●	●
366	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1010-	●	●
366	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-	●	●
369	CONNECTOR; 3WAY COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1110-1306	●	●
369	CONNECTOR; 3WAY (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1010-	●	●
369	CONNECTOR; 3WAY (A) PT3/8 3WAY	1-09661-300-0	02	1	1010-1111	●	●
369	CONNECTOR; 3WAY (A) DIN9 & RC3/8 ELBOW	8-98203-578-0	02	1	1112-1306	●	●
369	CONNECTOR; 3WAY (A) PT3/8 3WAY	1-09661-300-0	02	1	1307-	●	●

126 352 352 176 257 107 105 101 257 176 126 369 126 352 352 176 126 352 126 176 257 100 102 257 176 107 103 369 223 223 223 223 223 80 94 80 28 104 5 10 7 6 46 46 28 10 5 5 8 5 5 5 10 39 39 1 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	1110-1306	●	●
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	1010-	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	1010-	●	●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1307-	●	●
5	UNION; AIR TANK (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-1306	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-1306		●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1307-	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1307-		●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1010-	●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1010-	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1010-1109		●
5	UNION; AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1110-1306	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1110-1306		●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1010-1306	●	●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1010-1109	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	1110-1306	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1010-1306	●	●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1307-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1010-1109	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	1110-1306	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	1307-	●	●
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1010-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5000MM(50W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	1010-	●	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1010-1306	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1010-1306		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1307-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1010-1109	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1010-1109	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	1110-1306	●	●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	01	1	1110-1306	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	02	1	1307-	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (A) PT3/8	9-09204-517-0	02	1	1307-		●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	1110-1306		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	1110-1306		●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	1010-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	1010-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	1010-		●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1010-	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (C) L=303	1-48317-087-2	02	1	1307-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1010-1109	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1110-1306	●	●
39	U-BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	1307-	●	●
39	U-BOLT; AIR TANK (A) L=210	1-48317-458-1	02	1	1010-	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M12 FLANGE	0-91180-212-0	01	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1010-1109	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (A) M8	0-91110-508-0	08	1	1110-1306	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
46	NUT; U-BOLT (A) M8	0-91110-508-0	08	1	1307-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE	0-28650-825-0	01	1	1307-	●	●
80	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) M12X30 FLANGE	0-28651-230-0	04	1	1307-	●	●
80	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1010-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1010-		●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1010-1306	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1307-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1010-	●	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	1010-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
102	BRACKET; MODULATOR	8-98034-539-2	01	1	1010-1410	●	●
102	BRACKET; MODULATOR	8-98273-170-0	01	1	1411-	●	●
103	BOLT; BRKT COUNTRY NEW ZEALAND(CX6) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
103	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1010-	●	●
104	NUT; BRKT COUNTRY NEW ZEALAND(CX6) (C) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
104	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	03	1	1010-	●	●
104	NUT; BRKT WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-	●
104	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10	0-91110-510-0	04	1	1010-		●
105	COVER; MODULATOR	1-47479-792-0	01	1	1010-1410	●
105	COVER; MODULATOR	8-98272-749-0	01	1	1411-	●
107	MODULATOR; RR	1-48240-115-0	02	1	1010-1410	●	●
107	MODULATOR; RR	8-98215-454-0	02	1	1411-	●	●
126	CONNECTOR; ELBOW COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW	1-09660-696-0	01	1	1110-1306	●	●
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	1010-	●	●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1010-	●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-		●
176	ADAPTER (A) PT3/8	1-09664-210-0	01	1	1010-	●
176	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1010-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1010-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1010-	●	●
223	UNION H.S.A SYSTEM<6EP> (C)	1-09661-073-0	01	1	1010-	●	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	04	1	1010-	●	●
352	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1010-	●
352	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1010-		●
369	CONNECTOR; 3WAY COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1110-1306	●	●
369	CONNECTOR; 3WAY (B) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1010-	●	●
369	CONNECTOR; 3WAY (A) PT3/8 3WAY	1-09661-300-0	02	1	1010-1111	●	●
369	CONNECTOR; 3WAY (A) DIN9 & RC3/8 ELBOW	8-98203-578-0	02	1	1112-1306	●	●
369	CONNECTOR; 3WAY (A) PT3/8 3WAY	1-09661-300-0	02	1	1307-	●	●

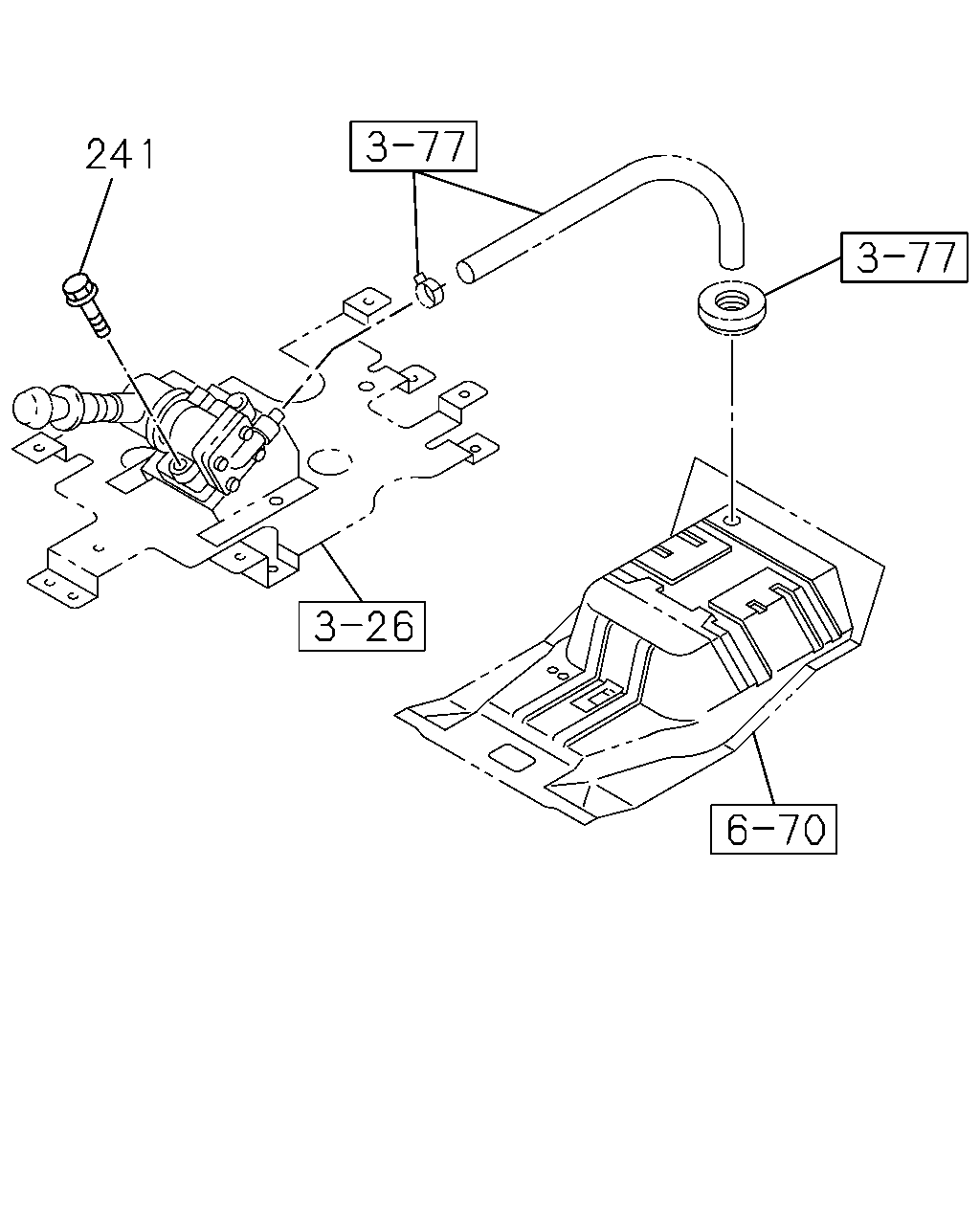

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
