◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#69661) — 116 parça

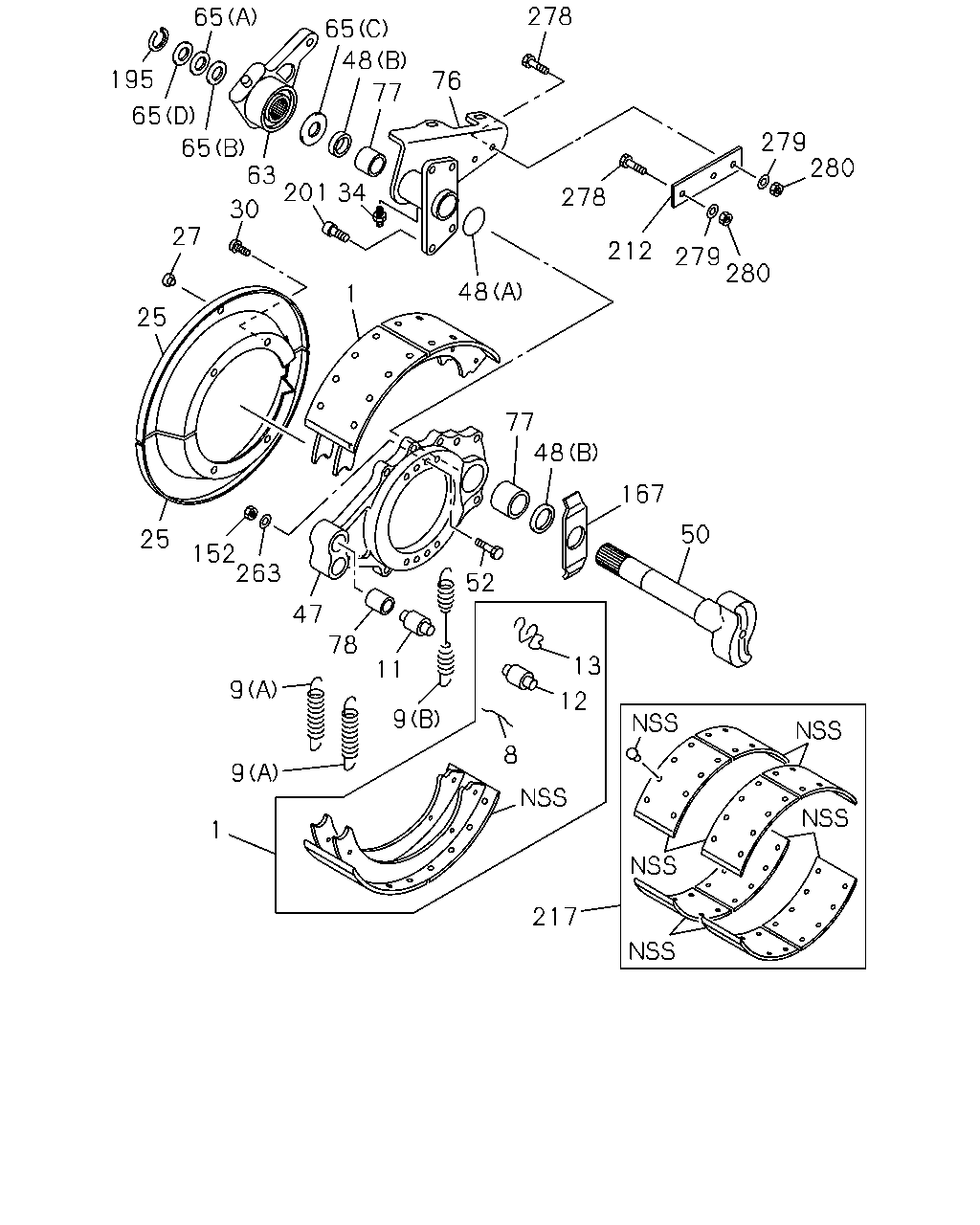

çizim 189029
217 8 13 12 9 11 78 47 9 9 1 263 152 25 77 167 52 50 48 279 212 279 280 280 278 76 77 34 201 63 30 27 25 65 195 65 65 65 48 48 278 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-734-0 04 1 1010-1306 ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 1010-1306 ● ●
1 SHOE; BRK,RR 1-47120-734-0 08 1 1307- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1010-1306 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 1010-1306 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 08 1 1307- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1010-1306 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 1010-1306 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 08 1 1307- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1010-1306 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 1010-1306 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 04 1 1307- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1010-1306 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 1010-1306 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 08 1 1307- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1010-1306 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 1010-1306 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 08 1 1307- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1010-1306 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 1010-1306 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 08 1 1307- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1010-1306 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 1010-1306 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 04 1 1307- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1010-1306 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 1010-1306 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 08 1 1307- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1010-1306 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 1010-1306 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 24 1 1307- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1010-1306 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1010-1306 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 04 1 1307- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1010-1306 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 1010-1306 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 04 1 1307- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1010-1306 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 1010-1306 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 04 1 1307- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1010-1306 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 1010-1306 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 1307- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 02 1 1307- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 02 1 1307- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 02 1 1307- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 1010-1306 ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 02 1 1307- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1010-1306 ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 1010-1306 ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 32 1 1307- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1010-1306 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 1010-1306 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 04 1 1307- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 04 1 1307- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 04 1 1307- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 04 1 1307- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 1010-1306 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 04 1 1307- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-022-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-023-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-024-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-025-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 1010- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 1010- ●
77 BUSHING 1-47146-012-0 04 1 1010-1306 ● ●
77 BUSHING 1-47146-012-0 04 1 1010-1306 ● ●
77 BUSHING 1-47146-012-0 08 1 1307- ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1010-1306 ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 1010-1306 ● ●
78 BUSHING; BRKT 1-47139-117-0 08 1 1307- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1010-1306 ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 1010-1306 ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 32 1 1307- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1010-1306 ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 1010-1306 ● ●
167 WASHER; ADJ CAM 1-47149-077-0 04 1 1307- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1010-1306 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1010-1306 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 04 1 1307- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1010-1306 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 1010-1306 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 16 1 1307- ● ●
212 STAY 1-47149-081-0 02 1 1010-1306 ● ●
212 STAY 1-47149-081-0 02 1 1010-1306 ● ●
212 STAY 1-47149-081-0 04 1 1307- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1010-1306 ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 1010-1306 ● ●
217 LINING KIT; RR BRK 1-87050-157-0 02 1 1307- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1010-1306 ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 1010-1306 ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 32 1 1307- ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 1010-1306 ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 1010-1306 ● ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 1307- ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 1010-1306 ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 1010-1306 ● ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 1307- ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 1010-1306 ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 1010-1306 ● ●
280 NUT; SUPPORT 1-47149-082-0 06 1 1307- ● ●
