◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11305 - FVZ AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#69659) — 37 parça

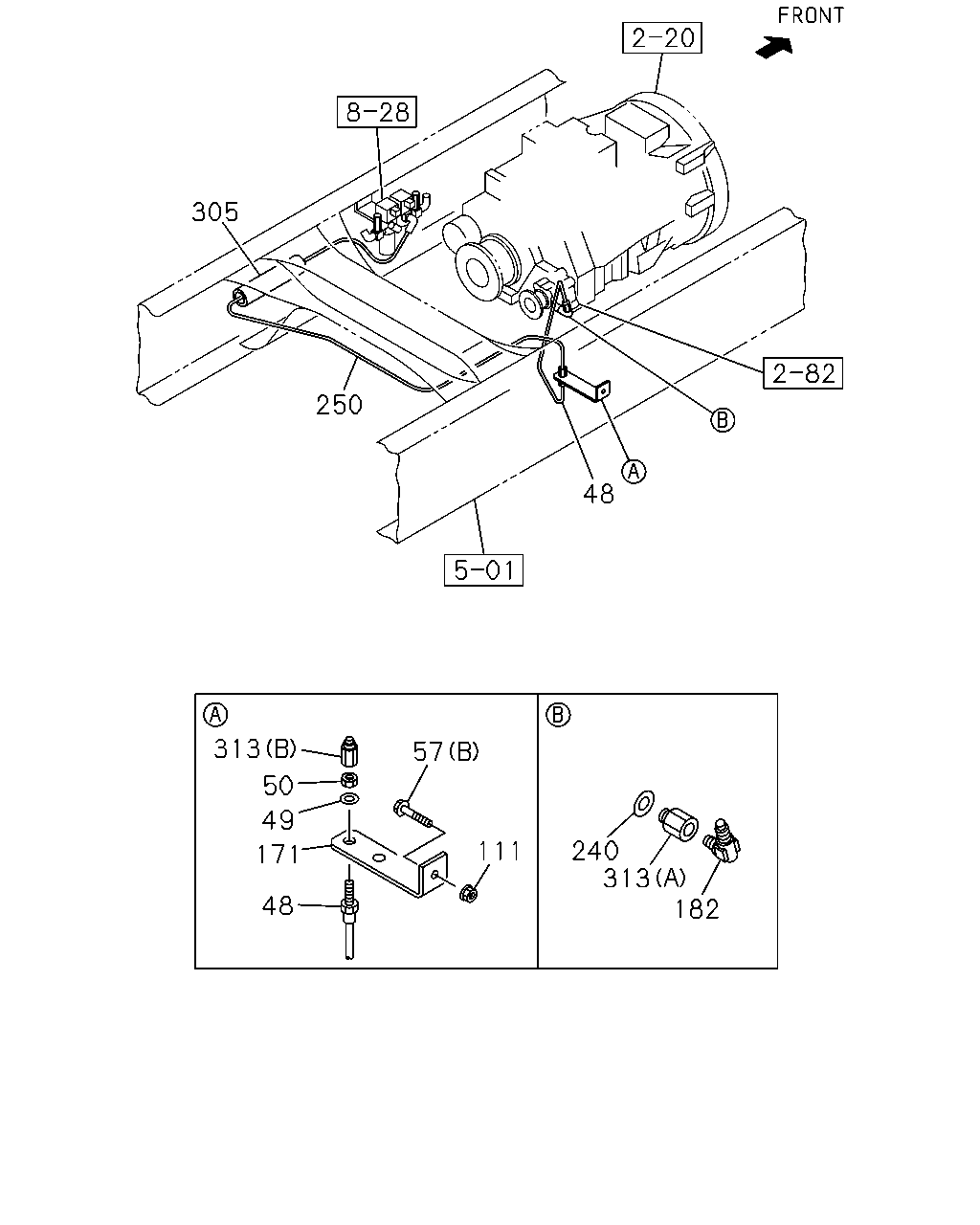

çizim 114491
48 250 305 313 57 50 49 171 111 240 313 182 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1010- ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		0-91510-812-0 01 1 1010-1011 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1010- ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1010-1501 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A) 		1-34119-134-0 01 1 1502-1503 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1504- ● ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) LEVELCHECK M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) 		8-98100-228-0 01 1 1010- ● ●
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1010- ● ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1010-1312 ● ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1010- ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1010- ● ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1010- ● ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (A) PT1/4 		1-09654-396-0 01 1 1010- ● ●

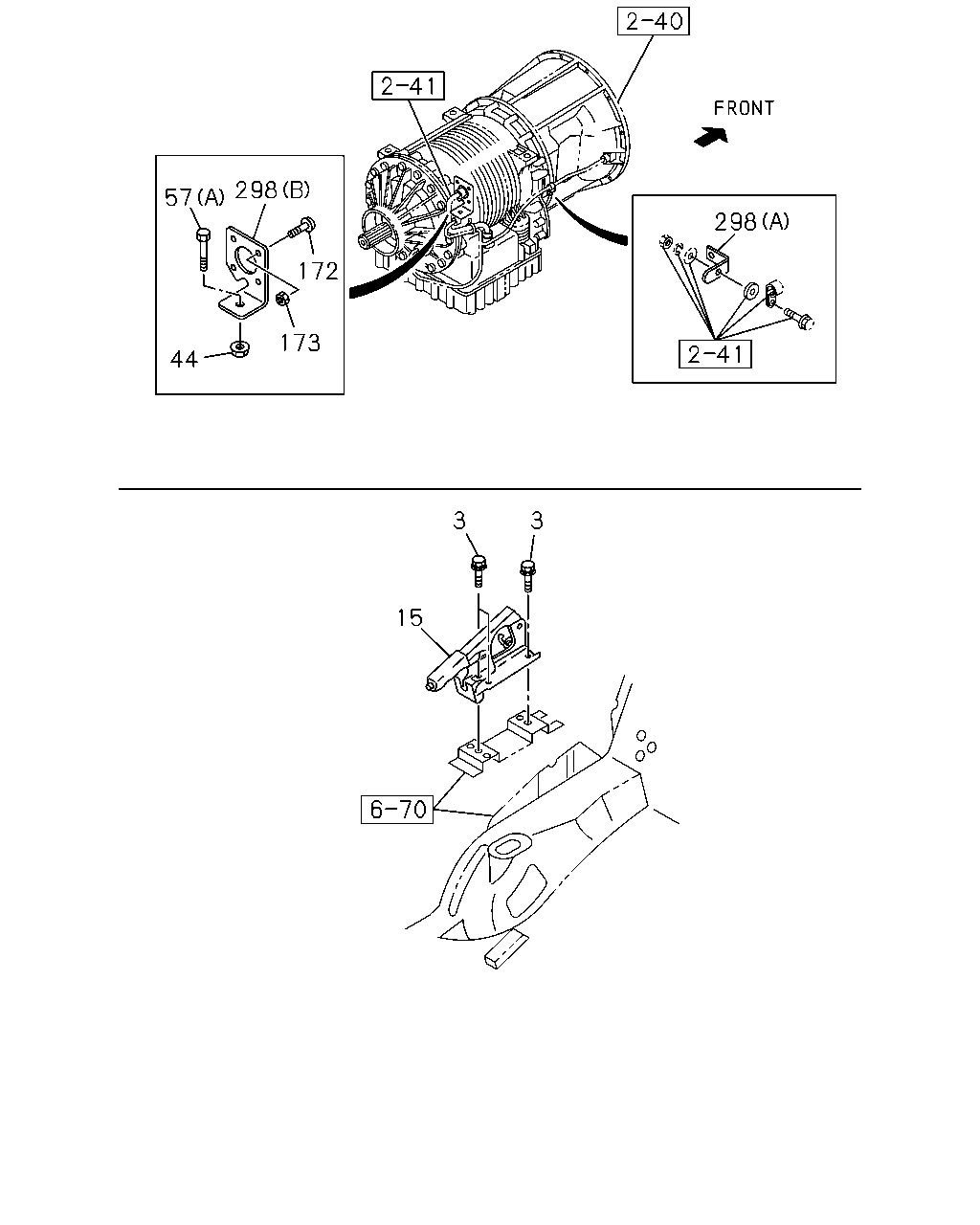

çizim 114494
57 44 298 172 173 298 3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1010- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1010- ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) 		1-34119-135-0 01 1 1010-1501 ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> 		1-34119-135-0 01 1 1502-1503 ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) 		1-34119-135-0 01 1 1504- ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1010-1501 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A) 		1-34119-134-0 01 1 1502-1503 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-134-0 01 1 1504- ● ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16 		9-03494-416-0 04 1 1010-1501 ● ●
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> M4X16 		9-03494-416-0 04 1 1502-1503 ● ●
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16 		9-03494-416-0 04 1 1504- ● ●
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE 		8-97368-853-0 04 1 1010-1501 ● ●
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> M4 FLANGE 		8-97368-853-0 04 1 1502-1503 ● ●
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE 		8-97368-853-0 04 1 1504- ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-088-0 01 1 1010-1501 ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A) 		1-34119-088-0 01 1 1502-1503 ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-088-0 01 1 1504- ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		1-34119-133-0 01 1 1010-1501 ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B) 		1-34119-133-0 01 1 1502-1503 ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		1-34119-133-0 01 1 1504- ● ●
