2-53 — TRANSMISSION OIL COOLER SYSTEM (#69656) — 49 parça

63 209 209 239 209 184 209

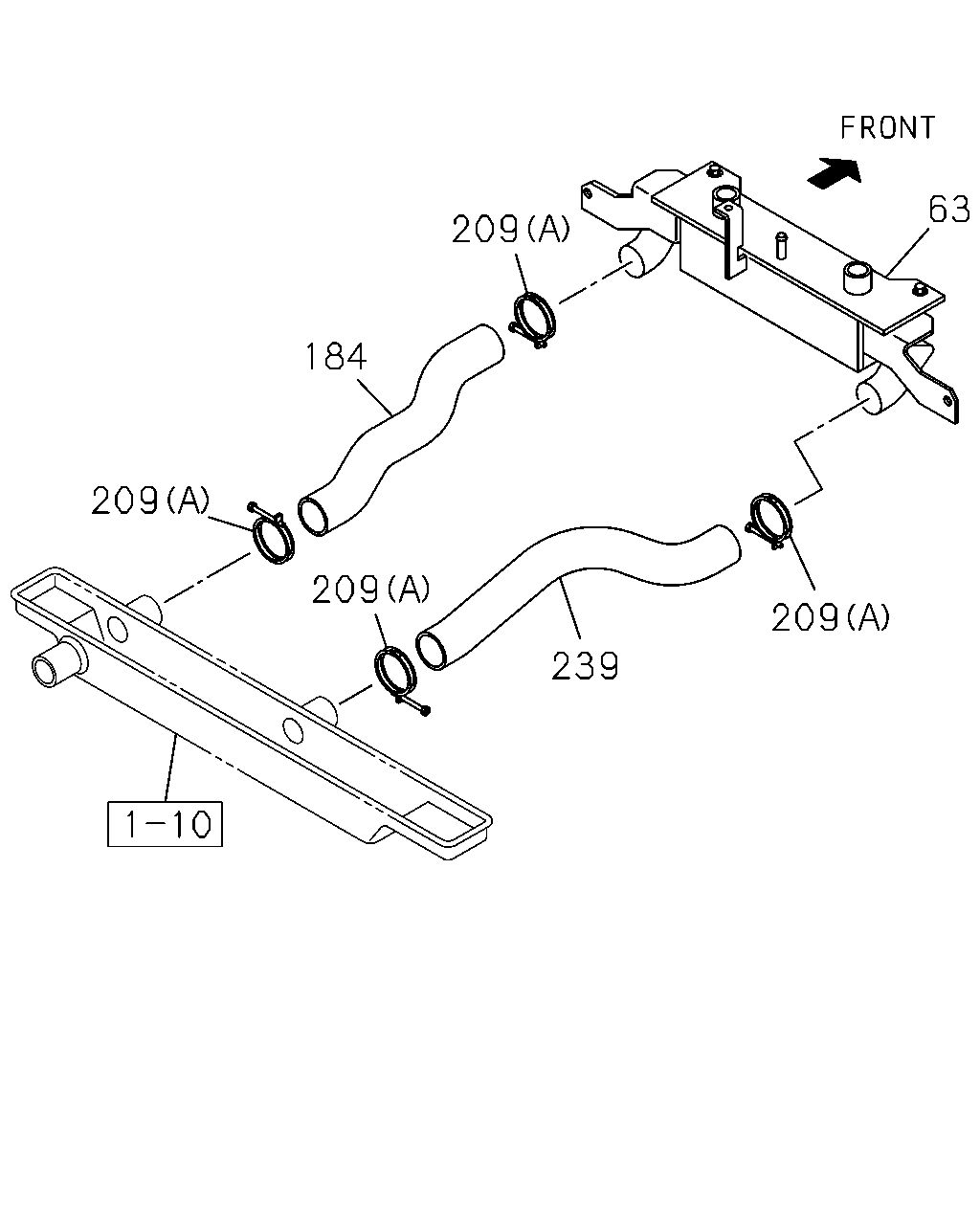

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1011-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1010-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D>	8-98025-696-1	01	1	1010-	●	●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1010-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	1010-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	1010-	●	●

215 73 242 242 242 242 73 215 127 63 105 64 127 105 32 48 111 82 19 109 95 51 32 48 11 53 32 53 95 48 11 95 48 32 53 11 48 19 32 209 50 209 50 73 215 210 73 215 73 215 64 58 58 64 73 215

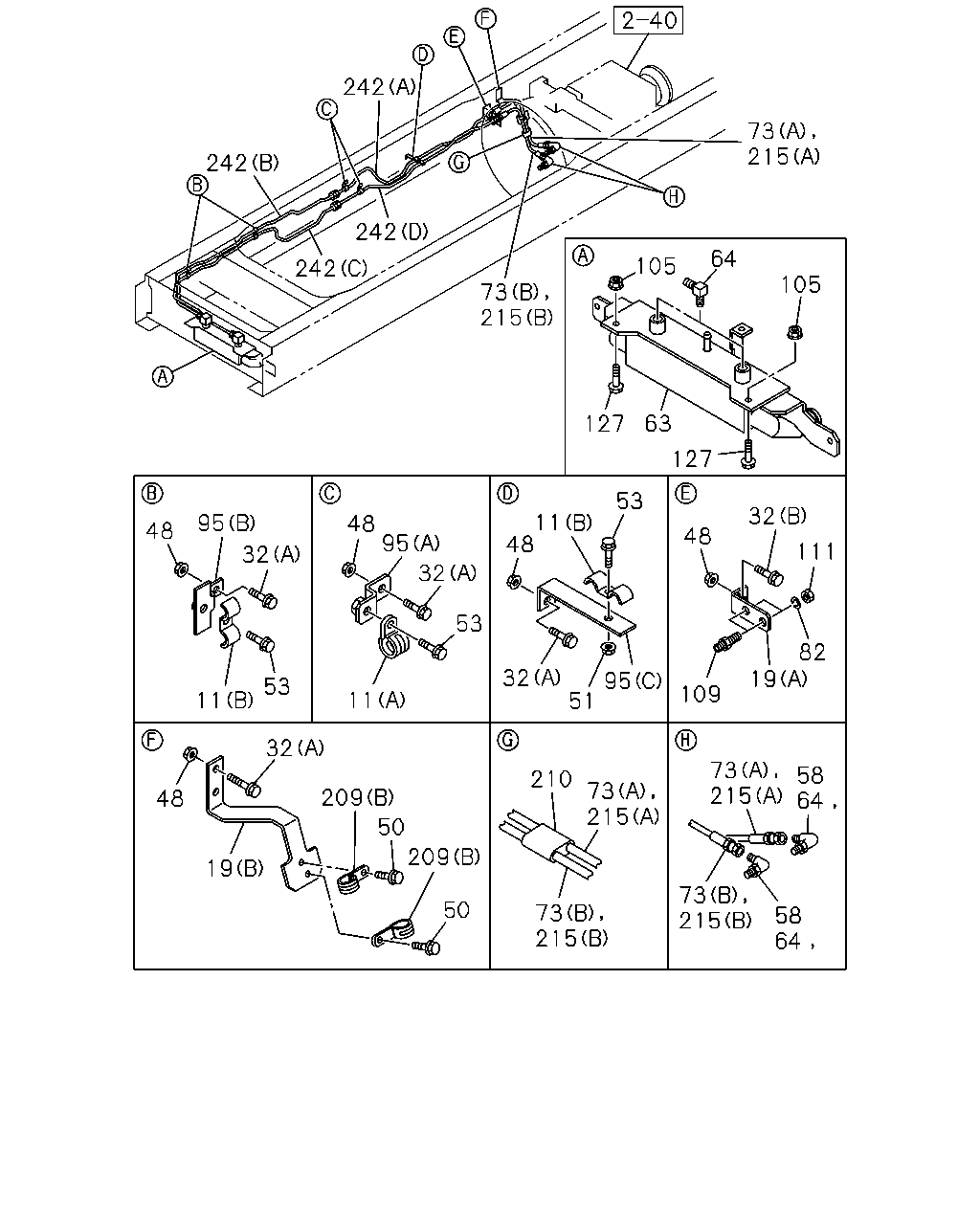

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	1010-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	1010-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	1010-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98144-397-0	01	1	1010-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	07	1	1010-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE	0-28650-835-0	02	1	1010-	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	09	1	1010-	●	●
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	02	1	1010-1306	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	1010-	●	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B)	8-98144-617-0	02	1	1010-1501	●	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98144-617-0	02	1	1502-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1011-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1010-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98144-617-0	02	1	1504-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B)	9-09903-722-0	02	1	1010-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (A)	8-98144-618-0	01	1	1010-1501	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1502-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (B)	8-98144-619-0	01	1	1010-1501	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1502-	●	●
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	1010-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	1-47478-140-0	01	1	1010-1407	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1408-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	1010-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	1010-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1010-	●	●
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1010-	●	●
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	1010-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1010-1010	●	●
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1011-	●	●
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1011-	●	●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	1010-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	1010-	●	●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	1010-	●	●
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1504-	●	●
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1504-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	1010-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	1010-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98144-258-0	01	1	1010-1306	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98190-140-0	01	1	1307-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98144-259-0	01	1	1010-1306	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98190-142-0	01	1	1307-	●	●
