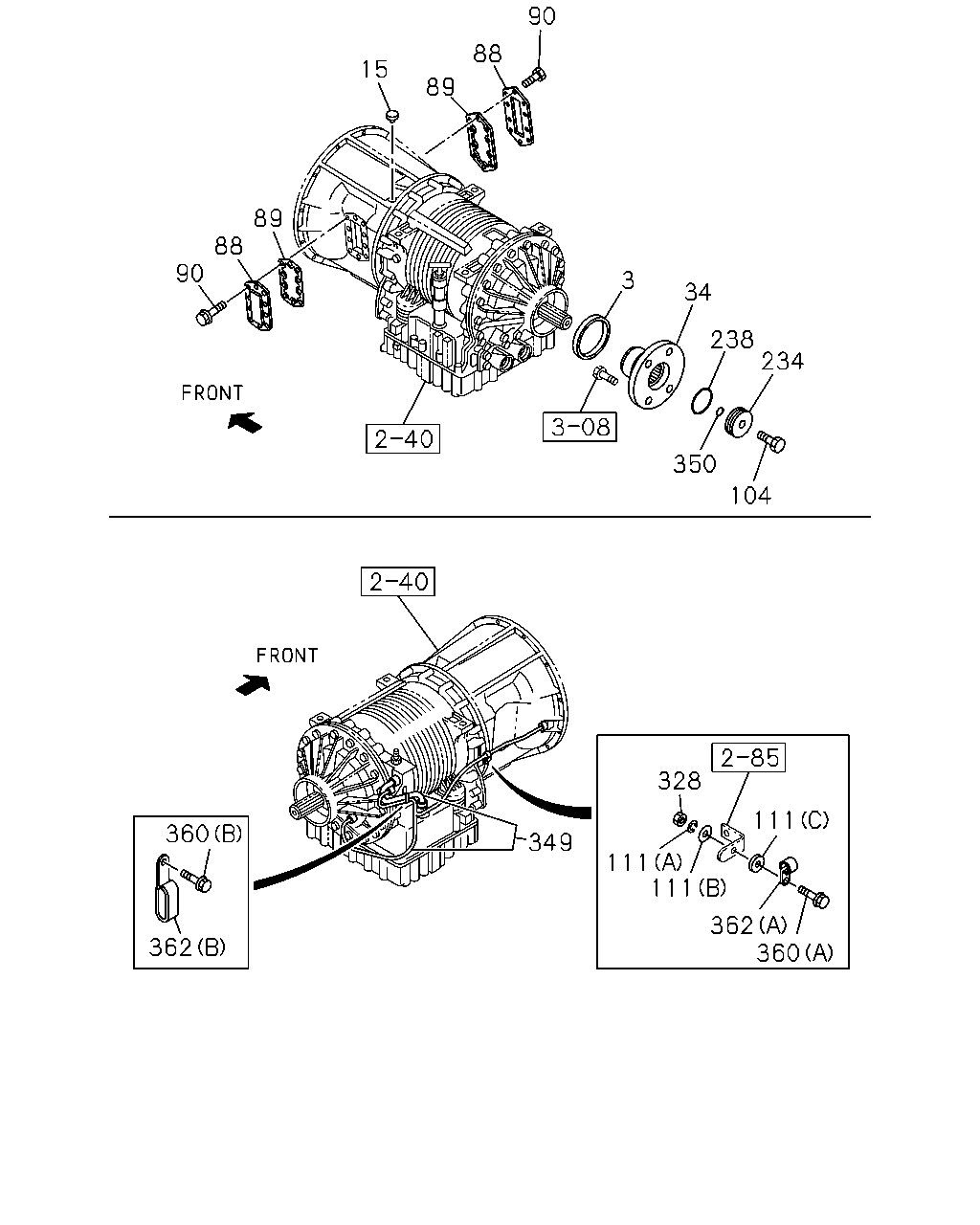

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#69654) — 58 parça

234 104 350 34 238 3 90 88 89 15 89 88 90 328 111 111 111 362 360 349 360 362

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	SEAL; OIL,RR COVER,A/T	1-34119-071-0	01	1	1010-1501
3	SEAL; OIL,RR COVER,A/T EXC. VIN MODEL YEAR 2015<VZF>	1-34119-071-0	01	1	1502-1503
3	SEAL; OIL,RR COVER,A/T	1-34119-071-0	01	1	1504-
15	BREATHER; A/T CASE VIN MODEL YEAR 2013<VZD>	8-98243-392-0	01	1	1211-1306
15	BREATHER; A/T CASE	8-98243-392-0	01	1	1307-1501
15	BREATHER; A/T CASE EXC. VIN MODEL YEAR 2015<VZF>	8-98243-392-0	01	1	1502-1503
15	BREATHER; A/T CASE	8-98243-392-0	01	1	1504-
34	FLANGE; OIL PUMP,A/T	1-37243-412-0	01	1	1010-1501
34	FLANGE; OIL PUMP,A/T EXC. VIN MODEL YEAR 2015<VZF>	1-37243-412-0	01	1	1502-1503
34	FLANGE; OIL PUMP,A/T	1-37243-412-0	01	1	1504-
88	COVER; SIDE,A/T	1-38181-011-0	02	1	1010-1501
88	COVER; SIDE,A/T EXC. VIN MODEL YEAR 2015<VZF>	1-38181-011-0	02	1	1502-1503
88	COVER; SIDE,A/T	1-38181-011-0	02	1	1504-
89	GASKET; SIDE COVER	1-38183-012-0	02	1	1010-1501
89	GASKET; SIDE COVER EXC. VIN MODEL YEAR 2015<VZF>	1-38183-012-0	02	1	1502-1503
89	GASKET; SIDE COVER	1-38183-012-0	02	1	1504-
90	BOLT; SIDE COVER	1-34119-068-0	20	1	1010-1501
90	BOLT; SIDE COVER EXC. VIN MODEL YEAR 2015<VZF>	1-34119-068-0	20	1	1502-1503
90	BOLT; SIDE COVER	1-34119-068-0	20	1	1504-
104	BOLT; RET	1-09029-100-0	01	1	1010-1501
104	BOLT; RET EXC. VIN MODEL YEAR 2015<VZF>	1-09029-100-0	01	1	1502-1503
104	BOLT; RET	1-09029-100-0	01	1	1504-
111	WASHER; PL,RR COVER (C) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1010-1501
111	WASHER; PL,RR COVER EXC. VIN MODEL YEAR 2015<VZF> (C) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1502-1503
111	WASHER; PL,RR COVER (C) ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1504-
111	WASHER; PL,RR COVER (B)	1-34119-091-0	01	1	1010-1501
111	WASHER; PL,RR COVER EXC. VIN MODEL YEAR 2015<VZF> (B)	1-34119-091-0	01	1	1502-1503
111	WASHER; PL,RR COVER (B)	1-34119-091-0	01	1	1504-
111	WASHER; PL,RR COVER (A)	1-34119-092-0	01	1	1010-1501
111	WASHER; PL,RR COVER EXC. VIN MODEL YEAR 2015<VZF> (A)	1-34119-092-0	01	1	1502-1503
111	WASHER; PL,RR COVER (A)	1-34119-092-0	01	1	1504-
234	PLATE; RETAINER	1-37249-192-0	01	1	1010-1501
234	PLATE; RETAINER EXC. VIN MODEL YEAR 2015<VZF>	1-37249-192-0	01	1	1502-1503
234	PLATE; RETAINER	1-37249-192-0	01	1	1504-
238	GASKET; PLUG	1-09623-634-0	01	1	1010-1501
238	GASKET; PLUG EXC. VIN MODEL YEAR 2015<VZF>	1-09623-634-0	01	1	1502-1503
238	GASKET; PLUG	1-09623-634-0	01	1	1504-
328	NUT; RR COVER	1-34119-093-0	01	1	1010-1501
328	NUT; RR COVER EXC. VIN MODEL YEAR 2015<VZF>	1-34119-093-0	01	1	1502-1503
328	NUT; RR COVER	1-34119-093-0	01	1	1504-
349	HARNESS; SENSOR	8-98080-446-0	01	1	1010-1501
349	HARNESS; SENSOR EXC. VIN MODEL YEAR 2015<VZF>	8-98080-446-0	01	1	1502-1503
349	HARNESS; SENSOR	8-98080-446-0	01	1	1504-
350	GASKET; BOLT,FLANGE	1-09623-674-0	01	1	1010-1501
350	GASKET; BOLT,FLANGE EXC. VIN MODEL YEAR 2015<VZF>	1-09623-674-0	01	1	1502-1503
350	GASKET; BOLT,FLANGE	1-09623-674-0	01	1	1504-
360	BOLT; CLIP (A) M6X1.00	1-34119-090-0	01	1	1010-1501
360	BOLT; CLIP EXC. VIN MODEL YEAR 2015<VZF> (A) M6X1.00	1-34119-090-0	01	1	1502-1503
360	BOLT; CLIP (A) M6X1.00	1-34119-090-0	01	1	1504-
360	BOLT; CLIP (B)	8-98149-708-0	01	1	1010-1501
360	BOLT; CLIP EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98149-708-0	01	1	1502-1503
360	BOLT; CLIP (B)	8-98149-708-0	01	1	1504-
362	CLIP; HARNESS (B) ID=19 L=20	0-95235-836-0	01	1	1010-1501
362	CLIP; HARNESS EXC. VIN MODEL YEAR 2015<VZF> (B) ID=19 L=20	0-95235-836-0	01	1	1502-1503
362	CLIP; HARNESS (B) ID=19 L=20	0-95235-836-0	01	1	1504-
362	CLIP; HARNESS (A) ID=9 L=30	1-34119-089-0	01	1	1010-1501
362	CLIP; HARNESS EXC. VIN MODEL YEAR 2015<VZF> (A) ID=9 L=30	1-34119-089-0	01	1	1502-1503
362	CLIP; HARNESS (A) ID=9 L=30	1-34119-089-0	01	1	1504-
