◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#6965) — 27 parça

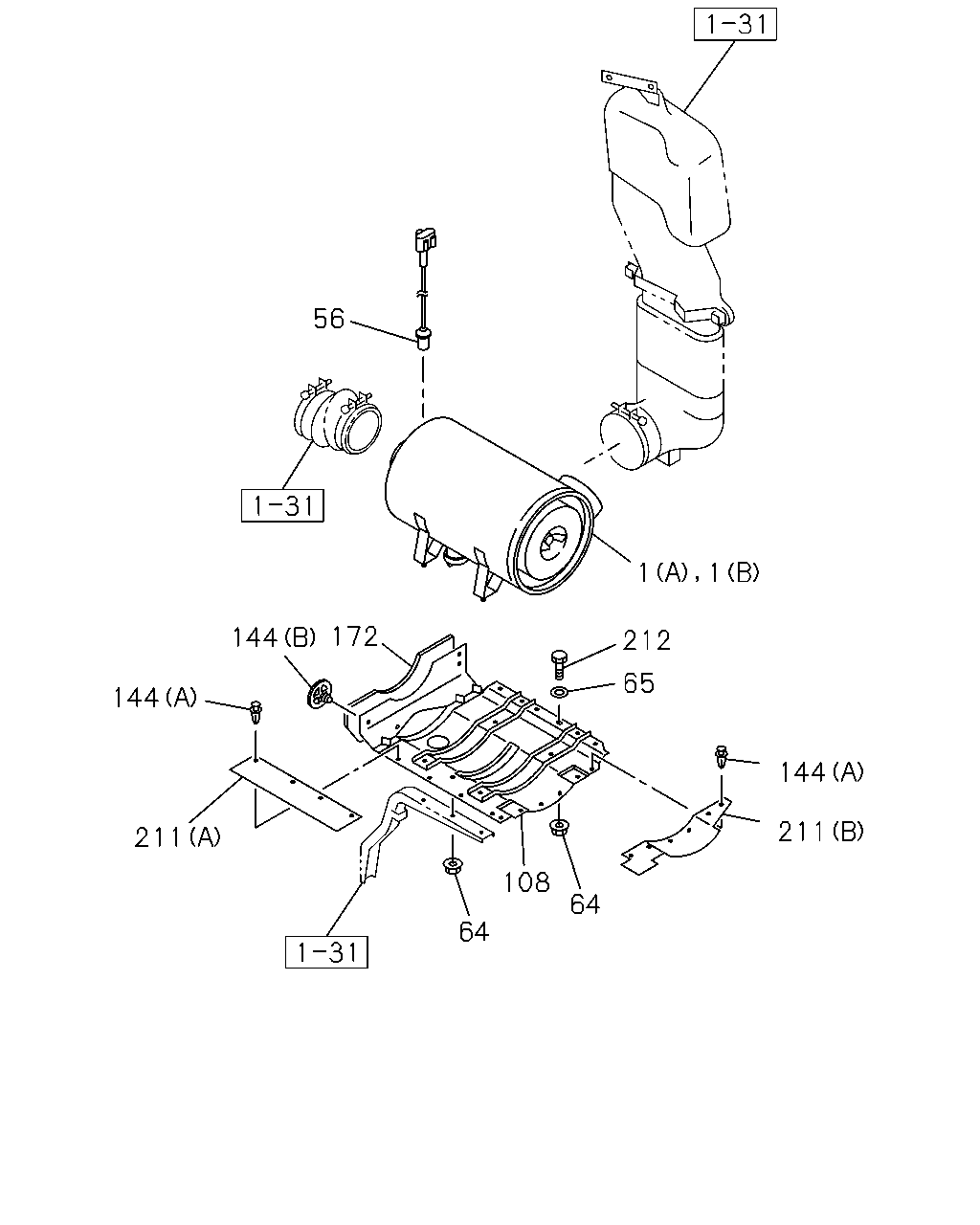

çizim 43967
56 1 1 172 144 212 65 144 144 211 211 108 64 64
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14210-767-2 01 1 9908-
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14210-783-2 01 1 9908-
56 SWITCH; ACL 1-81530-016-0 01 1 9908-
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 9908-
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 9908-
108 COVER; ACL 1-53419-300-0 01 1 9908-
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 9908-
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 9908-
172 INSULATOR; NOISE 1-53446-781-2 01 1 9908-
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 9908-
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 9908-
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 9908-

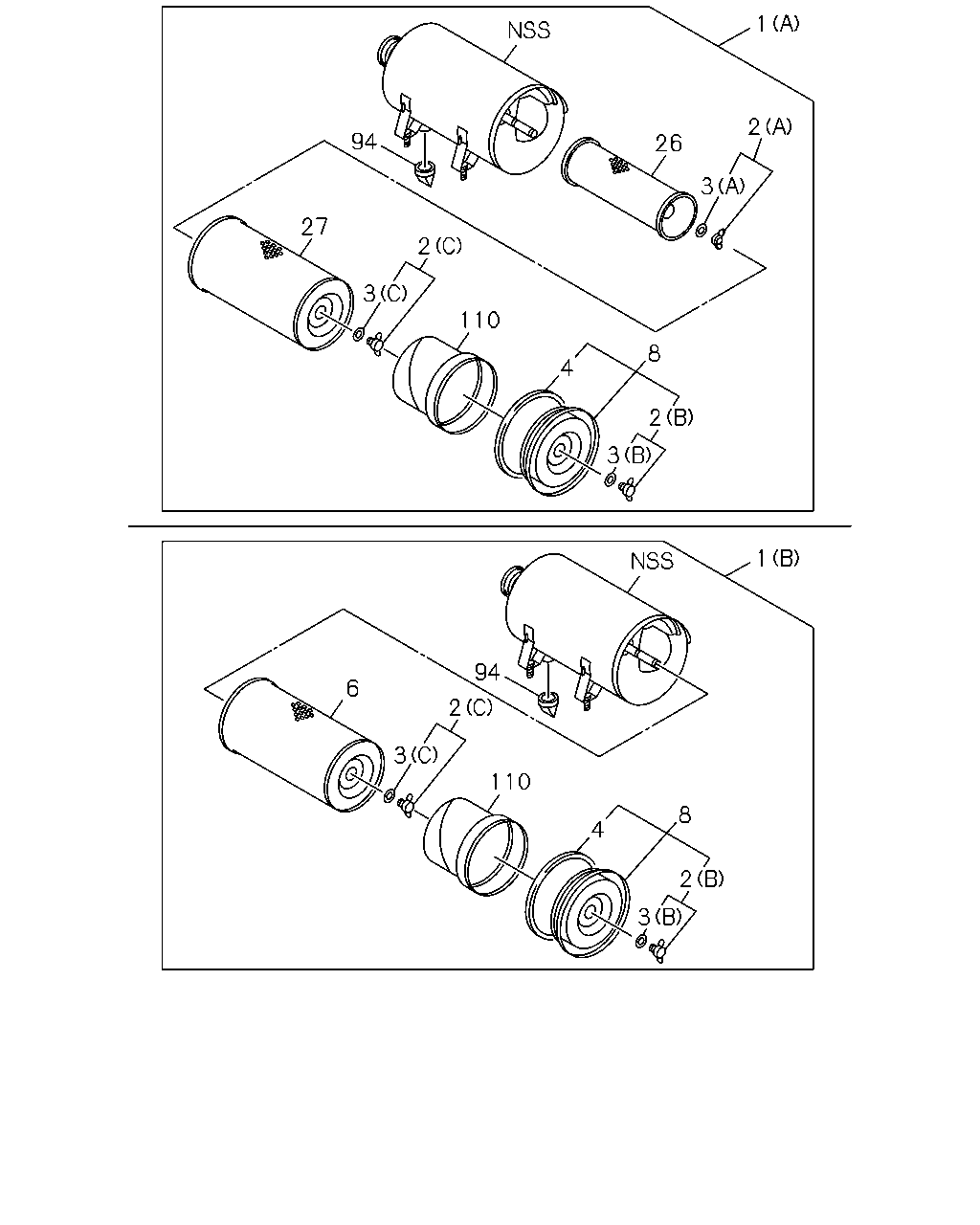

çizim 44047
1 2 94 26 3 27 2 3 110 8 4 2 3 1 94 6 2 3 110 8 4 2 3
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14210-767-2 01 1 9908-
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (B) 		1-14210-783-2 01 1 9908-
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9908-
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9908-
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14217-003-0 01 1 9908-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 9908-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9908-
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) (A) 		1-14219-032-0 01 1 9908-
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9908-
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-184-1 01 1 9908-
8 COVER ASM; ACL 1-14212-064-0 01 1 9908-
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-089-1 01 1 9908-
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT(Q2Y) 		1-14215-184-1 01 1 9908-
94 VALVE; VACUATOR 1-14219-129-0 01 1 9908-
110 ADAPTER; ACL 1-14219-175-0 01 1 9908-
