Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#69648) — 673 parça

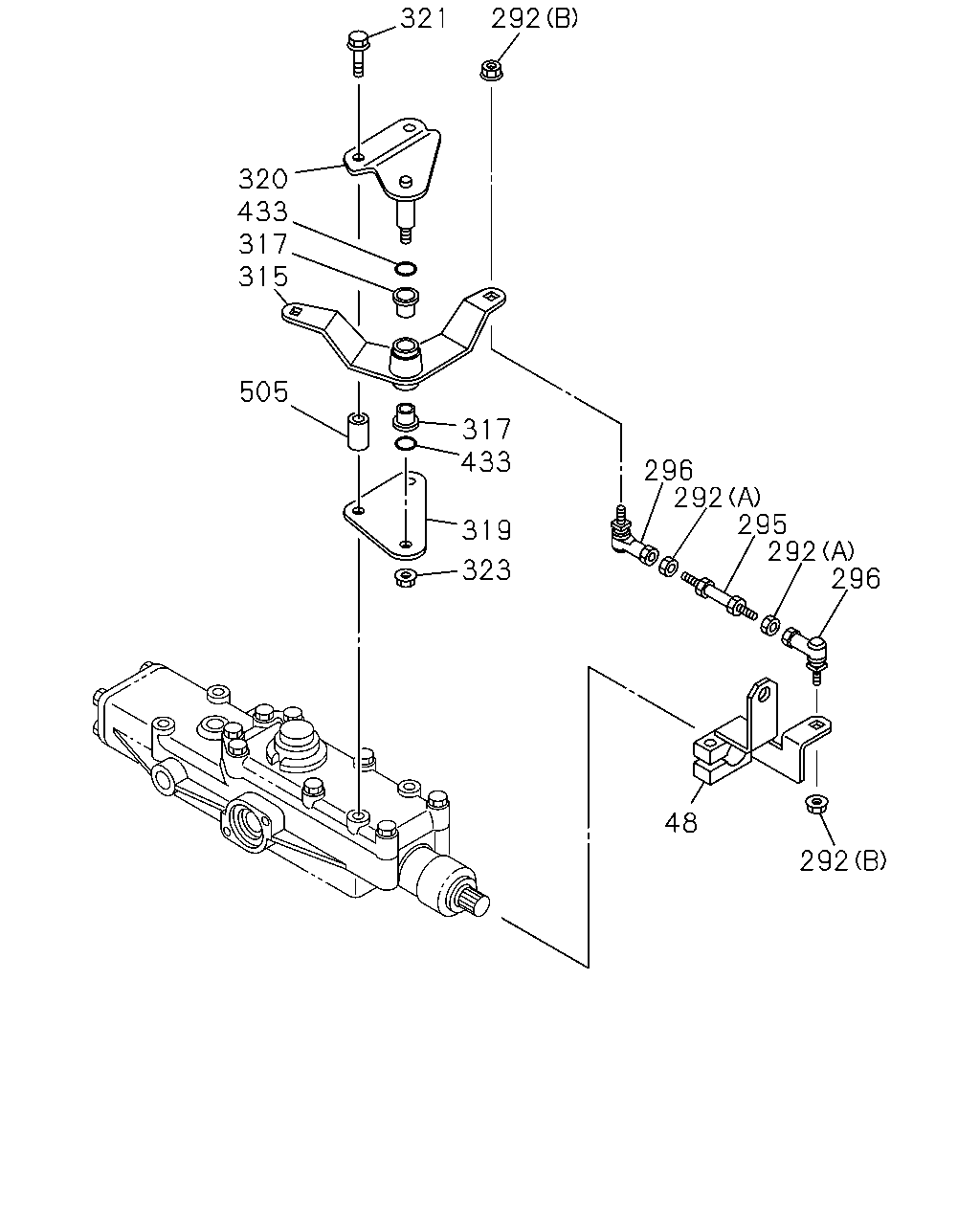

321 292 320 433 317 315 505 317 433 319 323 296 292 295 292 296 48 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1010-1306
48	LEVER; 4TH,SHIFT	1-33651-827-1	01	1	1307-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1010-1305
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1010-1305
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1010-1305
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1010-1305
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1010-1305
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1010-1306
315	LEVER; SELECT	1-33549-458-0	01	1	1307-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1010-1305
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1010-1306
317	BUSHING; LEVER	1-33549-322-0	01	1	1307-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1010-1305
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1010-1305
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1010-1306
320	SHAFT; LEVER	1-33549-447-0	01	1	1307-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1010-1305
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1010-1305
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1010-1305
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1010-1305
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1010-1305

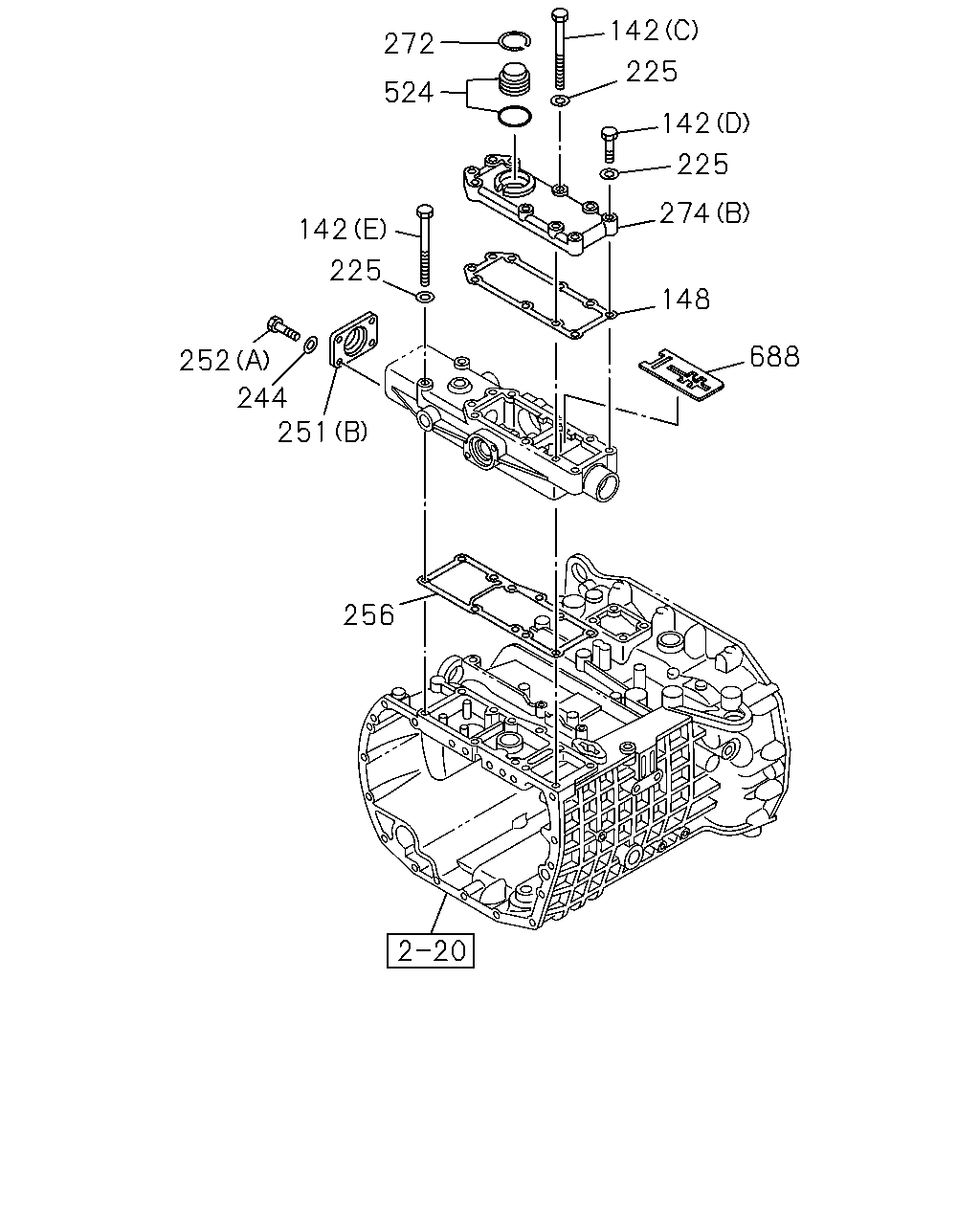

256 688 148 274 225 142 225 142 272 524 142 252 225 244 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1010-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1010-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1010-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1010-1306
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33544-056-0	01	1	1307-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1010-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1010-1305
244	WASHER; LK,COVER	1-33549-159-0	04	1	1010-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1010-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1010-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1010-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1010-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1010-1305
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1010-1306
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-062-0	01	1	1307-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1010-1305
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX (A)	1-33549-477-0	01	1	1306-
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1010-1305
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1010-1305

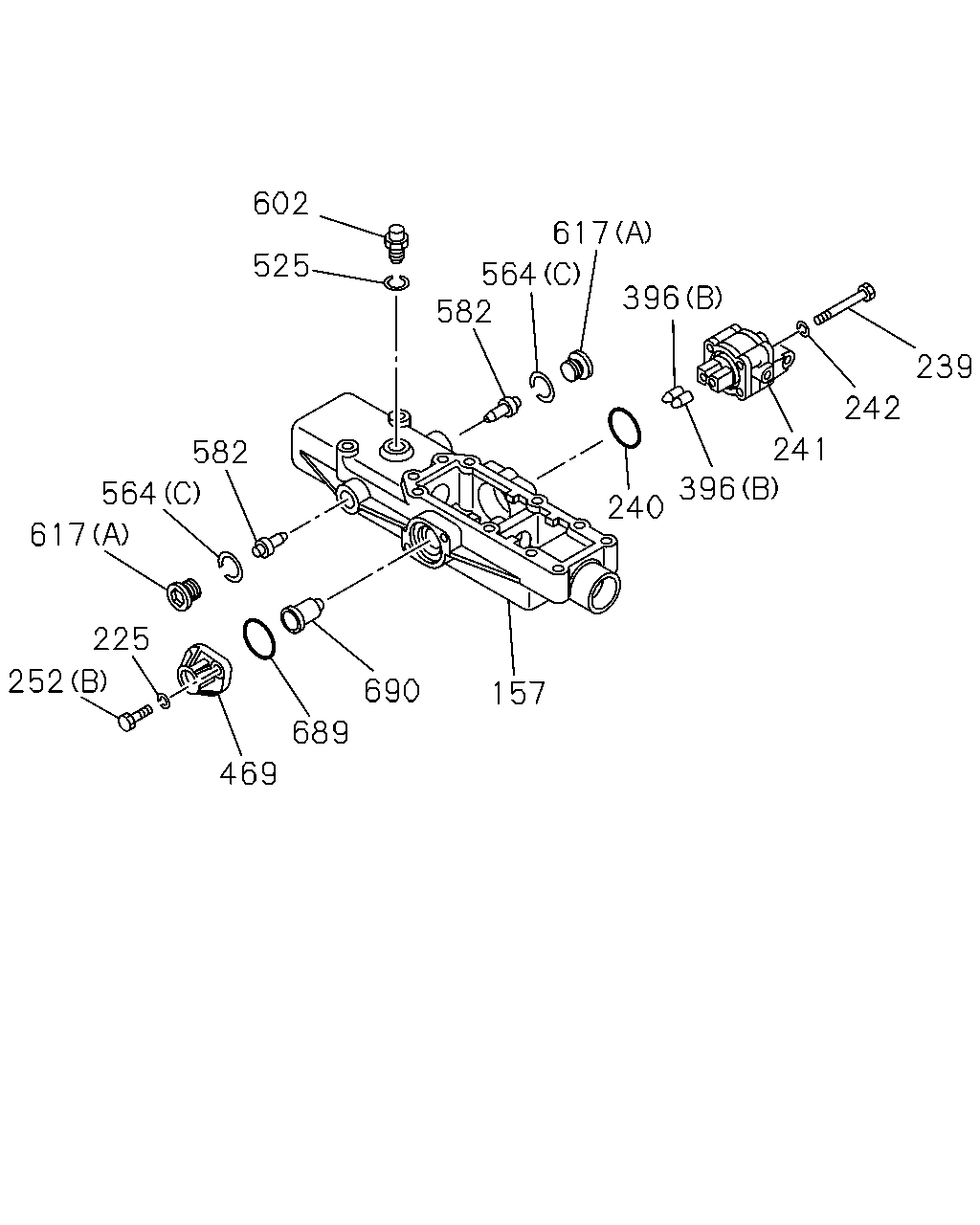

602 525 582 564 617 225 252 469 689 690 157 240 396 241 242 239 564 617 396 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1010-1306
157	BOX; QUAD,TRANS	1-33549-445-0	01	1	1307-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1010-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1010-1305
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	1010-1305
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1010-1305
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1010-1305
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	1010-1305
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1010-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1010-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1010-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1010-1305
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1010-1305
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1010-1305
564	SEAL; RING (B)	1-33549-444-0	01	1	1010-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1010-1306
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	1307-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1010-1305
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1010-1306
582	BOLT; SPRING GUIDE	1-33549-471-0	01	1	1307-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1010-1305
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1010-1305
617	PLUG (B)	1-34129-061-0	01	1	1010-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1010-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1010-1305
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1010-1305
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1010-1305

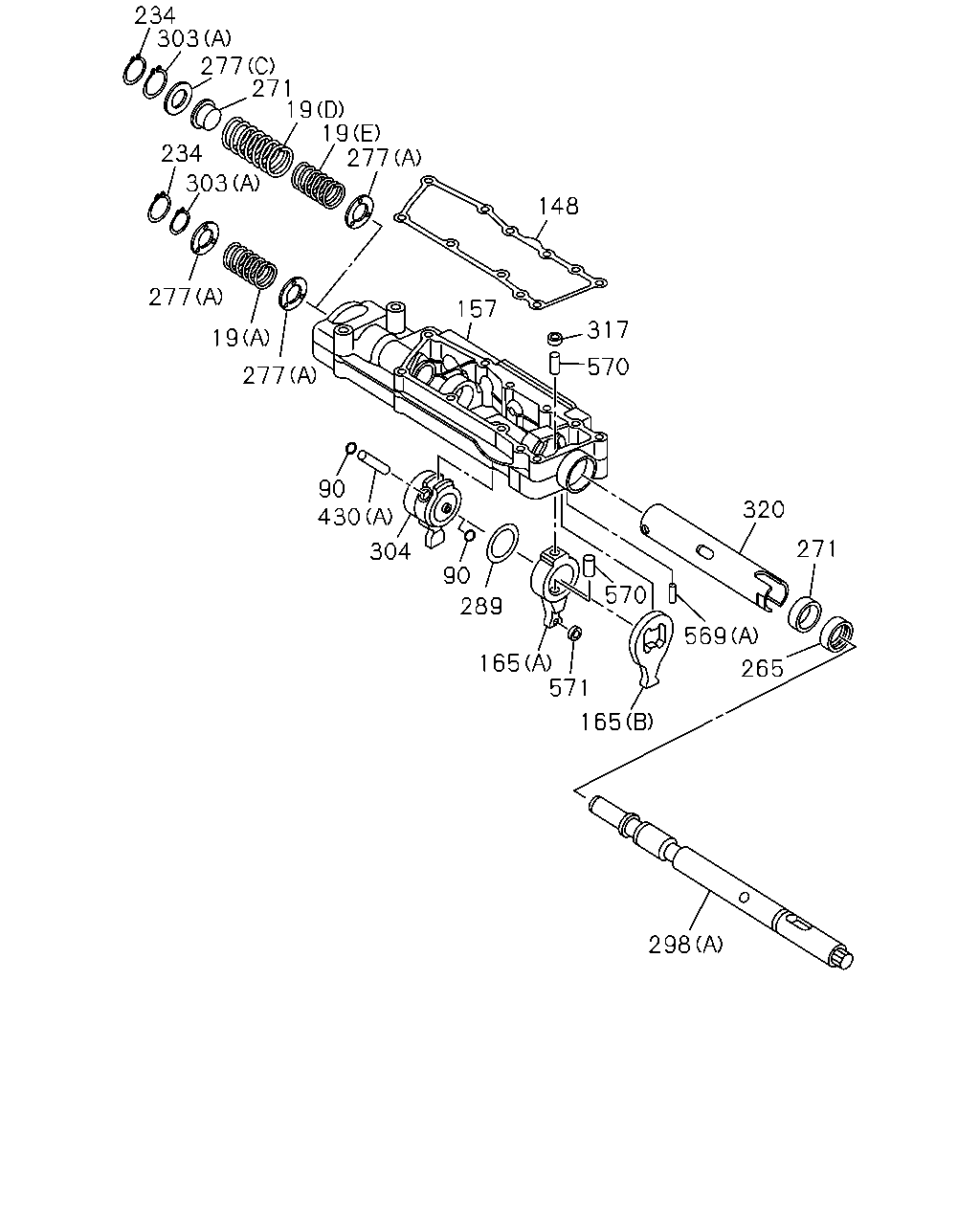

165 165 289 165 271 90 430 304 90 298 569 265 264 42 48 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1010-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1010-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1010-1305
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1010-1306
48	LEVER; 4TH,SHIFT	1-33651-827-1	01	1	1307-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1010-1305
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1010-1306
90	RING; SNAP,SHIFT ROD	1-33529-109-0	01	1	1307-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1010-1305
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1010-1306
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	1307-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1010-1306
165	LEVER; SHIFT (A)	1-33549-450-0	01	1	1307-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1010-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1010-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1010-1305
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1010-1305
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1010-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1010-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1010-1306
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	1307-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1010-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6)	1-33539-113-0	01	1	1306-1306
271	BUSHING; QUAD BOX EXC. COUNTRY NEW ZEALAND(CX6)	1-33539-113-0	01	1	1307-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER (A)	1-33522-204-0	01	1	1306-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1010-1306
304	BLOCK; SHIFT SHAFT	1-33549-448-0	01	1	1307-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1010-1305
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1010-1306
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	02	1	1307-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1010-1305
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1010-1306
430	PIN; SPR,SHIFT ROD (A)	1-33549-449-0	01	1	1307-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1010-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1010-1306
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1010-1306
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1010-1306
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	1307-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1010-1305

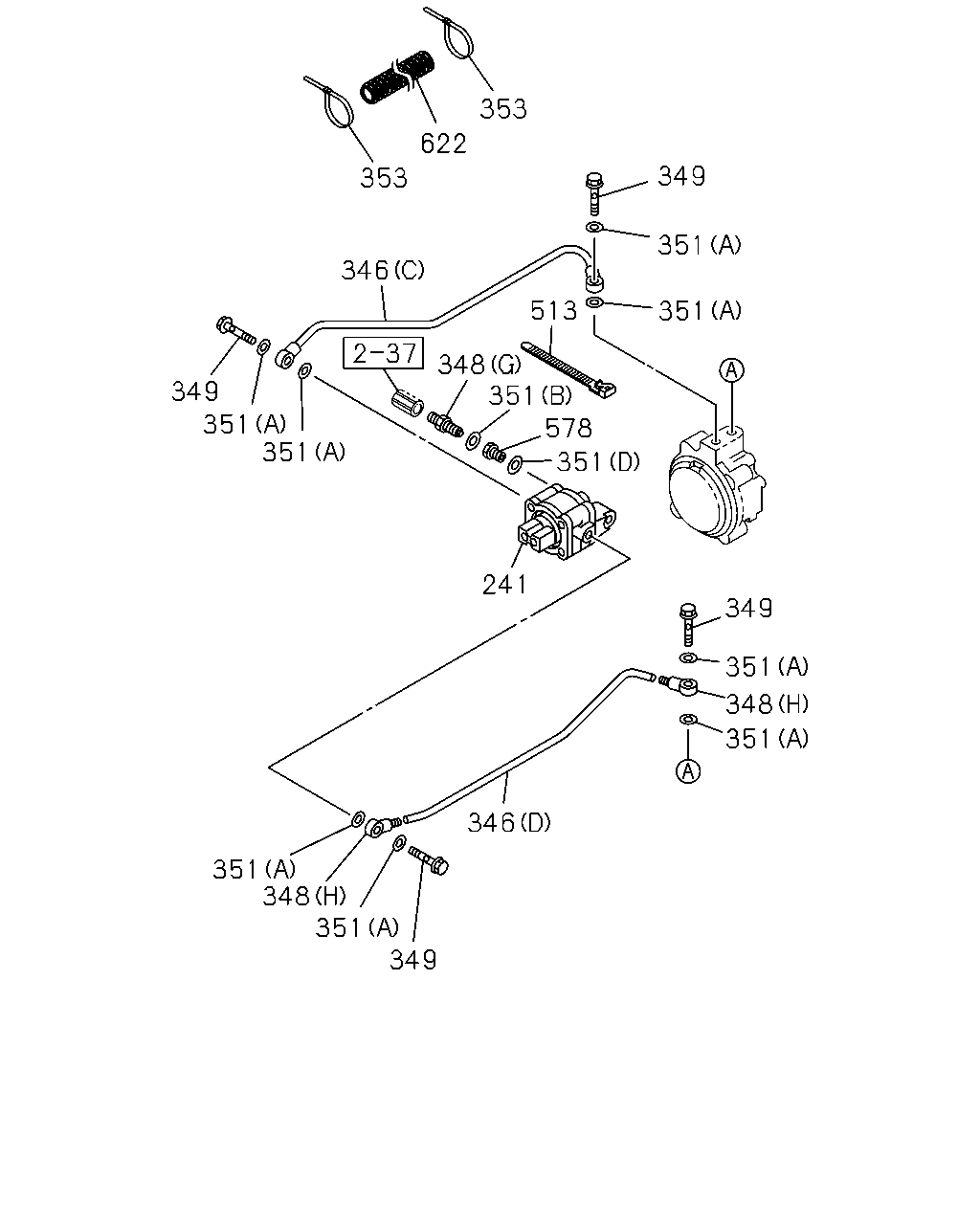

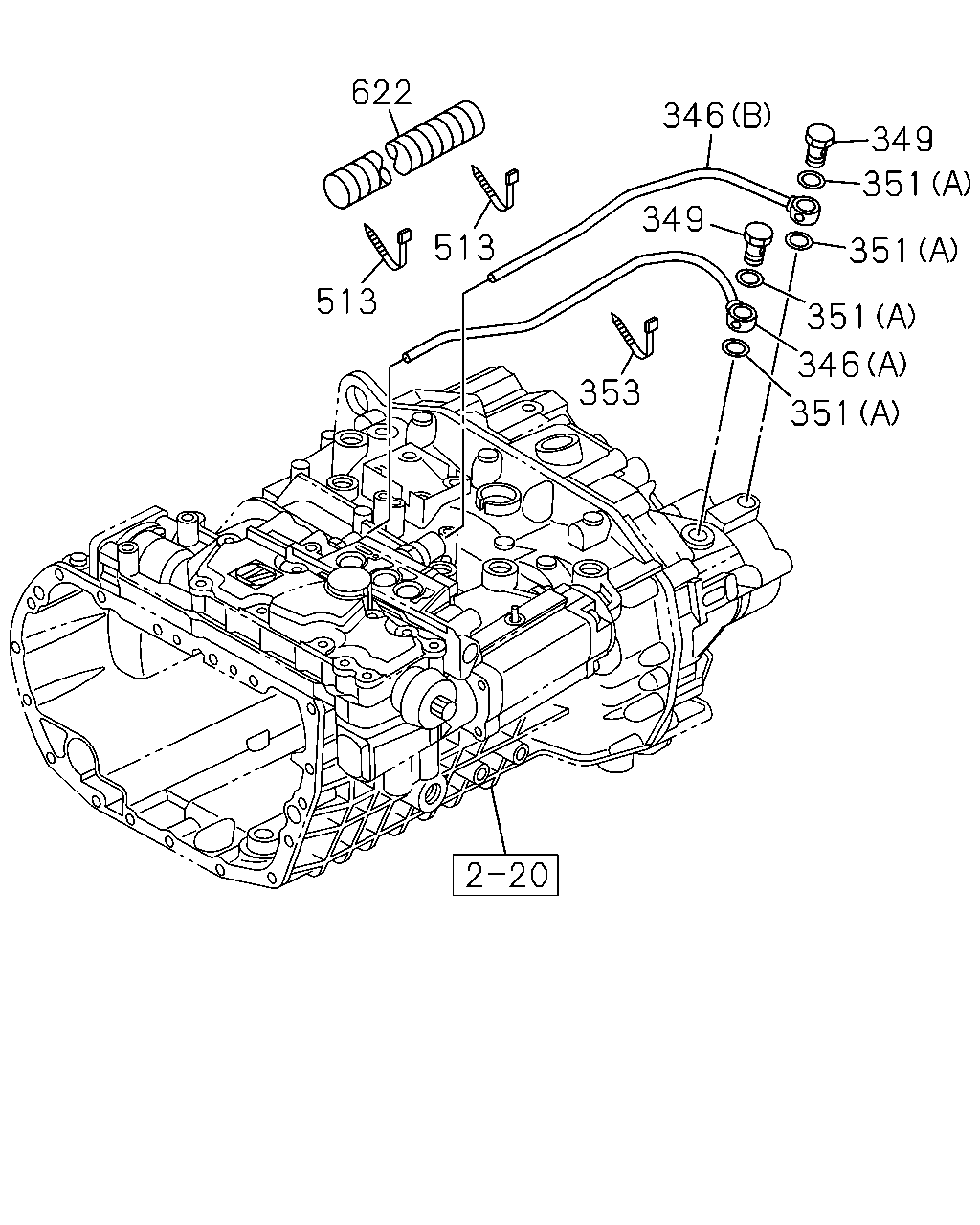

349 351 351 351 351 346 349 346 353 513 513 622

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1010-1306
346	HOSE; AIR (A)	1-33549-473-0	01	1	1307-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1010-1306
346	HOSE; AIR (B)	1-33549-474-0	01	1	1307-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1010-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1010-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1010-1305
349	BOLT; EYE,AIR HOSE M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1010-1306
351	GASKET; CONNECTOR (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1010-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1010-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1010-1305
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1010-1305
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1306-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1105-1305
513	CLIP; BAND L=250	5-09707-030-1	05	1	1010-1104
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1105-1306
513	CLIP; BAND L=250	5-09707-030-1	05	1	1307-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1010-1305
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1010-

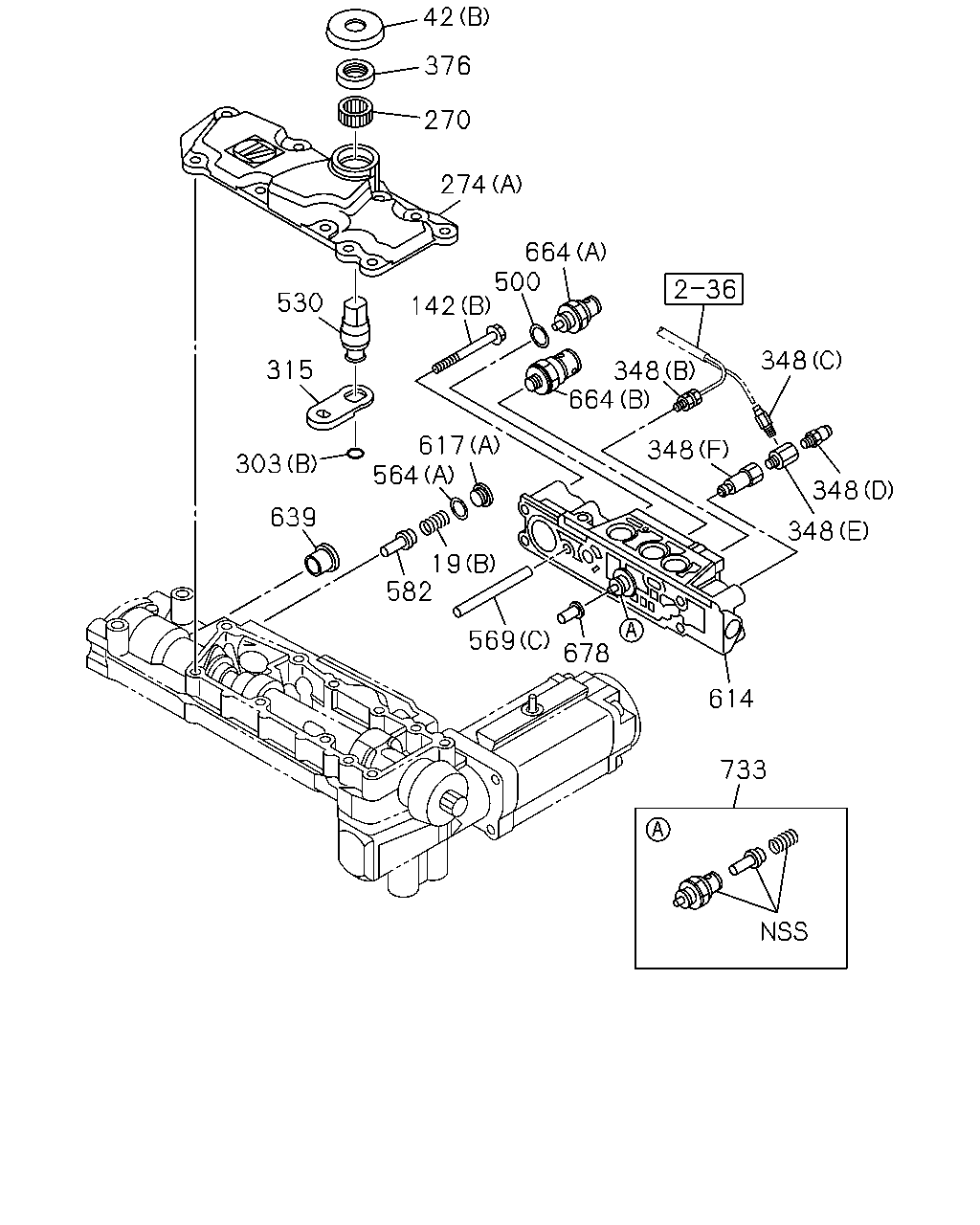

733 614 678 569 582 564 617 639 303 315 530 142 500 664 274 270 376 42 664 348 348 348 348 348 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1010-1305
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-104-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1010-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1010-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1306-1306
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (A)	1-33539-089-0	01	1	1307-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1010-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1010-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1010-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1010-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1010-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1010-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1010-1306
270	BEARING; NEEDLE,QUAD BOX	1-33549-459-0	01	1	1307-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1010-1305
274	COVER; SHAFT,QUAD BOX (A)	1-33549-477-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1010-1306
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1307-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1010-1306
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	1307-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1010-1305
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1010-1306
315	LEVER; SELECT	1-33549-458-0	01	1	1307-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	1307-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1010-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1010-1305
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1010-1306
376	SEAL; OIL	1-33549-462-0	01	1	1307-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1010-1306
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1307-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1010-1305
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1010-1306
530	SHAFT; SELECT	1-33549-460-0	01	1	1307-
564	SEAL; RING (B)	1-33549-444-0	01	1	1010-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1010-1306
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	1307-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1010-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1010-1306
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1010-1306
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1010-1306
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	1307-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1010-1305
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1010-1306
582	BOLT; SPRING GUIDE	1-33549-471-0	01	1	1307-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1010-1305
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	1010-1305
614	VALVE ASM	1-33549-549-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1010-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1010-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1010-1305
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	1010-1305
639	CAP	1-33549-576-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1010-1305
664	SWITCH (A)	1-33119-627-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1010-1306
664	SWITCH (B)	1-33549-470-0	01	1	1307-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1010-1306
678	TAPPET	1-33549-466-0	01	1	1307-
733	REPAIR KIT	1-33549-617-0	01	1	1306-

351 578 348 573 572 48 332 351 450 348 142 142 167 332 252 244 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1010-1306
48	LEVER; 4TH,SHIFT	1-33651-827-1	01	1	1307-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1010-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1010-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1010-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1010-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1010-1306
167	LEVER; SELECT,EXTERNAL	1-33651-831-1	01	1	1307-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1010-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1010-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1010-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1010-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1010-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1010-1305
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1010-1306
332	BOLT; 4TH,SHIFT LEVER M8X40 FLANGE	0-28650-840-0	02	1	1307-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	1307-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1010-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1010-1306
351	GASKET; CONNECTOR (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1010-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1010-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1010-1305
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1307-
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1010-1306
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1010-1306
572	SERVO UNIT; GEAR SHIFT	1-33549-331-0	01	1	1307-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1010-1306
573	GASKET; SERVO UNIT	1-33549-332-0	01	1	1307-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1010-1306
578	CONNECTOR DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1307-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1010-1305

234 277 303 271 234 277 303 19 277 19 19 277 90 317 148 157 320 265 271 569 570 165 298 571 165 289 90 304 430 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

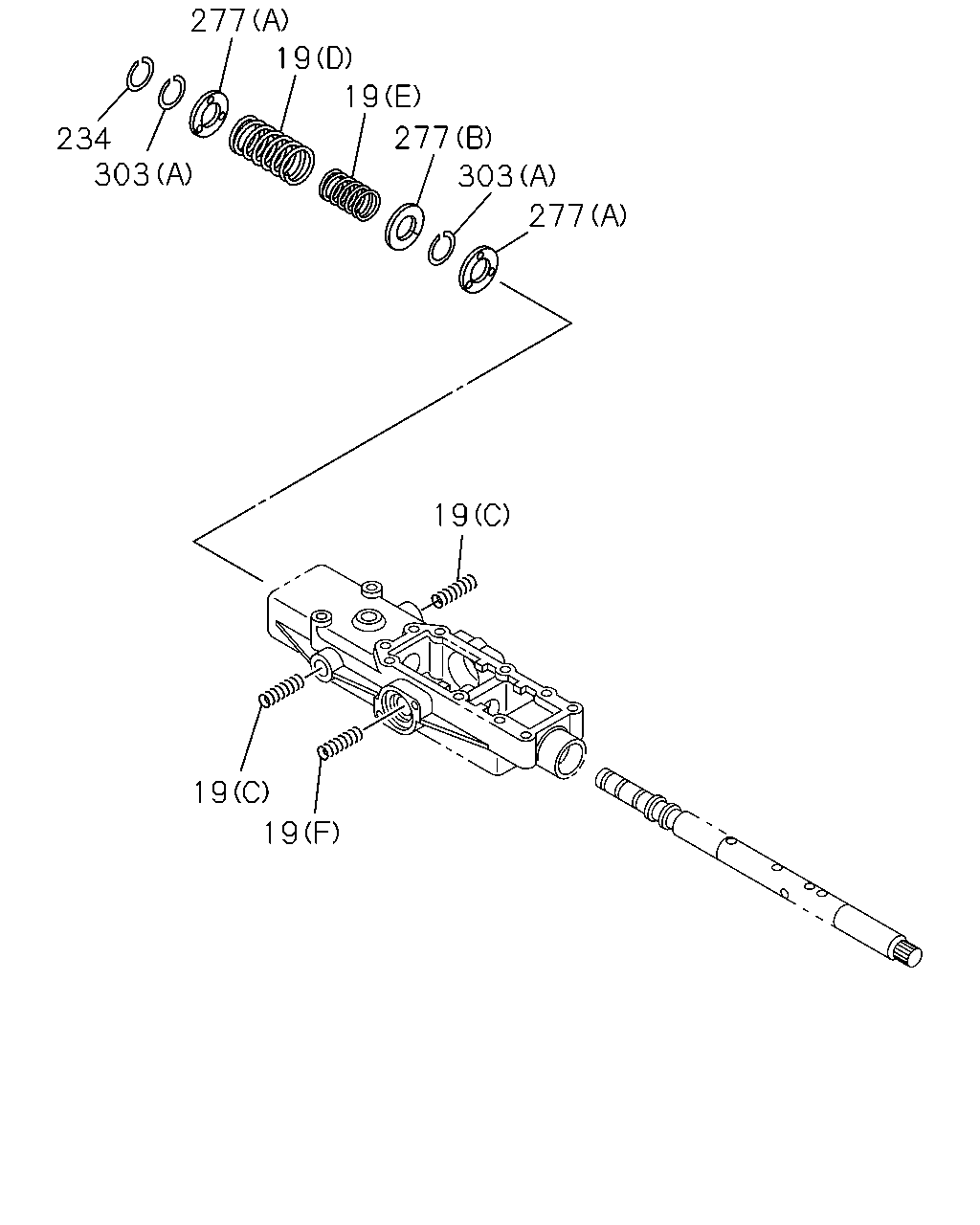

19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1010-1305
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-104-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1010-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1010-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1306-1306
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (A)	1-33539-089-0	01	1	1307-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1010-1306
90	RING; SNAP,SHIFT ROD	1-33529-109-0	01	1	1307-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1010-1305
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1010-1306
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	1-33544-056-0	01	1	1307-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1010-1305
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1010-1306
157	BOX; QUAD,TRANS	1-33549-445-0	01	1	1307-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1010-1305
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1010-1306
165	LEVER; SHIFT (B)	1-33549-325-0	01	1	1307-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1010-1306
165	LEVER; SHIFT (A)	1-33549-450-0	01	1	1307-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1010-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1010-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1010-1305
234	RING; SNAP	1-44519-224-0	01	1	1010-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1010-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1010-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1010-1306
271	BUSHING; QUAD BOX	1-33549-318-0	01	1	1307-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1010-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6)	1-33539-113-0	01	1	1306-1306
271	BUSHING; QUAD BOX EXC. COUNTRY NEW ZEALAND(CX6)	1-33539-113-0	01	1	1307-
277	PLATE; SPRING SEAT ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-110-0	01	1	1306-1306
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-110-0	01	1	1307-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1010-1305
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-107-0	02	1	1306-1306
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	02	1	1307-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1010-1305
277	PLATE; SPRING SEAT ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1306-1306
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1307-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1010-1305
298	SHAFT; SHIFT LEVER (A)	1-33522-204-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1010-1306
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1307-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1010-1306
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	1307-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1010-1305
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1010-1306
304	BLOCK; SHIFT SHAFT	1-33549-448-0	01	1	1307-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1010-1305
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1010-1306
317	BUSHING; LEVER	1-33549-322-0	01	1	1307-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1010-1305
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1010-1306
320	SHAFT; LEVER	1-33549-447-0	01	1	1307-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1010-1305
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1010-1306
430	PIN; SPR,SHIFT ROD (A)	1-33549-449-0	01	1	1307-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1010-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1010-1306
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1010-1306
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1010-1306
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	1307-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1010-1305
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	1010-1305
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1306-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1010-1306
571	ROLLER; LEVER	1-33549-324-0	01	1	1307-

349 351 348 351 346 351 348 351 349 241 351 578 351 351 349 513 351 351 351 349 348 353 346 622 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1010-1305
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1010-1306
346	HOSE; AIR (A)	1-33549-473-0	01	1	1307-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1010-1306
346	HOSE; AIR (B)	1-33549-474-0	01	1	1307-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1010-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (A) PT1/4	1-09654-396-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (B)	1-09660-466-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (C)	1-09661-174-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (D)	1-09661-481-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (E)	8-94338-417-0	01	1	1307-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1010-1306
348	CONNECTOR; AIR HOSE (F)	8-98068-125-0	01	1	1307-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1010-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1010-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1010-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1010-1305
349	BOLT; EYE,AIR HOSE M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1010-1305
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1010-1306
351	GASKET; CONNECTOR (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1307-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1010-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1010-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1010-1305
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1010-1305
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1306-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1105-1305
513	CLIP; BAND L=250	5-09707-030-1	05	1	1010-1104
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1105-1306
513	CLIP; BAND L=250	5-09707-030-1	05	1	1307-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1010-1305
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1010-1306
578	CONNECTOR DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1307-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1010-1305
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1010-

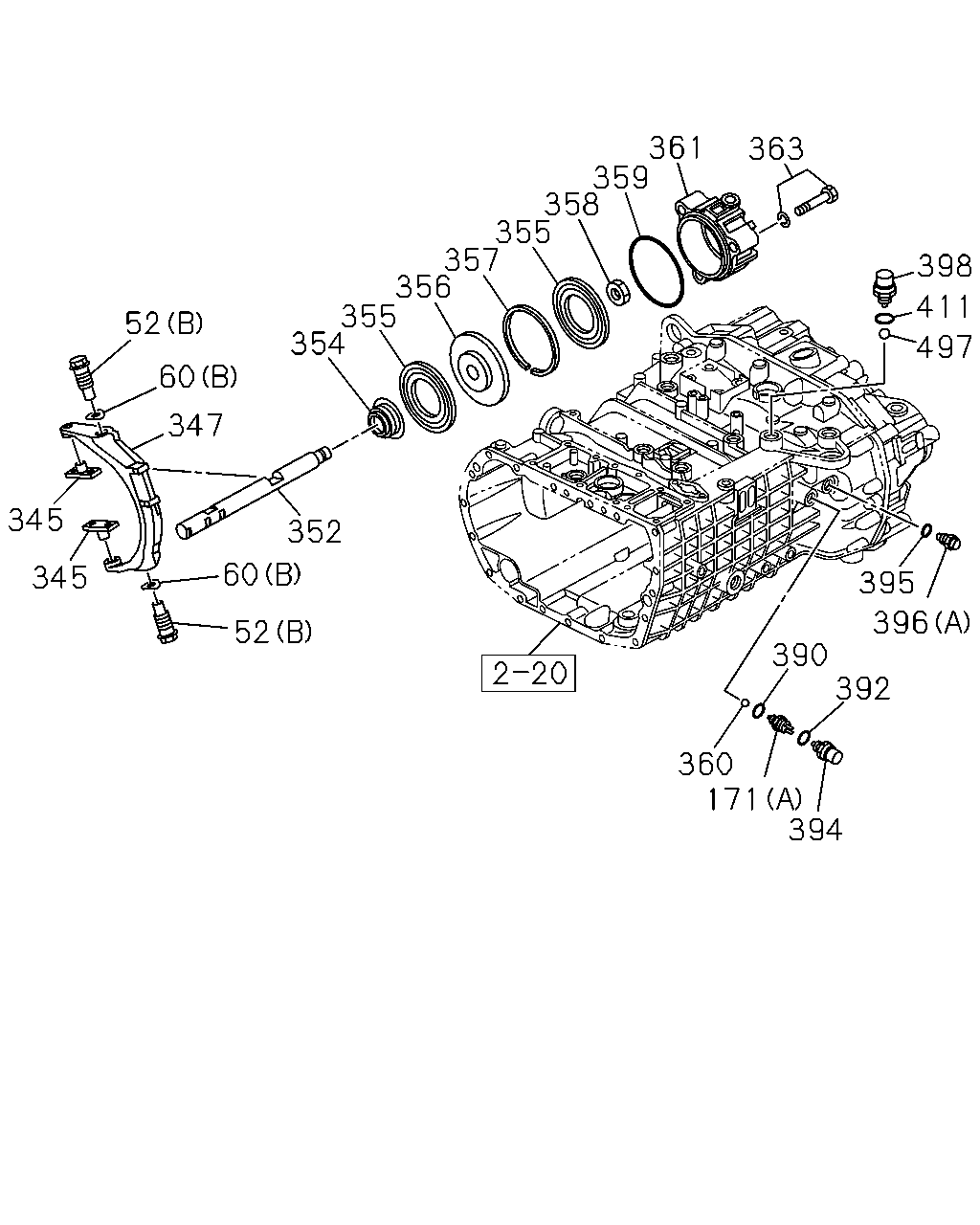

52 354 355 356 357 355 358 359 361 363 60 345 347 345 60 52 352 398 497 411 395 396 392 390 360 171 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1010-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1010-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1010-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1010-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	1010-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1010-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1010-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1010-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1010-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1010-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1010-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1010-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1010-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1010-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1010-
360	BALL; AIR CYL	1-33119-252-0	01	1	1010-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1010-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1010-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1010-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1010-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
390	GASKET; NEUTRAL SW ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1010-1305
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1010-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1010-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1010-1305
395	GASKET; PLUNGER	1-33519-171-0	01	1	1010-1305
395	GASKET; PLUNGER	1-33549-497-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1010-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1010-1305
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1010-
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1010-
497	BALL; SWITCH	1-33119-252-0	01	1	1010-

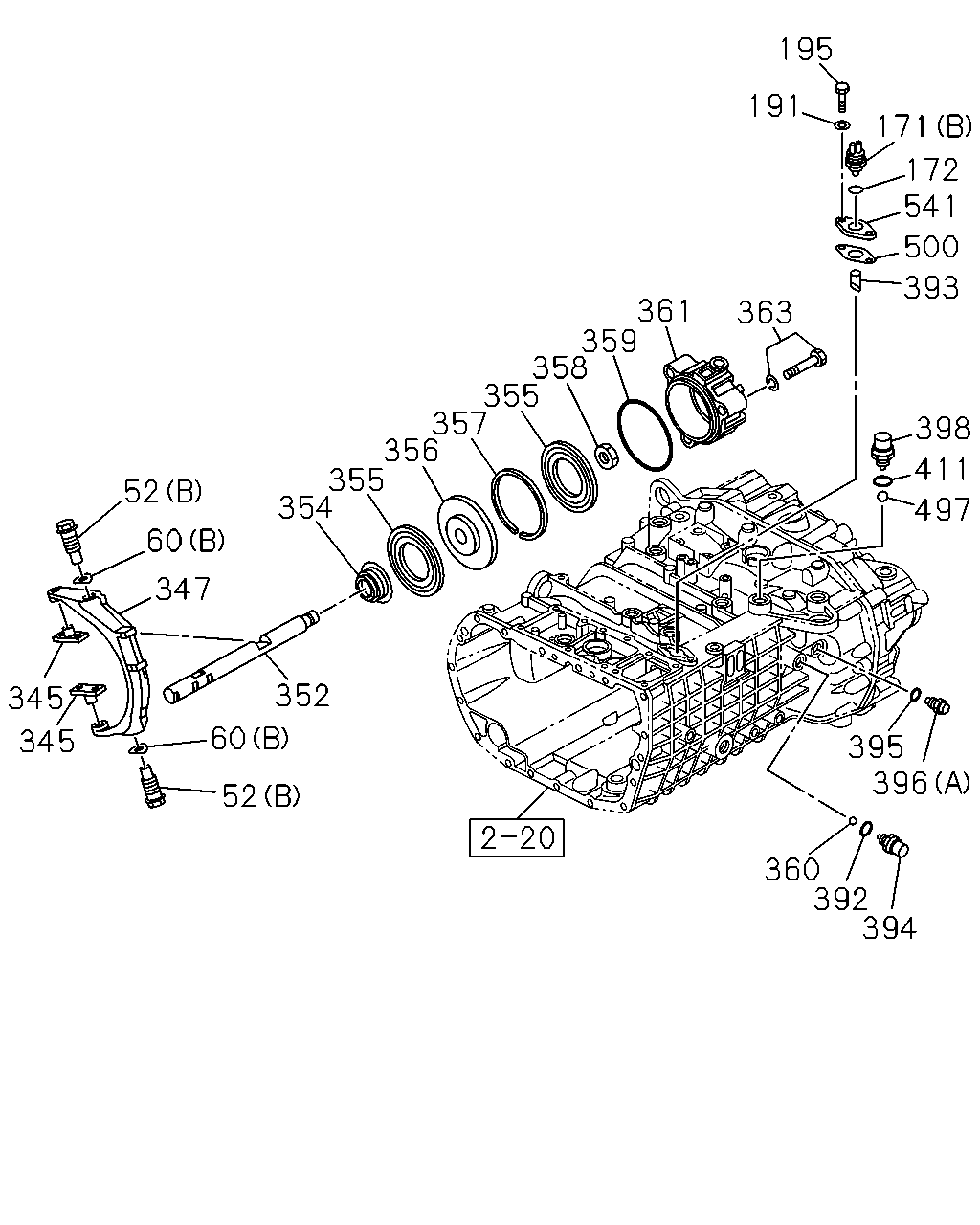

394 392 360 396 395 497 411 398 393 500 541 172 171 195 191 363 361 359 358 355 357 356 355 354 52 347 60 345 345 60 52 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1010-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1010-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1010-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1010-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	1010-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1010-1305
172	GASKET; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1010-1305
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	1010-1305
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1010-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1010-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1010-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1010-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1010-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1010-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1010-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1010-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1010-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1010-
360	BALL; AIR CYL	1-33119-252-0	01	1	1010-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1010-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1010-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1010-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1010-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
392	GASKET; PLUG & SW	1-33119-249-0	01	1	1010-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1010-1305
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1010-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1010-1305
395	GASKET; PLUNGER	1-33519-171-0	01	1	1010-1305
395	GASKET; PLUNGER	1-33549-497-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1010-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1010-1305
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1010-
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1010-
497	BALL; SWITCH	1-33119-252-0	01	1	1010-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1010-1306
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1307-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1010-1305
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1010-1305

277 303 234 19 19 277 303 277 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1010-1305
19	SPRING; COIL COMP (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-027-0	01	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (D)	1-33539-092-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1010-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1306-1306
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-093-0	01	1	1307-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-104-0	01	1	1010-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1010-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1010-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1306-1306
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (A)	1-33539-089-0	01	1	1307-
234	RING; SNAP	1-44519-224-0	01	1	1010-
277	PLATE; SPRING SEAT ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-110-0	01	1	1306-1306
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-110-0	01	1	1307-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1010-1305
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-107-0	02	1	1306-1306
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	02	1	1307-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1010-1305
277	PLATE; SPRING SEAT ASSISTOR SHIFT CONTROL<WX8> EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1306-1306
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1307-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1010-1306
303	RING; SNAP,SHAFT (A)	1-33539-040-0	01	1	1307-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1010-1306
303	RING; SNAP,SHAFT (B)	1-33549-461-0	01	1	1307-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1010-1305

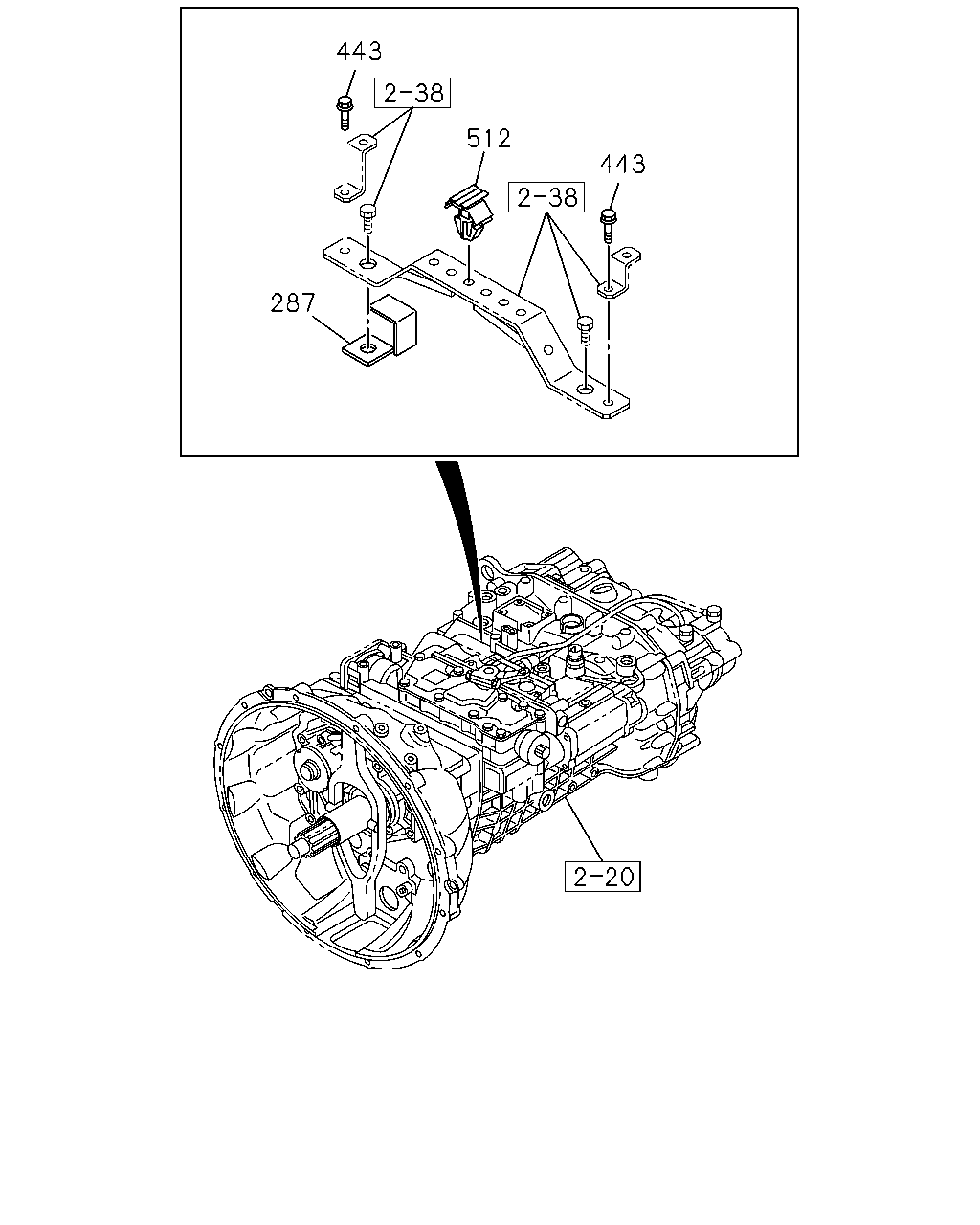

443 287 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1010-1305
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1010-1306
443	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1010-1306
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	05	1	1307-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1010-1305

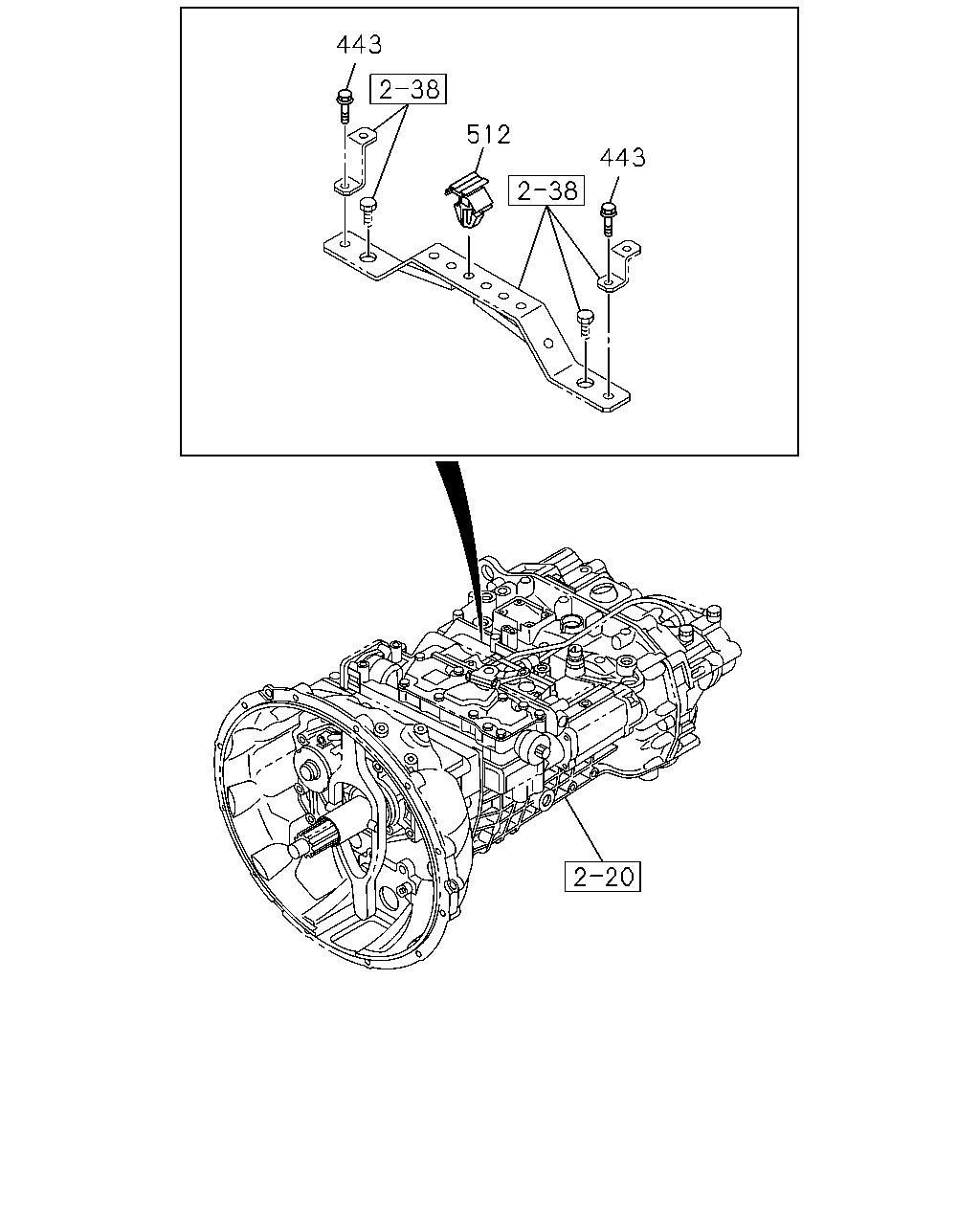

443 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1010-1306
443	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1307-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1010-1306
512	CLIP; PIPE OD=9 H=6	1-09709-178-0	05	1	1307-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1010-1305

52 60 36 36 531 52 60 6 49 60 52 532 532 532 29 29 52 60 25 60 52 531 534 564 617 535 175 52 60 1 17 17 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1010-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1010-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1010-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1010-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1010-1305
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1010-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1010-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1010-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1010-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1010-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1010-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1010-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1010-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1010-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1010-1305
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1010-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1010-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1010-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1010-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1010-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1010-
535	SPRING; LEVER	1-33539-049-0	01	1	1010-
564	SEAL; RING (B)	1-33549-444-0	01	1	1010-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1010-1306
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	1307-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1010-1305
617	PLUG (B)	1-34129-061-0	01	1	1010-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1010-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1010-1305

42 310 677 142 256 418 569

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1010-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1010-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-111-0	01	1	1010-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1010-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1010-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1010-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1010-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1010-1306
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-062-0	01	1	1307-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1010-1305
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1010-1306
310	PLATE; LOCK,SHIFT LEVER	1-33549-453-0	01	1	1307-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1010-1306
418	PIECE; DIST,QUAD BOX	1-33549-454-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1010-1306
569	PIN; QUADRANT BOX (A)	1-33529-106-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1010-1306
569	PIN; QUADRANT BOX (B)	1-33549-452-0	01	1	1307-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1010-1306
569	PIN; QUADRANT BOX (C)	1-33549-468-0	01	1	1307-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1010-1305
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1010-1306
677	PIN; PLATE	1-33549-452-0	01	1	1307-

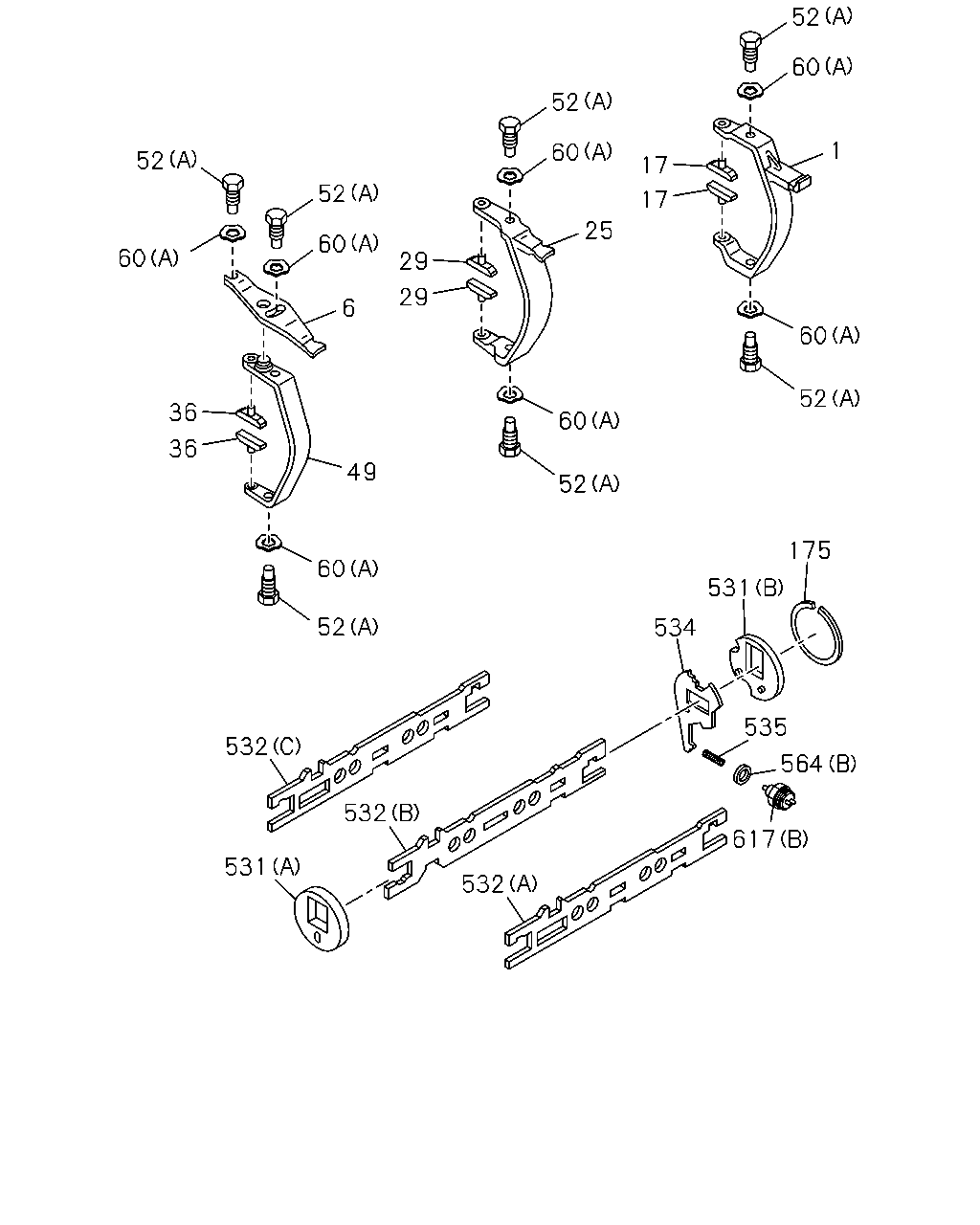

52 60 52 60 6 49 36 60 36 52 60 52 25 60 52 29 29 52 60 60 52 175 531 534 535 564 617 532 532 531 532 17 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1010-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1010-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1010-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1010-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1010-1305
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1010-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1010-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1010-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1010-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1010-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1010-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1010-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1010-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1010-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1010-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1010-1305
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1010-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1010-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1010-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1010-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1010-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1010-
535	SPRING; LEVER	1-33539-049-0	01	1	1010-
564	SEAL; RING (B)	1-33549-444-0	01	1	1010-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1010-1306
564	SEAL; RING (A) T=2.0	1-82449-010-0	01	1	1307-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1010-1305
617	PLUG (B)	1-34129-061-0	01	1	1010-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1010-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1010-1305

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
